MadMunky Posted August 9, 2010 Share Posted August 9, 2010 Hi All, I managed to get my Lenovo R61 working almost 99% apart from the wireless driver which i believe is being release soon but after a reboot I've got this... I'd really like to not have to start again from scratch so can anyone help with why im getting this, I don't seem to be able to get into console mode or safe mode so maybe there is a boot string I need to use? If it helps the last kext I loaded was the ApplePS2Controller and an Apple ACPI, I tested both kext using kextloader which loaded ok before the reboot.. Quote Link to comment Share on other sites More sharing options...
riws Posted August 9, 2010 Share Posted August 9, 2010 Is there a particular reason, why you don't use the vanilla Kernel and took the AppleACPIPlatform.kext? Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 9, 2010 Author Share Posted August 9, 2010 I used the AppleACPIPlatform.kext as someone reported it made my touchpad and keyboard work with the ApplePS2Controller. Would running Vanilla make it boot? Quote Link to comment Share on other sites More sharing options...
riws Posted August 10, 2010 Share Posted August 10, 2010 AppleACPIPS2Nub.kext does the job for the PS2Controller and AppleACPIPlatform Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 10, 2010 Author Share Posted August 10, 2010 Thanks for the reply, I manage to get it to boot again by rolling back to my orginal AppleACPIPPlatform, the kernel im running is the Mech Kernel. Problem is now the system will only boot if I use the string -v- f and I've also just updated to 10.6.4 which has broke it again complaining about org.netkas.fakesmc Quote Link to comment Share on other sites More sharing options...
riws Posted August 10, 2010 Share Posted August 10, 2010 Pic? Quote Link to comment Share on other sites More sharing options...

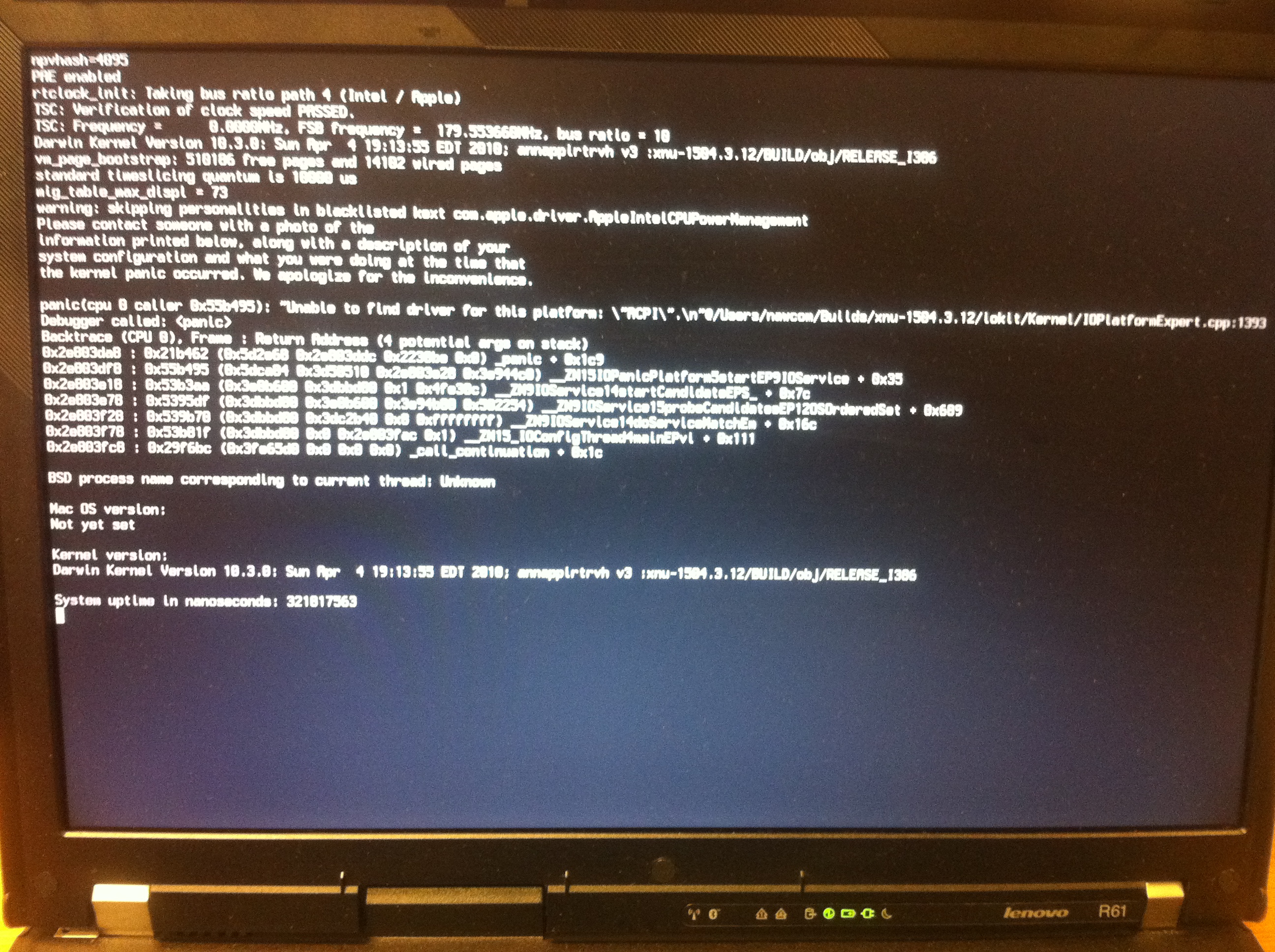

MadMunky Posted August 11, 2010 Author Share Posted August 11, 2010 Sorry for the delay, Here a pic, this is what happens if I try and boot without the -v -f option I've gone back to 10.6.3 to get this fixed then once its booting OK again i'll backup and try upgrade to 10.6.4 It looks like it complaining about the ACPI again... Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 Anyone got any ideas, it strange that it boot if I do a -f Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 Clear /System/Library/Caches Why not vanilla Kernel? Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 No Reason really I didnt notice it wasnt. What's the easiest way of enabling the Vanilla Kernel? Cheers though for the reply, just trying the cache clear now Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 Get it from Update and replace it. But if you update to 10.6.4 it should install and load it, if its not loading a renamed Kernel file. Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 Will update again to 10.6.4 and try. Clearing the cache did not fix the boot problem though Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 What extra Kext'es do you use? Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 AppleBCM5701 Intel X3100 Ps2nub VoodooHDA Think thats about it Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 Some kind of a Disabler? fakeSMC? Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 OK a few more than I thought, just did a dump of the /Extra/Extensions folder and I have the following Im pretty new to all this stuff still so not too sure if I actually need all these.. AHCIPortInjector.kext ATAPortInjector.kext AppleBCM5701Ethernet.kext AppleIntel8254XEthernet.kext AppleRTL8139Ethernet.kext AppleUSBEthernet.kext AppleUSBGigEthernet.kext AppleYukon2.kext Disabler.kext EvOreboot.kext FakeSMC.kext IOAHCIBlockStorageInjector.kext Intel82574L.kext JMicron36xATA.kext JMicron36xSATA.kext JMicron36xeSATA.kext JMicronATAInjector.kext LegacyAppleRTC.kext NVEnabler 64.kext NullCPUPowerManagement.kext RealtekR1000SL.kext SleepEnabler.kext nvenet.kext Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 Get your System up again with 10.6.3 and create your DSDT, so you don't need the Disablers. You have Intel or Nvidia GFX? JMicron Controller? Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 Not sure how to create a DSDT will do a search Yeah GFX is a Intel X3100 (965) JMicron I think was needed for the SATA HDD in the laptop Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 So you don't need nvenet.kext and NVEnabler 64.kext. Intel LAN? Search for DSDT Patcher JMicron I think was needed for the SATA HDD in the laptop Sure? Make a screenshot of DPCI Manager if you are in OSX. Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 00:00.0 Host bridge [0600]: Intel Corporation Mobile PM965/GM965/GL960 Memory Controller Hub [8086:2a00] (rev 0c) 00:02.0 VGA compatible controller [0300]: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller [8086:2a02] (rev 0c) 00:02.1 Display controller [0380]: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller [8086:2a03] (rev 0c) 00:1a.0 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #4 [8086:2834] (rev 03) 00:1a.1 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #5 [8086:2835] (rev 03) 00:1a.7 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB2 EHCI Controller #2 [8086:283a] (rev 03) 00:1b.0 Audio device [0403]: Intel Corporation 82801H (ICH8 Family) HD Audio Controller [8086:284b] (rev 03) 00:1c.0 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 1 [8086:283f] (rev 03) 00:1c.1 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 2 [8086:2841] (rev 03) 00:1c.2 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 3 [8086:2843] (rev 03) 00:1c.3 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 4 [8086:2845] (rev 03) 00:1c.4 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 5 [8086:2847] (rev 03) 00:1d.0 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #1 [8086:2830] (rev 03) 00:1d.1 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #2 [8086:2831] (rev 03) 00:1d.2 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #3 [8086:2832] (rev 03) 00:1d.7 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB2 EHCI Controller #1 [8086:2836] (rev 03) 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev f3) 00:1f.0 ISA bridge [0601]: Intel Corporation 82801HEM (ICH8M) LPC Interface Controller [8086:2815] (rev 03) 00:1f.1 IDE interface [0101]: Intel Corporation 82801HBM/HEM (ICH8M/ICH8M-E) IDE Controller [8086:2850] (rev 03) 00:1f.2 SATA controller [0106]: Intel Corporation 82801HBM/HEM (ICH8M/ICH8M-E) SATA AHCI Controller [8086:2829] (rev 03) 00:1f.3 SMBus [0c05]: Intel Corporation 82801H (ICH8 Family) SMBus Controller [8086:283e] (rev 03) 03:00.0 Network controller [0280]: Intel Corporation PRO/Wireless 3945ABG Network Connection [8086:4227] (rev 02) 04:00.0 Ethernet controller [0200]: Broadcom Corporation NetLink BCM5787M Gigabit Ethernet PCI Express [14e4:1693] (rev 02) 15:00.0 CardBus bridge [0607]: Ricoh Co Ltd RL5c476 II [1180:0476] (rev ba) 15:00.1 FireWire (IEEE 1394) [0c00]: Ricoh Co Ltd R5C832 IEEE 1394 Controller [1180:0832] (rev 04) 15:00.2 SD Host controller [0805]: Ricoh Co Ltd R5C822 SD/SDIO/MMC/MS/MSPro Host Adapter [1180:0822] (rev 21) 15:00.3 System peripheral [0880]: Ricoh Co Ltd R5C843 MMC Host Controller [1180:0843] (rev 11) 15:00.4 System peripheral [0880]: Ricoh Co Ltd R5C592 Memory Stick Bus Host Adapter [1180:0592] (rev 11) 15:00.5 System peripheral [0880]: Ricoh Co Ltd xD-Picture Card Controller [1180:0852] (rev 11) Looks like I have a intel controller I've downloaded DSDT Patcher GUI, do I just run it with the default settings? Quote Link to comment Share on other sites More sharing options...
Mohamed Khairy Posted August 12, 2010 Share Posted August 12, 2010 can i help you with ricom2ger what did you use to setup Quote Link to comment Share on other sites More sharing options...
riws Posted August 12, 2010 Share Posted August 12, 2010 00:00.0 Host bridge [0600]: Intel Corporation Mobile PM965/GM965/GL960 Memory Controller Hub [8086:2a00] (rev 0c)00:02.0 VGA compatible controller [0300]: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller [8086:2a02] (rev 0c) 00:02.1 Display controller [0380]: Intel Corporation Mobile GM965/GL960 Integrated Graphics Controller [8086:2a03] (rev 0c) 00:1a.0 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #4 [8086:2834] (rev 03) 00:1a.1 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #5 [8086:2835] (rev 03) 00:1a.7 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB2 EHCI Controller #2 [8086:283a] (rev 03) 00:1b.0 Audio device [0403]: Intel Corporation 82801H (ICH8 Family) HD Audio Controller [8086:284b] (rev 03) 00:1c.0 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 1 [8086:283f] (rev 03) 00:1c.1 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 2 [8086:2841] (rev 03) 00:1c.2 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 3 [8086:2843] (rev 03) 00:1c.3 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 4 [8086:2845] (rev 03) 00:1c.4 PCI bridge [0604]: Intel Corporation 82801H (ICH8 Family) PCI Express Port 5 [8086:2847] (rev 03) 00:1d.0 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #1 [8086:2830] (rev 03) 00:1d.1 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #2 [8086:2831] (rev 03) 00:1d.2 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB UHCI Controller #3 [8086:2832] (rev 03) 00:1d.7 USB Controller [0c03]: Intel Corporation 82801H (ICH8 Family) USB2 EHCI Controller #1 [8086:2836] (rev 03) 00:1e.0 PCI bridge [0604]: Intel Corporation 82801 Mobile PCI Bridge [8086:2448] (rev f3) 00:1f.0 ISA bridge [0601]: Intel Corporation 82801HEM (ICH8M) LPC Interface Controller [8086:2815] (rev 03) 00:1f.1 IDE interface [0101]: Intel Corporation 82801HBM/HEM (ICH8M/ICH8M-E) IDE Controller [8086:2850] (rev 03) 00:1f.2 SATA controller [0106]: Intel Corporation 82801HBM/HEM (ICH8M/ICH8M-E) SATA AHCI Controller [8086:2829] (rev 03) 00:1f.3 SMBus [0c05]: Intel Corporation 82801H (ICH8 Family) SMBus Controller [8086:283e] (rev 03) 03:00.0 Network controller [0280]: Intel Corporation PRO/Wireless 3945ABG Network Connection [8086:4227] (rev 02) 04:00.0 Ethernet controller [0200]: Broadcom Corporation NetLink BCM5787M Gigabit Ethernet PCI Express [14e4:1693] (rev 02) 15:00.0 CardBus bridge [0607]: Ricoh Co Ltd RL5c476 II [1180:0476] (rev ba) 15:00.1 FireWire (IEEE 1394) [0c00]: Ricoh Co Ltd R5C832 IEEE 1394 Controller [1180:0832] (rev 04) 15:00.2 SD Host controller [0805]: Ricoh Co Ltd R5C822 SD/SDIO/MMC/MS/MSPro Host Adapter [1180:0822] (rev 21) 15:00.3 System peripheral [0880]: Ricoh Co Ltd R5C843 MMC Host Controller [1180:0843] (rev 11) 15:00.4 System peripheral [0880]: Ricoh Co Ltd R5C592 Memory Stick Bus Host Adapter [1180:0592] (rev 11) 15:00.5 System peripheral [0880]: Ricoh Co Ltd xD-Picture Card Controller [1180:0852] (rev 11) Looks like I have a intel controller So you don't need those JMicron Kext's I've downloaded DSDT Patcher GUI, do I just run it with the default settings? Just run it, choose your OSX Partition. Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 12, 2010 Author Share Posted August 12, 2010 can i help you with ricom2ger what did you use to setup I cant honestly remember as it was a while back, I think I used something like [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] with OSx 10.6.2 but I did this on my PC I then created a bootable USB drive from that which I copied to the laptop so I can make a change and if i doesn't work I just clone the USB drive back again. So you don't need those JMicron Kext's Just run it, choose your OSX Partition. Cheers will give it a try and move the unwanted kext, next to work out how to get 10.6.4 working is mach_kernel not the official apple kernel? Quote Link to comment Share on other sites More sharing options...
Mohamed Khairy Posted August 12, 2010 Share Posted August 12, 2010 did you have retail 10.6.3 dvd Quote Link to comment Share on other sites More sharing options...
MadMunky Posted August 13, 2010 Author Share Posted August 13, 2010 did you haveretail 10.6.3 dvd It was Retail 10.6.2 So you don't need those JMicron Kext's Just run it, choose your OSX Partition. Didnt seem to help, I've removed the JMicron Kext and run DSDT Patcher then booted with the flag DSDT=/DSDT.aml but still getting the same kernel panic on boot. Quote Link to comment Share on other sites More sharing options...
