pirloui Posted November 15, 2009 Share Posted November 15, 2009 I got hand on a cheap Mac Pro case some weeks ago. I like it better that the G5 case, and decided to make it as stock looking as possible. I got a Mac Pro PSU that I gutted, and replaced it with my ATX PSU. The Hack Pro now has a sleek bar of aluminium on top It's just half done, but here are some pics. A mess inside, but over time I will use the Apple quick release for the HDDs, clean up the mess and hopefully find the original fan block and air guide. (they are too expensive online). The case stripped of cables. I will wire the front pannel, but another time. A slipstream fan for silent cooling of the power supply. Should have been a Gentle Typhoon, but not to be found. Motherboard in place. Stand offs reglued with epoxy. The ATX PSU bottom case was cut and bended to fit on top of the Apple stand offs. Et Voila! an Apple ATX power supply. Getting in place; was slightly long to get there, I hope I won't have to move it too soon. Fan alignes nicely with the heatsinks. All in place for now. As mentionned will tidy up a lot and add fans. The back. Mac Pro power cable and foud a grey wifi antennae. Update in a couple of weeks probably :angry2: BTW, you guys who have the fan block and ram cages and so on: Do the fan block touch the wall behind it? I would like to have the 24pin prolonger run horizontally from the front panel to the mobo, would that be possible if I get the parts? Thanks a lot for any information. Link to comment Share on other sites More sharing options...
Konami® Posted November 15, 2009 Share Posted November 15, 2009 Pretty impressive Link to comment Share on other sites More sharing options...
pirloui Posted November 15, 2009 Author Share Posted November 15, 2009 Wow, this is totally the wrong forum, can someone with the means catapult this to "mods and overclocking" Sorry and thanks. Link to comment Share on other sites More sharing options...
Groot Koos Posted November 15, 2009 Share Posted November 15, 2009 Pirloui, Could you post the original size picture of: "Fan aligns nicely with the heatsinks", for me!?(the one showing the fan behind the power supply) I think it will make a great desktop picture! If you have a place where you could dump it and post a link it would be great! Koos Link to comment Share on other sites More sharing options...
pirloui Posted November 15, 2009 Author Share Posted November 15, 2009 I think it will make a great desktop picture! If you have a place where you could dump it and post a link it would be great! Nice you like it Here is the original file + another of the same + another that might be desktop picture material. Beste. Cheers! http://www.laading.net/temp/mac_pro_pt_1/PSU-1.jpg http://www.laading.net/temp/mac_pro_pt_1/PSU-2.jpg http://www.laading.net/temp/mac_pro_pt_1/PSU-3.jpg Link to comment Share on other sites More sharing options...
SticMAC™ Posted November 15, 2009 Share Posted November 15, 2009 Thanks, I really like the one because you got the shot to focus on the label of the fan at the back! I don't know if it was by accident, if it wasn't you have a future in Photography!! StiCMAC Link to comment Share on other sites More sharing options...
wingwing Posted November 17, 2009 Share Posted November 17, 2009 @pirloui: Wow - TOP - very nice ) ... {censored}: Now I want to have the same... *g* Link to comment Share on other sites More sharing options...
Jedric Posted November 18, 2009 Share Posted November 18, 2009 pirloui what screws did you use for the MB and stand-offs? Link to comment Share on other sites More sharing options...
pirloui Posted November 19, 2009 Author Share Posted November 19, 2009 That's M3.5-8mm screws (10mm will also fit) I had to trawl some shops to get them, but ask, they had in backroom. Link to comment Share on other sites More sharing options...
Jedric Posted November 20, 2009 Share Posted November 20, 2009 That's M3.5-8mm screws (10mm will also fit)I had to trawl some shops to get them, but ask, they had in backroom. Thanks Link to comment Share on other sites More sharing options...
pirloui Posted March 7, 2010 Author Share Posted March 7, 2010 I soldered the Apple SATA quick release to regular SATA connectors in order to use the HD bays to their full extent. The case is also tidier that way. Still misses the fan shroud that should cover most of the cable mess in the front. Delicious strands... Counting preparation and soldering it took close to a day. Some re-arrangement of the CPU cooler part. It rests of a rubber block, and the two fans are PWM. SATA power connectors (between the PSU and the Apple quick release thing) are now tucked up beside under the DVD wall plate. On its way to tidy. Next: retry the font pannel USB and get a longer 24pin PSU extender to get it to lie flat when the area gets covered. Link to comment Share on other sites More sharing options...
wlazara Posted July 30, 2010 Share Posted July 30, 2010 very cool - do all the front panel ports work? what is involved there? Link to comment Share on other sites More sharing options...
pirloui Posted July 30, 2010 Author Share Posted July 30, 2010 Thank s:) Basically you will need an extension for the PSU 24 pins, from wich you get 3 and 5 volt or so for the front panel. One FP connector will go to power / reset etc; another audio, another usb and FW. Basically it can all work, you will just have to beware of the version of ther FP; there are two; you can get more info and pinouts at aquamac forum. Link to comment Share on other sites More sharing options...
wlazara Posted August 29, 2010 Share Posted August 29, 2010 Is this a 2009 MP case? I have a 2009 that has a 44pin connector on the front panel and I can't find a pinout for it (including at aquamac, which seems to be half-broken)... EDIT: ah I see you have an older front panel... Link to comment Share on other sites More sharing options...
craterloads Posted September 5, 2010 Share Posted September 5, 2010 Great build so far - How much did you pay for powersupply? Im set to buy a 2009 Mac Pro case for £139 but seller wants £200 for it icnluding powersupply. Seems a shame to butcher a brand new power supply and expensive too!! Link to comment Share on other sites More sharing options...

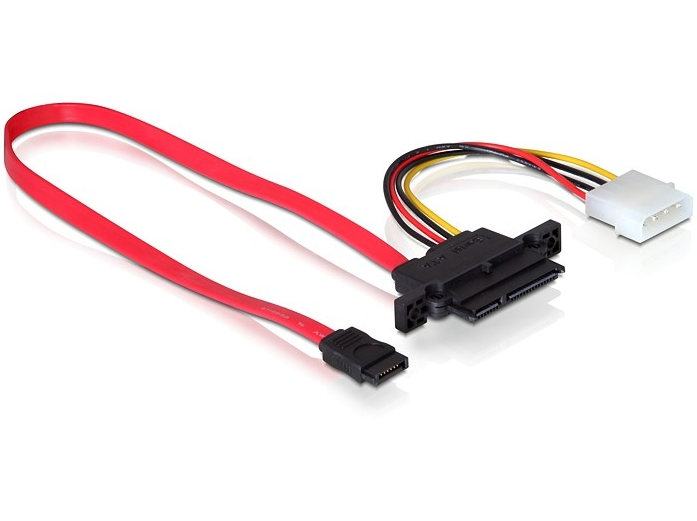

RemoteWorks Posted September 7, 2010 Share Posted September 7, 2010 Hi there Pirloui, nice build... Can i ask a question? I know it's not very difficult to solder the sata cables, but would this adapter fit as a replacement. Thnx. RW Link to comment Share on other sites More sharing options...
The_Wrath-Of_GOD Posted October 22, 2010 Share Posted October 22, 2010 I am trying to do something similar can i ask how you gutted the PSU and replaced it with an ATX? which PSU did you get to do that? would help out alot, thanks! Link to comment Share on other sites More sharing options...
pirloui Posted October 23, 2010 Author Share Posted October 23, 2010 @RemoteWorks: Sure those will work; you just need to find a way to fix them at the right position. (shouldn't be too much of a problem) @The_Wrath-Of_GOD: The MacPro PSUs are all the same for that use; as for the ATX part; you can use anyone that isn't too long. I used a Antec EarthWatts 380W. Good luck Link to comment Share on other sites More sharing options...
antchen Posted November 30, 2010 Share Posted November 30, 2010 MOD 変換Mac 4Media Mod 変換Macは優れたMac Mod変換ソフトです。Mac OS Xユーザーために完璧な出力品質と高速度で一つの形式をまた一つに変換できるソフトです。MOD、FLV、MKV、WMV、ASF、MPEG1、 MPEG2、MP4、3GP、3G2、MOV、AVI、 M2TS、MPEG TS/TP (for HD Video)、 M4Vなどの形式をサポートします。 http://www.mp4converter.jp/mod-converter-mac.html Link to comment Share on other sites More sharing options...
golgo013 Posted November 30, 2010 Share Posted November 30, 2010 Hi, pirloui I was wondering where you got the case from, i'm interested but atm most of the cases that i have found involve hefty shipping cost Thanks in advance Link to comment Share on other sites More sharing options...
