X1300 Funky colors, no QE/CI but res change works.


  • Please log in to reply
14 replies to this topic

#1
ddew

ddew

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
I've been trying to get my vid card, an ATI X1300, working and this driver solution seemed like the best choice. I've installed the driver and latest X1300 .kext from diabolik's site but I can't get QE/CI going. The card is a X1300Pro with the device ID 7183 and so far I've only seen 7142 mentioned.

I tried editing ATIRadeonX1000.kext manually to add my card to it but that only results in a kernel panic when I try to boot.

Anything I can do to either get it working properly or to help out in the testing?

#2
DiaboliK

DiaboliK

    DiaboliK <- Capital K!

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,336 posts
  • Gender:Male
  • Location:Hollyweird, CA
did you remember to chmod + chown the ATIRadeonx1000.kext and do a permissions repair afterwards?

or am i the only one who can add a device id to atiradeonx1000.kext without having it panic?

-DiaboliK

#3
ddew

ddew

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

did you remember to chmod + chown the ATIRadeonx1000.kext and do a permissions repair afterwards?

or am i the only one who can add a device id to atiradeonx1000.kext without having it panic?

-DiaboliK


I've repaired everything as needed, chmodded etc but the best I can get is a kernel panic. Without that .kext I get a semi-working card with extremely high contrast, no QE/CI and no VGA output, only DVI working with a vga-adapter.

I should've been clearer but I'm busy trying out various drivers and modding whatever I can find.

Any more info you want, like ioreg dumps and so on?

#4
Virgo

Virgo

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts
  • Gender:Male
I have the same problem. Kernel panic after add a device id to atiradeonx1000.kext.
ID 7183

#5
ddew

ddew

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
I've been doing some reading on my specific card and there are a few changes from the "old" X1300. Turns out the one I have, 7183, differs from the older one at 7142. The previous version had an RV515 core and this one's got an RV516, the only change I can see is the manufacturing process when they switched fabs and went to a 90nm core.

Still that shouldn't be that much of a change, should it? I'm assuming that they're compatible as no functions have changed. Any hints on what my next step should be?

Thanks for the effort on the drivers, it really takes some dedication. :)

#6
Virgo

Virgo

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts
  • Gender:Male
Driver for MAC OS X based on linux driver and may be not support 7183. :thumbsup_anim:

#7
ddew

ddew

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
How do you mean? The fglrx driver works with this card but the radeon driver in x.org doesn't support it. They don't support anything over rv4xx if I'm not mistaken.

#8
Virgo

Virgo

    InsanelyMac Protégé

  • Members
  • Pip
  • 21 posts
  • Gender:Male
I mean this driver but not make in Apple.

#9
ddew

ddew

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

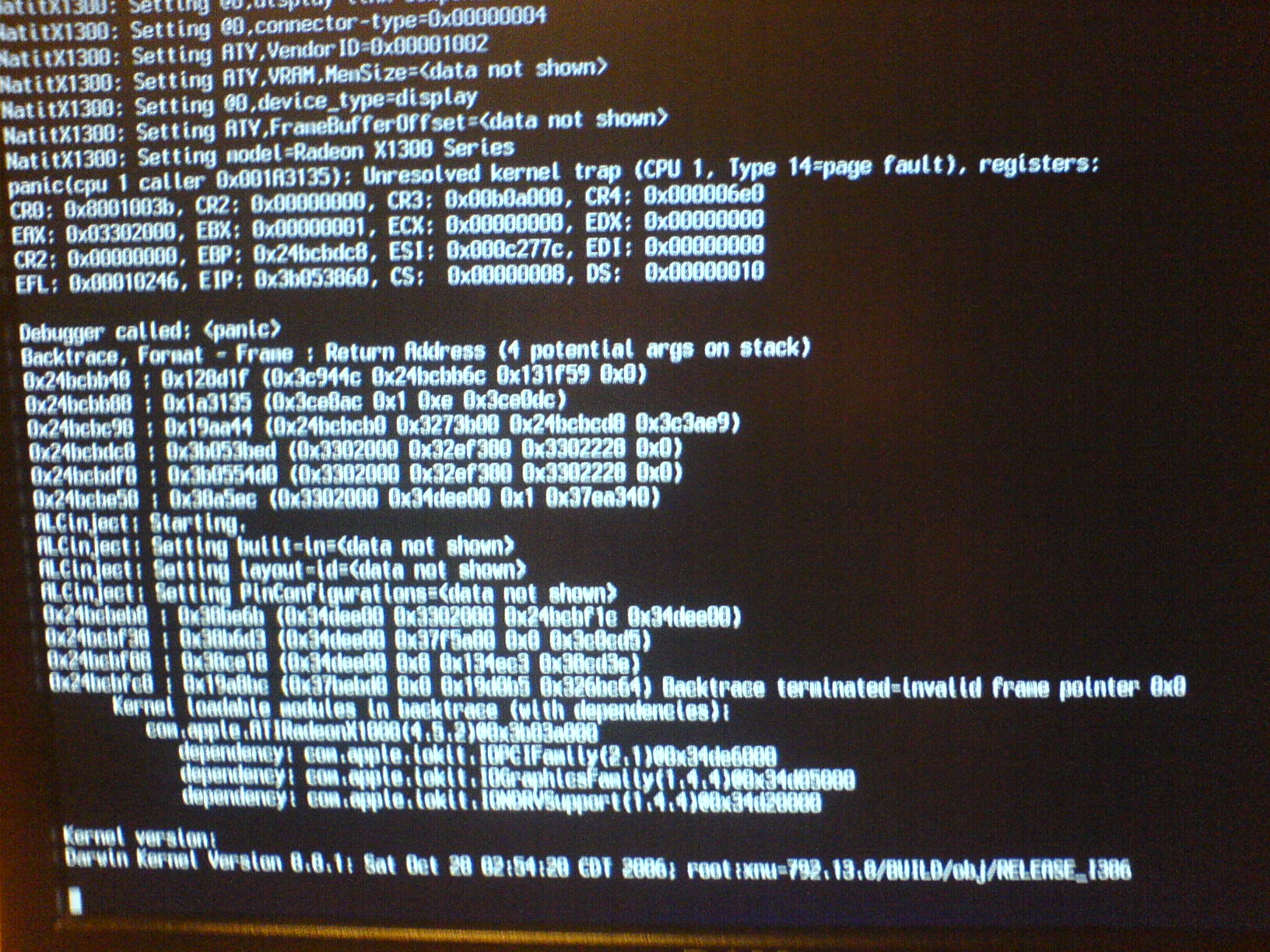

Here's a "screenshot" of the kernel panic, hope it helps.

Attached Files



#10
DivideOverflow

DivideOverflow

    InsanelyMac Protégé

  • Members
  • Pip
  • 10 posts
I get that panic too, but not with NATIT (ddew, how did you get OSX to load NATIT?), I edited ATIRadeonX1000.kext and changed X1300 entry to 7183 instead of 7140 but in verbose mode, 'display: specific family setting failed' (or similar) appears and OSX will not load, computer just reboots. I am now going to try chmod and chown as well...

#11
achtung

achtung

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
Hi there,

I use Natit_Uni_1.0.pkg with my ATI X1300 Pro PCIe / DVI and everything works fine. My resolution is 1680x1050 an I can play e.g. Quicktime Trailer (720p) with no problem.
But the "SystemProfiler" says:
**************************************************************************
ATI Radeon X1300 Series:

Chipset Model: ATI Radeon X1300 Series
Type: Display
Bus: PCIe
VRAM (Total): 256 MB
Vendor: ATI (0x1002)
Device ID: 0x7183
Revision ID: 0x0000
Displays:
DELL 2005FPW:
Resolution: 1680 x 1050 @ 60 Hz
Depth: 32-bit Color
Core Image: Not Supported
Main Display: Yes
Mirror: Off
Online: Yes
Quartz Extreme: Not Supported
Display:
Status: No display connected
**************************************************************************

I edited my /System/Library/Extensions/ATIRadeonX1000.kext/Info.plist but that doesn't help, obviously!

So here is my kernel log:
**************************************************************************
Natit: Starting.
device-id: 0x71A3
Natit: Found device
Natit: Found device name
Natit: Setting device_type=ATY,CarettaParent
Natit: Setting @1,device_type=display
Natit: Setting @0,compatible=ATY,Caretta
Natit: Setting @0,display-connect-flags=0x00000400
Natit: Setting @1,compatible=ATY,Caretta
Natit: Setting @1,display-connect-flags=0x00000400
Natit: Setting @1,name=ATY,Caretta
Natit: Setting @0,name=ATY,Caretta
Natit: Setting @0,device_type=display
Natit: Setting model=ATI Radeon X1300 Series Secondary
display: family specific matching fails
Natit: Starting.
device-id: 0x7183
Natit: Found device
Natit: Found device name
Natit: Setting device_type=ATY,CarettaParent
Natit: Setting @1,device_type=display
Natit: Setting @0,compatible=ATY,Caretta
Natit: Setting @0,display-connect-flags=0x00000400
Natit: Setting @1,compatible=ATY,Caretta
Natit: Setting @1,display-connect-flags=0x00000400
Natit: Setting @1,name=ATY,Caretta
Natit: Setting @0,name=ATY,Caretta
Natit: Setting @0,device_type=display
Natit: Setting model=ATI Radeon X1300 Series
ATY,Caretta: Not usable
ATY,Caretta: Not usable
**************************************************************************

"ATY,Caretta: Not usable" seems to be the problem? How could I change to one of the other driver?
Any solutions to the problem? Any suggestions?

Thank you,
Marc

#12
x5900

x5900

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts
Same problem here, Device ID 7183, as it turns out there's no solution for this kind of card. If you change the Kext to match ID 7183, it will only result in kernel panic. If you change it 7142, nothing will happen, but there will be no kernel panic after that.

There's one last thing I'm going to try before I'll trade this card in, this will be flashing the ROM of this card in exchange for an older one with a different ID. I have no clue if this is gonna work, but honestly, I'm kinda low of ideas after trying everything else, go on and call desperation on this :-)

If anyone has a card with Device ID 7142, it would be great if he uses Atiwinflash (http://www.techpower...OS_Flashing/ATI) to make a ROM dump and then share the romfile with us. If this won't work, at least it won't brick the card, because I can flash the original bios back in.

#13
achtung

achtung

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
The BIOS method sounds good to me. I also would try it out!

Ok, i just found on the above mentioned site (http://www.techpower...OS_Flashing/ATI) two rom files.

1. Sapphire X1300 Pro 256 MB Dec 12th 2005 6:20 AM Jul 24th 2006 11:33 AM 600 / 400 Infineon
2. MSI X1300 Pro 256 MB Sep 28th 2005 9:52 PM Jan 6th 2006 1:14 PM 600 / 400 Infineon 2.5

The Sapphire BIOS has exactly the same size as the Dell BIOS!

Do they have valid id's? Is the id hardware based? I couldn't find the id (0x7183) in a hex dump of my Dell bios!

#14
achtung

achtung

    InsanelyMac Protégé

  • Members
  • Pip
  • 27 posts
Hi there,

I tried everything but I couldn't get this card (ATI X1300Pro ID:0x7183) working with QE,CI. I have a few questions:

1) Is it a problem that the Natit.kext list the above card as a ATI X1300 (without PRO). Could a new version of this kernel module solve this problem? I tried to edit the kernel file myself where the id was listed under ATI X1300 (without PRO, via hex editor) but that dosn't worked really well. I just don't understand enough about this stuff.
2) Is it worth trying the idee in the previous post to change the BIOS of the card to e.g the MSI BIOS? Does it work? I looked into the BIOS file and couldn't find a ID section at all? Once again, does anybody know if the ID is hardware or software based?

I would be nice if some people who know a little about this stuff, like DiaboliK, could answer to this questions. I just don't think the problem is that big because the extact same card layout works with a different ID. It is just a software/kernel module issue.

Thanks.

#15
DiaboliK

DiaboliK

    DiaboliK <- Capital K!

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,336 posts
  • Gender:Male
  • Location:Hollyweird, CA

I would be nice if some people who know a little about this stuff, like DiaboliK, could answer to this questions. I just don't think the problem is that big because the extact same card layout works with a different ID. It is just a software/kernel module issue.

Thanks.


my NatitX1300kext is specifically tailored to ATi x1300 cards. (so its not the driver)

osx dosent like the use of some device id's : in your case 0x71831002

unless you can flash the card to have a device id of 0x71421002 (the working x1300pro device id)
i dont think you can get it to work without doing that.

how to flash a rom i have no clue, you might have to look to strangedogs if needed.
i just get a new card if it doesnt work :)

-DiaboliK
