72 replies to this topic

[watons]

Please tell me the simple way to work out the problems
..
Not working:

Sound: Analog Devices AD1981HD @ Intel 82801GBM ICH7-M - HD Audio Controller [B-0]

PCI Express x16: ATI Mobility Radeon X1400 (Lenovo)

Intel® PRO/Wireless 3945ABG Network Connection

No PowerManagement...

...
by the way, a stupid question - how to capture sreen in the mac osx?

[Rammjet]

Command-Shift-4: select area of screen with cursor and send to file on Desktop
Command-Shift-3: send whole screen to file on Desktop
Add the Control key and send the images to Clipboard

Wireless and video - no solutions
Audio - maybe but doubtful

[Bruce Wang]

Below thread might help your power management problem:
http://forum.insanel...showtopic=14912

As for the wireless, hack the BIOS and replace INTEL with Atheros one.

Bruce

[Skud]

I just installed 10.4.8 on my T60 with the x1400 and BIOS revision 2.03.

After two days of trying, I finally got my x1400 to work with acceleration ON THE INTERNAL LCD and not JUST the external display.

I had to do the following:

** Your milage may vary. This worked for ME, but that doesn't mean it will work for you!! **

1) Force the resolution to the LCD's native resolution (1400x1050x32 for my panel) in the boot.plist
2) Reboot and make sure it works on your INTERNAL LCD. You won't have acceleration, but your resolution should be fine now instead of 1024x768.
3) Edit the ATIRadeonX1000.kext to include your Device ID from the (mine was 7145).
4) rm /System/Library/Extensions.kextcache
5) rm /System/Library/Extensions.mkext
6) diskutil repairPermissions /
7) reboot and enjoy..

Riley

[watons]

1) Force the resolution to the LCD's native resolution (1400x1050x32 for my panel) in the boot.plist
2) Reboot and make sure it works on your INTERNAL LCD. You won't have acceleration, but your resolution should be fine now instead of 1024x768.
3) Edit the ATIRadeonX1000.kext to include your Device ID from the (mine was 7145).

how to do this ? I'm a newbie , plz tell me by detailed steps! Thx!

[watons]

I have change LCD to 1400x1050 now! ^^

But there is something like CI/QE still not work! Maybe someone will tell me how to switch on them!

Attached Files

•  Picture_1.png   20.23KB   330 downloads

[cpascu01]

this is great news!!!

can anyone confirm this?

edit: my native display is 1680 x 1050. Do I just force that in boot.plist?

[geo2002]

this is great news!!!

can anyone confirm this?

edit: my native display is 1680 x 1050. Do I just force that in boot.plist?

Doesn't work on my Acer Aspire 5672WLMi (X1400 1280x800).
MacOS X 10.4.8 JaS Intel SSE3 only

[watons]

I find one guy with T60p (mac 10.4.6 )to make the sound working! I do the same, but mine cannot load the kext!
Maybe I am mac 10.4.8 , or ...who are using mac 10.4.6 , plz give me your AppleAzalizAudio.kext! Thx!

1. Delete AppleHDA.kext:

* In Terminal, type: sudo rm -rf /System/Library/Extensions/AppleHDA.kext
* sudo rm -rf /System/Library/Extensions.mkext
* sudo rm -rf /System/Library/Extensions.kext


2) Edit AppleAzaliaAudio.kext:

* In Terminal, type: sudo pico /System/Library/Extensions/AppleAzaliaAudio.kext/Contents/Info.plist
* Search for (use hotkey= ctrl + w):
<key>IOHDAudioCodecVendorID</key>
* change the string to:
<string>0x10ec0882</string>
* Exit pico
* sudo pico /System/Library/Extensions/AppleAzaliaAudio.kext/Contents/PlugIns/AppleAzaliaController.kext/Contents/Info.plist
* Search for (use hotkey= ctrl + w):
<key>IOPCIPrimaryMatch</key>
* change the string to:
<string>0x27d88086</string>
* Exit pico


3) Clean up the system:

* In Terminal, type: sudo kextload /System/Library/Extensions/AppleAzaliaAudio.kext
* kextcache -k /System/Library/Extensions/


4) Then, reboot and enjoy sound out of two channels.

[Rammjet]

Go to Terminal and type:

cd /System/Library

sudo rm -rf Extensions.mkext Extensions.kextcache

cd Extensions

sudo chown -R root:wheel AppleAzaliaAudio.kext

Then reboot.

[watons]

And about the Wireless,
I think I need a IO80211Family.kext of mac 10.4.5 !

[Rammjet]

The 10.4.5 kext only has a longer list of acceptable device ids. Find your device id in System Profiler or in Windows Device Manager and use the Broadcom link in my signature to fix your kext.

[watons]

Go to Terminal and type:

cd /System/Library
sudo rm -rf Extensions.mkext Extensions.kextcache
cd Extensions
sudo chown -R root:wheel AppleAzaliaAudio.kext

Then reboot.

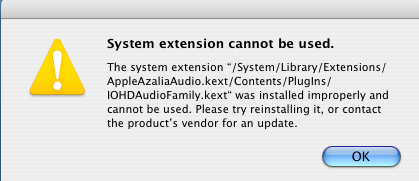

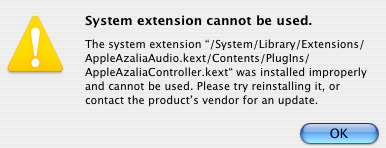

reboot then ...

Attached Files

•  Picture_1.png   24.48KB   199 downloads
•  Picture_2.png   22.39KB   102 downloads

[Rammjet]

Look in the info.plist and be sure you didn't type some extra characters and that the indenting is all the same as it was. After you fix it, repeat the Terminal commands.

[watons]

Look in the info.plist and be sure you didn't type some extra characters and that the indenting is all the same as it was. After you fix it, repeat the Terminal commands.

Still the same problem, my device Id: 0x11d41981 & 0x27d88066 , If possible please edit for me and upload here , thx!

[joe75]

If possible please edit for me and upload here , thx!

Rammjet, can you take my dog for a walk and maybe empty the trash too while you're at it thx!

[watons]

I make the sound work now only output

[watons]

I make the CI/QE to be supported now , but it appear mouse tear...

a very stupid qestion : what funtions do CI/QE have ? why should switch it on?

Attached Files

•  Picture_1.png   16.56KB   109 downloads

[watons]

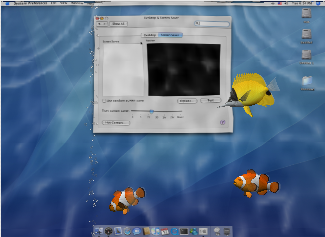

OMG! make QE/CI to be supported, My 3D screen work!

Attached Files

•  Picture_1.png   86.46KB   825 downloads

[geo2002]

I make the CI/QE to be supported now , but it appear mouse tear...

a very stupid qestion : what funtions do CI/QE have ? why should switch it on?

How did you do this?
Please explain. Now I'm downloading Apple MaOSXUpd10.4.8Intel.dmg to extract ATI kexts from it. I hope this will solve the problem.
