HID: legacy shim 2 during upgrade on a GA-H55M-USB3

clover High Sierra hang

Best Answer osidovich, 13 December 2017 - 11:51 AM

SOLVED, using @sunKi Kextpatch

           <dict>
                <key>Comment</key>
                <string>fix IO error ICH10 for 10.13, credit SunKi</string>
                <key>MatchOS</key>
                <string>10.13.x</string>
                <key>Disabled</key>
                <false/>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RYX2D5XCiciD4P5mhcl4D4TSdQs=</data>
                <key>Replace</key>
                <data>iciD4P5mhckPmMFBCMyQkJCQdQs=</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>fix hotplug ICH10 for 10.13, credit SunKi</string>
                <key>MatchOS</key>
                <string>10.13.x</string>
                <key>Disabled</key>
                <false/>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>icglQGACAD1AIAAAdQyB4b9///+Ji1EBAAA=</data>
                <key>Replace</key>
                <data>kJCQkJCQkJCQkJCQkJCQkJCQkJCQkJCQkJA=</data>
            </dict>
Go to the full post


  • Please log in to reply
3 replies to this topic

#1
osidovich

osidovich

    InsanelyMac Protégé

  • Members
  • Pip
  • 7 posts

My system specs:

GA-H55M-USB3 rev. 1.0 | i5 760 | Sapphire Radeon R7 240

Motherboard is NOT UEFI.

Actually I've installed Yosemite 10.10.5 on a SATA HDD (NO SSD) without major issues. SATA controller is an Intel 5 series in AHCI mode.

I'm trying to update to High Sierra 10.13.2, downloaded from AppStore.

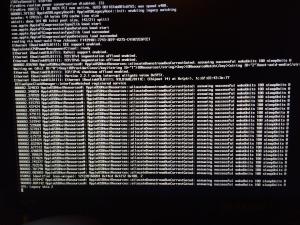

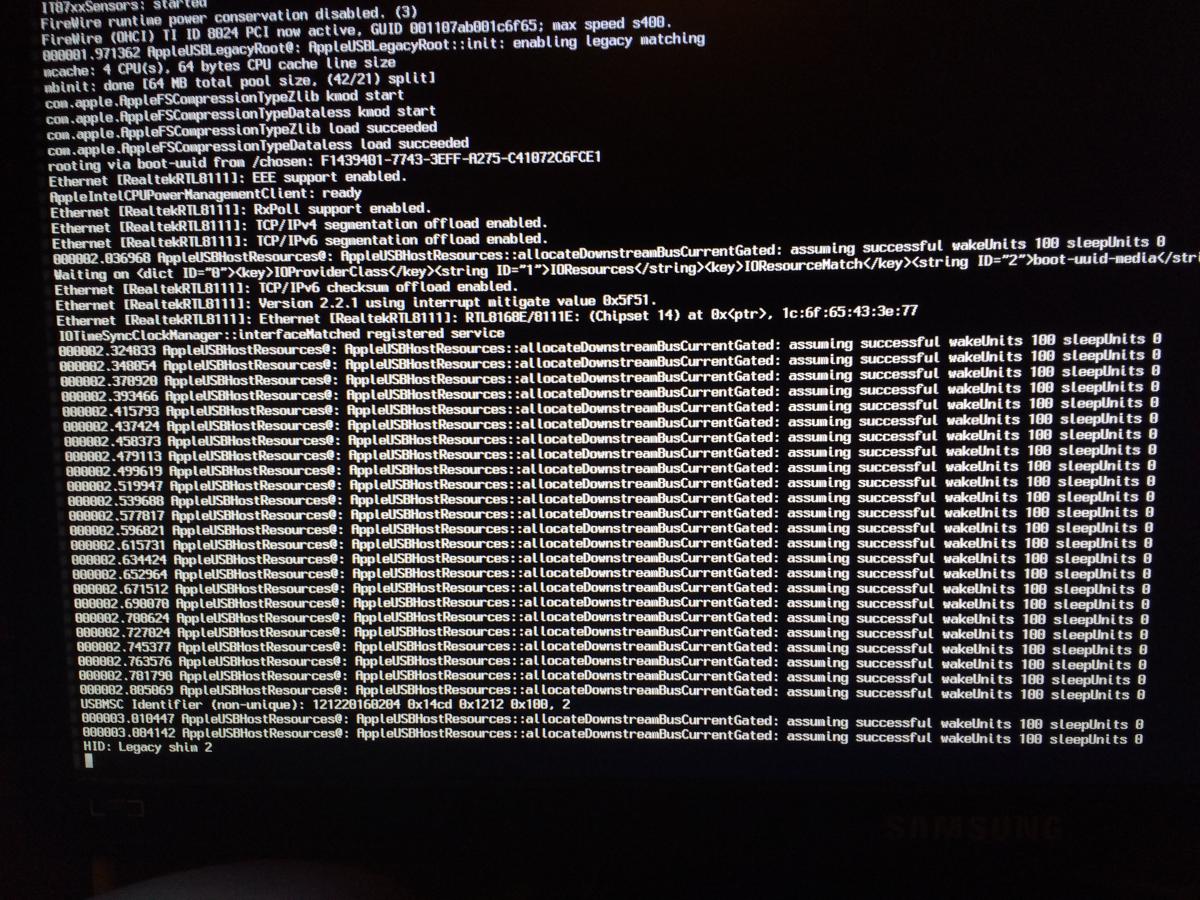

When I boot from USB pendrive (using Clover r4334, config.plist attached), and select macOS installation (installation files resides in Yosemite HDD), installation fails with those errors:

HID: shim legacy 2

USB pendrive is inserted in a USB2.0 port. I've tried to insert it in all available USB ports but error is still present.

Kexts used (all in EFI/CLOVER/kexts/Other):

AppleALC.kext (used in Yosemite to have working audio with ALC889)
FakeSMC.kext
GenericUSBXHCI.kext (for USB3.0, NEC/Renesas chip)
Lilu.kext (dependency of AppleALC)
RealtekRTL8111.kext (Ethernet)
USBInjectAll.kext
VoodooPS2Controller.kext (mouse)

Downloaded from Rehabman bitbucket repositories, latest version where applicable or from author's repository.

Any clues?

Attached Files



#2
osidovich

osidovich

    InsanelyMac Protégé

  • Members
  • Pip
  • 7 posts

Best Answer

SOLVED, using @sunKi Kextpatch

           <dict>
                <key>Comment</key>
                <string>fix IO error ICH10 for 10.13, credit SunKi</string>
                <key>MatchOS</key>
                <string>10.13.x</string>
                <key>Disabled</key>
                <false/>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RYX2D5XCiciD4P5mhcl4D4TSdQs=</data>
                <key>Replace</key>
                <data>iciD4P5mhckPmMFBCMyQkJCQdQs=</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>fix hotplug ICH10 for 10.13, credit SunKi</string>
                <key>MatchOS</key>
                <string>10.13.x</string>
                <key>Disabled</key>
                <false/>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>icglQGACAD1AIAAAdQyB4b9///+Ji1EBAAA=</data>
                <key>Replace</key>
                <data>kJCQkJCQkJCQkJCQkJCQkJCQkJCQkJCQkJA=</data>
            </dict>


#3
kitmac

kitmac

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 216 posts
  • Gender:Male

what kext do i patch with this???



#4
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,962 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

what kext do i patch with this???

AppleAHCIPort
