cadash Posted December 3, 2017 Share Posted December 3, 2017 Hi, HDMI works ok, I also got NVIDIA web drivers to work properly, however, I am not getting audio over HDMI. Is this a known issue? Link to comment Share on other sites More sharing options...
Shaneee Posted December 4, 2017 Share Posted December 4, 2017 I didn't need the web drivers for this card. Using the macOS ones and HDMI audio is working just fine. The card works with injection. Link to comment Share on other sites More sharing options...

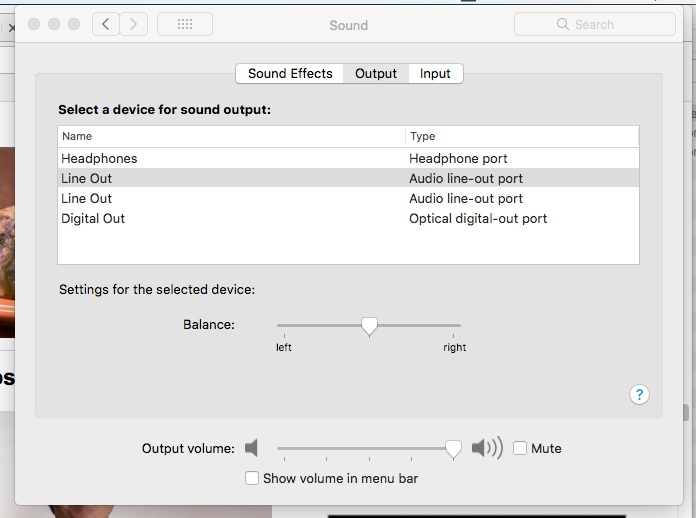

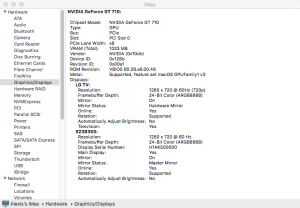

cadash Posted December 4, 2017 Author Share Posted December 4, 2017 Thanks for the info Shanee, I used cloverconfigurator and check nvda_drv=1 but it doesn't matter whether I use OSX default drivers or web drivers, the HDMI sound is not listed under Preferences/Sound/Output I am attaching the system display info in case it might help. (The display is scaled to 720p because I have it connected to a TV as well. Turn it back to 1080p when using the monitor alone) Link to comment Share on other sites More sharing options...
Shaneee Posted December 5, 2017 Share Posted December 5, 2017 nvda_drv doesn't work on 10.13 If you have the web drivers installed check NvidiaWeb in the config. It's under System Parameters in Clover Configurator. If they weren't actually enabled that may sort it. The only difference I can see between our cards is I have the Gigabyte 2GB model. Link to comment Share on other sites More sharing options...
cadash Posted December 5, 2017 Author Share Posted December 5, 2017 I check NvidiaWeb when I wanto to use the web drivers, funny, this card is also Gigabyte so the only difference would be the RAM. However, I never got the HDMI out. I wonder if it is related to the ALC889 codec or maybe because during installation I had a geforce 8600gt but the card wouldn't fit my microATX case so I replaced it with the 710 which has low profile brackets. Link to comment Share on other sites More sharing options...
Shaneee Posted December 5, 2017 Share Posted December 5, 2017 What are you using for Audio? I use VoodooHDA which is what's running the HDMI actually. I just checked it. Link to comment Share on other sites More sharing options...
cadash Posted December 5, 2017 Author Share Posted December 5, 2017 I used Toledas Clover ALC Audio, more specifically for codec ALC889. Did un upgrade to latest Beta and reainstalled the audio drivers having the HDMI cable connected just in case but it didn't make a difference. Link to comment Share on other sites More sharing options...
Shaneee Posted December 6, 2017 Share Posted December 6, 2017 Not sure how that patch handles HDMI audio but you can try injecting this kext with Clover, Link to comment Share on other sites More sharing options...
pico joe Posted December 6, 2017 Share Posted December 6, 2017 https://github.com/toleda/audio_hdmi_amd-nvidia 1 Link to comment Share on other sites More sharing options...
cadash Posted December 6, 2017 Author Share Posted December 6, 2017 Thanks Pico Joe, I tried installing it using the first method, using the cloverALC command, it finds the card and creates an *.aml patch in the EFI partition. Somehow it is not working though, I will try the other methods and let you know guys Link to comment Share on other sites More sharing options...
toleda Posted December 7, 2017 Share Posted December 7, 2017 using the cloverALC command, cloverALC is onboard Realtek audio only. See AppleHDA HDMI Audio - HDMI Audio, try cloverHDMI Link to comment Share on other sites More sharing options...

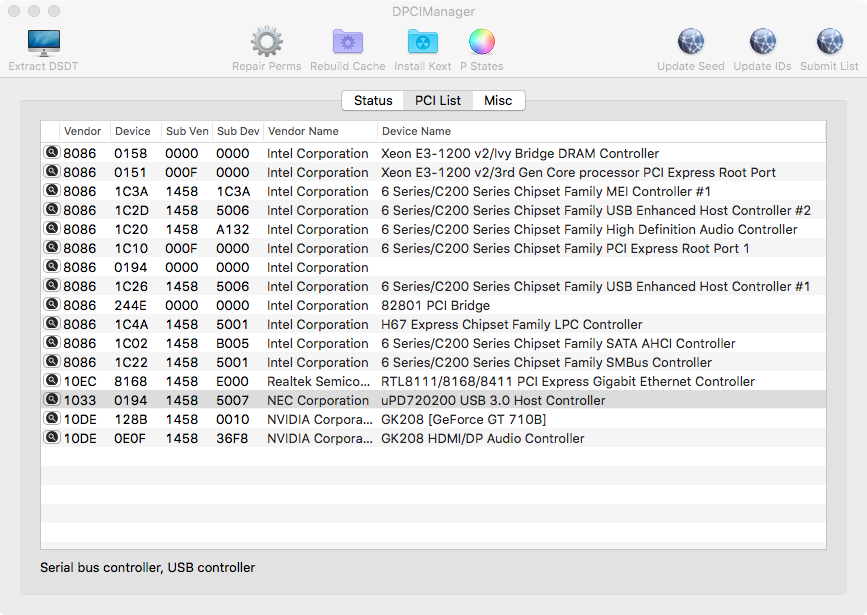

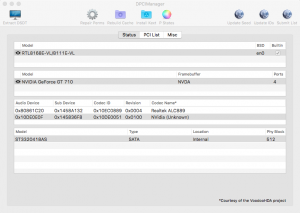

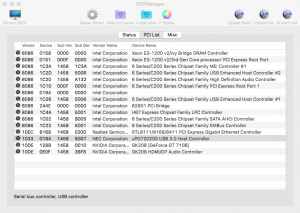

cadash Posted December 7, 2017 Author Share Posted December 7, 2017 cloverALC is onboard Realtek audio only. See AppleHDA HDMI Audio - HDMI Audio, try cloverHDMI I tried clover HDMI, it creates a patch under ACPI but it still won't load the HDMI sound. I am attaching some screenshots about the device information in case it helps. Link to comment Share on other sites More sharing options...
toleda Posted December 8, 2017 Share Posted December 8, 2017 I tried clover HDMI, it creates a patch under ACPI but it still won't load the HDMI sound. See AppleHDA HDMI Audio - HDMI Audio/Post #1/IV. Problem Reporting; post to thread linked with requested files attached. 1 Link to comment Share on other sites More sharing options...
cadash Posted December 8, 2017 Author Share Posted December 8, 2017 See AppleHDA HDMI Audio - HDMI Audio/Post #1/IV. Problem Reporting; post to thread linked with requested files attached. Thanks man, while experimenting I manage to screw up all my install. I will give it a try after I´m able to get the machine up and running. Will contact the support thread if I keep having problems. Link to comment Share on other sites More sharing options...
