High Sierra installer doesn't see SSD drives @ ASUS P5K-PRO XEON E5450


Best Answer fgtd2, 19 November 2017 - 04:29 PM

Thank you very much for your cooperation.



The solution turned out to be really simple. I had to format SSD to HFS+ GUID on another machine after that installer's disk utility was able to recognize my SSD.

Go to the full post


  • Please log in to reply
6 replies to this topic

#1
fgtd2

fgtd2

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

Hello friends,



High Sierra installer doesn't recognize any SATA SSD drives on my machine.

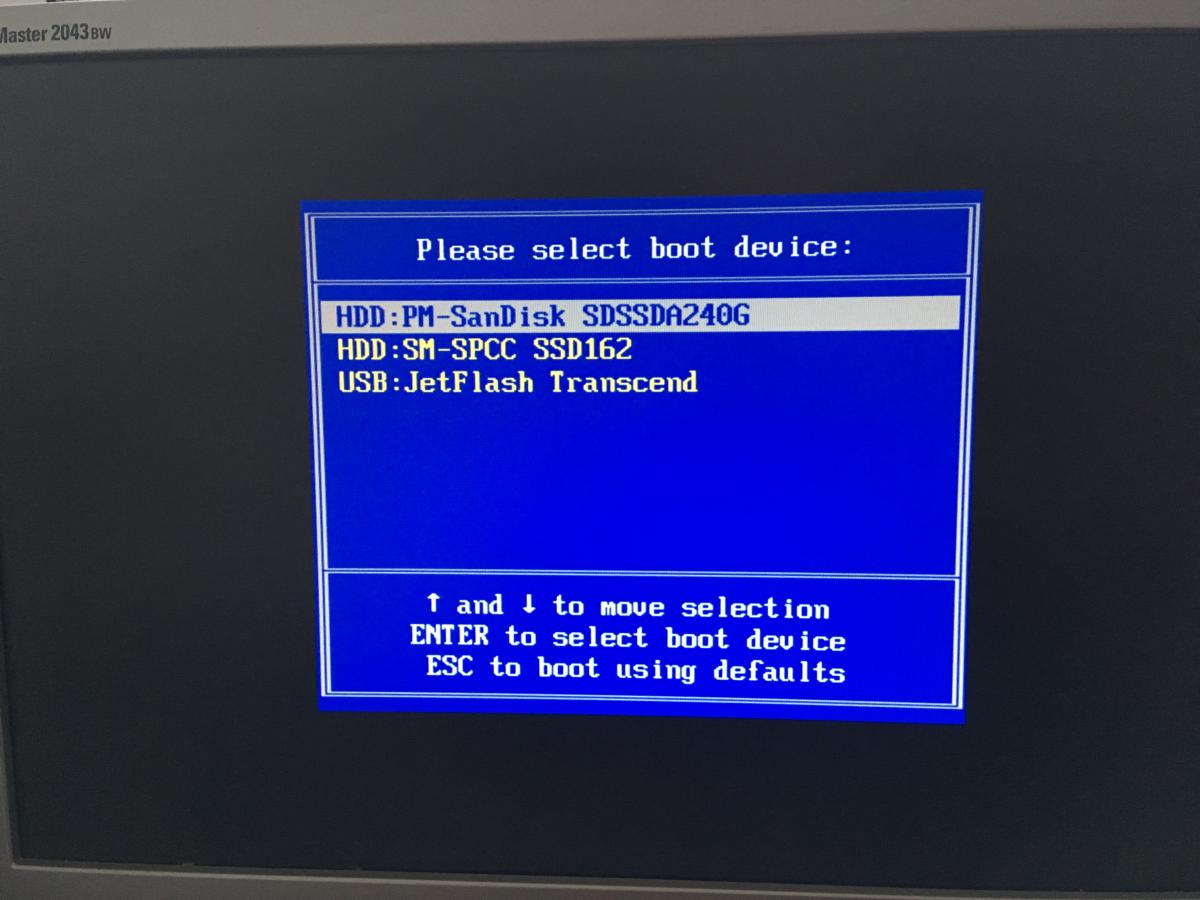

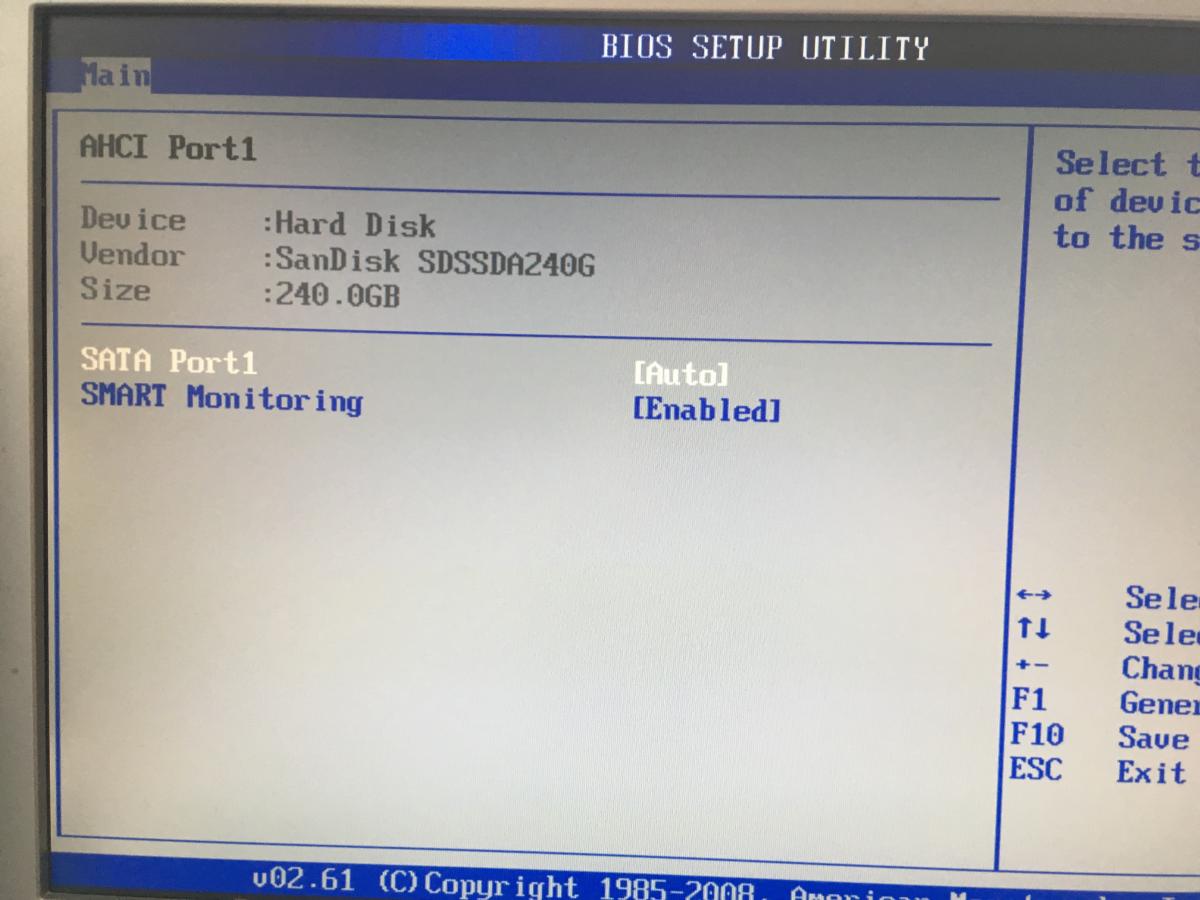

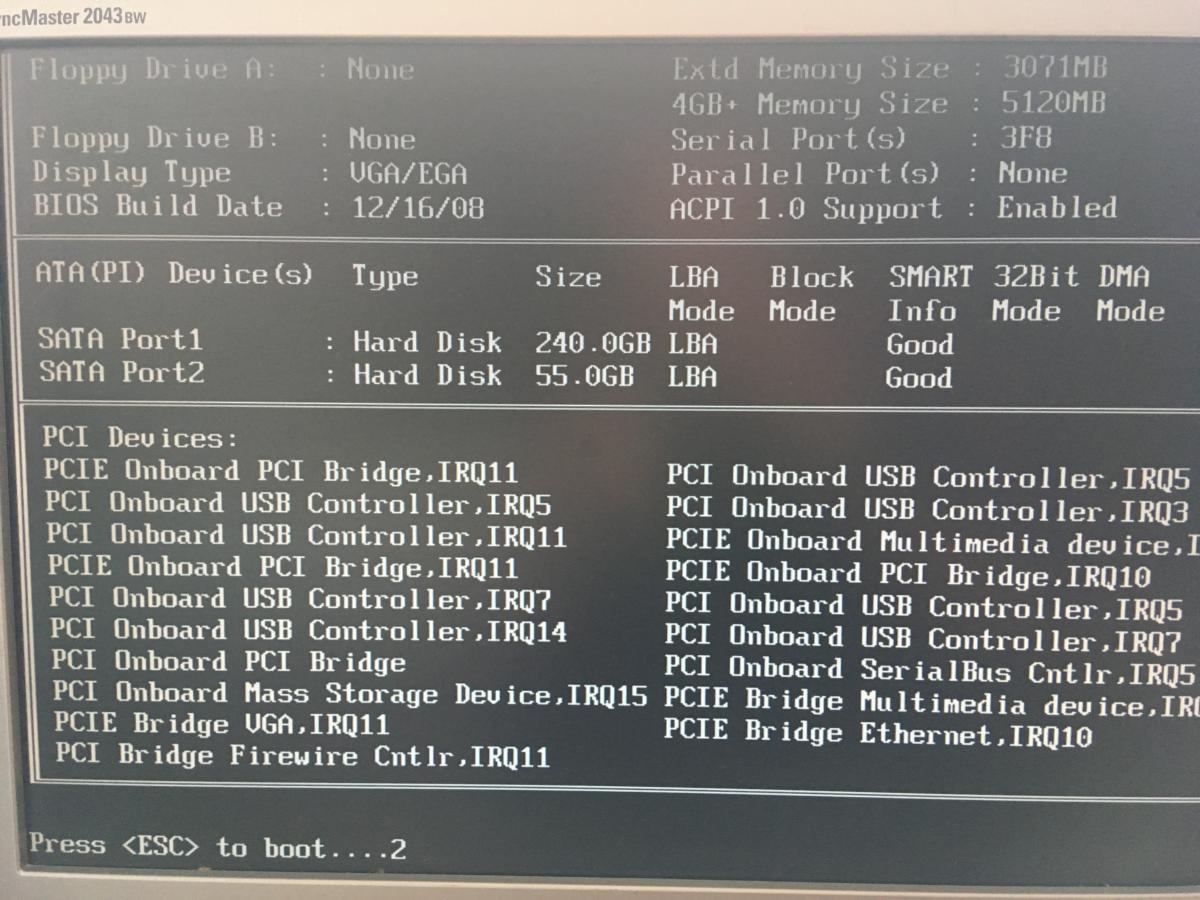

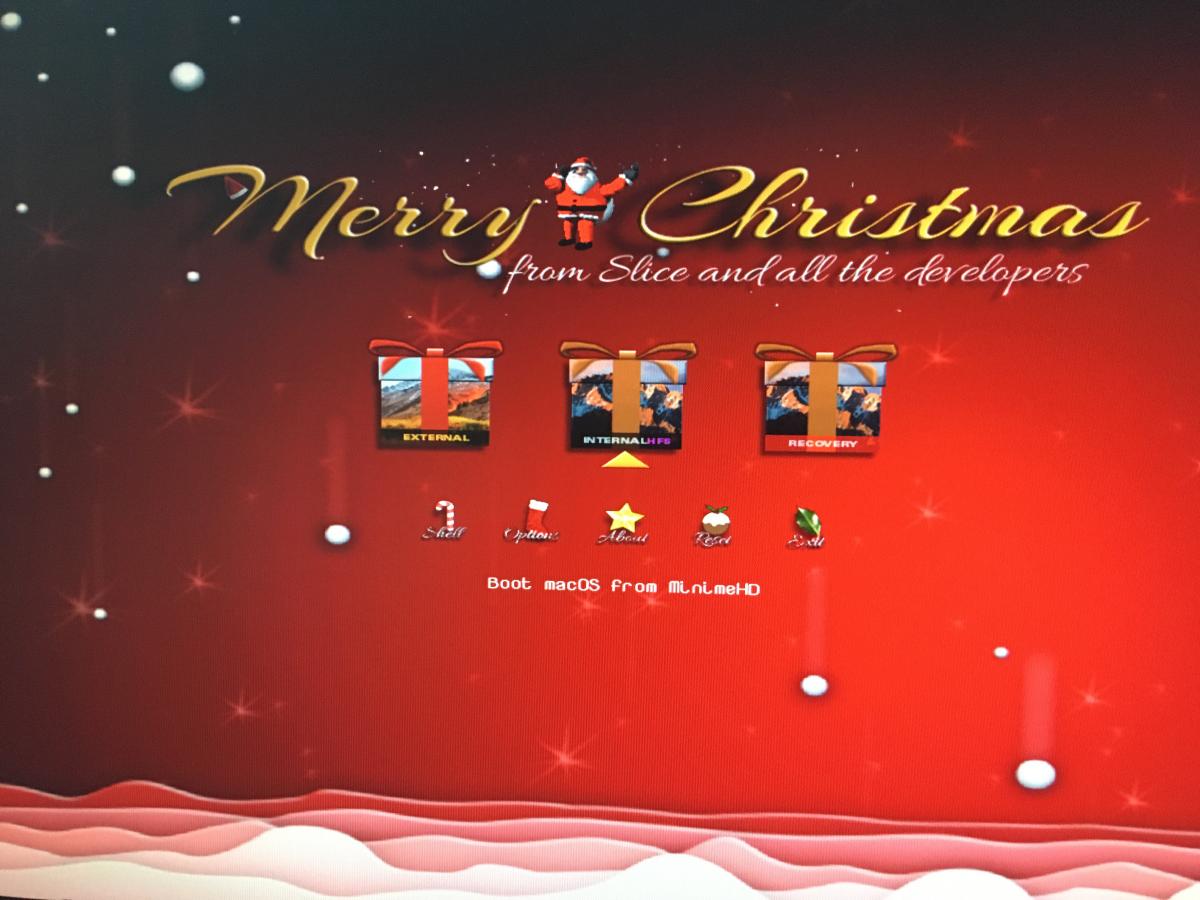

Both SSD drives show up in BIOS and Clover.



I can even do a boot from Clover when I select an SSD drive (but I need to do a fresh install, that's why I ask this question).



How do I make High Sierra recognize SSD?

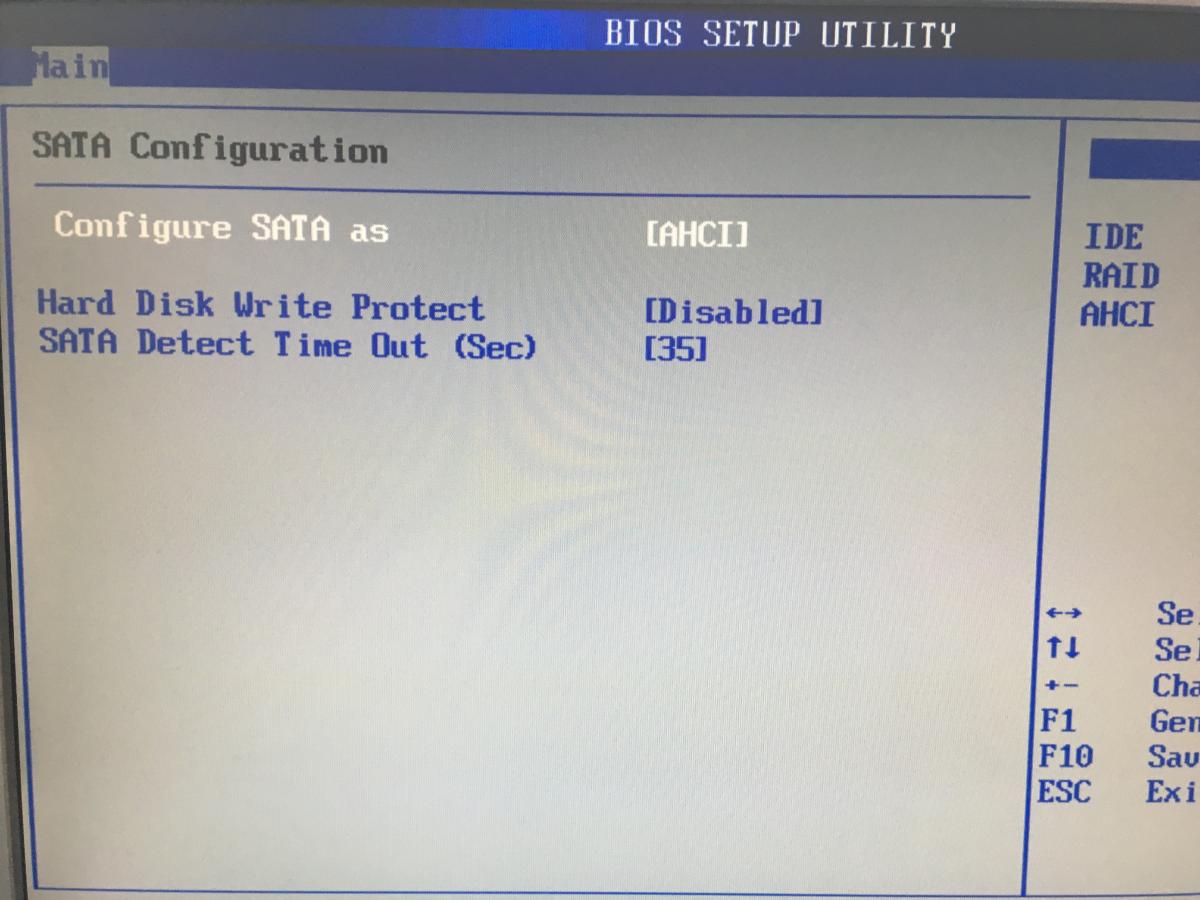

I am running necro setup ASUS P5K-PRO (775 socket) with XEON E5450 on board. Latest BIOS is 1303 with 771 socket microcodes and AHCI support added. AHCI enabled for both SATA drives.


I am using FakeSMCNullCPUPowerManagement kexts.

Command line argument I need to boot to installer is ncpi=0x2000


One drive is brand new, the other one works fine on another machine.

Attached Files



#2
artur_pt

artur_pt

    InsanelyMac V.I.P.

  • Moderators
  • 6,353 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hello



did u try this

<dict>
                <key>Comment</key>
                <string>fix IO error for 10.13, credit SunKi</string>
                <key>MatchOS</key>
                <string>10.13.x</string>
                <key>Disabled</key>
                <false/>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>RYX2D5XCiciD4P5mhcl4D4TSdQs=</data>
                <key>Replace</key>
                <data>iciD4P5mhckPmMFBCMyQkJCQdQs=</data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>fix hotplug for 10.13, credit SunKi</string>
                <key>MatchOS</key>
                <string>10.13.x</string>
                <key>Disabled</key>
                <false/>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Find</key>
                <data>icglQGACAD1AIAAAdQyB4b9///+Ji1EBAAA=</data>
                <key>Replace</key>
                <data>kJCQkJCQkJCQkJCQkJCQkJCQkJCQkJCQkJA=</data>
            </dict>

kexttopatch in clover



good hack



#3
fgtd2

fgtd2

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

Thank you, I will try that. Just wanted to add that my SSD drive appears in a diskutil list output in the installer.



#4
fgtd2

fgtd2

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

@artur_pt,

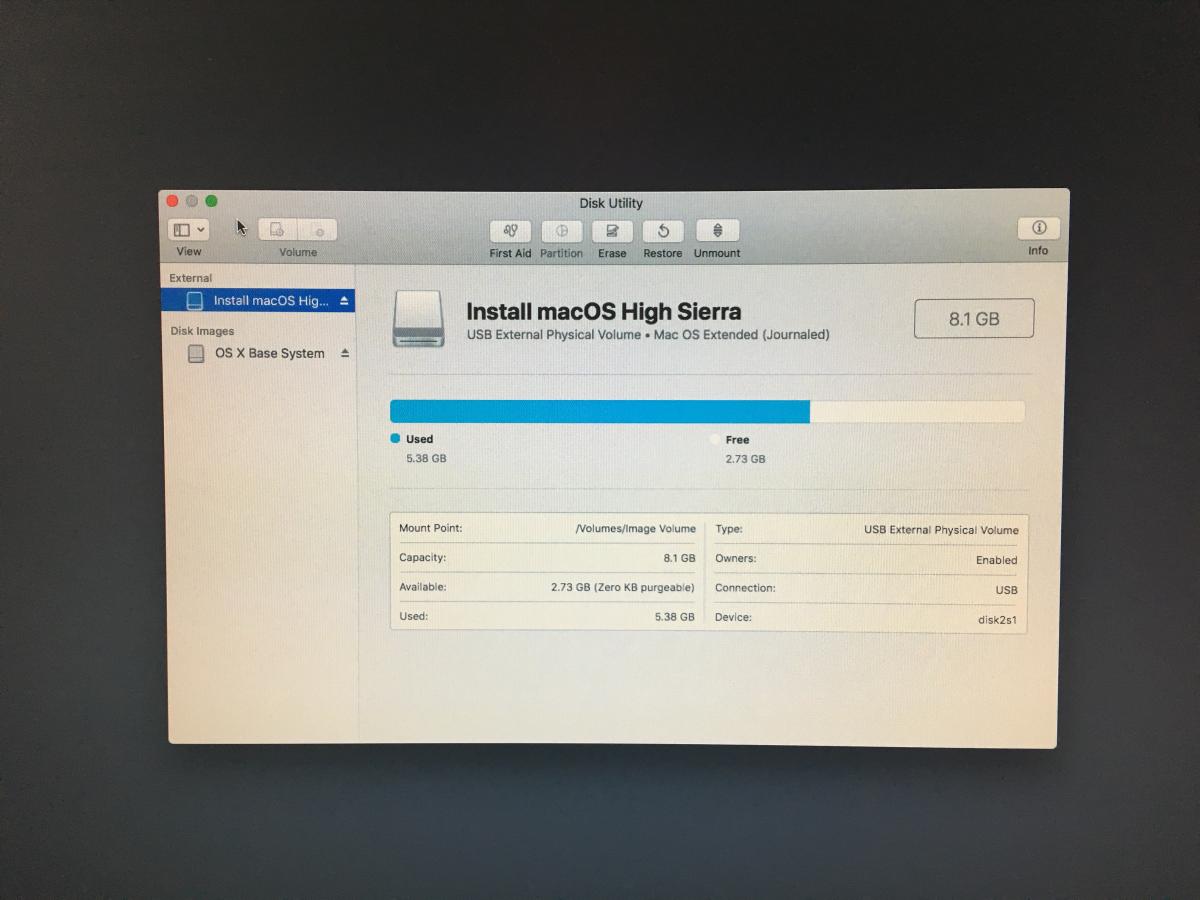

No luck, unfortunately. SSD drive didn't appear in disk utility GUI.



#5
PPCnostalgic

PPCnostalgic

    InsanelyMac Geek

  • Donators
  • 185 posts

Hello. Try the attached kext

Attached Files



#6
fgtd2

fgtd2

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

Thank you, I will try.



#7
fgtd2

fgtd2

    InsanelyMac Protégé

  • Members
  • Pip
  • 5 posts

Best Answer

Thank you very much for your cooperation.



The solution turned out to be really simple. I had to format SSD to HFS+ GUID on another machine after that installer's disk utility was able to recognize my SSD.
