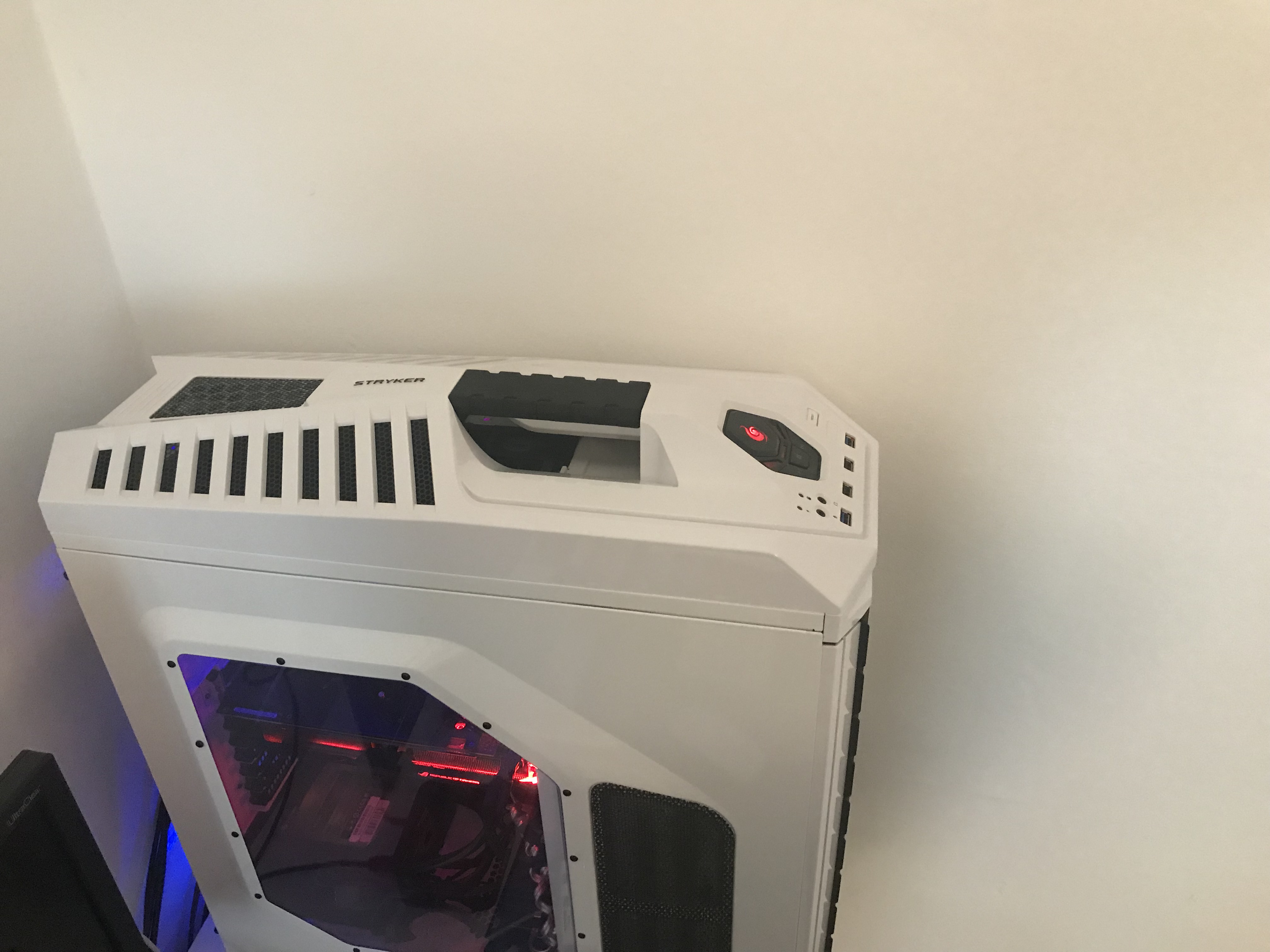

Bios-PC Posted September 29, 2017 Share Posted September 29, 2017 Hi,... I am just working on patch my DSDT but the task isn't an easy one! Gigabyte Z170x Ultra Gaming Skylake 6700K Graphics: ASUS Nvidia GTX970 OC Wifi : Original Apple 4360 I need to solve any problem found on DSDTs, as well as fix any functionality like sleep/wake, etc. thanks 1 Link to comment Share on other sites More sharing options...
Bios-PC Posted September 30, 2017 Author Share Posted September 30, 2017 my DSDT I start making some fix add some pci card I need usb injection with port limit fix wake and sleep and shutdown someone can help DSDT.aml.zip 1 Link to comment Share on other sites More sharing options...
kolejacik Posted January 30, 2018 Share Posted January 30, 2018 so do you finish it? i have the same board 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 30, 2018 Share Posted January 30, 2018 DSDT.aml.zip -Use Patches in config.plist GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 SAT0 to SATA 53415430 53415441 -Patches DSDT -FIX ERRORS AND WARNINGS-HPET-SATA-DMAC-SLPB-DARWIN-LPC-XHCI-PLUGIN TYPE-HDAS to HDEF-HDEF-RTC-IRQs-SBUS-BLC0-BUS1-MCHC-ALS0-SHUTDOWN-LAN-USBX-PMCR-IMEI-EC-PNLF-HDMI -USB Use usbnjectall and flag uia_exclude=XXXX to exclude unused ports, don't need SSDTs 1 Link to comment Share on other sites More sharing options...
kolejacik Posted February 5, 2018 Share Posted February 5, 2018 thank you very much man! i will try it definitely and write if everything is ok! thanks! Link to comment Share on other sites More sharing options...

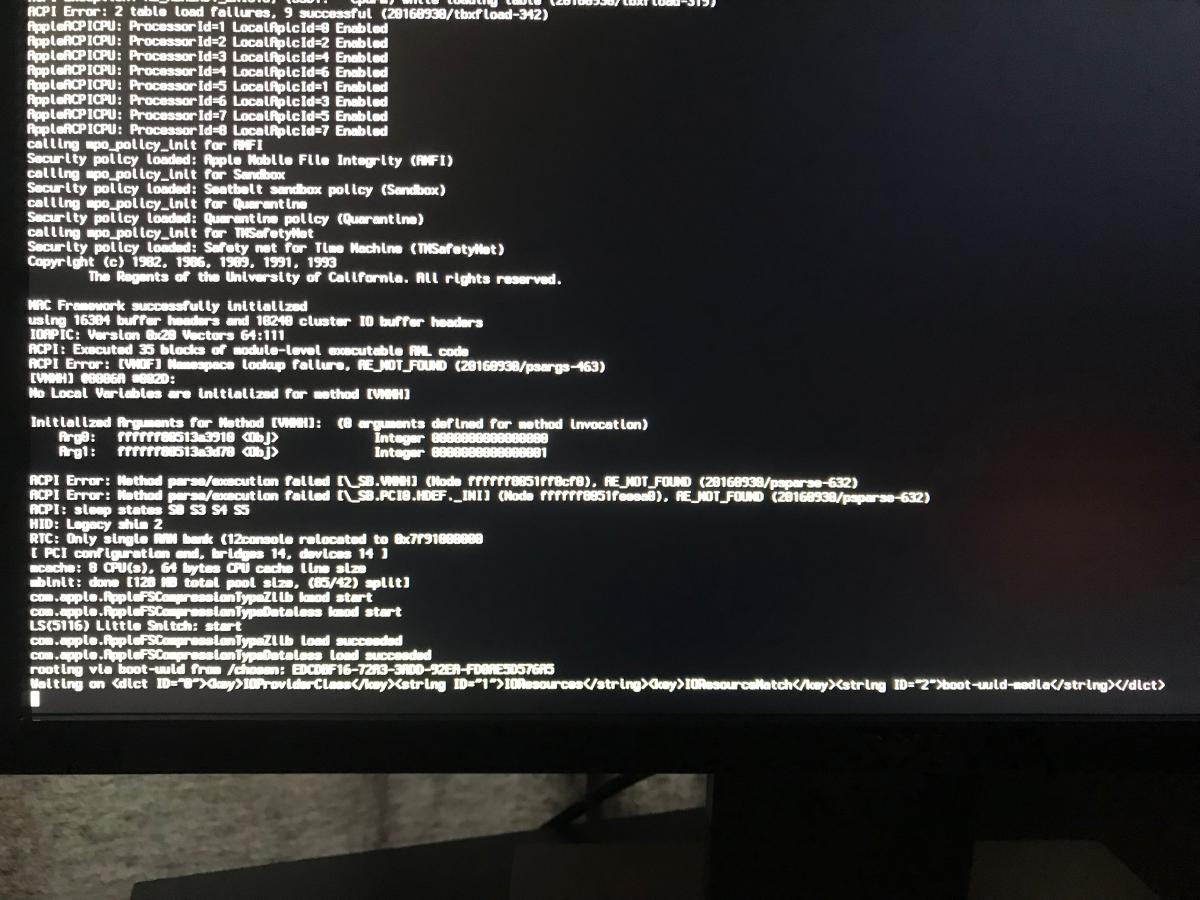

kolejacik Posted February 6, 2018 Share Posted February 6, 2018 good day, i tried it, it boot once, it was great and showing me proper PCI list and everything worked! but after i reboot i cant boot anymore....its showing me this screen and waiting for root device error while booting, crossed circle, what boot args did you used? do you used also intel integrated, or nvidia graphics? what kext do you used? can you help me please? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 6, 2018 Share Posted February 6, 2018 good day, i tried it, it boot once, it was great and showing me proper PCI list and everything worked! but after i reboot i cant boot anymore....its showing me this screen and waiting for root device error while booting, crossed circle, what boot args did you used? do you used also intel integrated, or nvidia graphics? what kext do you used? can you help me please? ress O key in Clover boot screen, go to Acpi Patching/DSDT Name and put DSDT02.aml boot into system, run it and send me files RunMe.app.zip 1 Link to comment Share on other sites More sharing options...
kolejacik Posted February 6, 2018 Share Posted February 6, 2018 ive just send you a personal message with the generated file! thank you very much! 1 Link to comment Share on other sites More sharing options...

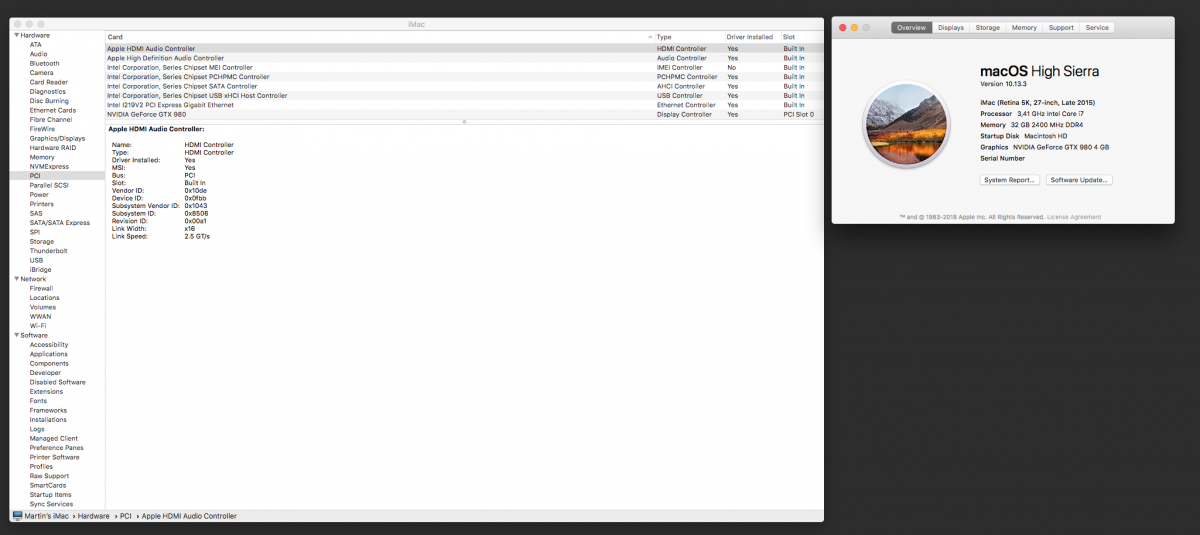

kolejacik Posted February 7, 2018 Share Posted February 7, 2018 sooo somehow with luck i managed it working, i dont use all of your clover folders, which u send me, i just used your dsdt.aml with my boot plist and reconfigure it and it works!!!! somehow i can see my PCI devices and it looks everything is working, maybe i can send you my bootlog or something to check it, if everything is ok? but it looks like,thank you very much Mald0n!!! Link to comment Share on other sites More sharing options...
kolejacik Posted February 7, 2018 Share Posted February 7, 2018 HA! one thing is not working SHUTDOWN, its keeping restart when i shutdown and shutdown fix in clover wont work here its used dsdt from you in attachement, any ideas how to fix this? DSDT.aml.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted February 8, 2018 Share Posted February 8, 2018 HA! one thing is not working SHUTDOWN, its keeping restart when i shutdown and shutdown fix in clover wont work here its used dsdt from you in attachement, any ideas how to fix this? I'm back to home in 2 days, travelling. I'll check it. Remove DSDT and test shutdown, if work we check what patch cause it U use last Clover Version? Link to comment Share on other sites More sharing options...
Bios-PC Posted February 8, 2018 Author Share Posted February 8, 2018 thanks man it working perfect also shutdown u r the best I found a problem with the sound it disappear after some time I remove AFGLowPowerState From DSDT I hope it fix the problem 1 Link to comment Share on other sites More sharing options...
Bios-PC Posted February 9, 2018 Author Share Posted February 9, 2018 yes remove the AFGLowPowerState fix the problem now everything works fine thanks to MaLd0n 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 9, 2018 Share Posted February 9, 2018 AFGLowPowerState Thx, Bios i'll check it Enjoy! Link to comment Share on other sites More sharing options...
kolejacik Posted February 12, 2018 Share Posted February 12, 2018 just in case, what smbios are you using? and clover config? thanks Link to comment Share on other sites More sharing options...

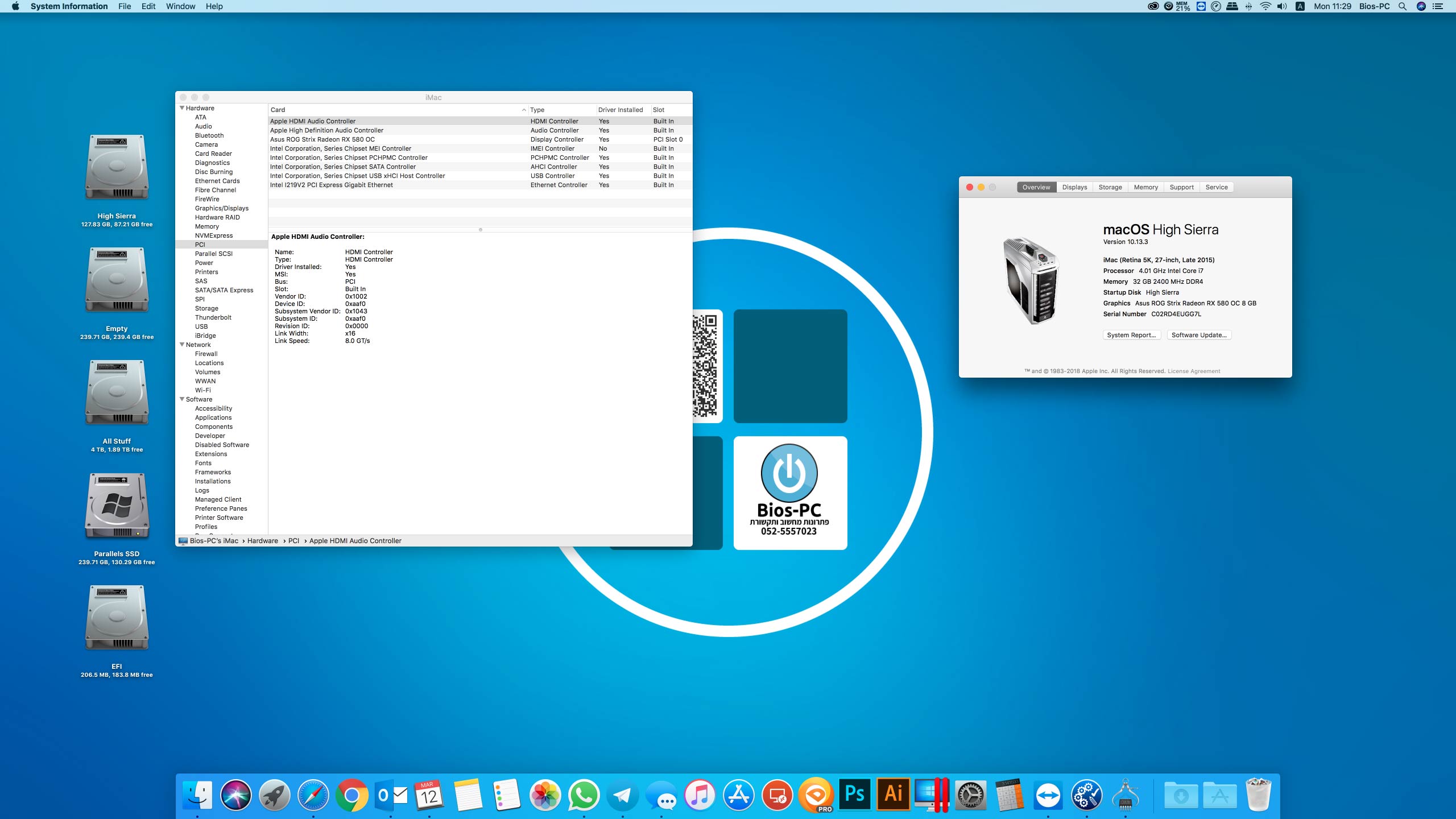

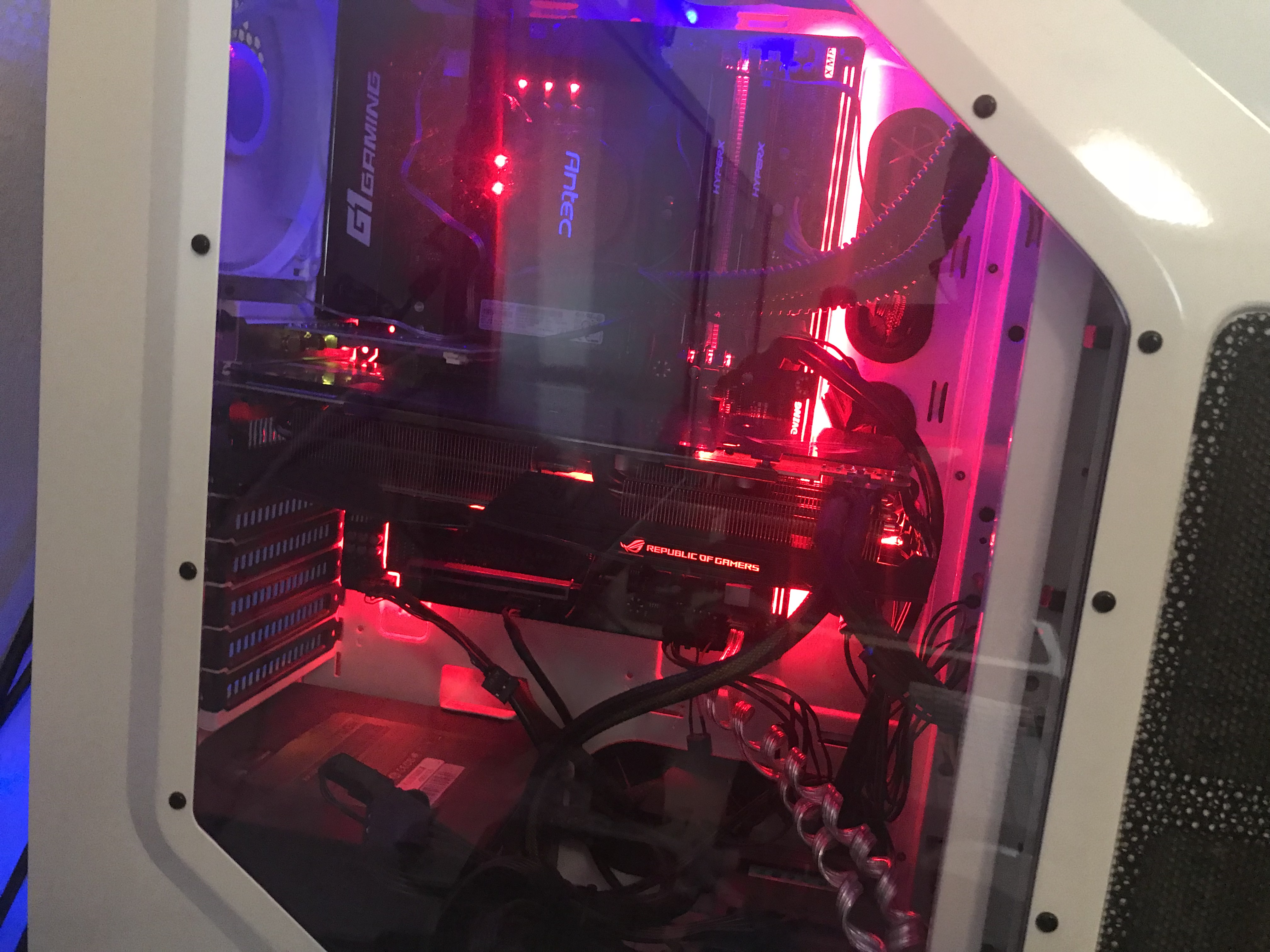

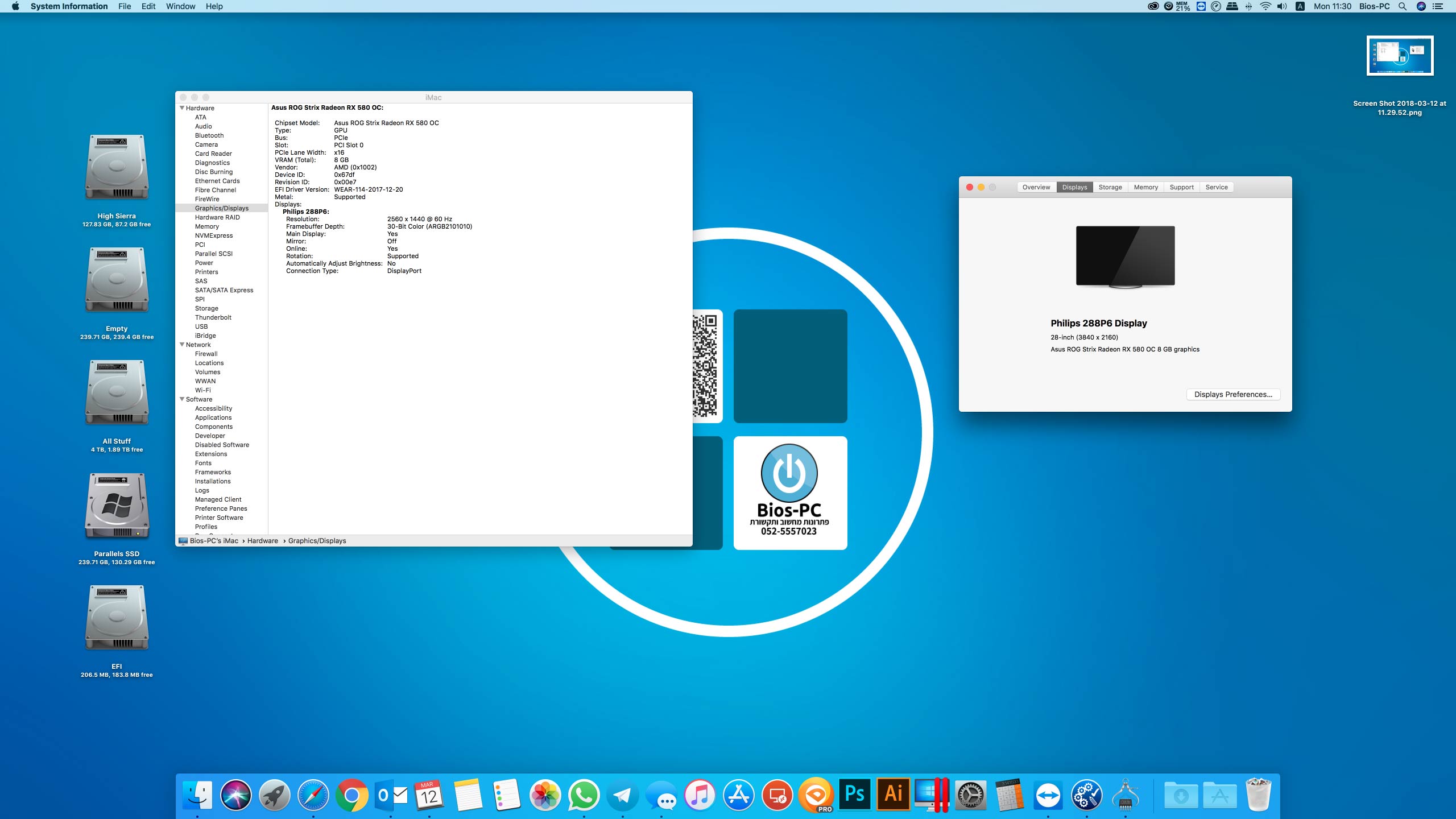

Bios-PC Posted March 12, 2018 Author Share Posted March 12, 2018 sorry I was very busy I use smbios 17.1 and it took me one day to figure which clover config I need to use after I learn every clover option and read a lot about hardware now I change my ASUS gtx970OC 4GB to ASUS STRIX AMD 8GB because in high Sierra the gui was laggy and I tried to fix this issue about half year with no luck sorry but apple like AMD not NVIDIA so now with the AMD Card everything work perfect no laggy UI but I have some issue with VTEncoderXPCService that make my CPU 400% and raise the temperature to 55C instead of 30C I think something with the high sierra it happen just when I want to change desktop background or screen saver . config.plist Link to comment Share on other sites More sharing options...
Bios-PC Posted March 12, 2018 Author Share Posted March 12, 2018 (edited) - Edited March 25, 2018 by Bios-PC Link to comment Share on other sites More sharing options...
Bios-PC Posted March 28, 2018 Author Share Posted March 28, 2018 On 1/30/2018 at 10:17 PM, MaLd0n said: DSDT.aml.zip -Use Patches in config.plist GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 SAT0 to SATA 53415430 53415441 -Patches DSDT -FIX ERRORS AND WARNINGS-HPET-SATA-DMAC-SLPB-DARWIN-LPC-XHCI-PLUGIN TYPE-HDAS to HDEF-HDEF-RTC-IRQs-SBUS-BLC0-BUS1-MCHC-ALS0-SHUTDOWN-LAN-USBX-PMCR-IMEI-EC-PNLF-HDMI -USB Use usbnjectall and flag uia_exclude=XXXX to exclude unused ports, don't need SSDTs Hi , is there a way to not use whatever green by editing the dsdt for graphic? also I want to have wireless always en0 in dsdt can u help please? Link to comment Share on other sites More sharing options...
MaLd0n Posted March 28, 2018 Share Posted March 28, 2018 why not whatever green? use 1.1.6 or 1,1,7 WhateverGreen.kext.zip en0, is a config, check tutorials about it Link to comment Share on other sites More sharing options...

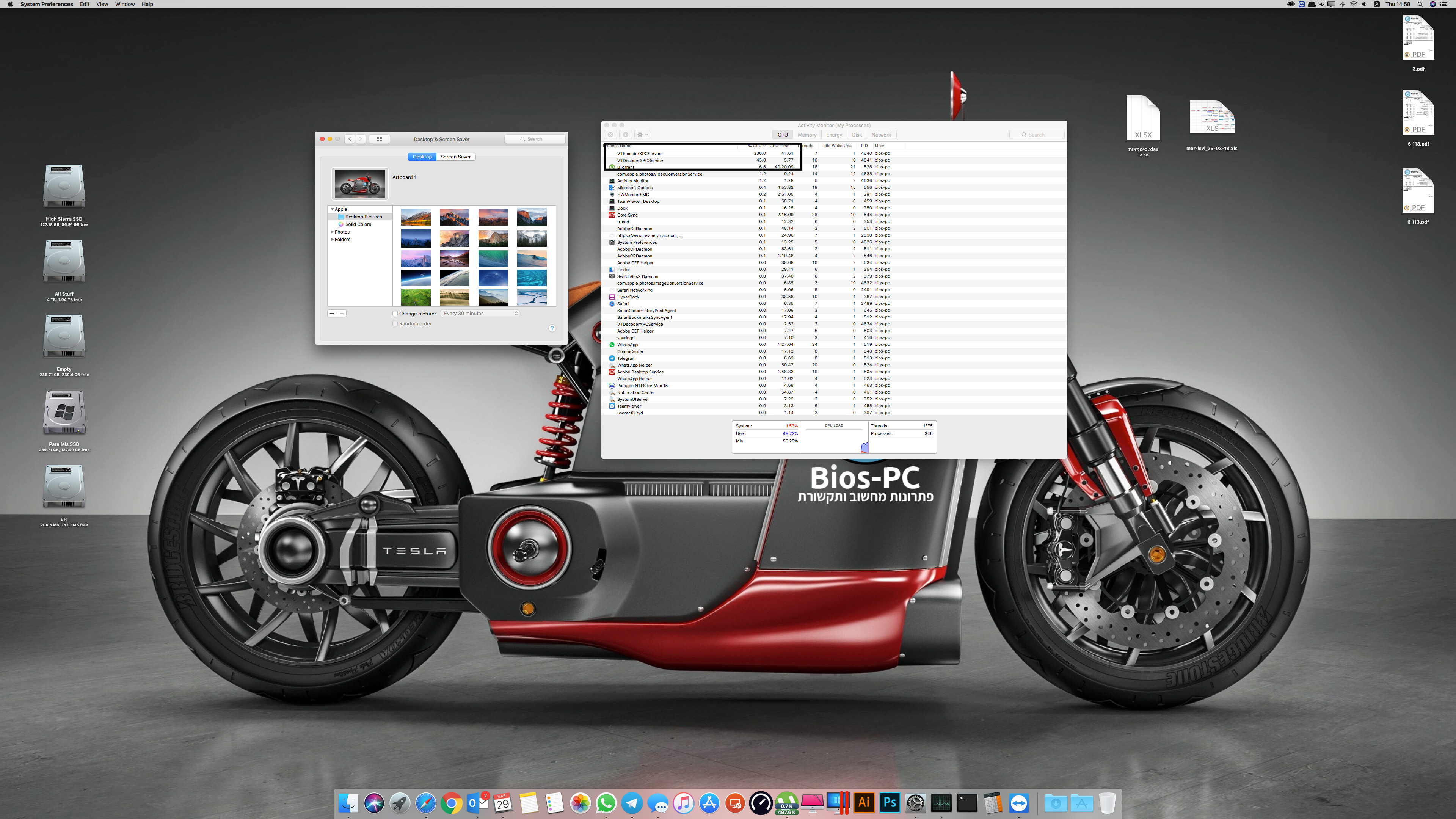

Bios-PC Posted March 29, 2018 Author Share Posted March 29, 2018 hi I think that the frame buffer not really correct when I open "change desktop wallpaper" my cpu go for 300% and high fan speed I check every config that maybe could make the problem after I make lot of fresh installation I found that the WhateverGreen.kext make the problem look at the screenshot also I wanted pic information about nvme and wireless card on pci section best regards and u r the best Link to comment Share on other sites More sharing options...
Bios-PC Posted September 15, 2018 Author Share Posted September 15, 2018 On 3/28/2018 at 4:15 PM, MaLd0n said: why not whatever green? use 1.1.6 or 1,1,7 WhateverGreen.kext.zip en0, is a config, check tutorials about it Hello my friend after a long time of work to figure what make the cpu and Mac freeze is the DSDT ehn i remove DSDT now iMovie and fcxp pro work without any problem also photo app I think something wrong with the dsdt thanks for ur help Link to comment Share on other sites More sharing options...
STLVNUB Posted September 15, 2018 Share Posted September 15, 2018 (edited) I may be wrong but I've found that Lan must be en0 or iMessage/FaceTime/iCloud/Appstore/iTunes don't work. It also has to be builtin. Edited September 15, 2018 by STLVNUB Link to comment Share on other sites More sharing options...
MaLd0n Posted September 15, 2018 Share Posted September 15, 2018 8 hours ago, Bios-PC said: Hello my friend after a long time of work to figure what make the cpu and Mac freeze is the DSDT ehn i remove DSDT now iMovie and fcxp pro work without any problem also photo app I think something wrong with the dsdt thanks for ur help fcpx u need a especifc config for a hardware acceleration, is in clover config.plist Link to comment Share on other sites More sharing options...
Bios-PC Posted September 15, 2018 Author Share Posted September 15, 2018 4 hours ago, MaLd0n said: fcpx u need a especifc config for a hardware acceleration, is in clover config.plist can u help me with that please? Link to comment Share on other sites More sharing options...

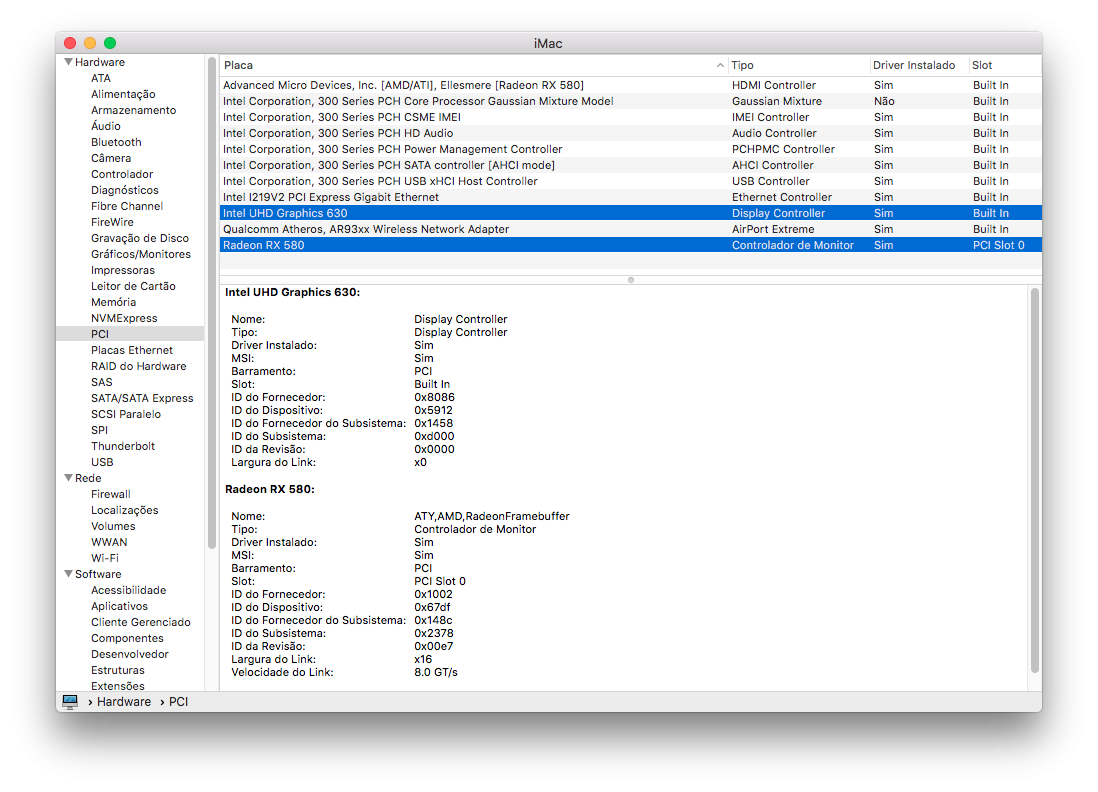

MaLd0n Posted September 15, 2018 Share Posted September 15, 2018 u need activate internal gpu too, use ig-platform-id 0x19120001 and shikigva=60 in my case is 59120003 Link to comment Share on other sites More sharing options...
