HP EliteBook 840 G2 can't get to the installer


Phaetherap
 Share

4 posts in this topic

Recommended Posts

Hi, I'm trying to install macOS Sierra in the following notebook:



EliteBook 840 G2

Intel i5 5300U

Intel HD 5500

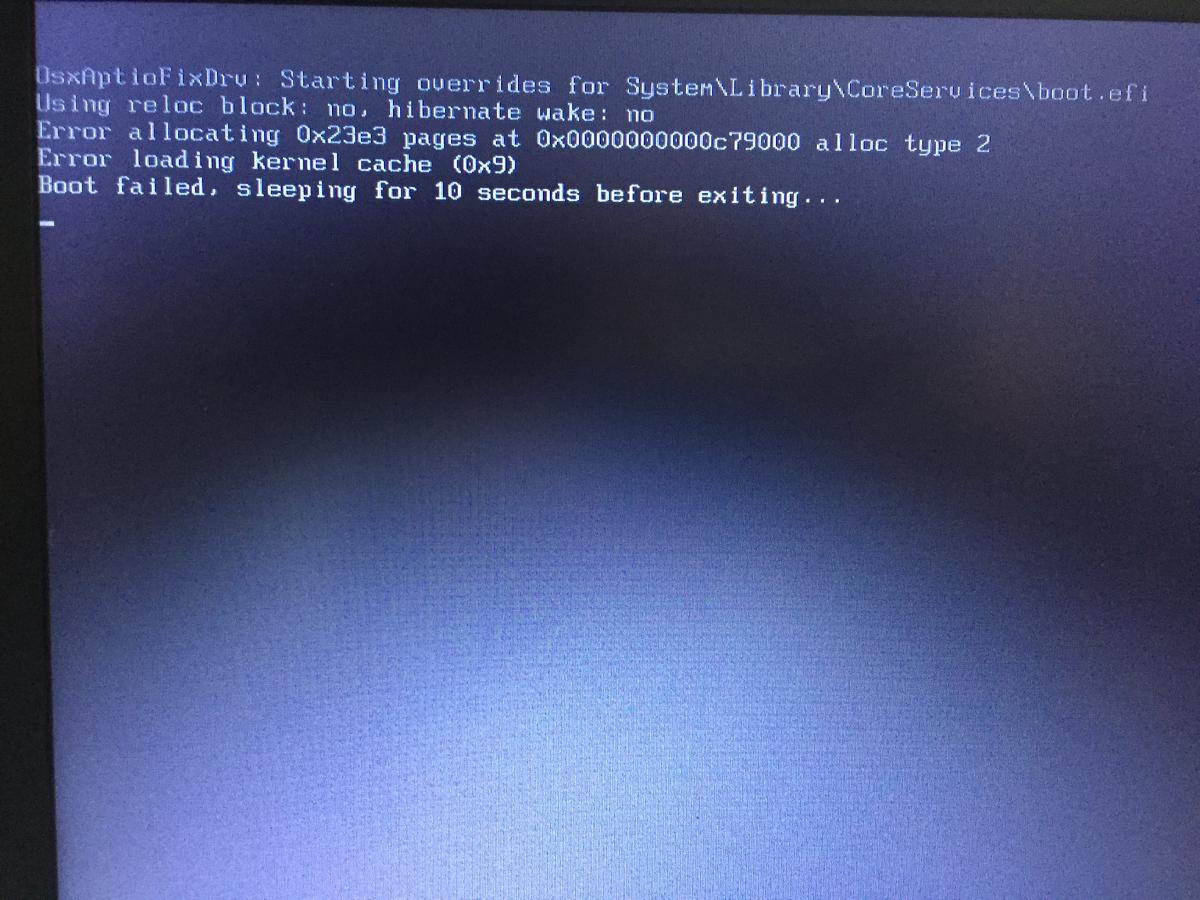

I get the following error and then the system reboots.






so, I deleted the OsxAptioFix2Drv-64 file and replaced with OsxAptioFixDrv-64

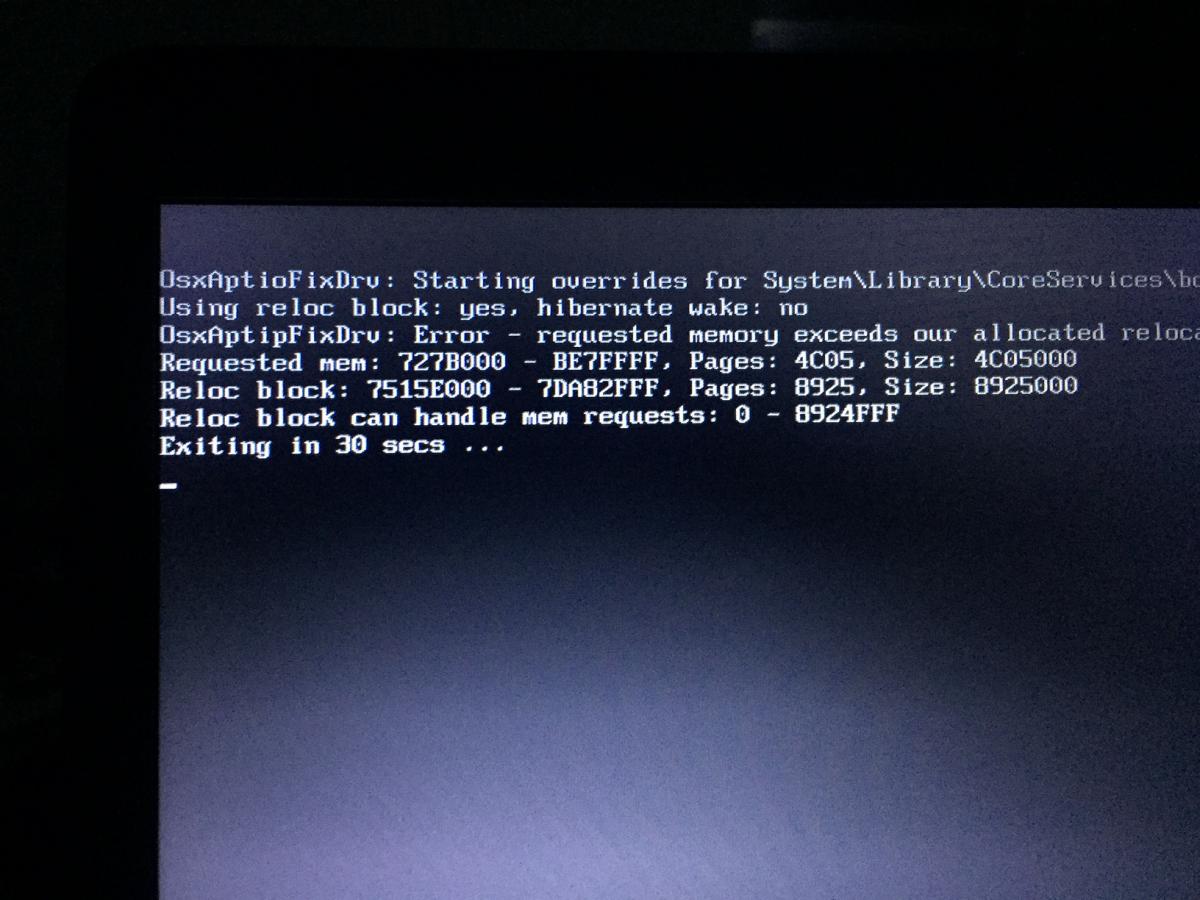

after that i get this error:






I also tried to replace VBoxHfs-64 with HFSPlus but still getting these errors up there.



I don't know what more I can do to solve this and get to the macOS installer.



Thanks all for giving a little time to help me!  :thumbsup_anim:



EDIT #1



here my clover folder: https://drive.google.com/file/d/0B7-iTUmQfbmTVTZuT1Ftc0FGaDQ/view?usp=sharing

Link to comment
Share on other sites

Can't say if this would be related nor if it would fix your issue but I've read of laptops that failed to boot unless their single memory DIMM was in slot #1 as opposed to slot #2 (or vice versa, can't remember exactly). Nor harm in looking into that, you never know.

tried to change the slot but still getting the plus signal error.



when I add some flags nvidia disable, slide and no reboot on kernel panic I get the screen below.






EDIT #1

tried to change memory slot it was in the slot 2, but it takes no effect.

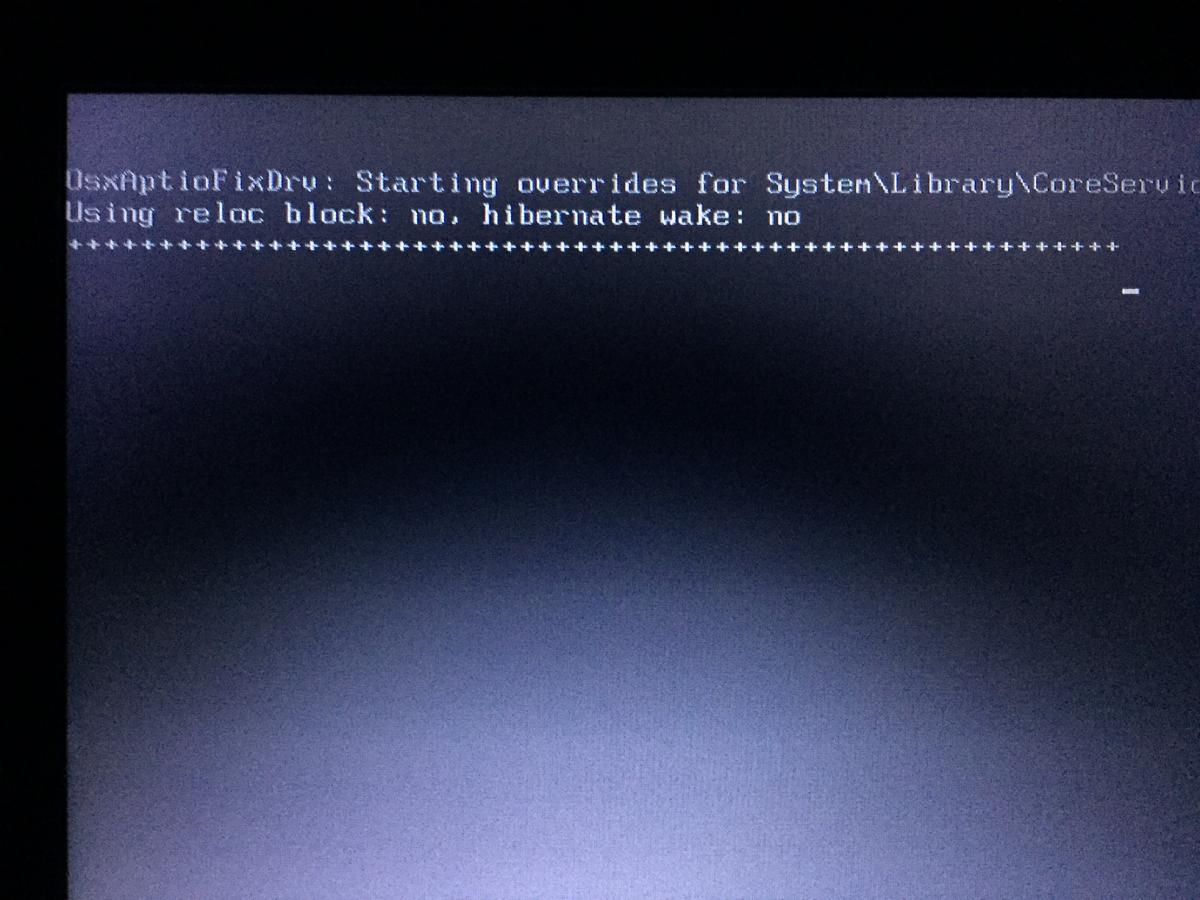

with OsxAptioFixDrv-64 and HFSPlus I'm getting "+++++..." no matter what I change in the boot args.



EDIT #2

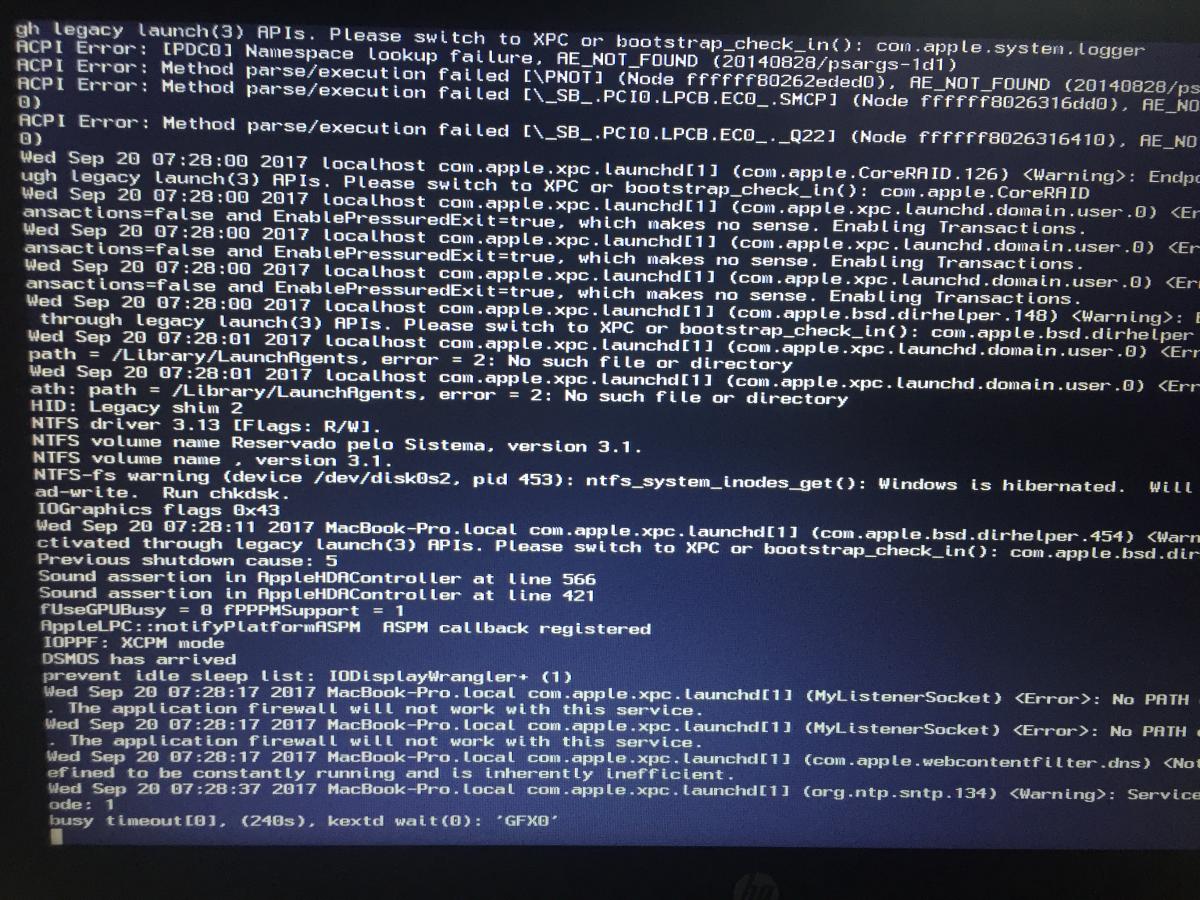

update some configs at config.plist now I'm getting the below screen:






new config.plist:



config.zip



EDIT #3

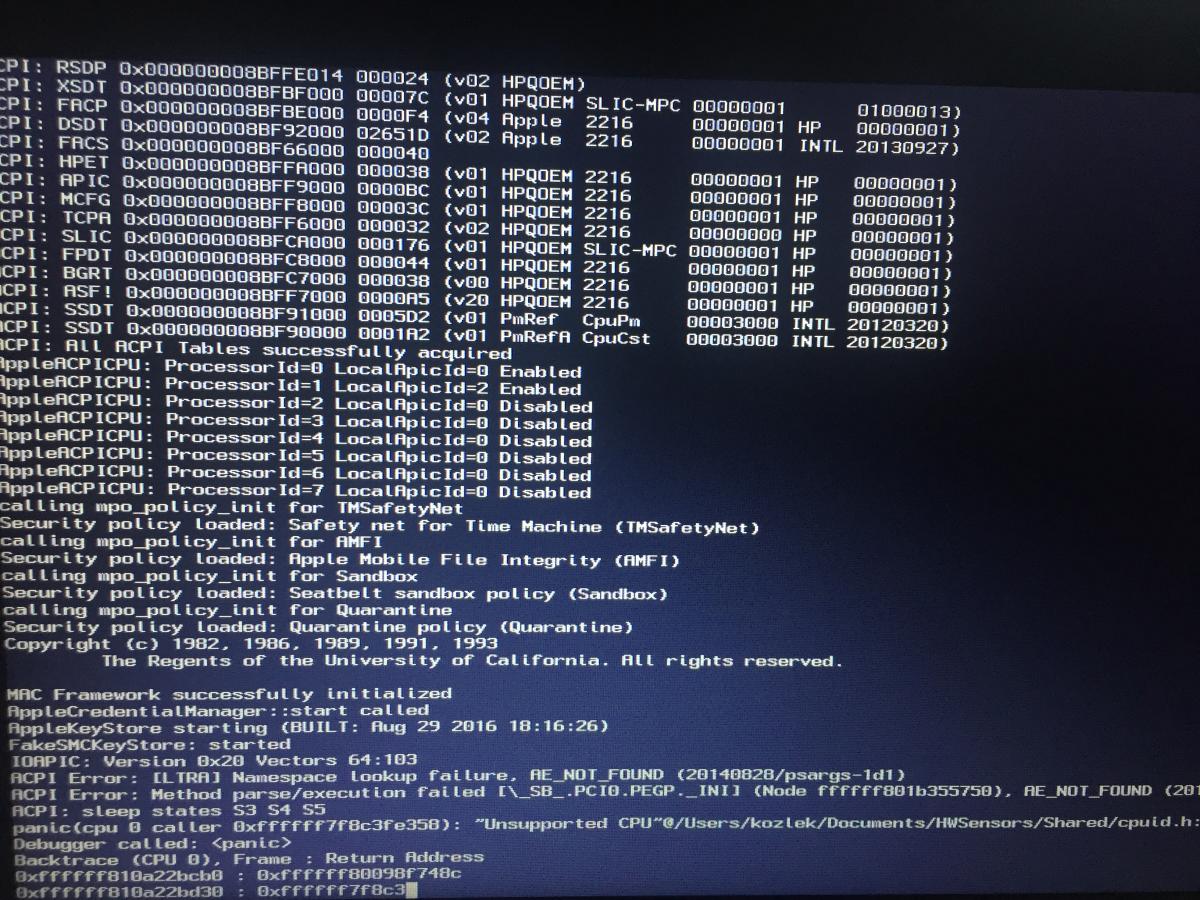

update more configs at config.plist now getting kernel panic Unsupported CPU






new config.plist



config-kp.zip









Link to comment
Share on other sites

  • 1 month later...

hi,



haven't tested sierra or high sierra on my laptop.



you should read my previous guide to get inspired about kext, and read about sierra specs.



which version of clever ?

i think you have bad version for fakesmc.kext, and you must change many patch in dsdt to have it working as expected.



cheers
