Dell Inspiron 15-5577 KBLGraphicsFramebuffer panic on boot

panic intel 630hd dell inspiron boot problem

  • Please log in to reply
1 reply to this topic



    InsanelyMac Protégé

  • Members
  • Pip
  • 2 posts

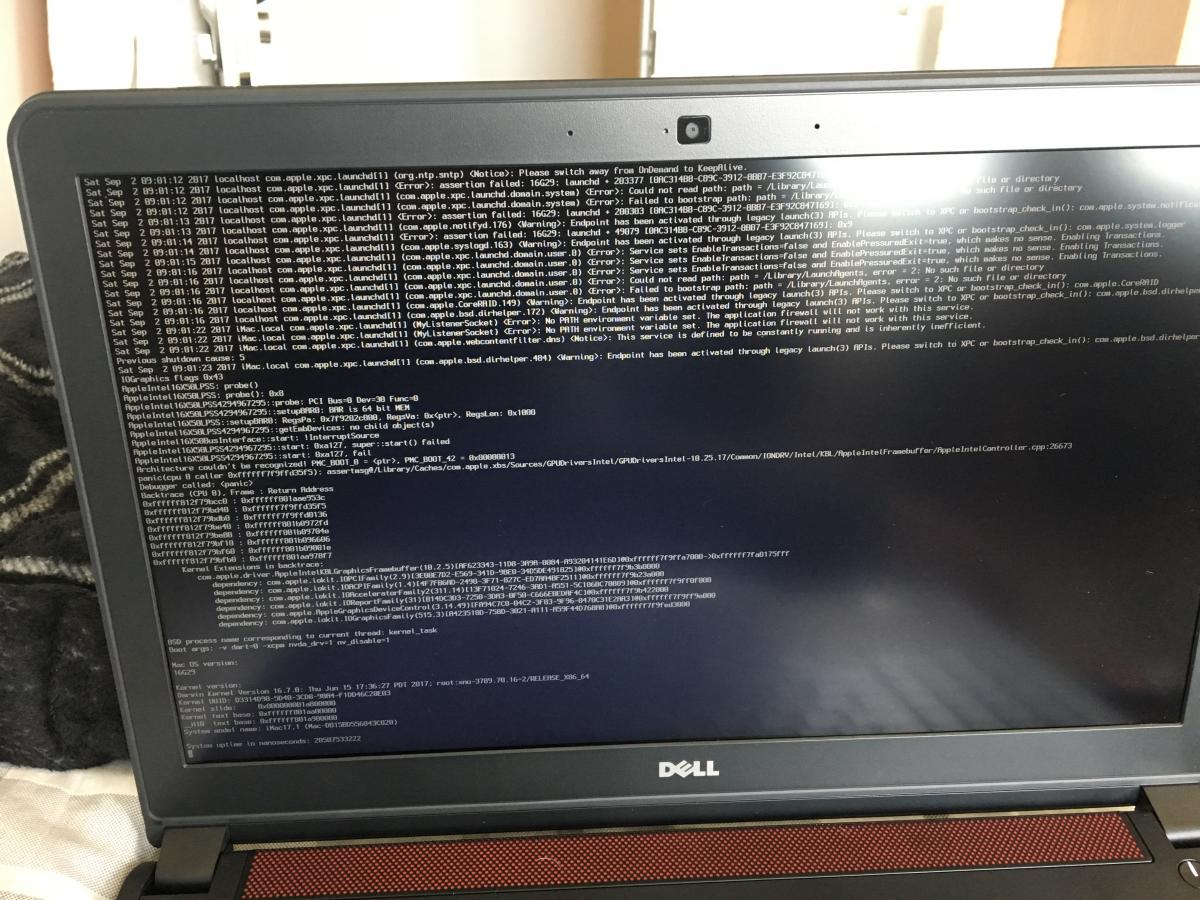

I have been running into the same issue for some time now when trying to boot Mac OS 10.12.6. Attached is a picture of the crash. I have a good feeling it has to do with Kaby Lake graphics but I have attempted several fixes for those issues. Any help would be greatly apprecieted.


Laptop Specs:



GTX 1050 4gb

8gb RAM

256gb SSD




Attached File  IMG_3504.JPG   178.83KB   3 downloads










    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts

similar with my laptop but only 2GB of VRAM

try this method

boot with invailid platform id: 123465789 into system

open config.plist with clover

go Kernel and kext patches

name: com.apple.driver.AppleIntelKBLGraphicsFramebuffer

find:  00006002 00005001

replace: 00003001 00009000
