ATI Radeon X1600 Pro - 5MB VRAM issue

ati x1600 issue hackintosh

  • Please log in to reply
2 replies to this topic

#1
iammodus

iammodus

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts
  • Gender:Male
  • Location:Spain
  • Interests:Electronic Music Producer. Often into computing stuff too :O

Hello there,

I'm relatively new to the Hackintosh community. It's certainly not the first time someone has had a problem like this, but I thought I'd post it.



So, about a month ago, I picked up an HP Pavilion computer I had lying around from 2009, and I thought I'd try turning it into a Hackintosh just for kicks and giggles, so I knew what it was like before I tried installing it on my main PC. I'm using Clover as the bootloader.



Here are the specs:



MS-7525 motherboard

Pentium Dual Core E5200 2.5ghz

ASUS ATI Radeon X1600 Pro Silent 512MB (device ID = 71c3)

4GB DDR2 RAM 800mhz

Seagate 320GB HDD



macOS Sierra seemed to return a kernel panic, probably because SSE 4.2 support is not present on the E5200 if I recall correctly.

El Capitan seemed to boot fine though, and I installed it. To my surprise, it booted on the first try. So I did some post-installation with ##### to get the audio working and the bootable hard drive.



So here I am, on El Capitan 10.11.



The only issue I'm still facing is the graphics card. Sure, it might be old, but I heard some people got it working with full QE/CI.

The thing is, it tells me it only has 5MB of VRAM. As a consequence, there are numerous screen artifacts (especially on logon, it's awful to watch), major slowdowns, no DVD playing support apparently, and most importantly, no QE/CI.



Things I've tried:



-FakeID

-MacLovin's Guide

-Reinstalling OSX

-Custom kexts



I'm hopeful about the DSDT thing, but I don't know what it is or how it works.



What should I do at this point? Should I try fixing it or straight up downgrade to an earlier version of OSX?



Thanks in advance  ^_^



#2
rahulk70

rahulk70

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts
  • Gender:Male
  • Location:Saudi Arabia

Hi,



Check this out this link.



http://www.insanelym...-1056-and-1052/



It might help you. This GPU was used in some old macbooks/iMacs too I think. It might work but most of the post on google regarding this GPU stops at OS X Mountain Lion.



#3
fivos1996

fivos1996

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts
  • Gender:Male
  • Location:Lefkada
  • Interests:Computers, Building hardware for or not hackintoshes

Hello there,

I'm relatively new to the Hackintosh community. It's certainly not the first time someone has had a problem like this, but I thought I'd post it.



So, about a month ago, I picked up an HP Pavilion computer I had lying around from 2009, and I thought I'd try turning it into a Hackintosh just for kicks and giggles, so I knew what it was like before I tried installing it on my main PC. I'm using Clover as the bootloader.



Here are the specs:



MS-7525 motherboard

Pentium Dual Core E5200 2.5ghz

ASUS ATI Radeon X1600 Pro Silent 512MB (device ID = 71c3)

4GB DDR2 RAM 800mhz

Seagate 320GB HDD



macOS Sierra seemed to return a kernel panic, probably because SSE 4.2 support is not present on the E5200 if I recall correctly.

El Capitan seemed to boot fine though, and I installed it. To my surprise, it booted on the first try. So I did some post-installation with ##### to get the audio working and the bootable hard drive.



So here I am, on El Capitan 10.11.



The only issue I'm still facing is the graphics card. Sure, it might be old, but I heard some people got it working with full QE/CI.

The thing is, it tells me it only has 5MB of VRAM. As a consequence, there are numerous screen artifacts (especially on logon, it's awful to watch), major slowdowns, no DVD playing support apparently, and most importantly, no QE/CI.



Things I've tried:



-FakeID

-MacLovin's Guide

-Reinstalling OSX

-Custom kexts



I'm hopeful about the DSDT thing, but I don't know what it is or how it works.



What should I do at this point? Should I try fixing it or straight up downgrade to an earlier version of OSX?



Thanks in advance  ^_^

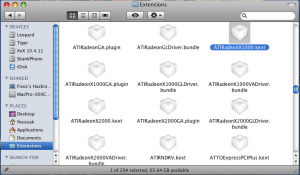

This card is really ancient and I think it's AGP. El Capitan doesn't have ATIRadeonX1000.kext, only ATIRadeonX2000.kext. My Leopard installation has it.

Attached Files







Also tagged with one or more of these keywords: ati, x1600, issue, hackintosh
