ASUS P8Z68V-PRO REV1.0 PROBELM INSTALLING SIERRA


  • Please log in to reply
12 replies to this topic

#1
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

Hi, i been trying to install mac osx sierra as a second operating system on my desktop (i'm running windows 10 pro)
on a separate SSD drive but all my tries did not work.


my system is :

vendor ASUSTeK Computer INC.
model P8Z68-V PRO
revision Rev 1.xx

manufacturer Intel
model Intel® Core™ i7-2600K CPU @ 3.40GHz
clock speed 3400.0 MHz
FSB speed 100.0 MHz
multiplier 34.0x
ID 0x1080206

Name NVIDIA GeForce GTX 960
Board Manufacturer EVGA Corp.
Revision A1
Codename GM206
Technology 28 nm
Memory size 2 GB
Memory type GDDR5
PCI device bus 1 (0x1), device 0 (0x0), function 0 (0x0)
Vendor ID 0x10DE (0x3842)
Model ID 0x1401 (0x2968)
Performance Level 0
Core clock 135.0 MHz
Memory clock 405.0 MHz

i got this info from CPU-Z
please let me know if i'm missing something
all what i'm asking is it possible for my system and if there is a simple guide that i can follow
thanks in advance



#2
cyberdevs

cyberdevs

    InsanelyMac Deity

  • Donators
  • 1,926 posts
  • Gender:Male

Hi, i been trying to install mac osx sierra as a second operating system on my desktop (i'm running windows 10 pro)
on a separate SSD drive but all my tries did not work.

Hi there,



Yes you can have macOS Sierra installed on your computer.

What seems to be the problem? Why you weren't able to install macOS?



#3
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

thanks for reply cyberdevs,

i did install sierra on a separate SSD drive with a guide i found. http://www.insanelym...-core-i5-2500k/

it is an old one and it is for yosemite.

what i did is used the latest ##### and ##### to help me with installation and o another guide it asking to flash the the bios with a moded one and do all these changes

Intel Speedstep Disabled
Intel Virtualisation Disabled
Limit CPUID Disabled
AHCI On
2nd Marvell Controller Off
Bluetooth Disabled
Asmedia USB 3.0 Disabled
Intel LAN Disabled
High Precision Event Timer On


EFI BIOS Priority

i could not find a moded bios for mac osx so i just kept the original one and did all the changes on the bios

i got sierra installed and then used ##### for sierra and here is my problem i'm not sure what to pick for my motherboard (audio, video, lan, ect)

i try to do what ever i know. i did install every thing and reboot the system, i does reboot but the help of the usb. and then reboot again and undo all the changes i did on the bios.

now i can not reboot to sierra with ssd drive or the usb help and i got stuck there so i boot back to my windows 10 again

and just to let you that i tried different ways to get this going based on other guides i fond on other forums and again all what i found is an older osx not sierra

thanks for your help in advance











#4
cyberdevs

cyberdevs

    InsanelyMac Deity

  • Donators
  • 1,926 posts
  • Gender:Male

thanks for reply cyberdevs,

i did install sierra on a separate SSD drive with a guide i found. http://www.insanelym...-core-i5-2500k/

it is an old one and it is for yosemite.

what i did is used the latest ##### and ##### to help me with installation and o another guide it asking to flash the the bios with a moded one and do all these changes

Intel Speedstep Disabled
Intel Virtualisation Disabled
Limit CPUID Disabled
AHCI On
2nd Marvell Controller Off
Bluetooth Disabled
Asmedia USB 3.0 Disabled
Intel LAN Disabled
High Precision Event Timer On


EFI BIOS Priority

i could not find a moded bios for mac osx so i just kept the original one and did all the changes on the bios

i got sierra installed and then used ##### for sierra and here is my problem i'm not sure what to pick for my motherboard (audio, video, lan, ect)

i try to do what ever i know. i did install every thing and reboot the system, i does reboot but the help of the usb. and then reboot again and undo all the changes i did on the bios.

now i can not reboot to sierra with ssd drive or the usb help and i got stuck there so i boot back to my windows 10 again

and just to let you that i tried different ways to get this going based on other guides i fond on other forums and again all what i found is an older osx not sierra

thanks for your help in advance

Unfortunately the tools that you used for installing/post-install macOS on your pc are not supported by us and we can not discuss or support them. you can read the rules of InsanelyMac.com



However I can help you to make a clean install of macOS Sierra if you are interested. There is a link in my signature that you can read to get to know the aspects of installing macOS from scratch (If you like). It will you show you how to create a bootable USB disk and go forward with activating different parts of you computer.



For Audio you need to use AppleALC.kext and Lilu.kext with proper Layout-ID 1 injection with clover.

For LAN you'll need to use IntelMausiEthernet.kext

For USB ports you'll need USBInjectAll.kext

You need to add these kext to /EFI/Clover/kext/10.12 or /EFI/Clover/kexts/Other



and for your GPU you need to add the nVidiaGraphicsFixup.kext to avoid the black screen issue on some SMBIOS's (like iMac17,1, iMac15,1 and MacPro6,1). You can also use  and install nVidia web drivers in respect to the build version of the macOS you are using; look here

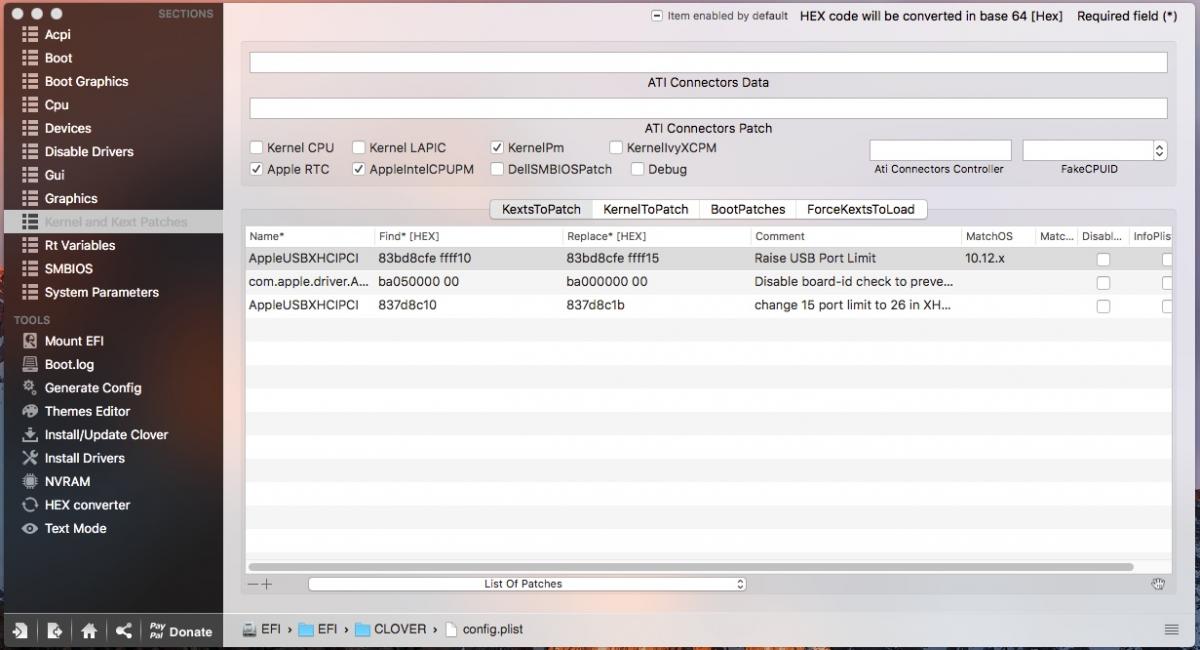

If your BIOS gets reset you need to check the "Apple RTC" in your config.plist. You can use clover configurator to easily edit your config.plist

I hope you find these instructions useful.



#5
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

Thanks cyberdevs for your reply

very nice well writing guide and i will try your guide to get sierra up and running

just one question i'm using vmware workstation to create a bootable USB disk

is that ok or it has to be a real mac or a working Hackintosh

and i may need your help when i start this, because i'm going on vacation this Wednesday  and i will be back next week Tuesday

thanks again



#6
cyberdevs

cyberdevs

    InsanelyMac Deity

  • Donators
  • 1,926 posts
  • Gender:Male

Thanks cyberdevs for your reply

very nice well writing guide and i will try your guide to get sierra up and running

just one question i'm using vmware workstation to create a bootable USB disk

is that ok or it has to be a real mac or a working Hackintosh

and i may need your help when i start this, because i'm going on vacation this Wednesday  and i will be back next week Tuesday

thanks again

You're welcome :)

Yes you can use VMware to build your USB installer and yes I'll be here if you need more help ;)



Have a nice vacation



#7
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

hi cyberdevs

ok my friend I got the bootable USB disk done and I did mount the EFI partition on the desktop

​and I did install clover 2.4k_4152 with these option



Attached File  Untitled.tiff   226.63KB   2 downloads

Attached File  Untitled 2.tiff   224.63KB   2 downloads



and now I'm stuck because the next step is to configure the config.plist with Clover Configurator to make my system work and that I'm not sure what to do. is this needs to be done before installing Sierra on my SSD drive for the first time, or this option has got done post installation so the changes on my config.plist will be saved on the SSD ( the main drive for Sierra ) /System/Library/Extensions

sorry man I'm not Mac wiz but I like the operating system and I love testing this become a challenge for me and I'm welling to learn I just need your patient with me

if you can help with next steps

I forget to tell you that I have ASUS Xonar DG 5.1 Channels 24-bit 96KHz PCI Interface Sound Card on my system and that what I'm using right now, but my on board audio works fine too so I can use the on board audio (High Definition Audio Device)



thanks again





#8
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

hi cyberdevs

I had some spare time to start this installation before my vacation.

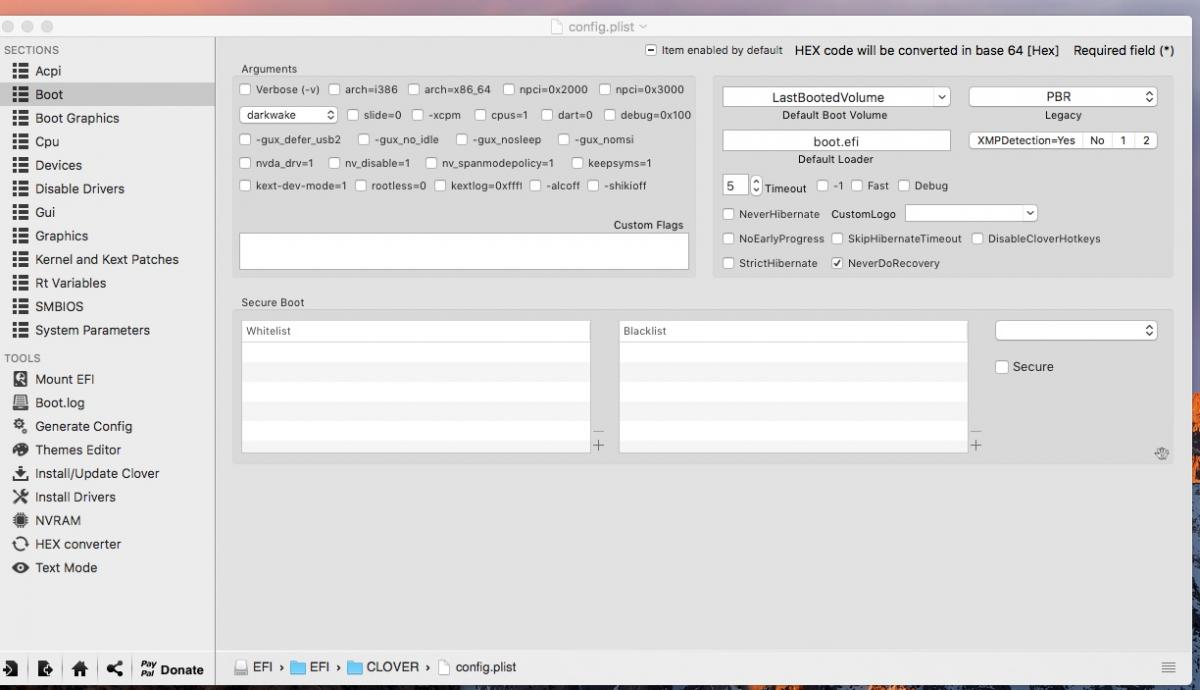

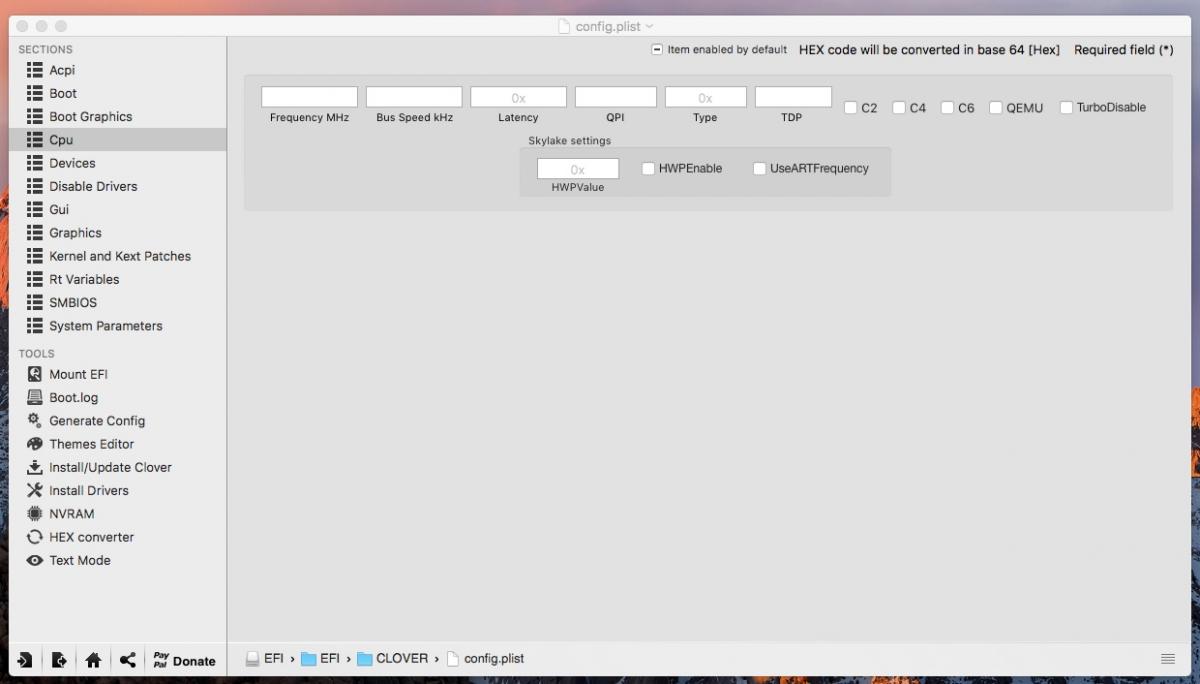

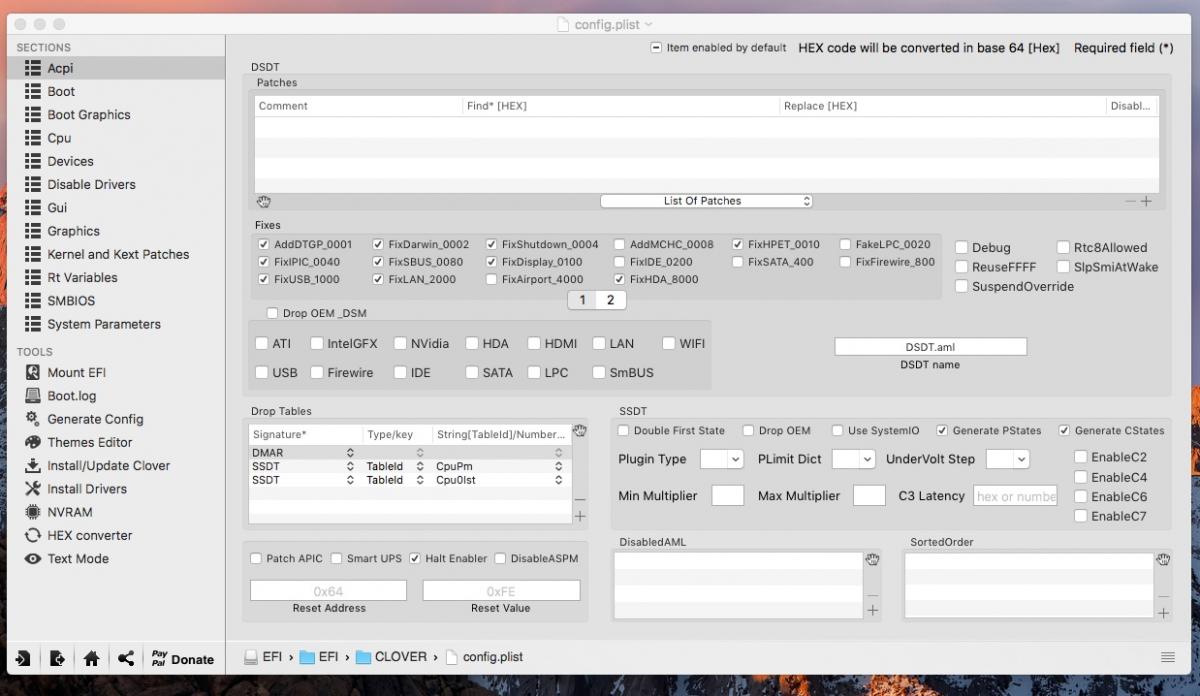

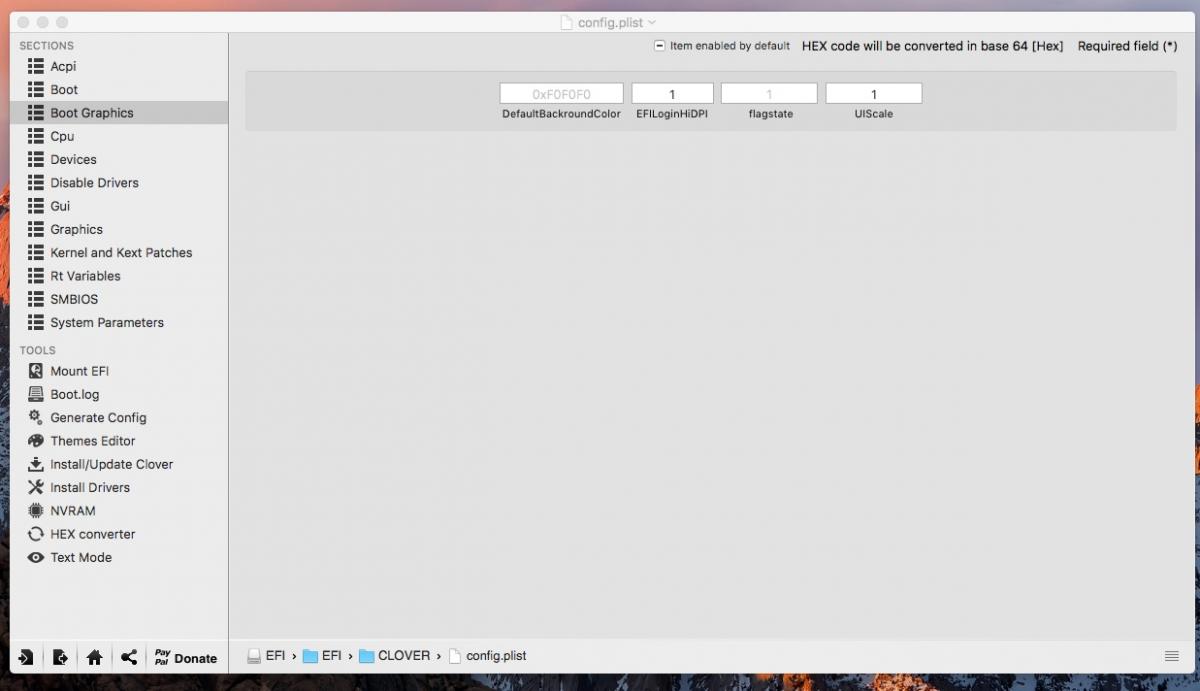

So now I'm at the point of editing my config.plist so I opened it with Clover Configurator but I did no too any thing I just screen shots of a couple thing here for you so you see it and help me get it setup please.





Attached Files



#9
cyberdevs

cyberdevs

    InsanelyMac Deity

  • Donators
  • 1,926 posts
  • Gender:Male

hi cyberdevs

I had some spare time to start this installation before my vacation.

So now I'm at the point of editing my config.plist so I opened it with Clover Configurator but I did no too any thing I just screen shots of a couple thing here for you so you see it and help me get it setup please.

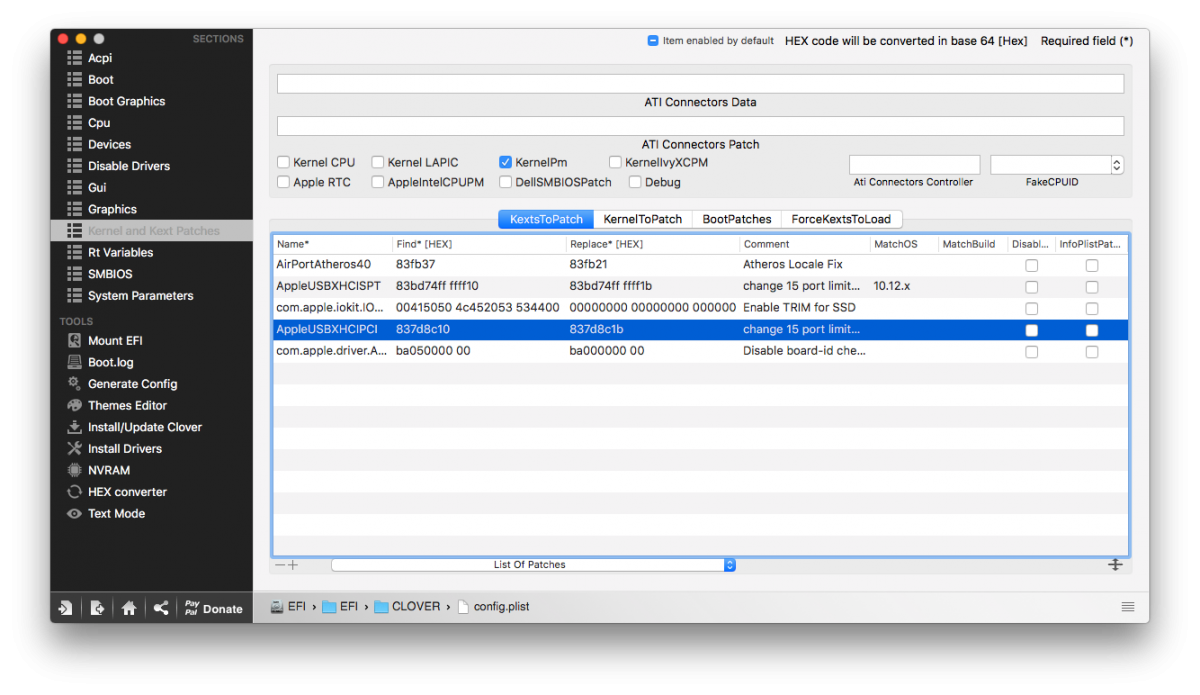

Hi there this the the folder I used to boot and setup my P8H77-M LE the config is set to match your system's spec. Give it a try and let me know if it works.

Attached Files



#10
cyberdevs

cyberdevs

    InsanelyMac Deity

  • Donators
  • 1,926 posts
  • Gender:Male

Just one important tip!



On my Asus P8H77-L ME if I use RC Scripts it messes my system up it will freeze my boot process and I have to do a BIOS reset with clear CMOS jumpers on the board so do not use RC Scripts because it's not needed. Unless you run into trouble with your nVidia GPU and the web drivers.



#11
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

hi cyberdevs, let me start by telling you what i did last night

I got the bootable USB disk

install clover 2.4k_4152 on the USB

options:

UEFI bootin

theme

EmuVariableUefi-64

OsxAptioFix2Drv-64

RC script on the target volume



and i did add all the kext to /EFI/Clover/kext/10.12 ( i just did copy and paste from my desktop )

                    AppleALC.kext

                    Lilu.kext with proper Layout-ID 1 injection with clover.

                    IntelMausiEthernet.kext

                    USBInjectAll.kext

                   nVidiaGraphicsFixup.kext

and it was a no go. i could not get the part installation done and this what i got:

Attached Files



#12
newsman1

newsman1

    InsanelyMac Protégé

  • Members
  • Pip
  • 29 posts
  • Gender:Male

thanks man :thumbsup_anim: :thumbsup_anim: :thumbsup_anim:

i know i'm a pain for you now with all these questions sorry man.

colver needs to be installed on the usb first and and on the SSD after installing sierra

now adding all kext i need for my system and configure the config.plist is that on the usb before installing sierra or on the SSD after finish intalling sierra?

and the folder you have (AEFI) how to use that folder and when before or after installing sierra?

thanks again for your help, :) :) :)



#13
cyberdevs

cyberdevs

    InsanelyMac Deity

  • Donators
  • 1,926 posts
  • Gender:Male

Hi there :)

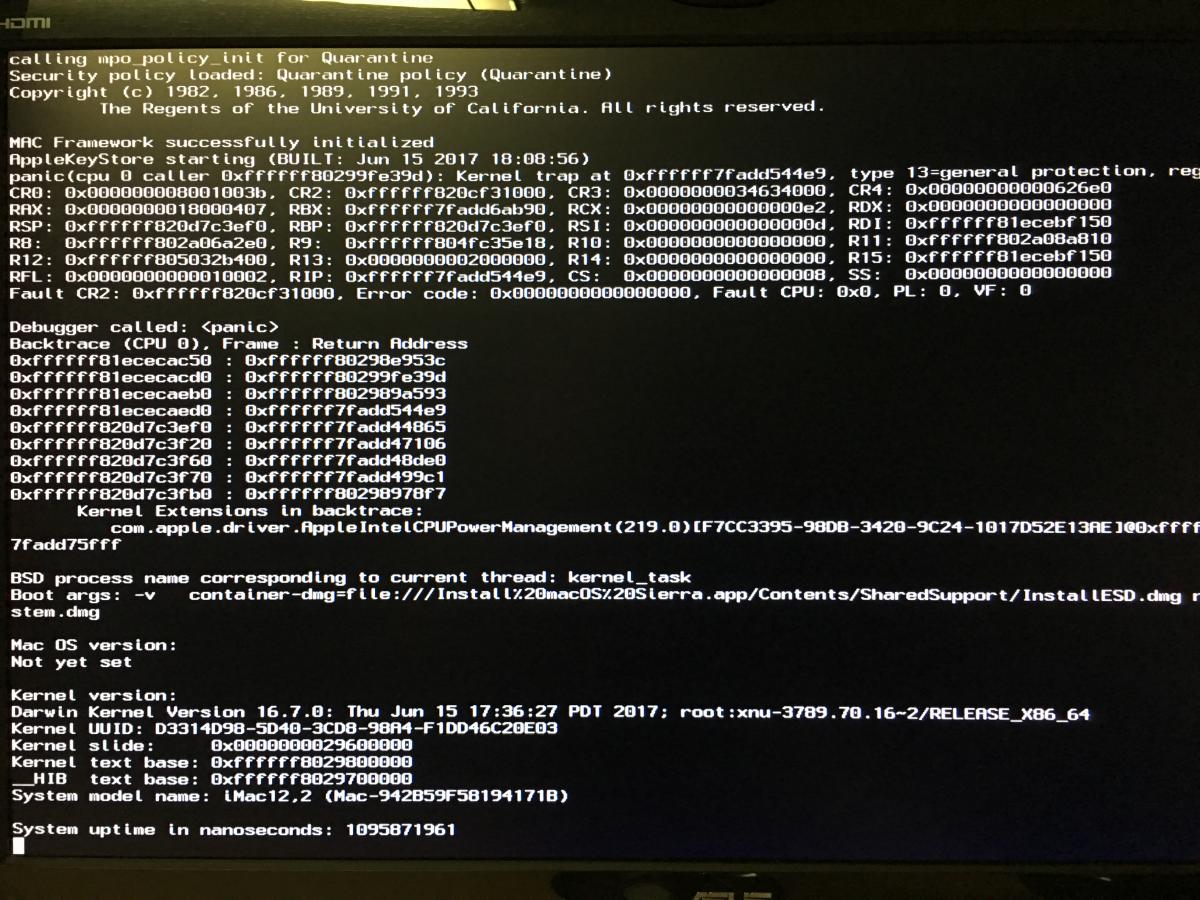

The first picture is called Kernel Panic and it's usually happening when something is seriously wrong with the config.plist or other settings in the BIOS. Make sure you have SerialIO disabled in BIOS and also make sure that you have set BIOS settings correctly.

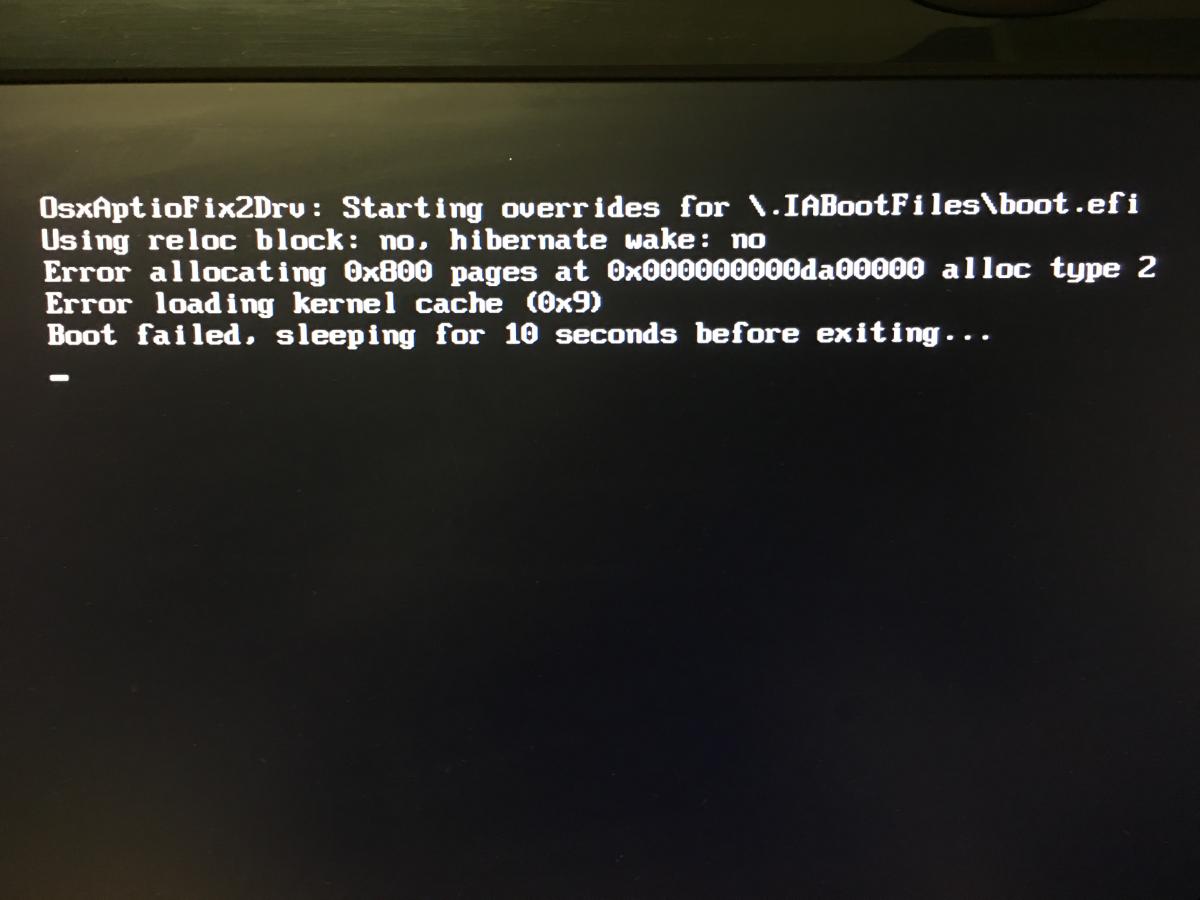

The second picture is because of the bootloader which is Clover. If the boot error is happening every time you try to boot from USB/HDD with clover you can remove the OsxAptioFixDrv-64.efi and use the OsxAptioFix2Drv-64.efi.



Clover EFI bootloader can be loaded from EFI partition on each USB/HDD device you can easily copy/paste the EFI folder inside any EFI partition and it will make it bootable.



The folder I sent you is from my Asus P8H rig and it's set to use UEFI booting instead of Legacy booting so make sure that you have your booting options in BIOS to UEFI if you can. If you already have windows installed in legacy mode changing the boot options will affect your windows too so keep that in mind and if you are already using UEFI that's great.



The AEFI folder (AsusEFI this how I name my EFI folders in my archive along with a date or a Clover build number) is working OK with both the USB installer and the installed version of the macOS if you can successfully boot into macOS installer with my EFI folder you can use it to boot into Sierra after installation as well.



Getting macOS to work flawlessly on any given PC is a process with so many variables so it might take some time to get it fully working. We need to be patient in the process ;)

Let me know if you need more help ;)
