DSDT patch nvidia 315m


  • Please log in to reply
12 replies to this topic

#1
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male

Hi! I have a toshiba c660-2ml laptop with nvidia 315m.

This pc hasn't a intel graphic card and for this i am supposed to use the nVidia. I have installed the natit.kext and put the fakeID 0x0a7a in clover, and during boot the natit recognize the card but when load it the monitor turn off. I think that now is the dsdt but i can't patch it. The PC work with other monitor with hdmi

Now i post the ioreg and the EFI clover with original ACPI files. I haven't installed other kext as audio or wireless because i want resolve first this issue.

Thanks in advance for the help, and sorry for my bad english.

Attached Files



#2
Hervé

Hervé

    InsanelyMacaholic

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,955 posts
  • Gender:Male
  • Location:Rennes, BZH of course!

nVidia GeForce 315M should be detected and work OOB. It's based on the GT2xxx architecture and that's fully supported.

https://www.notebook...5M.41529.0.html

Try the attached DSDT, it injects FeForce 315M characteristics as reported in IOReg.

Attached File  DSDT.aml.zip   23.49KB   7 downloads



Any reason why you use an iMac12,2 SMBIOS as opposed to say MacBookPro8,x? It also seems you reused a Clover config file from another system and tried to adjust it to your Toshiba. Try the attached instead, I've cleaned it up a bit. For instance, no reason to drop all those SSDT tables that were listed, to fake the real id of the GPU, to apply the Kernel Lapic patch or the KernelPm patch.

Attached File  config.plist.zip   3KB   8 downloads



What's your exact CPU model in your Toshiba? You need to generate your CPU-specific SSDT for power management, then get rid of NullCPUPowerManagement so that you can enjoy proper CPU SpeedStep and Turbo boost.



#3
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male

Thanks for the reply! I have an i3-2350m but it haven't the integrated card

Not working... The PC start only with cpus=1 and when it should load the login the pc restart

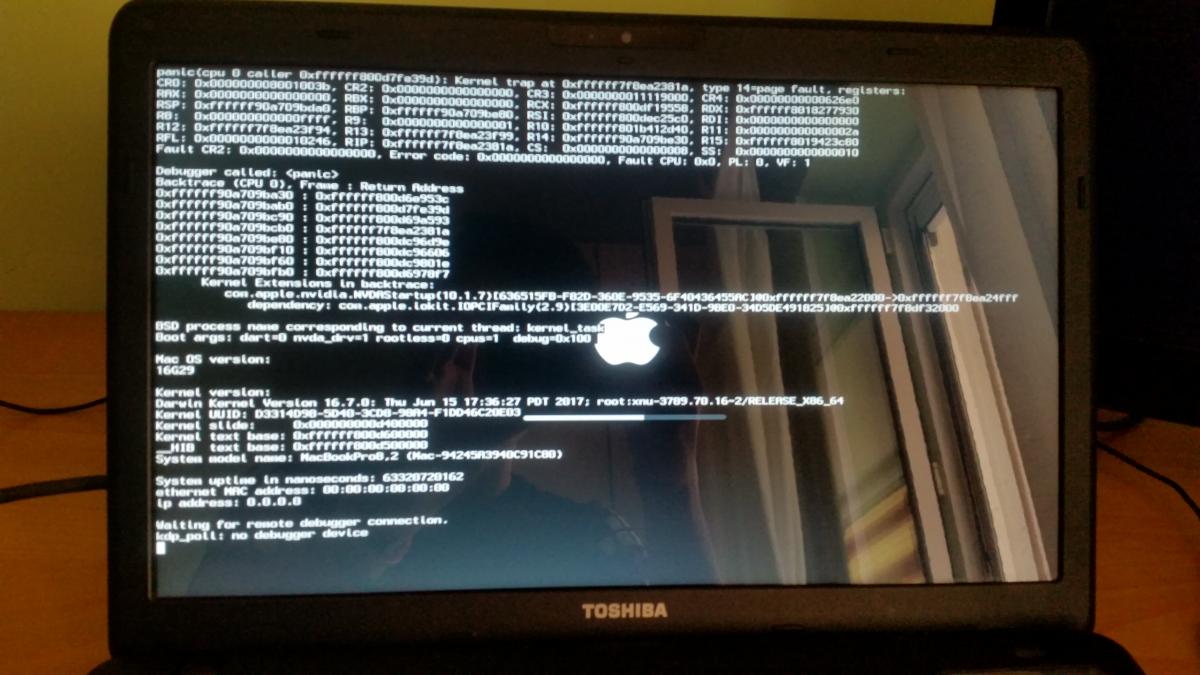

This is the PC loaded with debug, it show this kernel panic

The graphic card is correcly loaded, but the internal monitor isn't recognized. When should appear the login, the internal is black and turn off, but with external monitor or with a screen sharing the graphic works. I don't know how i can turn on the iternal monitor

Attached Files



#4
Hervé

Hervé

    InsanelyMacaholic

  • Members
  • PipPipPipPipPipPipPipPipPipPipPip
  • 2,955 posts
  • Gender:Male
  • Location:Rennes, BZH of course!

Black screen will be most likely an EDID issue though, sometimes, it can also be linked to the SMBIOS.



Try the attached revised Clover config.

Attached File  config.plist.zip   3.13KB   3 downloads



#5
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male

Black screen will be most likely an EDID issue though, sometimes, it can also be linked to the SMBIOS.



Try the attached revised Clover config.

attachicon.gifconfig.plist.zip

Not work... Black screen at the end of the boot

For EDID, i have copy the EDID of this screen by xubuntu live edition and is this:

	        00ffffffffffff0030e48e0300000000
		00160103802213780a01a59c595a9b26
		18505400000001010101010101010101
		010101010101581b567e50000e302430
		350058c2100000190000000000000000
		00000000000000000000000000fe004c
		4720446973706c61790a2020000000fe
		004c503135365748342d544c4e3200c6

but it result corruptet, without Vendor ID and Product ID. The screen is changed by me two years ago because i've broken the original

The screen with nv_disable=1 work



#6
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male

if there isn't any solution i think that i will reinstall windows...



#7
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
Anyone?

#8
MARZILLO

MARZILLO

    InsanelyMac Deity

  • Donators
  • 2,300 posts
  • Gender:Male
  • Location:Roma

http: // www. Insanelymac.com/forum/topic/300715-vaio-users-black-screen-after-boot/page-8#entry2096869



dsdt problem


http://www.insanelym...40#entry2152883



#9
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male

This is the EDID dump .bin and txt

Attached Files



#10
jl4c

jl4c

    InsanelyMac Sage

  • Members
  • PipPipPipPipPipPip
  • 412 posts
  • Gender:Male
  • Location:Chile

Corrupted ioreg, please use IORegistryExplorer version 2.1



#11
MARZILLO

MARZILLO

    InsanelyMac Deity

  • Donators
  • 2,300 posts
  • Gender:Male
  • Location:Roma

i think it

Attached Files



#12
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male

Now it should work

Attached Files



#13
Retroarcade2003

Retroarcade2003

    InsanelyMac Geek

  • Members
  • PipPipPipPip
  • 183 posts
  • Gender:Male
Is there any solution?...
