z170i pro gaming on board wireless / bluetooth not working

z170i pro gaming Sierra Wireless bluetooth 6700k

  • Please log in to reply
28 replies to this topic

#1
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

Hello, i am on mini itx hackintosh with Asus z170i Pro Gaming - 6700k - Gtx 1070.



Everything works a part from integrated onboard wireless. I have the bluetooth that recognize devices like my mouse but it can't connect, so it seems to not works.



There is a way, a kext to install or something to have at list the onboard wifi working on this board?



Thanks



#2
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

Add FakePCIID.kext and FakePCIID_Broarcom_WiFi.kext might help you to get the wifi working.



see here: https://github.com/R...S-X-Fake-PCI-ID



#3
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

Add FakePCIID.kext and FakePCIID_Broarcom_WiFi.kext might help you to get the wifi working.



see here: https://github.com/R...S-X-Fake-PCI-ID



thanks for the answer, I can't find the kext file on the link, can you help me?



#4
floodlitworld

floodlitworld

    InsanelyMac Protégé

  • Members
  • Pip
  • 22 posts
  • Gender:Male
  • Location:UK

You have to open the xcodproj file with XCode and then build it for your system.



#5
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

You have to open the xcodproj file with XCode and then build it for your system.



ohh i see.. I don't know if I am practice with that...!! Do you know a guide / tutorial for this?



Thanks



#6
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

send me your IOReg using so I can see if it's working with your wifi adapter or not.

Attached Files



#7
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

send me your IOReg using so I can see if it's working with your wifi adapter or not.



Hello!



many thanks for your help, I installed the kext in my system with Kext Utility but no wifi :(



I save an IOReg file of my system (hope I did well) it is attached.

Many thanks!!

Attached Files



#8
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 17,997 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

btw, Skylake use iMac17,1, not MacPro5,1



#9
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

btw, Skylake use iMac17,1, not MacPro5,1



hello, I am using MacPro 5,1 because I run a Gtx 1070 Pascal Video card and Nvidia driver says that the machine must be MacPro 5,1 or 6,1.



If I change to iMac17,1 will wifi works? and will 1070 Gtx still works?



#10
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

send me your IOReg using so I can see if it's working with your wifi adapter or not.

No problem,



I'll get back to you on that.


hello, I am using MacPro 5,1 because I run a Gtx 1070 Pascal Video card and Nvidia driver says that the machine must be MacPro 5,1 or 6,1.



If I change to iMac17,1 will wifi works? and will 1070 Gtx still works?

You don't have to use MacPro SMBIOS just for your nVidia adapter, I use the same graphic adapter and I use iMac17,1 SMBIOS, all you have to do is to add nVidiaFixUp.kext and Lilu.kext to your kext folder in clover.

/EFI/Clover/kexts/10.12



#11
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

No problem,



I'll get back to you on that.


You don't have to use MacPro SMBIOS just for your nVidia adapter, I use the same graphic adapter and I use iMac17,1 SMBIOS, all you have to do is to add nVidiaFixUp.kext and Lilu.kext to your kext folder in clover.

/EFI/Clover/kexts/10.12



Ok thanks, where can I get the kexts you said?

Only to understand, will the system runs better if I change to iMac17,1 ?



#12
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 17,997 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

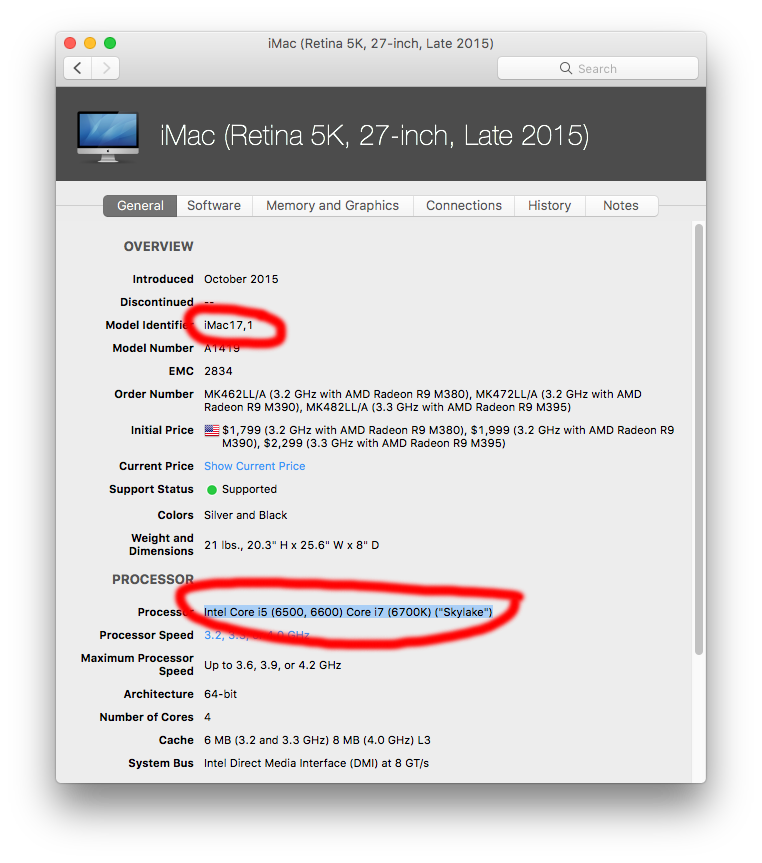

MacPro5,1 is a "Bloomfield, Westmere, Gulftown"

iMac17,1 use ur processor

Attached File  MaLd0n 2017-05-15 às 11.54.54.png   158.37KB   1 downloads

SMBIOS is not a cosmetic ;)

Load correct profile, good PM, etc



#13
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

nVidiafixup.kext

https://sourceforge....agraphicsfixup/



Lilu.kext

https://github.com/vit9696/Lilu



MacPros don't have Skylake CPUs inside but the latest iMac17,1 has a Skylake processor, it's better to use the iMac17,1 SMBIOS to get the full utilization of the skylake architecture, and it has a better chance for power management on skylake processors.



EDIT:

if the link for lily.kext didn't work try this one:



https://github.com/v...6/Lilu/releases



#14
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

MacPro5,1 is a "Bloomfield, Westmere, Gulftown"

iMac17,1 use ur processor

attachicon.gifMaLd0n 2017-05-15 às 11.54.54.png

SMBIOS is not a cosmetic ;)

Load correct profile, good PM, etc



MacPro5,1 is a "Bloomfield, Westmere, Gulftown"

iMac17,1 use ur processor

attachicon.gifMaLd0n 2017-05-15 às 11.54.54.png

SMBIOS is not a cosmetic ;)

Load correct profile, good PM, etc





nVidiafixup.kext

https://sourceforge....agraphicsfixup/



Lilu.kext

https://github.com/vit9696/Lilu



MacPros don't have Skylake CPUs inside but the latest iMac17,1 has a Skylake processor, it's better to use the iMac17,1 SMBIOS to get the full utilization of the skyline architecture, and it has a better chance for power management on skylake processors.





wow! that's a really important info to learn for me! I'll change it!

I am not so expert in the hackintosh world, sorry.



Thanks a lot for your support.



#15
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

wow! that's a really important info to learn for me! I'll change it!

I am not so expert in the hackintosh world, sorry.



Thanks a lot for your support.

No problem dude :)



We're all learning new stuff everyday :)



I can't find any useful info on your wifi chipset go to the following URL : https://sourceforge....ts/dpcimanager/

download the DPCIManager and run it and send me a snapshot so I can find out your wifi's device ID

Click the PCI list and click update IDs then make a snapshot and post it here, justify the columns so I can read the whole info.



#16
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

No problem dude :)



We're all learning new stuff everyday :)



I can't find any useful info on your wifi chipset go to the following URL : https://sourceforge....ts/dpcimanager/

download the DPCIManager and run it and send me a snapshot so I can find out your wifi's device ID

Click the PCI list and click update IDs then make a snapshot and post it here, justify the columns so I can read the whole info.

Ok I appreciate!!

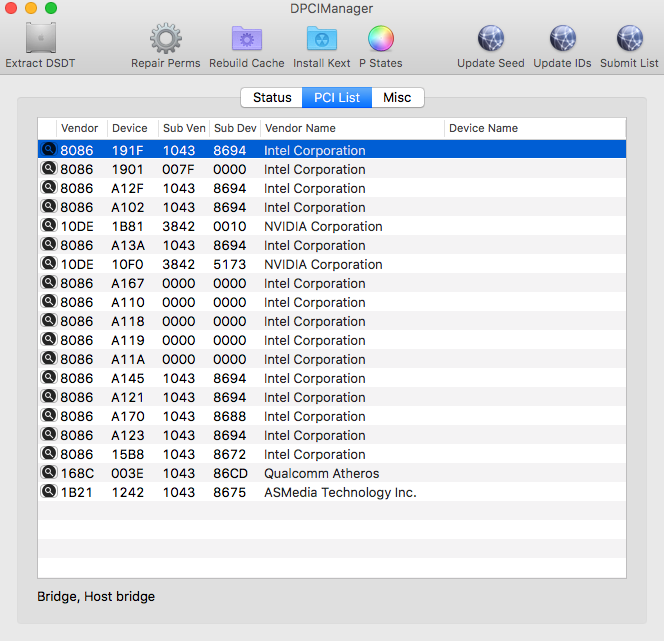

Here is the screenshot I made:

Attached Files



#17
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

Ok now it's better, I will get back to you on that.



It's Qualcomm Atheros 168C:003E



just to make sure that the info is correct remove FakePCIID.kext and FakePCIID_Broarcom_WiFi.kext from EFI/clover/kext and make another screenshot.



#18
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

Ok now it's better, I will get back to you on that.



It's Qualcomm Atheros 168C:003E



just to make sure that the info is correct remove FakePCIID.kext and FakePCIID_Broarcom_WiFi.kext from EFI/clover/kext and make another screenshot.

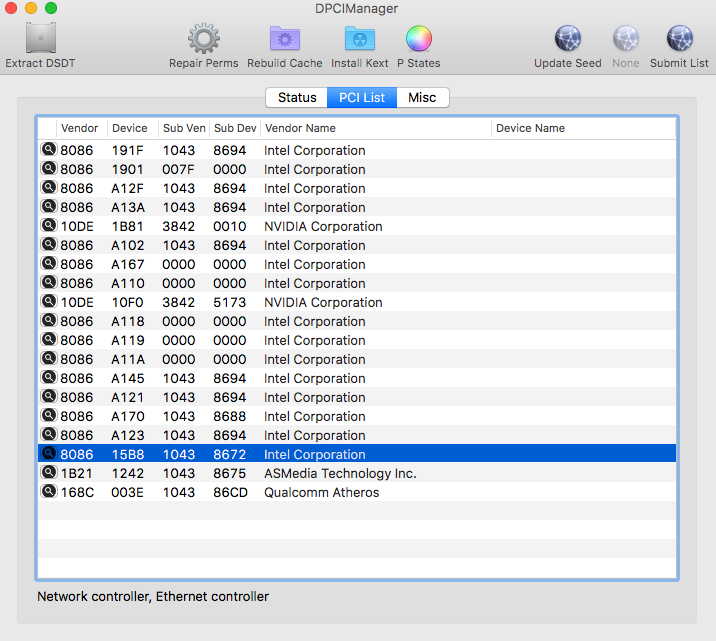

Ok I removed the kexts and I did again the screenshot!

Attached Files



#19
cyberdevs

cyberdevs

    InsanelyMacaholic

  • Donators
  • 2,773 posts
  • Gender:Male

OK that's good.



I'll keep you posted.



#20
Gian Maverick

Gian Maverick

    InsanelyMac Protégé

  • Members
  • Pip
  • 19 posts

OK that's good.



I'll keep you posted.



thanks!!
