Raptorbk Posted April 25, 2017 Share Posted April 25, 2017 Mavericks/Yosemite laptop Overheating (Core 2 Duo)Hello guys, i have a problem with my laptop Bangho, Motherboard made by Clevo which has an overheating problem, this problem happens in every hackintosh that i install, no matter what, my pc would overheat to over 70º, i been using HWmonitor to check my temperatures and it's over 70º and sometimes it goes over 80º which is really weird becouse when i use windows my pc works at around 30º-40º, if you want to know my specs, here they are: Cpu: Core 2 Duo P8400 @ 2.26GHz Gpu: nVidia GeForce 9300m GS (236mb) Ram: 3 GB 1x2gb 1x1gb Audio: Intel 82801I (ICH9 Family) Wireless Adapter: Atheros AR9285 Motherboard: Clevo M746TU (I think) Laptop Model: Bangho B-76XOTU Os: Niresh Mavericks (And tested Yosemite Zone) getting same problem with both OS Stuff i already tried: - Install NullCpuPowerManagement (Didn't Work, high temperature) - Delete NullCpuPowerManagement and installing Patched intelcpupowermanagement from [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] (Getting Kernel Panic) - Install [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url] (Didn't Work, high temperature) - Using -cpus=1 (Didn't Work, high temperature) To finalize i must add that when my laptop gets really hot it turns off itself Other Details: - System is really slow to load, mainly becouse it stuck a while in a line like this: [iOBluetoothHCIController][searchForTransportEventTimeOutHandler] -- Missing Bluetooth Controller Transport! Update: I managed to get working intelcpupowermanagement but there's no change in temperature That's All! And thanks for the help Link to comment Share on other sites More sharing options...
MaLd0n Posted April 25, 2017 Share Posted April 25, 2017 -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 25, 2017 Author Share Posted April 25, 2017 -Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 I'm using chameleon. Should i change it to clover? Link to comment Share on other sites More sharing options...
MaLd0n Posted April 25, 2017 Share Posted April 25, 2017 Send me Extra folder Chameleon and run run_me.app 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 25, 2017 Author Share Posted April 25, 2017 Send me Extra folder Chameleon and run run_me.app Here's the files you want, as you can see i'm using Macbook Pro 3,1 as system definition. But i found something weird, if i click on "About this Mac" it says my Cpu is working at 4.3 GHz but in HWmonitor it says 2.26. Thank you. Extra (Chameleon).zip Send me MacBook Pro de Emiliano.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 Check Extra (Chameleon).zip remove NullCpuPm 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 Check Extra (Chameleon).zip remove NullCpuPm I copy those files into Extra folder and deleted NullCpuPm, Now i'm getting 80º instead of 70. Should i be using intelcpupowermanagement? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 run in terminal kextstat paste here send me one ioreg too extract with... IORegistryExplorer 3.app.zip 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 run in terminal kextstat paste here send me one ioreg too extract with... IORegistryExplorer 3.app.zip Index Refs Address Size Wired Name (Version) <Linked Against> 1 58 0xffffff8051c7e000 0x8d80 0x8d80 com.apple.kpi.bsd (13.0.0) 2 6 0xffffff8051c87000 0x28c0 0x28c0 com.apple.kpi.dsep (13.0.0) 3 87 0xffffff8051cc1000 0x1dfb0 0x1dfb0 com.apple.kpi.iokit (13.0.0) 4 92 0xffffff8051c8a000 0xbf40 0xbf40 com.apple.kpi.libkern (13.0.0) 5 78 0xffffff8051cdf000 0x2d10 0x2d10 com.apple.kpi.mach (13.0.0) 6 31 0xffffff8051ce2000 0x7d40 0x7d40 com.apple.kpi.private (13.0.0) 7 53 0xffffff8051cea000 0x48e0 0x48e0 com.apple.kpi.unsupported (13.0.0) 8 2 0xffffff7f807a5000 0x47000 0x47000 com.apple.kec.corecrypto (1.0) <7 6 5 4 3 1> 9 0 0xffffff7f807ec000 0xb000 0xb000 com.apple.kec.pthread (1) <7 6 5 4 1> 10 16 0xffffff7f807f7000 0x7000 0x7000 com.apple.iokit.IOACPIFamily (1.4) <7 6 4 3> 11 23 0xffffff7f807fe000 0x28000 0x28000 com.apple.iokit.IOPCIFamily (2.8) <7 6 5 4 3> 12 2 0xffffff7f80826000 0x57000 0x57000 com.apple.driver.AppleACPIPlatform (2.0) <11 10 7 6 5 4 3 1> 13 0 0xffffff7f8087d000 0x2000 0x2000 es.osx86.driver.EvOreboot (1.0.3) <4 3> 14 1 0xffffff7f80881000 0xa000 0xa000 com.apple.driver.AppleFDEKeyStore (28.30) <8 7 6 5 4 3 1> 15 0 0xffffff7f8088b000 0x3000 0x3000 com.apple.driver.AppleHWAccess (1) <7 5 4 3> 16 0 0xffffff7f8088f000 0x12000 0x12000 com.apple.driver.AppleKeyStore (2) <8 7 6 5 4 3 1> 17 0 0xffffff7f808a1000 0x4000 0x4000 com.coresystems.driver.DirectHW (1.3) <7 5 4 3> 18 9 0xffffff7f808a6000 0x25000 0x25000 com.apple.iokit.IOStorageFamily (1.9) <7 6 5 4 3 1> 19 0 0xffffff7f808cb000 0x18000 0x18000 com.apple.driver.DiskImages (371.1) <18 7 6 5 4 3 1> 20 1 0xffffff7f808e3000 0xf000 0xf000 com.apple.iokit.IOReportFamily (21) <5 4 3> 21 5 0xffffff7f808f2000 0x2c000 0x2c000 com.apple.iokit.IONetworkingFamily (3.2) <7 6 5 4 3 1> 22 0 0xffffff7f8091e000 0x7000 0x7000 com.apple.iokit.IOUserEthernet (1.0.0d1) <21 6 5 4 3 1> 23 4 0xffffff7f80928000 0x14000 0x14000 org.netkas.driver.FakeSMC (820) <10 7 5 4 3 1> 24 0 0xffffff7f8093c000 0x4000 0x4000 org.hwsensors.driver.CPUSensors (820) <23 7 5 4 3> 25 0 0xffffff7f80943000 0x8000 0x8000 com.apple.nke.applicationfirewall (153) <7 6 5 4 3 1> 26 2 0xffffff7f8094d000 0x5000 0x5000 com.apple.kext.AppleMatch (1.0.0d1) <4 1> 27 1 0xffffff7f80952000 0x13000 0x13000 com.apple.security.sandbox (278.10) <26 7 6 5 4 3 2 1> 28 0 0xffffff7f80965000 0x7000 0x7000 com.apple.security.quarantine (3) <27 26 7 6 5 4 2 1> 29 0 0xffffff7f8096d000 0x3000 0x3000 com.apple.security.TMSafetyNet (7) <7 6 5 4 2 1> 30 0 0xffffff7f80970000 0x3000 0x3000 com.apple.driver.AppleAPIC (1.7) <4 3> 31 0 0xffffff7f80974000 0x4000 0x4000 com.apple.driver.AppleSMBIOS (2.0) <7 4 3> 32 0 0xffffff7f80979000 0x7000 0x7000 com.apple.driver.AppleRTC (2.0) <10 5 4 3 1> 33 8 0xffffff7f80982000 0x5e000 0x5e000 com.apple.iokit.IOUSBFamily (650.4.4) <11 7 5 4 3 1> 34 0 0xffffff7f809e0000 0x18000 0x18000 com.apple.driver.AppleUSBEHCI (650.4.1) <33 11 7 5 4 3 1> 35 4 0xffffff7f80a00000 0x71000 0x71000 com.apple.iokit.IOHIDFamily (2.0.0) <14 7 6 5 4 3 2 1> 36 0 0xffffff7f80a71000 0x4000 0x4000 com.apple.driver.AppleACPIButtons (2.0) <35 12 10 7 6 5 4 3 1> 37 0 0xffffff7f80a77000 0x6000 0x6000 org.hwsensors.driver.ACPISensors (820) <23 10 7 5 4 3> 38 1 0xffffff7f80a81000 0x4000 0x4000 com.apple.driver.AppleEFIRuntime (2.0) <7 6 5 4 3> 39 0 0xffffff7f80a85000 0x10000 0x10000 com.apple.driver.AppleUSBUHCI (650.4.0) <33 11 7 5 4 3 1> 40 0 0xffffff7f80a9b000 0x2000 0x2000 org.tgwbd.driver.ElliottForceLegacyRTC (1) <10 4 3> 41 1 0xffffff7f80a9f000 0x11000 0x11000 com.apple.kext.OSvKernDSPLib (1.14) <5 4> 42 2 0xffffff7f80ab0000 0x2f000 0x2f000 com.apple.iokit.IOAudioFamily (1.9.4fc11) <41 5 4 3 1> 43 0 0xffffff7f80adf000 0x21000 0x21000 org.voodoo.driver.VoodooHDA (2.8.4) <42 11 7 5 4 3> 44 0 0xffffff7f80b05000 0x11000 0x11000 org.hwsensors.driver.LPCSensors (820) <23 11 7 5 4 3> 45 3 0xffffff7f80b16000 0x16000 0x16000 com.apple.iokit.IOAHCIFamily (2.6.0) <5 4 3 1> 46 0 0xffffff7f80b2c000 0x1a000 0x1a000 com.apple.driver.AppleAHCIPort (2.9.5) <45 11 5 4 3 1> 47 2 0xffffff7f80b4d000 0x3000 0x3000 com.apple.iokit.IOSMBusFamily (1.1) <5 4 3> 48 0 0xffffff7f80b50000 0x7000 0x7000 com.apple.driver.AppleACPIEC (2.0) <47 12 10 5 4 3> 49 0 0xffffff7f80b59000 0x3000 0x3000 com.yourcompany.driver.AppleACPIPS2Nub (1.0.0d1) <10 7 5 4 3 1> 50 0 0xffffff7f80b5e000 0x3000 0x3000 com.apple.iokit.IOUSBUserClient (650.4.4) <33 7 5 4 3 1> 51 0 0xffffff7f80b61000 0x17000 0x17000 com.apple.driver.AppleUSBHub (650.4.4) <33 5 4 3 1> 52 0 0xffffff7f80b7d000 0x8000 0x8000 com.apple.driver.ApplePS2Controller (1.1.5) <7 5 4 3 1> 53 0 0xffffff7f80b85000 0x14000 0x14000 org.hwsensors.driver.GPUSensors (820) <23 11 10 7 5 4 3> 54 0 0xffffff7f80ba9000 0x9000 0x9000 com.apple.driver.AppleEFINVRAM (2.0) <38 7 6 5 4 3> 55 0 0xffffff7f80bb2000 0x34000 0x34000 com.lnx2mac.driver.RealtekRTL81xx (0.0.90) <21 11 5 4 3 1> 56 0 0xffffff7f80be6000 0x4000 0x4000 com.Apple.driver.PS2Keyboard (1.1.0) <35 5 4 3> 57 0 0xffffff7f80bea000 0x4000 0x4000 com.Apple.driver.PS2Mouse (1.2.0) <35 5 4 3> 58 1 0xffffff7f80bee000 0x78000 0x78000 com.apple.iokit.IO80211Family (600.34) <21 7 6 5 4 3 1> 59 0 0xffffff7f80c66000 0x14a000 0x14a000 com.apple.driver.AirPort.Atheros40 (700.74.5) <58 21 11 7 5 4 3 1> 60 0 0xffffff7f809f8000 0x3000 0x3000 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) <7 6 4 3 2 1> 61 0 0xffffff7f80db0000 0x33000 0x33000 com.apple.driver.AppleRTL8169Ethernet (1.1.4a5) <21 11 5 4 3 1> 62 0 0xffffff7f80de3000 0x17000 0x17000 com.apple.iokit.IOAHCIBlockStorage (2.4.0) <45 18 6 5 4 3 1> 63 3 0xffffff7f80dfa000 0x2a000 0x2a000 com.apple.iokit.IOSCSIArchitectureModelFamily (3.6.0) <5 4 3 1> 64 0 0xffffff7f80b99000 0xc000 0xc000 com.apple.iokit.IOAHCISerialATAPI (2.6.0) <63 45 5 4 3 1> 65 0 0xffffff7f809fb000 0x4000 0x4000 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0d1) <6 4 3 2 1> 66 0 0xffffff7f80e24000 0x9000 0x9000 com.apple.BootCache (35) <7 6 5 4 3 1> 67 0 0xffffff7f80925000 0x2000 0x2000 com.apple.driver.AppleFileSystemDriver (3.0.1) <18 4 3> 68 0 0xffffff7f80a7d000 0x3000 0x3000 com.apple.driver.XsanFilter (404) <18 5 4 3 1> 69 0 0xffffff7f80a95000 0x4000 0x4000 com.apple.driver.AppleUSBCDC (4.2.1b2) <33 4 3> 70 0 0xffffff7f80b46000 0x6000 0x6000 com.apple.driver.AppleUSBComposite (650.4.0) <33 4 3 1> 71 3 0xffffff7f80e2d000 0xd000 0xd000 com.apple.iokit.IOCDStorageFamily (1.7.1) <18 5 4 3 1> 72 2 0xffffff7f80e3a000 0xb000 0xb000 com.apple.iokit.IODVDStorageFamily (1.7.1) <71 18 5 4 3 1> 73 1 0xffffff7f80e45000 0x9000 0x9000 com.apple.iokit.IOBDStorageFamily (1.7) <72 71 18 5 4 3 1> 74 0 0xffffff7f80e4e000 0x1a000 0x1a000 com.apple.iokit.IOSCSIMultimediaCommandsDevice (3.6.0) <73 72 71 63 18 5 4 3 1> 75 0 0xffffff7f80e68000 0x7000 0x7000 com.apple.iokit.SCSITaskUserClient (3.6.0) <63 18 5 4 3 1> 76 0 0xffffff7f80e6f000 0x8000 0x8000 com.apple.iokit.IOUSBHIDDriver (650.4.4) <35 33 5 4 3 1> 77 1 0xffffff7f80e77000 0xe000 0xe000 com.apple.iokit.IOSerialFamily (10.0.7) <7 6 5 4 3 1> 78 0 0xffffff7f80e85000 0xa000 0xa000 com.apple.iokit.IOBluetoothSerialManager (4.2.0f6) <77 7 5 4 3 1> 79 1 0xffffff7f80b00000 0x5000 0x5000 com.apple.kext.triggers (1.0) <7 6 5 4 3 1> 80 0 0xffffff7f80e8f000 0x9000 0x9000 com.apple.filesystems.autofs (3.0) <79 7 6 5 4 3 1> 81 5 0xffffff7f80e98000 0x37000 0x37000 com.apple.iokit.IOGraphicsFamily (2.3.6) <11 7 5 4 3 1> 82 0 0xffffff7f80ecf000 0x5000 0x5000 com.apple.driver.AudioAUUC (1.60) <81 42 11 10 7 5 4 3 1> 83 0 0xffffff7f80b78000 0x3000 0x3000 com.apple.nvidia.NVDAStartup (8.1.8) <11 4 3> 84 3 0xffffff7f80ed4000 0x8000 0x8000 com.apple.driver.IOPlatformPluginFamily (5.5.1d27) <10 7 6 5 4 3> 85 0 0xffffff7f80ba5000 0x3000 0x3000 com.apple.driver.AppleLPC (1.7.0) <84 11 5 4 3> 86 1 0xffffff7f80edc000 0x12000 0x12000 com.apple.driver.IOPlatformPluginLegacy (1.0.0) <84 10 7 6 5 4 3> 87 2 0xffffff7f80eee000 0xe000 0xe000 com.apple.driver.AppleSMC (3.1.6d1) <10 7 5 4 3> 88 0 0xffffff7f80efc000 0x10000 0x10000 com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) <87 86 84 11 10 7 6 5 4 3> 89 0 0xffffff7f80f0c000 0x5000 0x5000 com.apple.Dont_Steal_Mac_OS_X (7.0.0) <87 7 4 3 1> 90 0 0xffffff7f80940000 0x3000 0x3000 com.apple.driver.AppleSMBusPCI (1.0.12d1) <11 5 4 3> 91 2 0xffffff7f80f11000 0xe000 0xe000 com.apple.iokit.IONDRVSupport (2.3.6) <81 11 7 5 4 3> 92 0 0xffffff7f80f1f000 0x9d000 0x9d000 com.apple.iokit.IOBluetoothFamily (4.2.0f6) <33 20 7 5 4 3 1> 93 1 0xffffff7f80fbc000 0xe000 0xe000 com.apple.driver.AppleSMBusController (1.0.11d1) <47 11 10 5 4 3> 94 2 0xffffff7f80fca000 0x26f000 0x26f000 com.apple.nvidia.classic.NVDAResmanTesla (8.1.8) <91 81 11 5 4 3 1> 95 0 0xffffff7f81239000 0x2ad000 0x2ad000 com.apple.nvidia.classic.NVDANV50HalTesla (8.1.8) <94 11 4 3> 96 0 0xffffff7f814e6000 0xcb000 0xcb000 com.apple.GeForceTesla (8.1.8) <94 91 81 11 7 6 5 4 3 1> 97 0 0xffffff7f815b1000 0x12000 0x12000 com.apple.iokit.IOSurface (91) <7 5 4 3 1> 98 0 0xffffff7f815c3000 0xd000 0xd000 com.apple.driver.AppleMCCSControl (1.1.12) <93 81 11 10 7 5 4 3 1> 99 0 0xffffff7f815d0000 0x5000 0x5000 com.apple.driver.AppleHWSensor (1.9.5d0) <5 4 3> I can't upload the iOREg file because i'm now allowed 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 where AppleIntelCpuPM? U need it AppleIntelCPUPowerManagement.kext AppleIntelCPUPowerManagementClient.kext remove EvOreboot, ElliottForceLegacyRTC 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 where AppleIntelCpuPM? U need it AppleIntelCPUPowerManagement.kext AppleIntelCPUPowerManagementClient.kext remove EvOreboot, ElliottForceLegacyRTC Where can i get it? Because if i install it using M Beast it causes a Kernel Panic 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 but now u have DSDT with fixes, need test, i think work without KP now without AppleIntelCPUPowerManagement.kext and AppleIntelCPUPowerManagementClient.kext u dont have Power Management Update System, update put kexts again 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 but now u have DSDT with fixes, need test, i think work without KP now without AppleIntelCPUPowerManagement.kext and AppleIntelCPUPowerManagementClient.kext u dont have Power Management Update System, update put kexts again I installed AppleIntelCPUPowerManagement via M Beast, but i don't have AppleIntelCPUPowerManagementClient 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 the two kexts is a native in system, dont need install. 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 the two kexts is a native in system, dont need install. I'm getting a Kernel Panic after using it for 2 minutes Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 u test now after my files? Check ur folder System/Library/Extensions 1 Link to comment Share on other sites More sharing options...

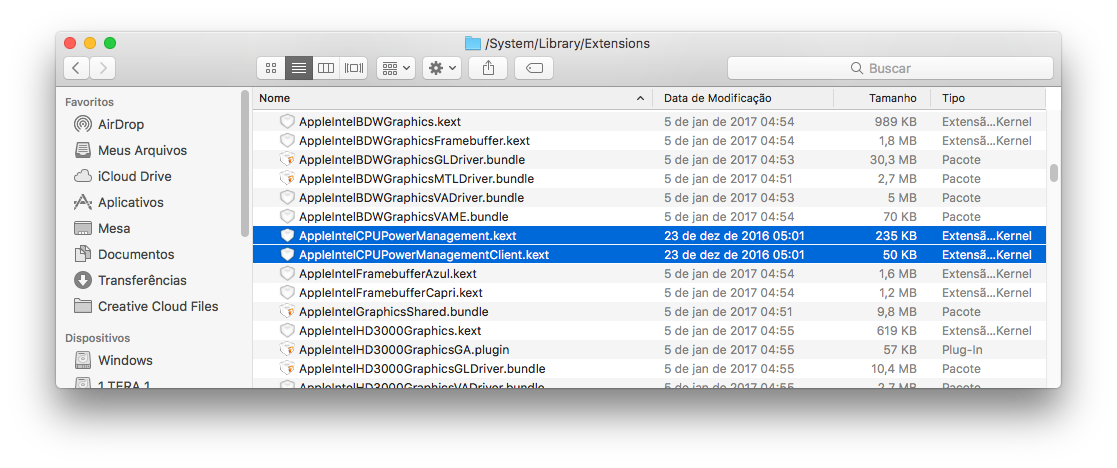

Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 u test now after my files? Check ur folder System/Library/Extensions MaLd0n 2017-04-25 às 22.18.13.png Yes, i'm using your files, but i don't have AppleIntelCPUPowerManagementClient.Kext for some reason 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 Check MAVERICKS.zip YOSEMITE.zip if dont solve, we need try other Smbios many time i dont use chameleon, the Clover is amazin'! 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 Check MAVERICKS.zip YOSEMITE.zip if dont solve, we need try other Smbios many time i dont use chameleon, the Clover is amazin'! Yes, but the last time i installed Clover it didn't worked Check MAVERICKS.zip YOSEMITE.zip if dont solve, we need try other Smbios many time i dont use chameleon, the Clover is amazin'! Still getting Kernel Panic with those Kexts Check MAVERICKS.zip YOSEMITE.zip if dont solve, we need try other Smbios many time i dont use chameleon, the Clover is amazin'! Anyways it seems to be working for a short time, my CPU frequency now is 3.0x instead of 8.5x, and temperature is 70º instead of 80º. Do i need to change my system definition to Mac Pro 3,1 first? Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 try a MacBook5,1 What error u have with Clover? send me new kextstat 1 Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 try a MacBook5,1 What error u have with Clover? send me new kextstat I can't remember the exact problem with Clover because i tested it a long time ago. But i think it was the next: The bootloader stucks at a "-" symbol forever try a MacBook5,1 What error u have with Clover? send me new kextstat It keeps crashing no matter what 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 if u can try Clover and fresh install with these options Clover folder CLOVER.zip U dont need delete AppleIntelCpupm, just use NullCpuPM NullCPUPowerManagement.kext.zip Link to comment Share on other sites More sharing options...

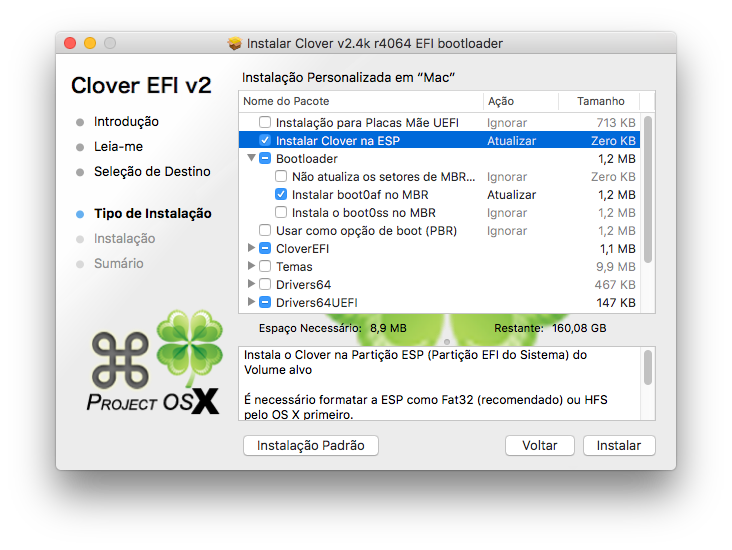

Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 if u can try Clover and fresh install with these options MaLd0n 2017-04-25 às 23.05.39.png Clover folder CLOVER.zip I need to reinstall everything? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 26, 2017 Share Posted April 26, 2017 U can try with atual system, but if fails, try a fresh install Link to comment Share on other sites More sharing options...
Raptorbk Posted April 26, 2017 Author Share Posted April 26, 2017 U can try with atual system, but if fails, try a fresh install Ok, i'm going to try it. if u can try Clover and fresh install with these options MaLd0n 2017-04-25 às 23.05.39.png Clover folder CLOVER.zip U dont need delete AppleIntelCpupm, just use NullCpuPM NullCPUPowerManagement.kext.zip I'm supossed to execute it or i need to put it on a usb? Link to comment Share on other sites More sharing options...
