Can't boot to installer on GA X79 - UP4


  • Please log in to reply
16 replies to this topic

#1
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

Hi folks,

I am totally at a loss and ready to pay somebody to help if that person even exists.

Ive tried a lot of stuff and haven't really got anywhere. It has been months, on and off.



I've followed so many guides and bits of advice that I have totally lost track where I'm at.



Things are a bit of a mess.

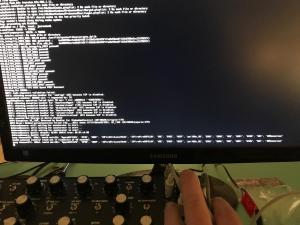

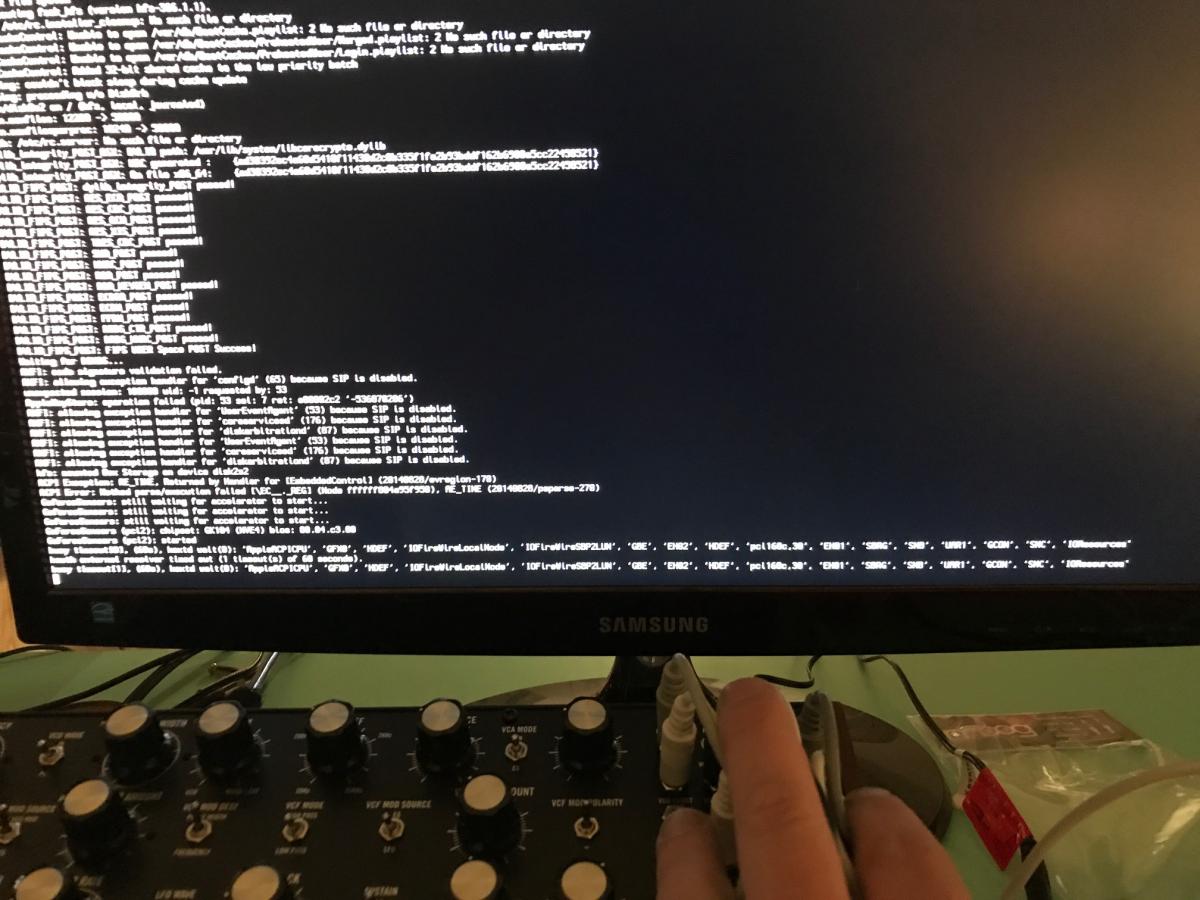

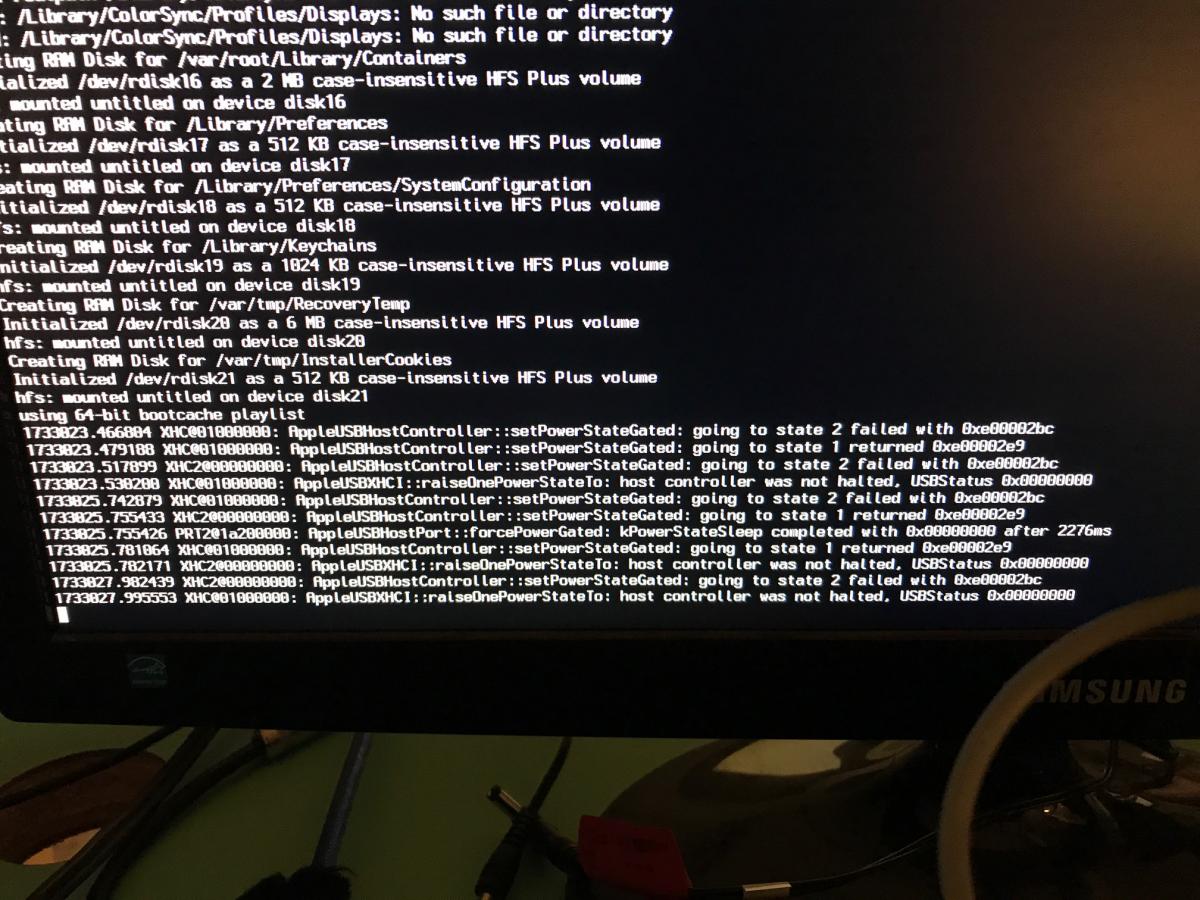

The problem is that the installer either endlessly loops on a bunch of:



"XHC@010000000: AppleUSBHostController: : set PowerStateGated: Going to state 2 failed with 0xe0002bc"



see attached :



Or reboots after:



"Waiting for remote debugger connection

kip_poll: no debugger device"



I have tried a few fixes to get USB3 working over the years that may have something to do with the problem, but who knows.  (It still doesn't work)

I run clover and I can't boot to the installer with a bootable USB or directly.



I'm at my wits end and would love any help I can get.



Thanks.

Attached Files



#2
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

try with Generic usb

https://bitbucket.or...3-2015-1215.zip

and voodootscsync

Attached File  VoodooTSCSync.kext.zip   14.72KB   5 downloads



What ur processor?



#3
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

Thanks for getting back to me.

I'll have a try and let you know how I go.



my cpu is a Xeon 2630



Thanks again.



#4
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

12  threads?

if yes, edit voodootscsync, put number 11



#5
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

Ok! Big development!

I managed to boot into the installer with the voodootscsync setting you suggested! Thanks!!

That's the good news, the bad news is that the usb problem didn't get fixed. The same message as above comes up many times as it loads into the installer.



""XHC@010000000: AppleUSBHostController: : set PowerStateGated: Going to state 2 failed with 0xe0002bc""



Then, of course, there is no working USB in the installer.



Thanks so very much for your help!

Do you have any suggestions for the usb problem? I feel like I'm close now!



#6
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

Found this and I think it may be the solution to all my problems



http://www.insanelym...sierra-success/



#7
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

u can boot into system after install? if yes send me files

-Post ur full Clover folder with original tables, press F4 in Clover Boot Screen, files generate in Clover/Acpi/origin
-Post Ioreg, extract with Ioreg Explorer
-Run it, post files generate in ur desktop


#8
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

OK, so a lot has happened.

Using the EFI folder in the link above I was able to boot into the Sierra Installer with USB working. I installed Sierra without any trouble. I thought everything was solved!

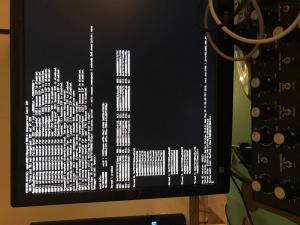

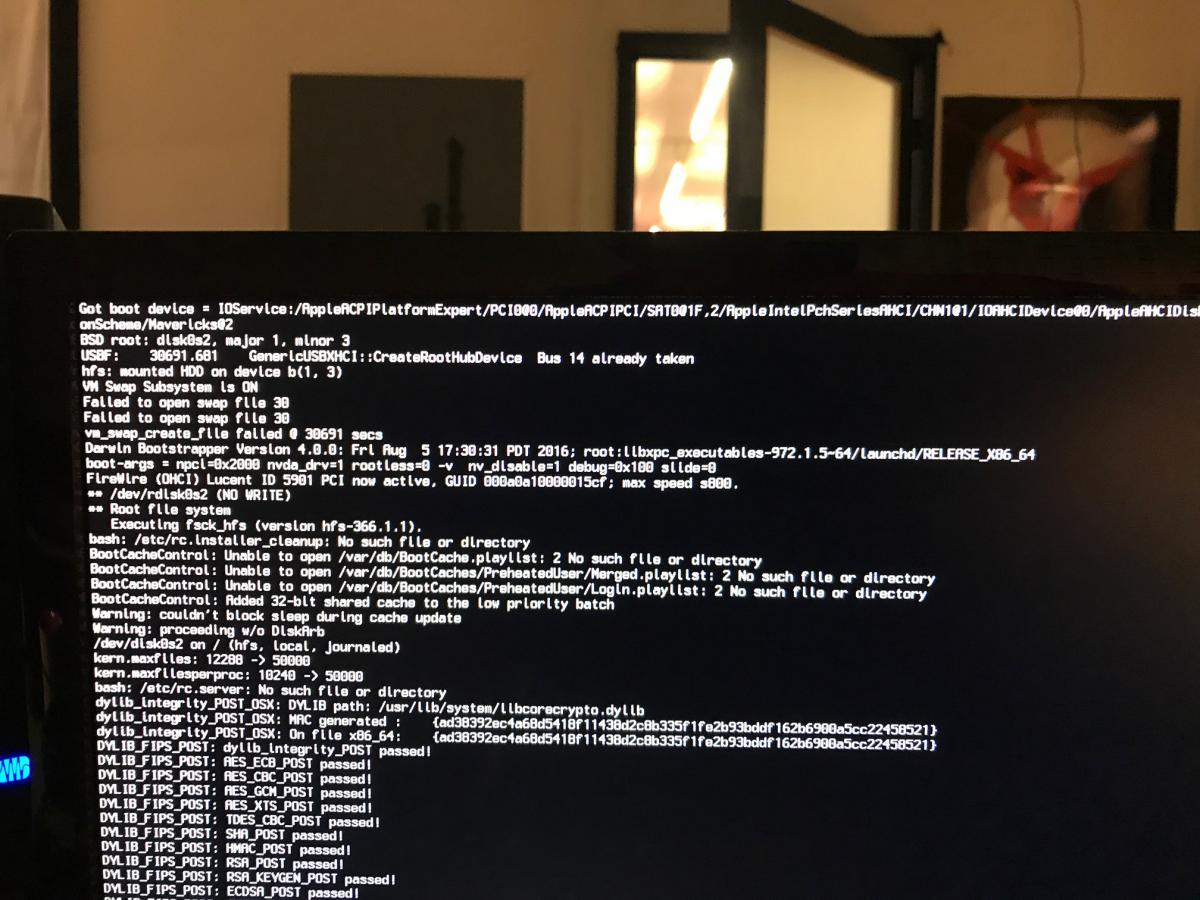

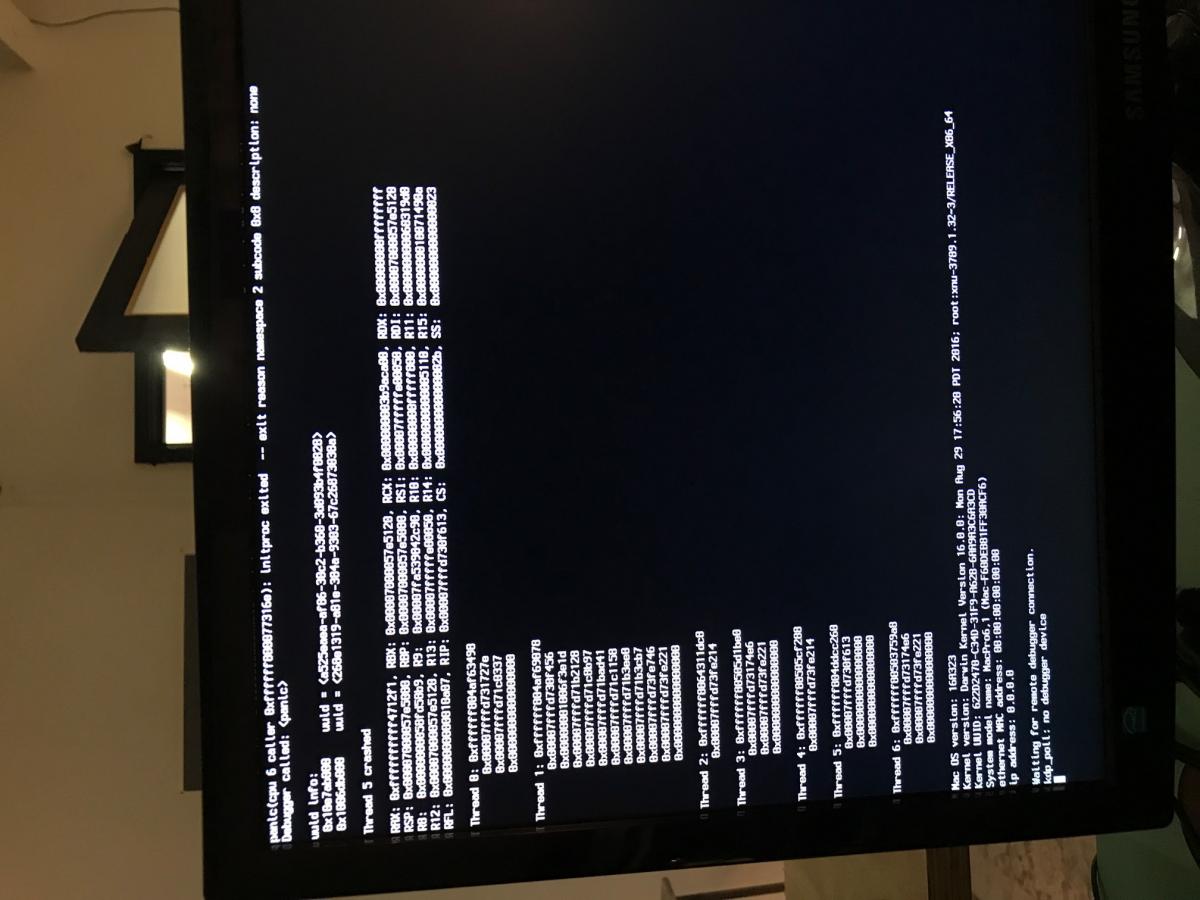

Unfortunately, now when I try to boot I have a similar problem as when I couldn't boot to the installer. It's a crash which looks very like the one I had at the start which was solved by the Voodoo kext. (see attached.) I have managed to boot to the login screen using xcpm but can't do anything  as I have no USB again.



It is so weird!



I have also attached a list of the kexts that were included in the motherboard specific EFI folder from the above link. I have used the whole folder as my EFI.







Does anybody have any ideas?






I still have access to my files as I have booted into a cloned disk of my El Cap install. Thank goodness!


Sorry, I didn't see that you had written back before replying.



Here are the things you asked for. They are from the cloned El Cap disk I have booted. As I mentioned I am unable to boot into Sierra after the install.





This link is the full EFI folder I have used from the above topic I found. It is prepared for a X79 board.



https://www.dropbox.... Files.zip?dl=0





Thanks so much for taking the time to help.





Please let me know If you need anything else.







Attached Files



#9
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

what ur GPU?



#10
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
Gtx770

#11
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

try it, replace full folder

Attached File  CLOVER.zip   2.76MB   6 downloads



#12
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

Ok, I have just given that a go.

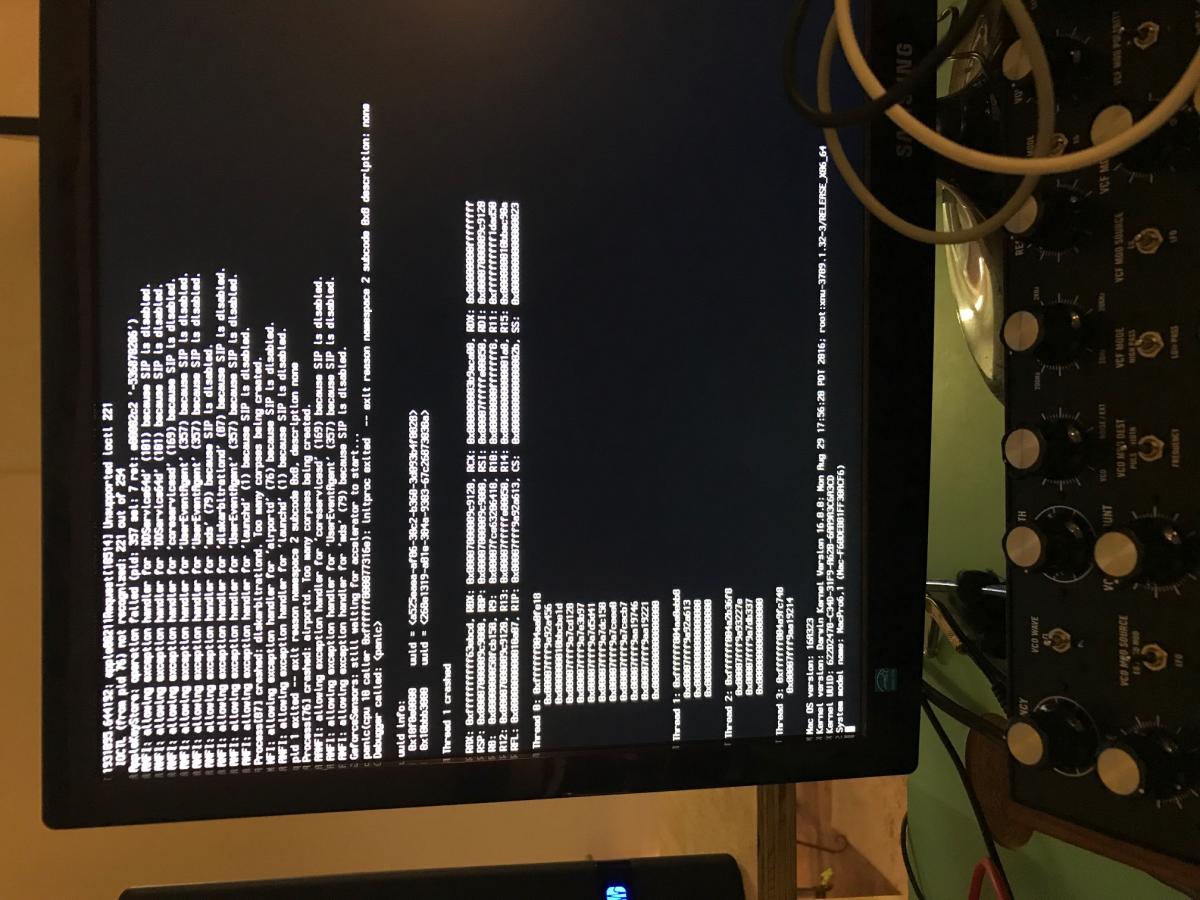

Ended with the attached.



The image that is blurry is where it stopped.





I'll upload a better copy of it.

Attached Files



#13
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

what Clover version u use?

try with...

https://sourceforge....49.zip/download



U use fakesmc sensors?



#14
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts

--



Trying again I was able to boot to the login screen. I was even able to get a single USB port working (One that, from experience, tends to work when none of the others do.) When it was trying to log after I entered my password in I got the same panic as before.



So despite seeming progress, it is the same problem



- No USB

- Thread crashing


Ok, thanks!  Trying now.


No luck. Updated Clover and same thing. See attached.


I don't know if I use FakeSMC Sensors. What is that?

Attached Files



#15
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 16,021 posts
  • Gender:Male
  • Location:Rio de Janeiro
  • Interests:HacksLikeMacs

Check bios config here

http://www.insanelym...x950/?p=2193698

ppl say work



#16
alayne

alayne

    InsanelyMac Protégé

  • Members
  • Pip
  • 11 posts
Hi,

I gave that a go but it didn't help my problem.

#17
bigben1

bigben1

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 158 posts
  • Gender:Male
  • Location:third largest economy

your system specs please!!!  also bios setting details .
