BadBull Posted March 23, 2017 Share Posted March 23, 2017 Hi together, I bought a new laptop in December 2016 in order to install Mac OS X on it. Now I believe another one with complete install guides would have been the better choice. It's a Lenovo Ideapad 500-15ISK with the folliowing specs: i5-6200U 8 GB DDR3L-1600256 GB SSDDVD+/-RW DLHD520 & AMD Radeon R7 M360 with 2048 MB GDDR3 VRAMRealtek High Definition Audio (ALC236)Realtek Gigabit Network RTL8168 I managed to install Sierra 10.12.3 with Clover 4035 in EFI mode. DVMT is not changeable - BIOS locked. There are a lot of things I got to work: HD520 Graphics Acceleration by using minstolensizepatch + no-glitch patch Sound by Kext2Patch & AppleHDA.kext Network by RTL8111.kext Trackpad by VoodooPS2Controller.kext Battery percentage by ACPIBatterymanager.kext PM by X86PlatformPluginInjector.kext and SMBIOS MBA13,1 WIFI out-of-the-box by changing hardware to BCM943602BAED iMessage & Facetime & Siri In Clover folder: SATA-100-series-unsupported.kext, FakeSMC.kext, VoodooPS2Controller.kext Not working: - Bluetooth - Brightness - Battery? When reaching about 60%, it's jumping to 5% with showing the notification to use the power supply. Charging back to 100% just takes about 30 minutes!? - Camera Next step for me is patching the DSDT to get full battery capacity. There is no Lenovo patch that fits to my laptop (or I didn't find it). Is there anybody out there who is willing to help me with the patch? Battery and other stuff which suits to my laptop. Thanks in advance Michael Link to comment Share on other sites More sharing options...
MaLd0n Posted March 23, 2017 Share Posted March 23, 2017 -Post ur full Clover folder -Post Ioreg, extract with Ioreg Explorer http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 -Run it, post files generate in ur desktop http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222609 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 Extract with f4 in clover boot screen, generate tables in folder Clover/Acpi/origin Link to comment Share on other sites More sharing options...
MaLd0n Posted March 24, 2017 Share Posted March 24, 2017 Check need test battery, replace folder CLOVER.zip Link to comment Share on other sites More sharing options...
BadBull Posted March 25, 2017 Author Share Posted March 25, 2017 Backlight working now. Battery showing percentage. Draining from 100% - 58% in 1,5 hours. But then jumping from 58% to 6% in a second. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 go to AboutThisMac/Graphics What u see? post a screenshot ill check battery Link to comment Share on other sites More sharing options...

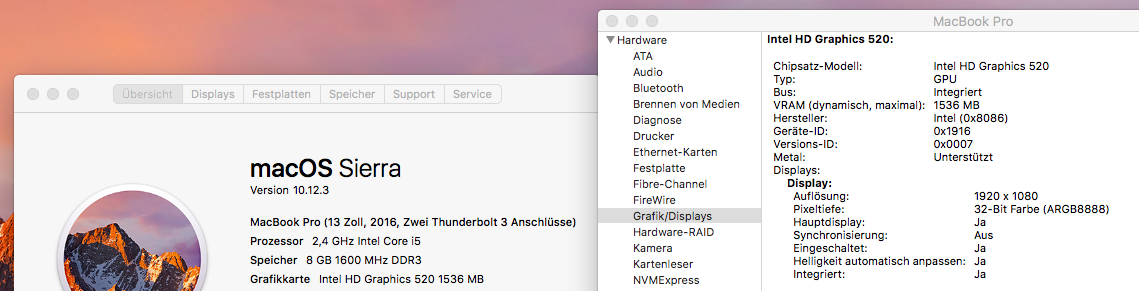

BadBull Posted March 25, 2017 Author Share Posted March 25, 2017 Integrierter Bildschirm 15,5-Zoll (1920 x 1080) Intel HD Graphics 520 1536 MB 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 Post a screenshot test battery DSDT.02.zip Link to comment Share on other sites More sharing options...
BadBull Posted March 25, 2017 Author Share Posted March 25, 2017 battery is still jumping to 5% Link to comment Share on other sites More sharing options...
MaLd0n Posted March 25, 2017 Share Posted March 25, 2017 DSDT.02.zip if dont work, ill need check patch, need time U generate ur ssdt for native power management with pike script? run ir, save and compile, SSDT.aml ssdtPRGen.command.zip send me ioreg after reboot http://www.insanelymac.com/forum/index.php?app=core&module=attach§ion=attach&attach_id=222606 Link to comment Share on other sites More sharing options...
BadBull Posted March 26, 2017 Author Share Posted March 26, 2017 no changes to battery I hope this has to do with the battery patch at all... PM done with X86PlatformPlugin.kext and Clover. No SSDT. http://www.insanelymac.com/forum/topic/321021-guide-hwpintel-speed-shift-enable-with-full-power-management/page-1 Look at my ioreg at 4th post if PM is fully working. *edit* There is a new problem: shutdown = reboot Link to comment Share on other sites More sharing options...
artur_pt Posted March 26, 2017 Share Posted March 26, 2017 hello try this one for the bat and shutdown DSDT.aml.zip good hack Link to comment Share on other sites More sharing options...
BadBull Posted March 26, 2017 Author Share Posted March 26, 2017 Hi Artur, thanks for trying to help me. shutdown problem is still there. hack book is showing the wrong icon when in battery mode, see screenshot Link to comment Share on other sites More sharing options...
artur_pt Posted March 27, 2017 Share Posted March 27, 2017 hello don't understand what u say about bad icon in bat ? i have the same icon in sierra good hack Link to comment Share on other sites More sharing options...
BadBull Posted April 1, 2017 Author Share Posted April 1, 2017 the icon is showing that the AC is connected, which is not true. in the meanwhile: -update to 10.12.4 -upgraded to clover 4047 -added SkylakeLPC fix in dsdt maybe there is another reason why battery is not working correctly? Link to comment Share on other sites More sharing options...
MaLd0n Posted April 1, 2017 Share Posted April 1, 2017 Dsdt full patched, lpc fix too, need solve battery patch, only Link to comment Share on other sites More sharing options...
BadBull Posted April 2, 2017 Author Share Posted April 2, 2017 sounds easier than it is Link to comment Share on other sites More sharing options...
al6042 Posted April 2, 2017 Share Posted April 2, 2017 The Battery works without DSDT patch on my Ideapad 500... Just use ACPIBatteryManager in your CLOVER-EFI-Partition and forget the DSDT Patch in that case... 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 2, 2017 Share Posted April 2, 2017 Yes Speak to Rehabman about battery patches for ur notebook, i never used and check these patchs, need understand patch first Link to comment Share on other sites More sharing options...
manubrio Posted May 18, 2017 Share Posted May 18, 2017 Hi, I have the same laptop but I'm unable to make audio working. Please, anyone have a guide for the audio fix?Thank you 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 18, 2017 Share Posted May 18, 2017 Hi, I have the same laptop but I'm unable to make audio working. Please, anyone have a guide for the audio fix? Thank you What ur audio codec? Link to comment Share on other sites More sharing options...
manubrio Posted May 18, 2017 Share Posted May 18, 2017 What ur audio codec? I have tried the ALC1150 and change the inject to 1, 2, 3 but I don't see the device in preferences. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted May 18, 2017 Share Posted May 18, 2017 ALC 1150 in notebook? I never see Post ur full Clover folder here Link to comment Share on other sites More sharing options...
manubrio Posted May 18, 2017 Share Posted May 18, 2017 ALC 1150 in notebook? I never see Post ur full Clover folder here Here the file, thank you. CLOVER.zip Link to comment Share on other sites More sharing options...
manubrio Posted May 19, 2017 Share Posted May 19, 2017 Here the file, thank you. Maybe this help, it's the ALC236: File: audio_codecdetect.command_v2.2 HDMI audio codec(s) Onboard audio codec Device: Not supported Realtek: 0x10ec0236 Name: Realtek ALC236 Audio ID: Not supported Current Audio ID: 1 (valid: 1, 2, or 3) FIX, try: 1. https://github.com/toleda/audio_ALCInjection/tree/master/ssdt_hdef/ssdt_hdef-1-with_ioreg/hdef.zip (or-2 or -3, select View Raw) 2. CLOVER/config.plist/Devices/Audio/Inject/1 (or 2 or 3) No system files were changed Thank you Link to comment Share on other sites More sharing options...
