mirochan Posted February 21, 2017 Share Posted February 21, 2017 Hi guys, I've been running my hackintosh for a while without any major issues. My hardware is as follows: ASRock H110M-ITX i5-6500 Asus GTX 750 Ti Though my system reboots on wake and in general I'm only able to follow guides after research but often it's very unclear to me if what I'm doing is necessary or helpful. I'd like to get the system optimized as far as possible. In the optimization process I found time for lately I've implemented an SSDT for power management and USB following pikers guide, then implemented ACPI fixes from VoiletDragons github: https://github.com/V...t_patches.plist, but didn't include his SSDTs as I'm not sure if they fit my hardware. Not sure if the fixes are useful then also, I'm trying to get his help in another forum. My AppleLPC isn't loading, as I've been told that could be necessary for a working sleep mode, so I enabled the FakeLPC fix, it still isn't loading tho. My BIOS settings are left on default, except that I disabled VT-d and Inter Virtualization Technology. Is there anything important I'm missing out? I would be very grateful for any directions to get sleep to work and how to check if my system is set up as it should be otherwise. I'm for example very unsure if the power states are working as they should. I attached my recent IOReg and Clover folder without the themes, but including the F4 dump. mymac.zip CLOVER.zip Link to comment Share on other sites More sharing options...
Allan Posted February 21, 2017 Share Posted February 21, 2017 Try this: CLOVER.zip I made a clean in your config.plist. E.g: <dict> <key>Comment</key> <string>change _OSI to XOSI</string> <key>Disabled</key> <false/> <key>Find</key> <data> X09TSQ== </data> <key>Replace</key> <data> WE9TSQ== </data> </dict> There's no reason to use this, without SSDT-XOSI If you use GTX 750 Ti, why use this patch for IGPU? <dict> <key>Comment</key> <string>change GFX0 to IGPU</string> <key>Disabled</key> <false/> <key>Find</key> <data> R0ZYMA== </data> <key>Replace</key> <data> SUdQVQ== </data> Both are removed. 2 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 21, 2017 Share Posted February 21, 2017 dont use xosi, xdsm, etc, use original table and devices and edit CLOVER.zip if ur mobo have asmedia usb, disable in bios u can follow it, work for u http://www.insanelymac.com/forum/topic/320288-guide-asus-z170m-plus-core-i5-6600k-dsdt/ use uefi mode and replace clover folder Patches in DSDT Fix errors and warnings Hpet Darwin Sata Dtgp Power Button Led pulse in sleep mode (thx, Mieze) Slpb Als0 Lpc XHC Hdas to Hdef Hdef Irqs Smbus Bus1 Shutdown Mchc Hdau Lan Mutex Pnlf Ec Plugin Type Imei Names in PCI Devices 1 Link to comment Share on other sites More sharing options...

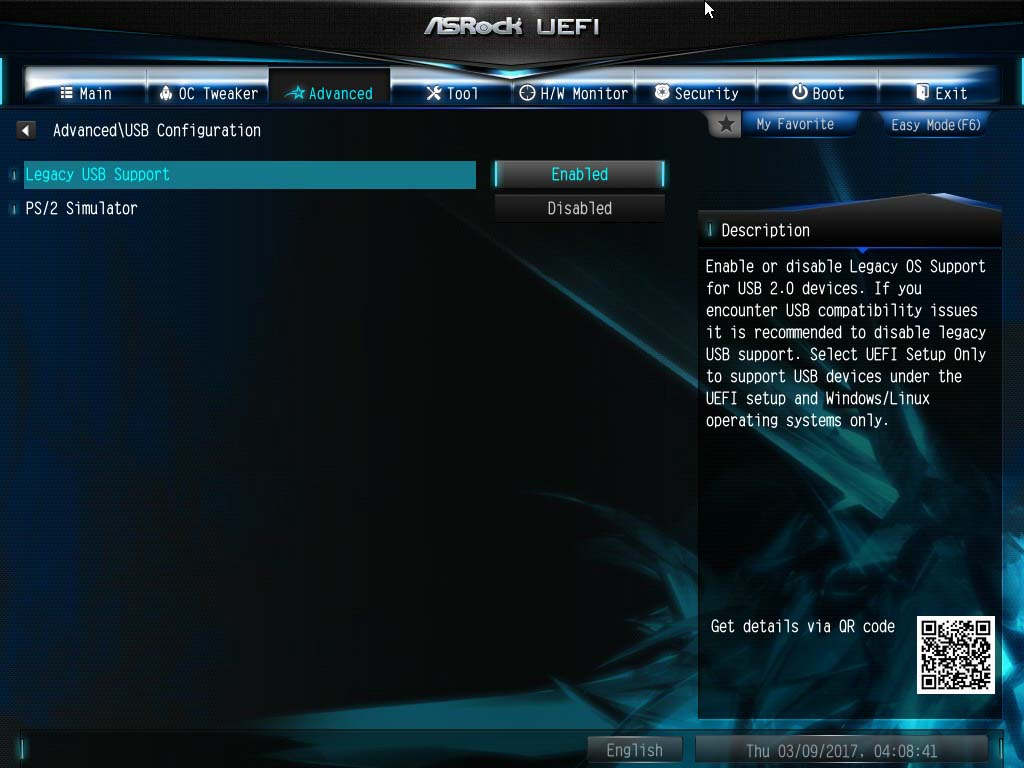

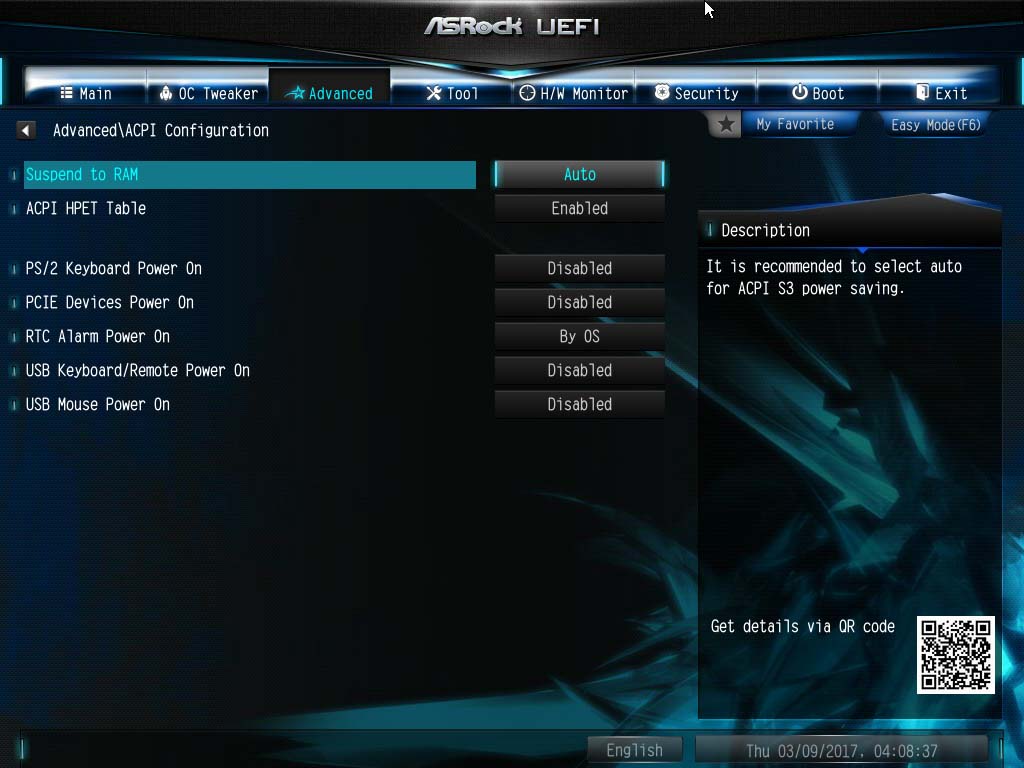

mirochan Posted February 22, 2017 Author Share Posted February 22, 2017 Thank you Allan and MaLd0n!! I've disabled CMS in the bios so it should definitely boot in UEFI, right? It boots way faster now. I replaced the CLOVER folder with MaLd0ns version while running OS X normally then. After that, I rebooted and ran the Olariva command for clearing NVRam, Purge, kextcache. Unfortunately the reboot after wake problem still persists. Also, now the HDMI Audio isn't working, it's showing up as an output option but I get no sound. I had this installed: https://github.com/toleda/audio_CloverHDMI, before I installed that it didn't show up even as an option. In my Advanced USB BIOS options, I've got only "Legacy support" enabled and PS2 Emulator disabled. In my ACPI settings it looks like this: Suspend to RAM - auto ACPI HPET table - enabled PS2/Keyboard power on - disabled PCIE devices power on - disabled RTC alarm power on - By OS USB keyboard and mouse/Remote power on - disabled I've attached a new ioreg. Thanks so much for your attention and help! mymac.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 22, 2017 Share Posted February 22, 2017 Try it CLOVER.zip replace full folder after reboot send me a new ioreg with new files 1 Link to comment Share on other sites More sharing options...
mirochan Posted February 22, 2017 Author Share Posted February 22, 2017 Thanks! No changes at the wake, HDMI audio also still not playing. I attached the new IOreg! mymac.zip 1 Link to comment Share on other sites More sharing options...

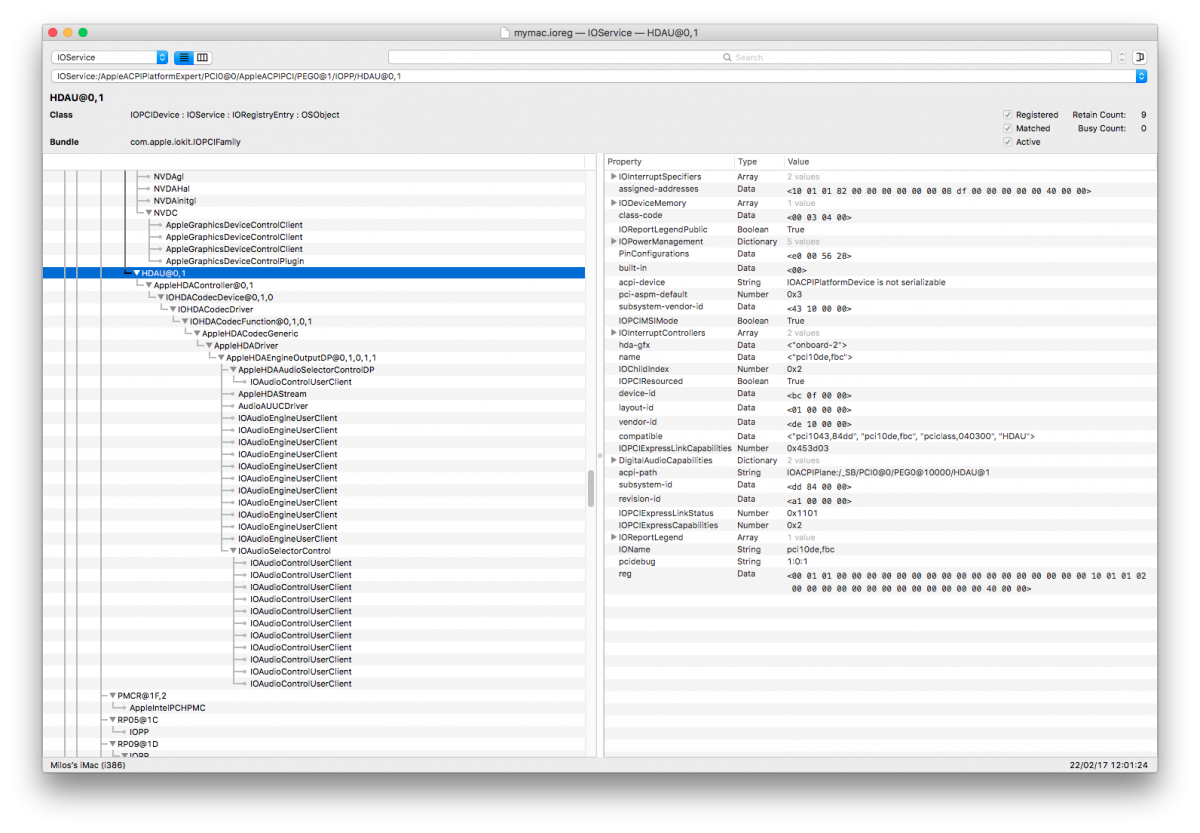

MaLd0n Posted February 22, 2017 Share Posted February 22, 2017 u try a fresh instal and use new files? HDMI appear in ioreg, go to sound and check try it with correct pmbase DSDT.PMBASE.zip u can try a fresh install? 1 Link to comment Share on other sites More sharing options...
mirochan Posted February 23, 2017 Author Share Posted February 23, 2017 Didn't help unfortunately. The HDMI audio is appearing in the settings but no sound is coming out. Maybe I should just rerun toledas script? I also didn't use the olarila command, should I do that every time I update the CLOVER folder? I attached the updated ioreg! Thanks again for trying to solve this! A fresh install I would definitely try but would need to push it off til I finished my current project. I'm running a SSD with a Windows partition and a Sierra partition. If I'd reinstall, can I keep CLOVER as it is in my EFI partition and just install OS X again or would I need to delete CLOVER from my EFI partition and reinstall it from the USB stick following your guide? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 ReRun script again. after ur current project, try a fresh install, clean hd with disk utility and install again the DSDT have all patches u need, HDMI in ssdt and power management too. 1 Link to comment Share on other sites More sharing options...
mirochan Posted February 23, 2017 Author Share Posted February 23, 2017 Will do that and come back to you! Just to make sure, sorry for stupid question: I should wipe the whole HD or is it ok if I just delete the Sierra partition? If so, I should be able to boot the installer from the CLOVER on my EFI partition without installing it on the USB stick with the files you provided me and change nothing, right? Thanks so much one more time. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 23, 2017 Share Posted February 23, 2017 u can test, never use it 1 Link to comment Share on other sites More sharing options...

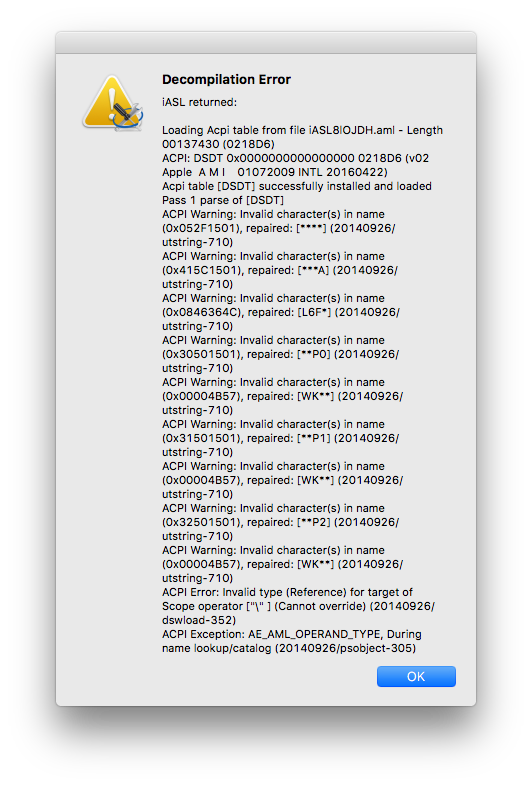

mirochan Posted February 24, 2017 Author Share Posted February 24, 2017 Hey, I will try to reinstall completely fresh this weekend! One more short question, in the HDMI audio SSDT, the one I created with the script by toleda, the first line says: DefinitionBlock ("iASL1CO2TM.aml", "SSDT", 1, "toleda", "ami789n", 0x00003000) The one in the CLOVER folder you provided last says: DefinitionBlock ("iASLmvL3pK.aml", "SSDT", 1, "toleda", "ami789n", 0x00003000) The aml file is different, is that on purpose or could that be why I get no output through HDMI? Also it modifies the config.plist if I'm not wrong, I assume you brought these changes to the DSDT file instead? Also, when I try to open the latest DSDT you provided me, following error pops up, is that normal? Thanks!! Link to comment Share on other sites More sharing options...
MaLd0n Posted February 24, 2017 Share Posted February 24, 2017 u need acpi6,1 MaciASL.app.zip 1 Link to comment Share on other sites More sharing options...

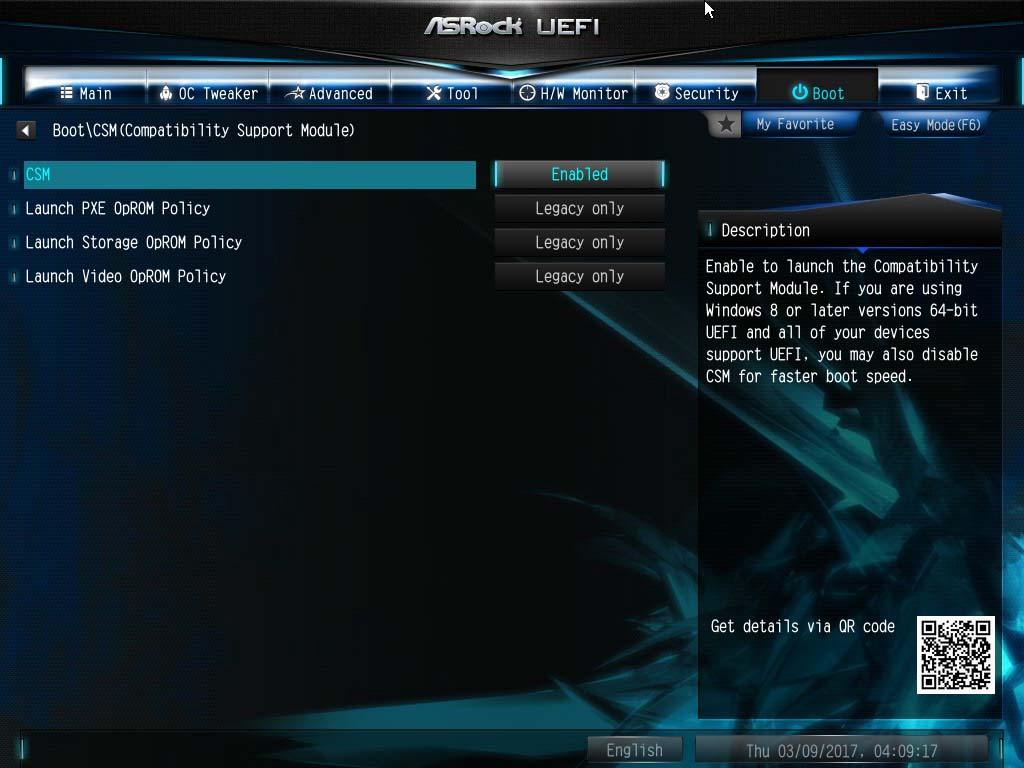

mirochan Posted March 2, 2017 Author Share Posted March 2, 2017 Hi, so first thing was, I tried to get HDMI audio working by replace DefinitionBlock ("iASLmvL3pK.aml", "SSDT", 1, "toleda", "ami789n", 0x00003000) from your provided file by DefinitionBlock ("iASL1CO2TM.aml", "SSDT", 1, "toleda", "ami789n", 0x00003000) from my own old file. After one reboot, it started playing, but then again stopped and I noticed it changes every time I open the file! I don't understand why it was working one time and now not anymore. The device is being displayed in the options all the time. EDIT: So when I enable CSM, the HDMI audio works, sound is playing! When it's disabled I CLOVER boots with full resolution and seems faster but it's not working. Also I'm ready to reinstall, I created a Sierra bootstick with the terminal command and installed CLOVER on it, with following settings (only these 2 nothing else in the bottom either): and then replaced the config.plist from the one from your thread http://www.insanelymac.com/forum/topic/320288-guide-asus-z170m-plus-core-i5-6600k-dsdt/and added the FakeSMC.kext but when I boot from the stick and then want to start the installer over CLOVER, it gets stuck at the beginning with a lot of ++++++++++++ signs, is something missing? Thanks! Link to comment Share on other sites More sharing options...

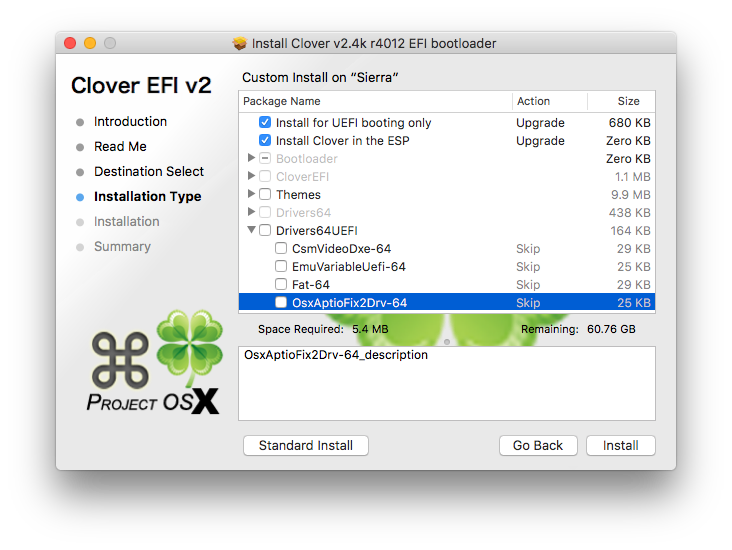

MaLd0n Posted March 2, 2017 Share Posted March 2, 2017 use clover 4003, uncheck all patches in acpi section and use nv_disdable=1 use OsxAptioFixDrv-64.efi 1 Link to comment Share on other sites More sharing options...
mirochan Posted March 2, 2017 Author Share Posted March 2, 2017 Thanks, that worked! When I will install it on the HDD, should I use the same settings? Link to comment Share on other sites More sharing options...
MaLd0n Posted March 2, 2017 Share Posted March 2, 2017 ofc use clover UEFI mode, OsxAptioFixDrv-64.efi replace folder, add ur hdmi audio again use clover 4003 1 Link to comment Share on other sites More sharing options...
mirochan Posted March 8, 2017 Author Share Posted March 8, 2017 Hi, work came inbetween the pleasure and the reinstall went well, but unfortunately still no success After booting up I installed CLOVER and the AGDP fix, then replaced the CLOVER folder with the one I had previously with the latest files you provided and ran the olarilla command which gave the following back: kext-dev-mode allowing invalid signature -67013 0xFFFFFFFFFFFEFA3B for kext AppleMobileDevice.kext kext-dev-mode allowing invalid signature -67030 0xFFFFFFFFFFFEFA2A for kext AppleGraphicsDevicePolicy.kext KernelCache ID: D34171FC3DB6E131EC92F39AACCE29B1 symlink("/System/Library/PrelinkedKernels/prelinkedkernel", "/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache") failed 17 (File exists) <createPrelinkedKernel 2795> logout Saving session... ...copying shared history... ...saving history...truncating history files... ...completed. Oh well, is there maybe anything else that can be tried? Also, do I need to generate a new SSDT or is the one from my old CLOVER folder ok? Thanks once more for all the help, I've attached the current files. mymac.zip CLOVER.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 8, 2017 Share Posted March 8, 2017 try it CLOVER.zip dont use SSDT, try without, i apply all in DSDT and config.plist SSDT for native pm, skylake dont need, SSDT hdmi, try patch in DSDT and AppleAlc, work in all my hacks SSDT USB, dont use now, wait solution Go to System Preferences/Energy Saver and Check the option Start Up Automatically after a power failure 1 Link to comment Share on other sites More sharing options...
mirochan Posted March 8, 2017 Author Share Posted March 8, 2017 Audio works just fine! Replaced folder, rebooted, run olarilla, reboot, sleep still the same tho. Attached the current ioreg. Is it possible to see what causes the kernel panic on wake up? mac.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted March 8, 2017 Share Posted March 8, 2017 ur bios have option USB third party? btw Pulse led work in sleep? 1 Link to comment Share on other sites More sharing options...

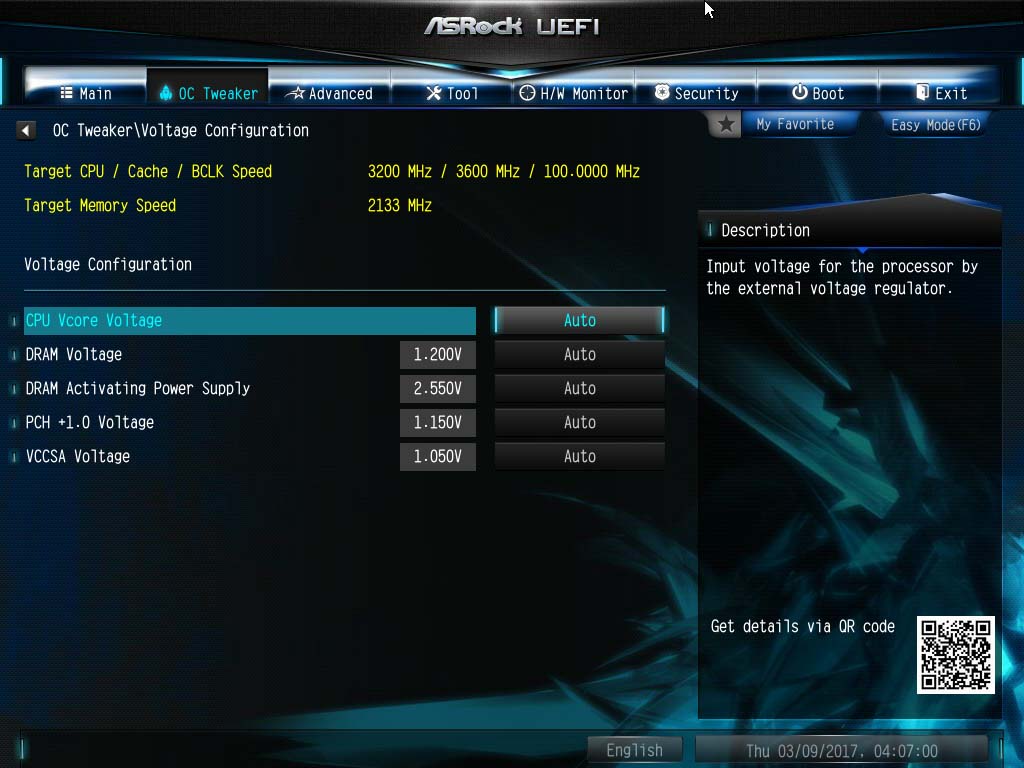

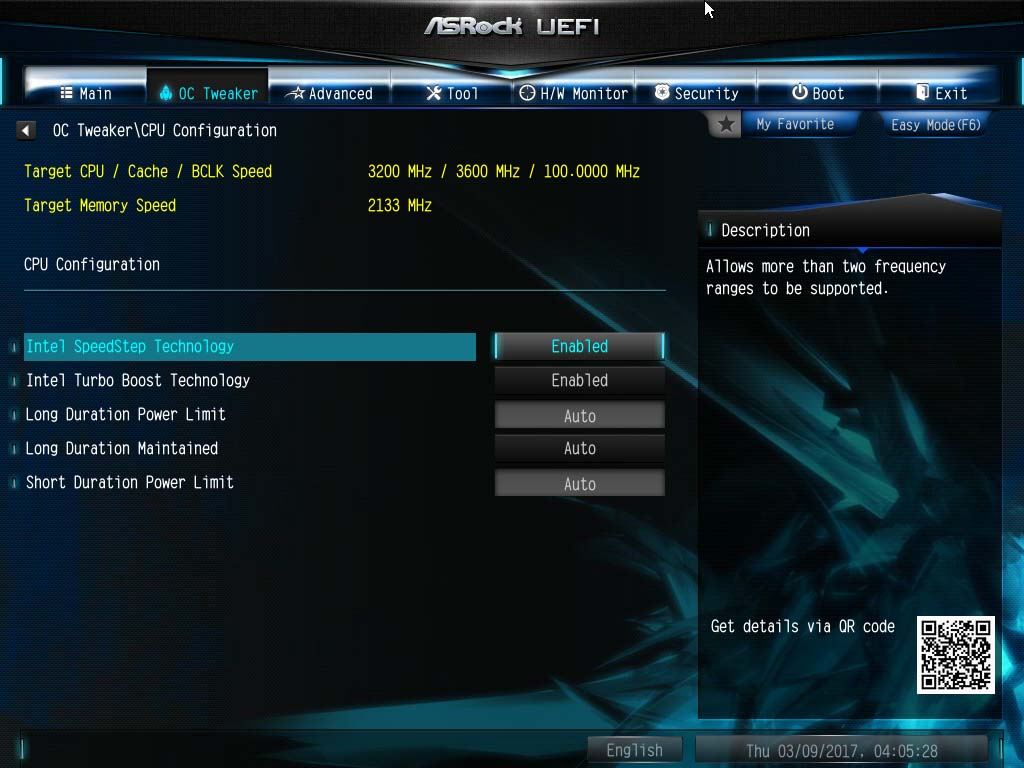

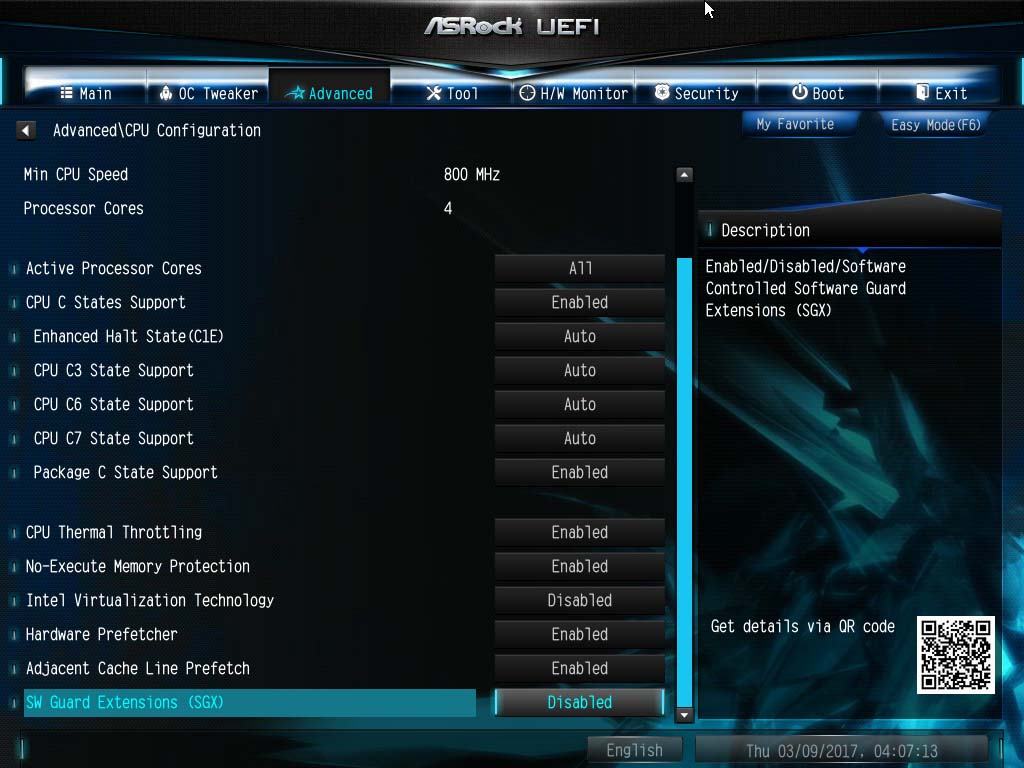

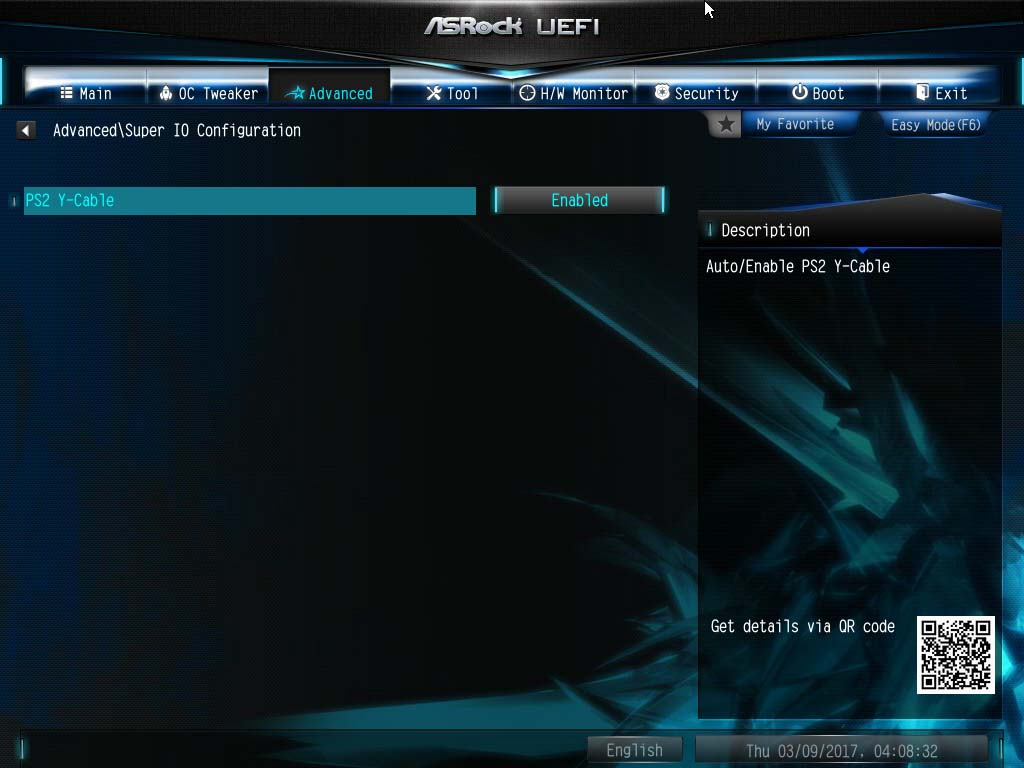

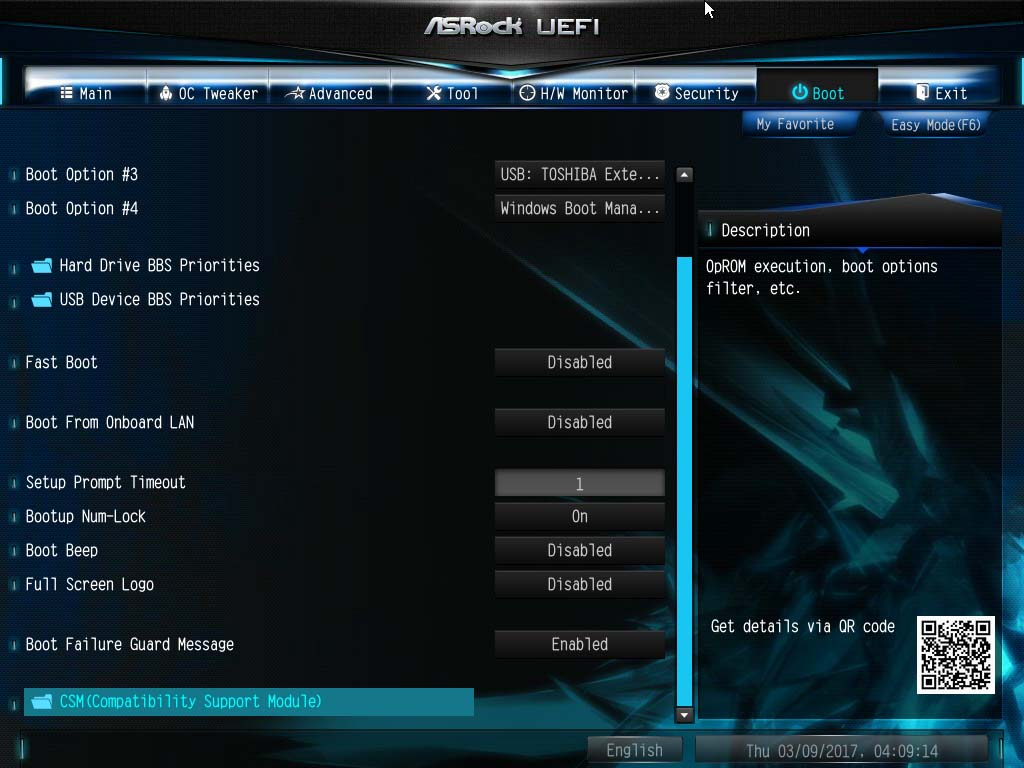

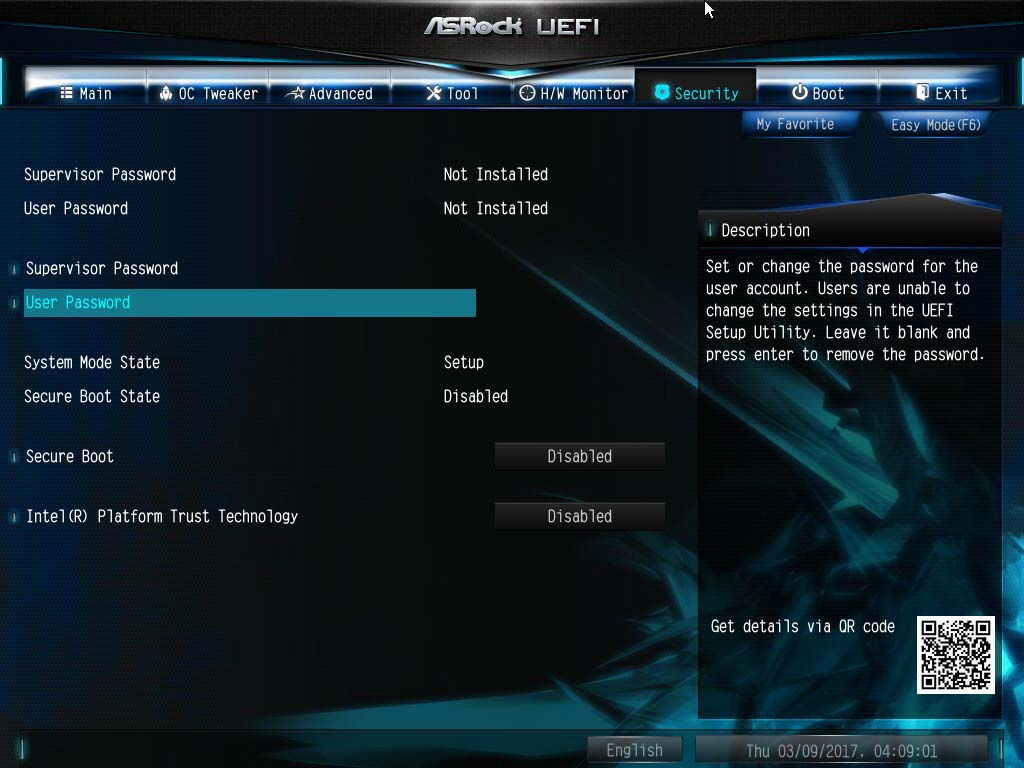

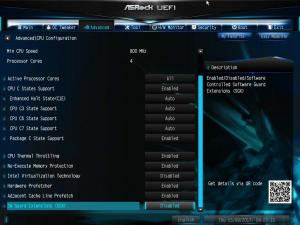

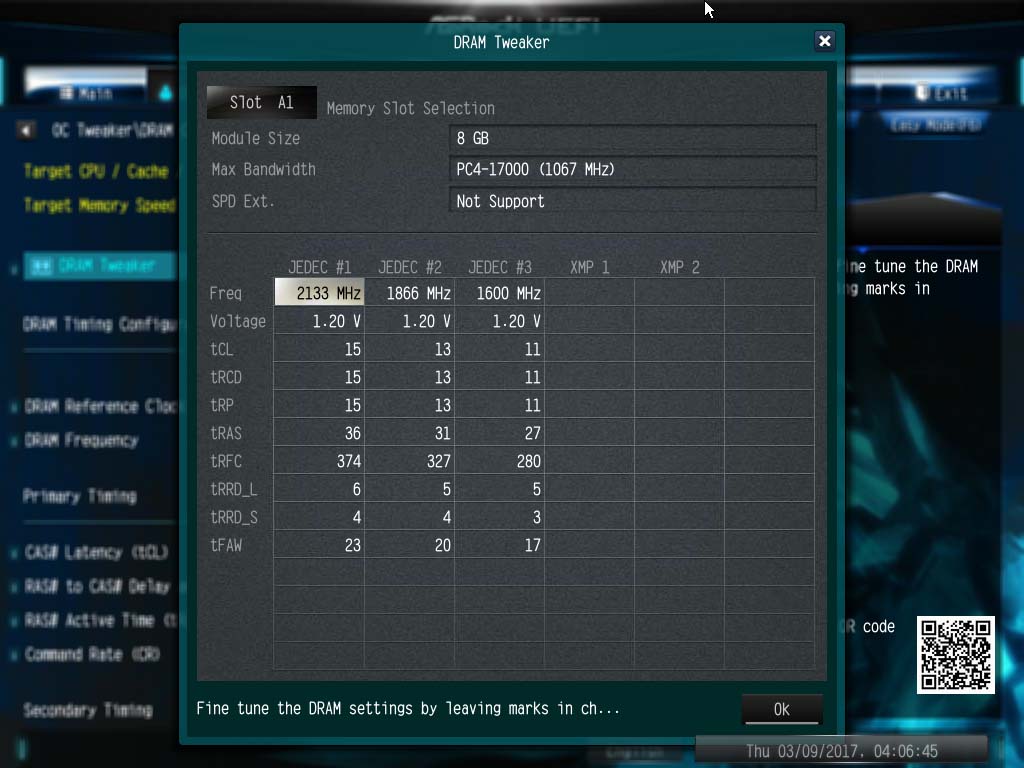

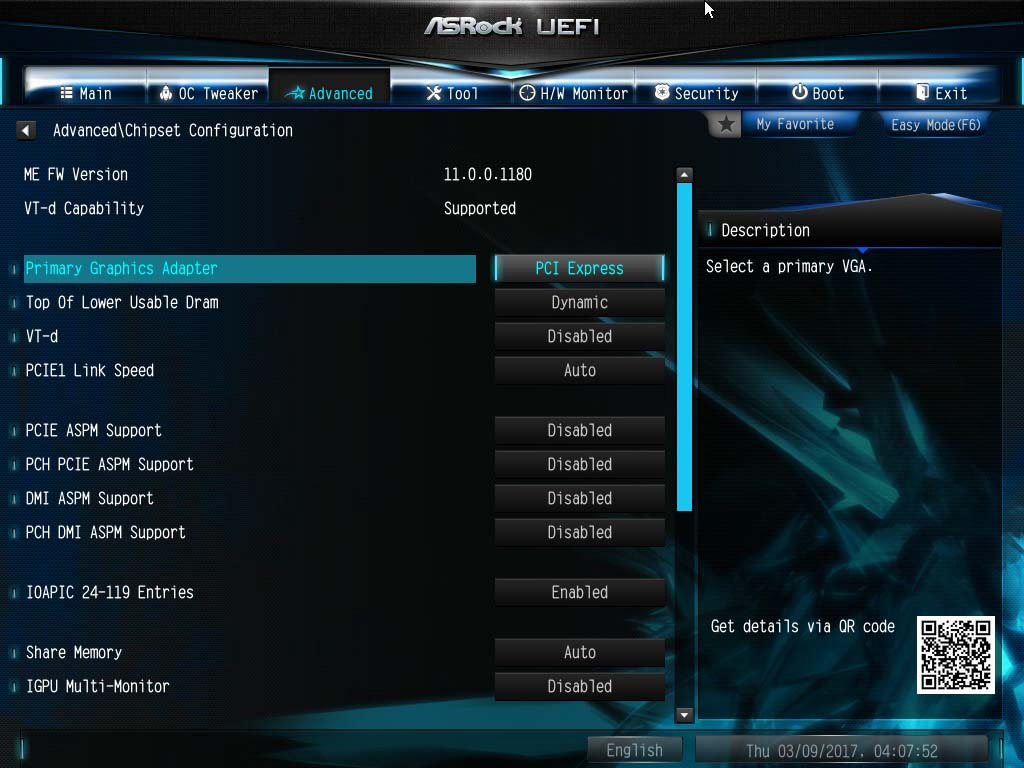

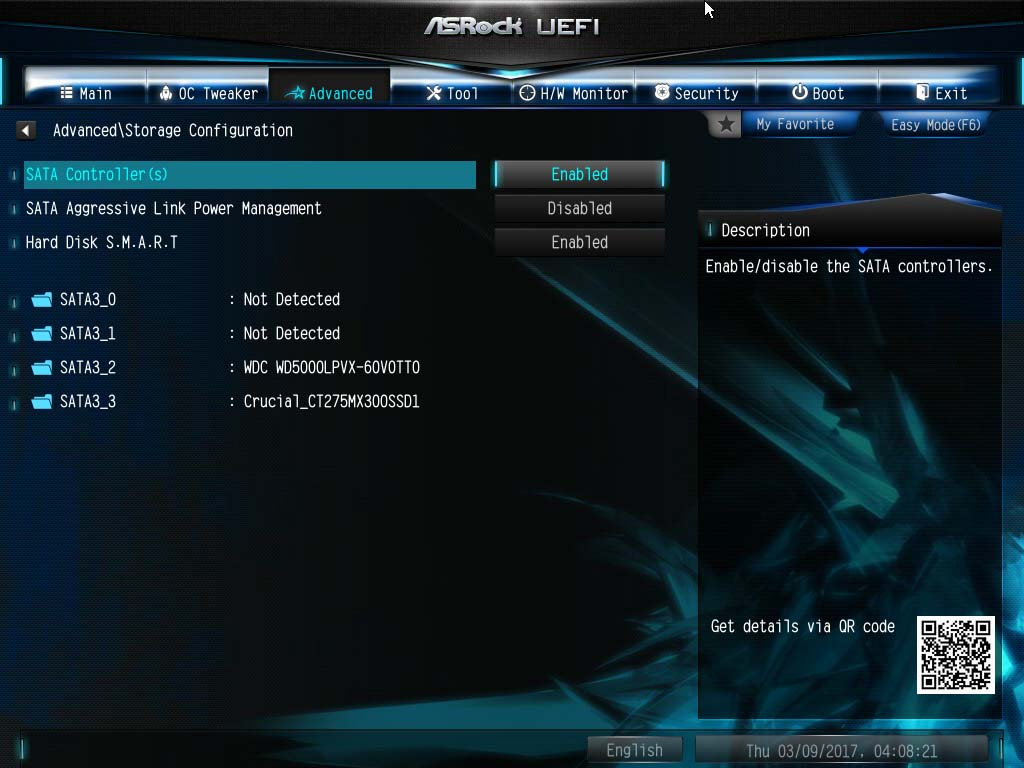

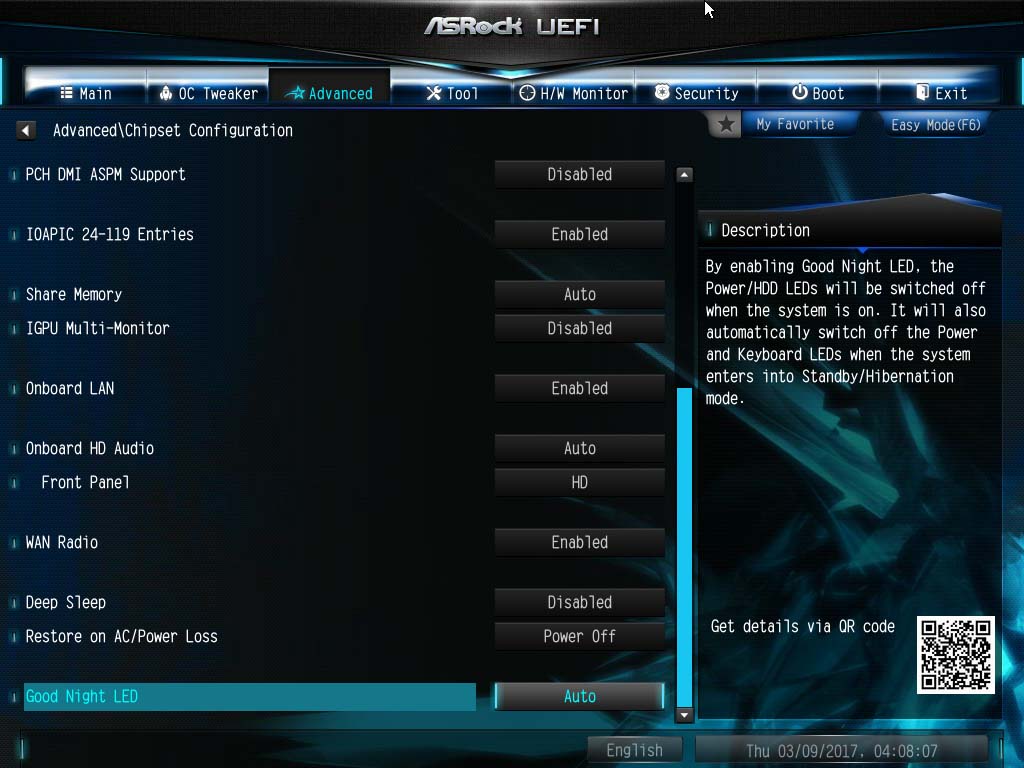

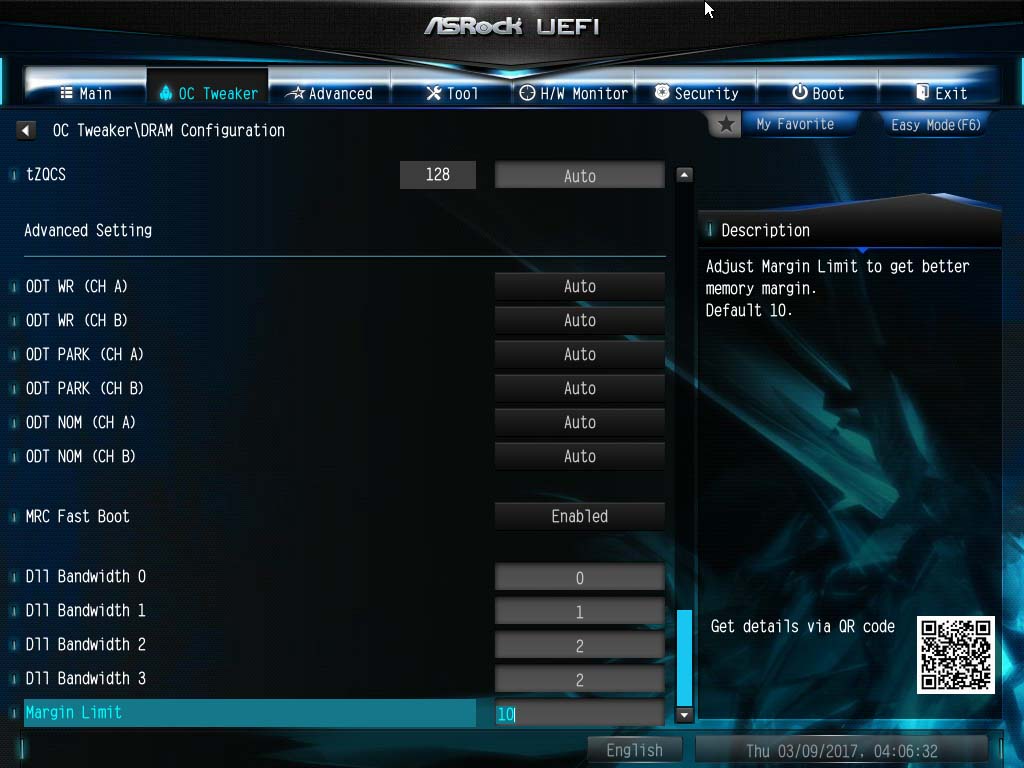

mirochan Posted March 9, 2017 Author Share Posted March 9, 2017 Pulse led is working and actually pulsing, when Windows 10 sets the computer to sleep, it's just blinking. I just have a legacy option. I attached screenshots from my BIOS settings. Thanks! 1 Link to comment Share on other sites More sharing options...

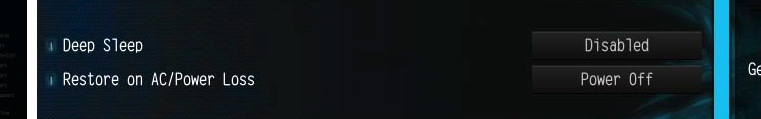

MaLd0n Posted March 9, 2017 Share Posted March 9, 2017 u can try two options? 1 Link to comment Share on other sites More sharing options...
mirochan Posted March 9, 2017 Author Share Posted March 9, 2017 I just tried Deep Sleep - enabled in C5 State and - enabled in C4-C5 State with Power On under Restore on AC/Power Loss, no luck The BIOS version is 1.30, I saw that on ASRock website they offer version 7, should I maybe update? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 9, 2017 Share Posted March 9, 2017 ofc u need update bios, after update, extract new dsdt with f4 in clover boot screen and send me, i edit again send me new ioreg too remove DSDT before update 1 Link to comment Share on other sites More sharing options...
