All out of ideas to get TURBO working on my X99 system with Xeon E5-2630v3

r2tincan · February 17, 2017

I am so confused and frustrated. I have tried many different configurations and I'm not even sure if this is working or not. My end goal is *just to be able to use TURBO* with my Xeon, as it's been stuck running at non-turbo frequency since I built this hack two years ago.

Please help me, haha.

This is my current output from apple intel info:

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x16e63d2c3a6f2 (16785 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Xeon(R) CPU E5-2630 v3 @ 2.40GHz

Processor Signature..................... : 0x306F2
------------------------------------------
- Family............................... : 6
- Stepping............................. : 2
- Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF80718EC000
------------------------------------------
- Core Count........................... : 8
- Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x80C33F3811800
------------------------------------------
- Maximum Non-Turbo Ratio.............. : 0x18 (2400 MHz)
- Ratio Limit for Turbo Mode........... : 1 (programmable)
- TDP Limit for Turbo Mode............. : 1 (programmable)
- Low Power Mode Support............... : 1 (LPM supported)
- Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
- Maximum Efficiency Ratio............. : 12
- Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400
------------------------------------------
- I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
- CFG Lock............................. : 1 (MSR locked until next reset)
- C3 State Auto Demotion............... : 0 (disabled/unsupported)
- C1 State Auto Demotion............... : 0 (disabled/unsupported)
- C3 State Undemotion.................. : 0 (disabled/unsupported)
- C1 State Undemotion.................. : 0 (disabled/unsupported)
- Package C-State Auto Demotion........ : 0 (disabled/unsupported)
- Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
- LVL_2 Base Address................... : 0x414
- C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x23BC0C43D2
IA32_APERF.......................(0xE8)  : 0x26817ADD2B

MSR_FLEX_RATIO...................(0x194) : 0x0
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x1BF300001A00
------------------------------------------
- Current Performance State Value...... : 0x1A00 (2600 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x1800
------------------------------------------
- Target performance State Value....... : 0x1800 (2400 MHz)
- Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88220000
------------------------------------------
- Thermal Status....................... : 0
- Thermal Log.......................... : 0
- PROCHOT # or FORCEPR# event.......... : 0
- PROCHOT # or FORCEPR# log............ : 0
- Critical Temperature Status.......... : 0
- Critical Temperature log............. : 0
- Thermal Threshold #1 Status.......... : 0
- Thermal Threshold #1 log............. : 0
- Thermal Threshold #2 Status.......... : 0
- Thermal Threshold #2 log............. : 0
- Power Limitation Status.............. : 0
- Power Limitation log................. : 0
- Current Limit Status................. : 0
- Current Limit log.................... : 0
- Cross Domain Limit Status............ : 0
- Cross Domain Limit log............... : 0
- Digital Readout...................... : 34
- Resolution in Degrees Celsius........ : 1
- Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
- Fast-Strings......................... : 1 (enabled)
- FOPCODE compatibility mode Enable.... : 0
- Automatic Thermal Control Circuit.... : 1 (enabled)
- Split-lock Disable................... : 0
- Performance Monitoring............... : 1 (available)
- Bus Lock On Cache Line Splits Disable : 0
- Hardware prefetch Disable............ : 0
- Processor Event Based Sampling....... : 0 (PEBS supported)
- GV1/2 legacy Enable.................. : 0
- Enhanced Intel SpeedStep Technology.. : 1 (enabled)
- MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
- Adjacent sector prefetch Disable..... : 0
- CFG Lock............................. : 0 (MSR not locked)
- xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x570A00
------------------------------------------
- Turbo Attenuation Units.............. : 0
- Temperature Target................... : 87
- TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
- EIST Hardware Coordination........... : 0 (hardware coordination enabled)
- Energy/Performance Bias support...... : 1
- Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
- Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2020202020202020
------------------------------------------
- Maximum Ratio Limit for C01.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C02.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C03.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C04.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C05.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C06.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C07.......... : 20 (3200 MHz)
- Maximum Ratio Limit for C08.......... : 20 (3200 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
- Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
- Bi-Directional Processor Hot..........: 1 (enabled)
- C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
- Power Units.......................... : 3 (1/8 Watt)
- Energy Status Units.................. : 14 (61 micro-Joules)
- Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x78330001582A8
------------------------------------------
- Package Power Limit #1............... : 85 Watt
- Enable Power Limit #1................ : 1 (enabled)
- Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
- Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
- Package Power Limit #2............... : 102 Watt
- Enable Power Limit #2................ : 1 (enabled)
- Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
- Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
- Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x1F7DE9
------------------------------------------
- Total Energy Consumed................ : 125 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x2F0550014002A8
------------------------------------------
- Thermal Spec Power................... : 85 Watt
- Minimum Power........................ : 0
- Maximum Power........................ : 170
- Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x18
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xA00550001502A8
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xA0055000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x16E63D5A97F75

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 24 (2400 MHz)
Maximum Turbo Ratio/Frequency............: 32 (3200 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 25 (26) ]
CPU C6-Cores [ 0 2 4 6 8 10 12 15 ]
CPU C6-Cores [ 0 2 3 4 6 8 10 11 12 13 15 ]
CPU C6-Cores [ 0 2 3 4 6 7 8 9 10 11 12 13 14 15 ]
CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ]
CPU P-States [ 25 26 (30) ]
CPU P-States [ 22 25 26 (29) 30 ]
CPU P-States [ (12) 21 22 25 26 29 30 ]
CPU P-States [ 12 20 21 22 25 26 29 30 (32) ]
CPU P-States [ (12) 19 20 21 22 25 26 29 30 32 ]
CPU P-States [ 12 19 20 21 22 (24) 25 26 29 30 32 ]
CPU P-States [ (12) 19 20 21 22 23 24 25 26 29 30 32 ]
CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 29 30 32 ]
CPU P-States [ 12 18 19 20 21 22 23 24 25 26 (28) 29 30 32 ]
CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 28 29 30 32 ]
CPU P-States [ 12 16 18 19 20 21 22 23 24 25 26 27 28 (29) 30 32 ]
CPU P-States [ (12) 14 16 18 19 20 21 22 23 24 25 26 27 28 29 30 32 ]
CPU P-States [ 12 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 (30) 32 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 ]
bash-3.2#

A few things to note here currently:

1. Under Enhanced Intel SpeedStep Technology.. : 1 (enabled). Intel SpeedStep is DISABLED in BIOS but it's showing as ENABLED in the script. I thought this didn't matter? I've tried it both ways. No matter what I do it shows enabled in the script.

2. Under MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2020202020202020 it's showing that at every C state my limit is 3200. Shouldn't some be lower? I thought they were before but I have no idea what changed.

3. I tried removing the kernel patch for Haswell-E, I can boot with or without it. WTF?

4. I do not have VoodooTSCSync or NullCPUPowerManagement installed

5. I enabled enhanced C1 state in BIOS.

6. I am running Sierra 10.12.2. I am not sure if the patches I'm using work on this version. Can anyone confirm?

Here is my plist:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>ACPI</key>
    <dict>
        <key>DSDT</key>
        <dict>
            <key>Debug</key>
            <false/>
            <key>DropOEM_DSM</key>
            <true/>
            <key>Fixes</key>
            <dict>
                <key>AddDTGP_0001</key>
                <true/>
                <key>AddHDMI_8000000</key>
                <true/>
                <key>AddPNLF_1000000</key>
                <true/>
                <key>DeleteUnused_400000</key>
                <true/>
                <key>FIX_ACST_4000000</key>
                <true/>
                <key>FIX_ADP1_800000</key>
                <true/>
                <key>FIX_RTC_20000</key>
                <true/>
                <key>FIX_S3D_2000000</key>
                <true/>
                <key>FIX_TMR_40000</key>
                <true/>
                <key>FIX_WAK_200000</key>
                <true/>
                <key>FixDarwin_0002</key>
                <true/>
                <key>FixDisplay_0100</key>
                <true/>
                <key>FixFirewire_0800</key>
                <true/>
                <key>FixHDA_8000</key>
                <true/>
                <key>FixHPET_0010</key>
                <true/>
                <key>FixIPIC_0040</key>
                <true/>
                <key>FixLAN_2000</key>
                <true/>
                <key>FixRegions_10000000</key>
                <true/>
                <key>FixSBUS_0080</key>
                <true/>
                <key>FixShutdown_0004</key>
                <true/>
                <key>FixUSB_1000</key>
                <true/>
                <key>NewWay_80000000</key>
                <true/>
            </dict>
            <key>Name</key>
            <string>DSDT.aml</string>
            <key>Patches</key>
            <array>
                <dict>
                    <key>Comment</key>
                    <string>change EHC1 to EH01</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    RUhDMQ==
                    </data>
                    <key>Replace</key>
                    <data>
                    RUgwMQ==
                    </data>
                </dict>
                <dict>
                    <key>Comment</key>
                    <string>change EHC2 to EH02</string>
                    <key>Disabled</key>
                    <false/>
                    <key>Find</key>
                    <data>
                    RUhDMg==
                    </data>
                    <key>Replace</key>
                    <data>
                    RUgwMg==
                    </data>
                </dict>
            </array>
            <key>ReuseFFFF</key>
            <false/>
        </dict>
        <key>DropTables</key>
        <array>
            <dict>
                <key>Signature</key>
                <string>SSDT</string>
                <key>TableId</key>
                <string>PmMgt</string>
            </dict>
        </array>
        <key>HaltEnabler</key>
        <true/>
        <key>SSDT</key>
        <dict>
            <key>DropOem</key>
            <false/>
            <key>Generate</key>
            <false/>
            <key>PLimitDict</key>
            <string>0</string>
            <key>PluginType</key>
            <string>1</string>
        </dict>
        <key>SortedOrder</key>
        <array>
            <string>SSDT.aml</string>
        </array>
        <key>smartUPS</key>
        <true/>
    </dict>
    <key>Boot</key>
    <dict>
        <key>Arguments</key>
        <string>-xcpm darkwake=0 npci=0x3000 kext-dev-mode=1</string>
        <key>Debug</key>
        <false/>
        <key>DefaultLoader</key>
        <string>boot.efi</string>
        <key>DefaultVolume</key>
        <string>LastBootedVolume</string>
        <key>Legacy</key>
        <string>PBR</string>
        <key>Secure</key>
        <false/>
        <key>Timeout</key>
        <integer>5</integer>
        <key>XMPDetection</key>
        <false/>
    </dict>
    <key>CPU</key>
    <dict>
        <key>QPI</key>
        <integer>100</integer>
        <key>UseARTFrequency</key>
        <false/>
    </dict>
    <key>Devices</key>
    <dict>
        <key>Audio</key>
        <dict>
            <key>Inject</key>
            <string>1</string>
            <key>ResetHDA</key>
            <true/>
        </dict>
        <key>USB</key>
        <dict>
            <key>AddClockID</key>
            <true/>
            <key>FixOwnership</key>
            <true/>
            <key>Inject</key>
            <true/>
        </dict>
    </dict>
    <key>GUI</key>
    <dict>
        <key>Mouse</key>
        <dict>
            <key>DoubleClick</key>
            <integer>500</integer>
            <key>Enabled</key>
            <false/>
            <key>Mirror</key>
            <false/>
            <key>Speed</key>
            <integer>8</integer>
        </dict>
        <key>Scan</key>
        <true/>
        <key>ScreenResolution</key>
        <string>1920x1080</string>
        <key>Theme</key>
        <string>metal</string>
    </dict>
    <key>Graphics</key>
    <dict>
        <key>Inject</key>
        <false/>
        <key>NvidiaSingle</key>
        <false/>
    </dict>
    <key>KernelAndKextPatches</key>
    <dict>
        <key>AppleRTC</key>
        <true/>
        <key>AsusAICPUPM</key>
        <false/>
        <key>Debug</key>
        <false/>
        <key>DellSMBIOSPatch</key>
        <false/>
        <key>KernelCpu</key>
        <false/>
        <key>KernelHaswellE</key>
        <false/>
        <key>KernelLapic</key>
        <false/>
        <key>KernelPm</key>
        <false/>
        <key>KernelToPatch</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>xcpm_bootstrap Sierra © Pike R. Alpha</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                g8PEg/si
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                g8PBg/si
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>xcpm_core_scope_msrs © Pike R. Alpha</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                vgIAAAAx0uhs/P//
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                vgIAAAAx0pCQkJCQ
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>xcpm_idle patch by Pike R. Alpha</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                ILniAAAADzA=
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                ILniAAAAkJA=
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>xcpm_bootstrap Sierra © Pike R. Alpha</string>
                <key>Disabled</key>
                <true/>
                <key>Find</key>
                <data>
                g8PEg/si
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                g8O8g/si
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>Haswell-E CPUID Patch</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                g8Dp
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                g8Dm
                </data>
            </dict>
            <dict>
                <key>Comment</key>
                <string>xcpm_pkg_scope_msr © Pike R. Alpha</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                vgcAAAAx0uiU/P//
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Replace</key>
                <data>
                vgcAAAAx0pCQkJCQ
                </data>
            </dict>
        </array>
        <key>KextsToPatch</key>
        <array>
            <dict>
                <key>Comment</key>
                <string>X99 Patch by braumbear</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                SIH7AAAAQA==
                </data>
                <key>MatchOS</key>
                <string>10.12</string>
                <key>Name</key>
                <string>IOPCIFamily</string>
                <key>Replace</key>
                <data>
                SIH7AAAAgA==
                </data>
            </dict>
        </array>
    </dict>
    <key>RtVariables</key>
    <dict>
        <key>BooterConfig</key>
        <string>0x28</string>
        <key>CsrActiveConfig</key>
        <string>0x67</string>
        <key>MLB</key>
        <string>C02032109R5DC771H</string>
        <key>ROM</key>
        <string>UseMacAddr0</string>
    </dict>
    <key>SMBIOS</key>
    <dict>
        <key>BiosReleaseDate</key>
        <string>06/12/13</string>
        <key>BiosVendor</key>
        <string>Apple Inc.</string>
        <key>BiosVersion</key>
        <string>MP61.88Z.0116.B04.1312061508</string>
        <key>Board-ID</key>
        <string>Mac-F60DEB81FF30ACF6</string>
        <key>BoardManufacturer</key>
        <string>Apple Inc.</string>
        <key>BoardType</key>
        <integer>11</integer>
        <key>ChassisAssetTag</key>
        <string>Pro-Enclosure</string>
        <key>ChassisManufacturer</key>
        <string>Apple Inc.</string>
        <key>ChassisType</key>
        <string>0x06</string>
        <key>Family</key>
        <string>Mac Pro</string>
        <key>LocationInChassis</key>
        <string>Part Component</string>
        <key>Manufacturer</key>
        <string>Apple Inc.</string>
        <key>ProductName</key>
        <string>MacPro6,1</string>
        <key>Trust</key>
        <false/>
        <key>Version</key>
        <string>1.0</string>
    </dict>
    <key>SystemParameters</key>
    <dict>
        <key>InjectKexts</key>
        <string>Yes</string>
        <key>InjectSystemID</key>
        <true/>
        <key>NvidiaWeb</key>
        <true/>
    </dict>
</dict>
</plist>

7. My MSR 0xE2 is locked. Does this matter??

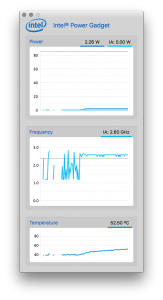

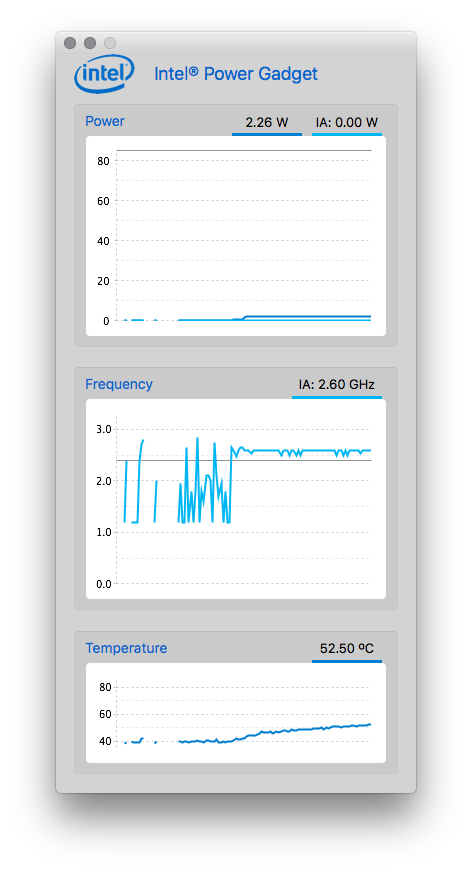

8. Here is my bizarre Power Gadget output. What's up with the wattage??? I also never go above 2.6GHz when I should be reaching 3.2Ghz. I just want turbo!

Please help!

Disabling Drop_OEM flag gives me this:

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x1730a77087ef2 (16998 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Xeon(R) CPU E5-2630 v3 @ 2.40GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8070EDFA00
------------------------------------------
 - Core Count........................... : 8
 - Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x80C33F3811800
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x18 (2400 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x1BEAA8B9A8
IA32_APERF.......................(0xE8)  : 0x1D8B7D45CC

MSR_FLEX_RATIO...................(0x194) : 0x0
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x1E5800001E00
------------------------------------------
 - Current Performance State Value...... : 0x1E00 (3000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2000
------------------------------------------
 - Target performance State Value....... : 0x2000 (3200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88380000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 56
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x570A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 87
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2020202020202020
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C02.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C03.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C04.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C05.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C06.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C07.......... : 20 (3200 MHz)
 - Maximum Ratio Limit for C08.......... : 20 (3200 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x78330001582A8
------------------------------------------
 - Package Power Limit #1............... : 85 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 102 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x20714A
------------------------------------------
 - Total Energy Consumed................ : 129 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x2F0550014002A8
------------------------------------------
 - Thermal Spec Power................... : 85 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 170
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x18
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xA00550001502A8
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xA0055000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x1730A7A6AA3E2

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 24 (2400 MHz)
Maximum Turbo Ratio/Frequency............: 32 (3200 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 24 29 ]
CPU C6-Cores [ 0 3 4 6 8 10 12 14 ]
CPU P-States [ (12) 18 24 29 ]
CPU C6-Cores [ 0 2 3 4 5 6 8 10 12 14 15 ]
CPU P-States [ (12) 17 18 24 29 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 8 10 12 13 14 15 ]
CPU P-States [ (12) 17 18 19 24 29 ]
CPU P-States [ (12) 17 18 19 22 24 29 ]
CPU P-States [ 12 17 18 19 21 22 (24) 29 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 12 13 14 15 ]
CPU P-States [ (12) 17 18 19 21 22 24 25 29 ]
CPU P-States [ (12) 17 18 19 21 22 23 24 25 29 ]
CPU P-States [ (12) 17 18 19 20 21 22 23 24 25 29 ]
CPU P-States [ 12 17 18 19 20 21 22 23 24 25 29 (32) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 12 13 14 15 ]
CPU P-States [ 12 17 18 19 20 21 22 23 24 25 28 29 (30) 32 ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 28 29 30 32 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 27 28 29 30 32 ]
CPU P-States [ 12 16 17 18 19 20 21 22 23 24 25 (26) 27 28 29 30 32 ]
CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 ]
bash-3.2#

r2tincan · February 18, 2017

You didn't generate a CPU pm SSDT with Pike's script?

Sorry, yes I did. It recongnized my CPU without issue. I used the -m MacPro6,1 and -x 1 flags. I then generated vectors based on iMac16,2 and 17,1, and MacPro6,1 without much difference.

r2tincan · February 20, 2017

I think Turbo may be working now. I get up to 2.6GHz with all cores, which I think might be normal?

Does anyone know why I would never be going above 2 watts on the power monitor though?

okrasit · February 20, 2017

I think Turbo may be working now. I get up to 2.6GHz with all cores, which I think might be normal?

Does anyone know why I would never be going above 2 watts on the power monitor though?

SVID communication not enabled?

r2tincan · February 21, 2017

SVID communication not enabled?

looks enabled. voltage reporting WAS working before Power Management was working, which is interesting.

All out of ideas to get TURBO working on my X99 system with Xeon E5-2630v3

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
