ASPIRE 5750G PROBLEM CLOVER


  • Please log in to reply
13 replies to this topic

#1
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Hello I have an acer aspire 5750G, I can boot from the usb that I created from yosemite but not with clover.

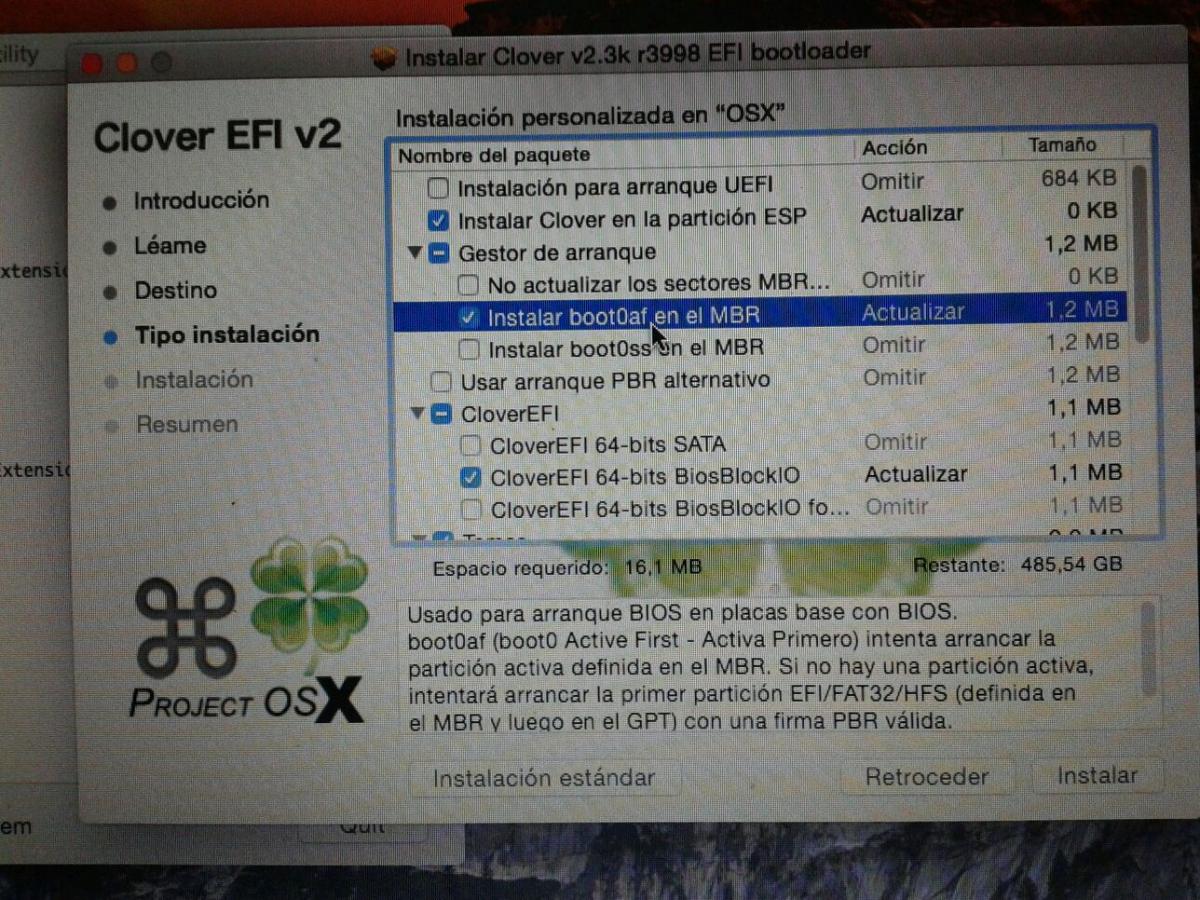

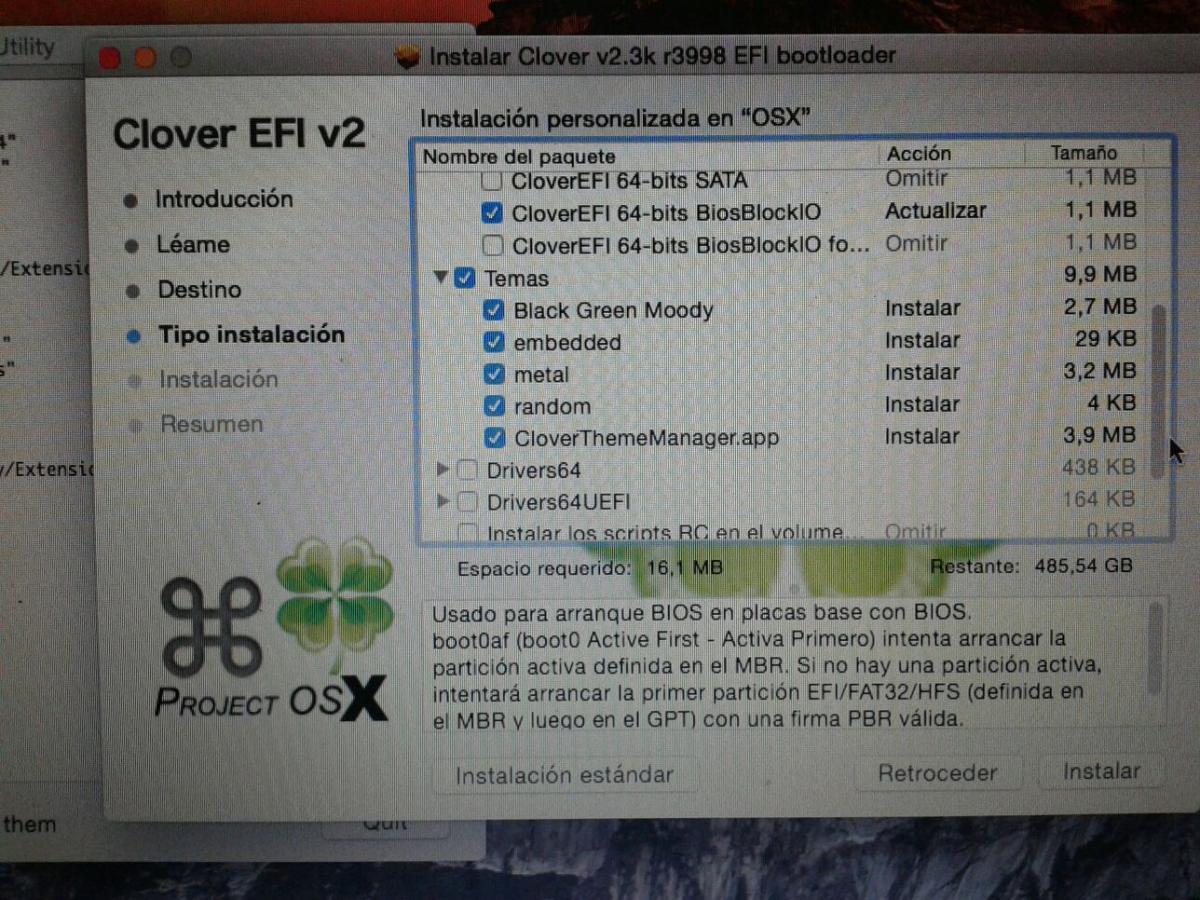

Install clover with the following options:






But it does not let me start I get the following error:

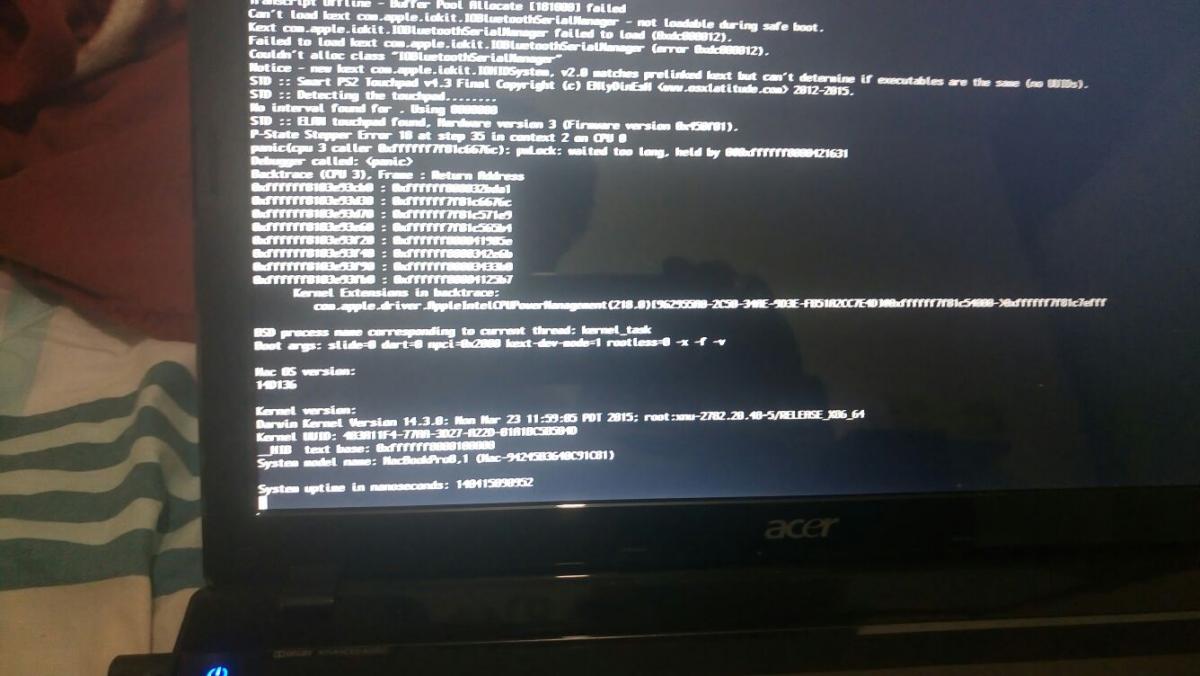

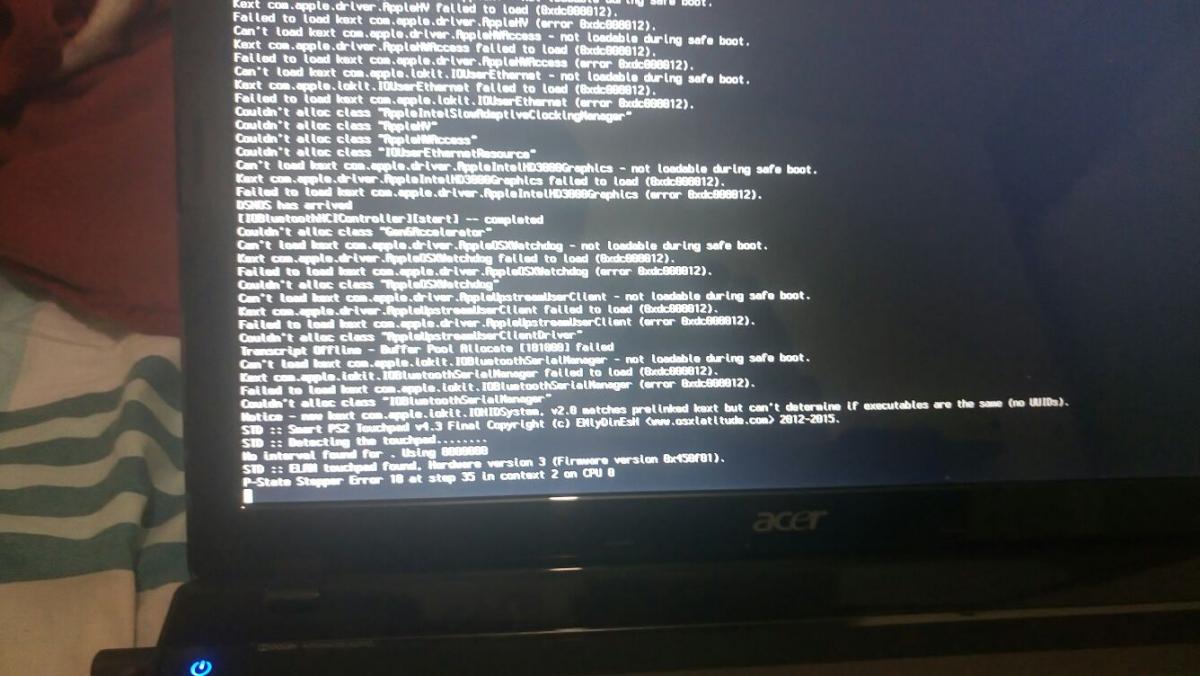

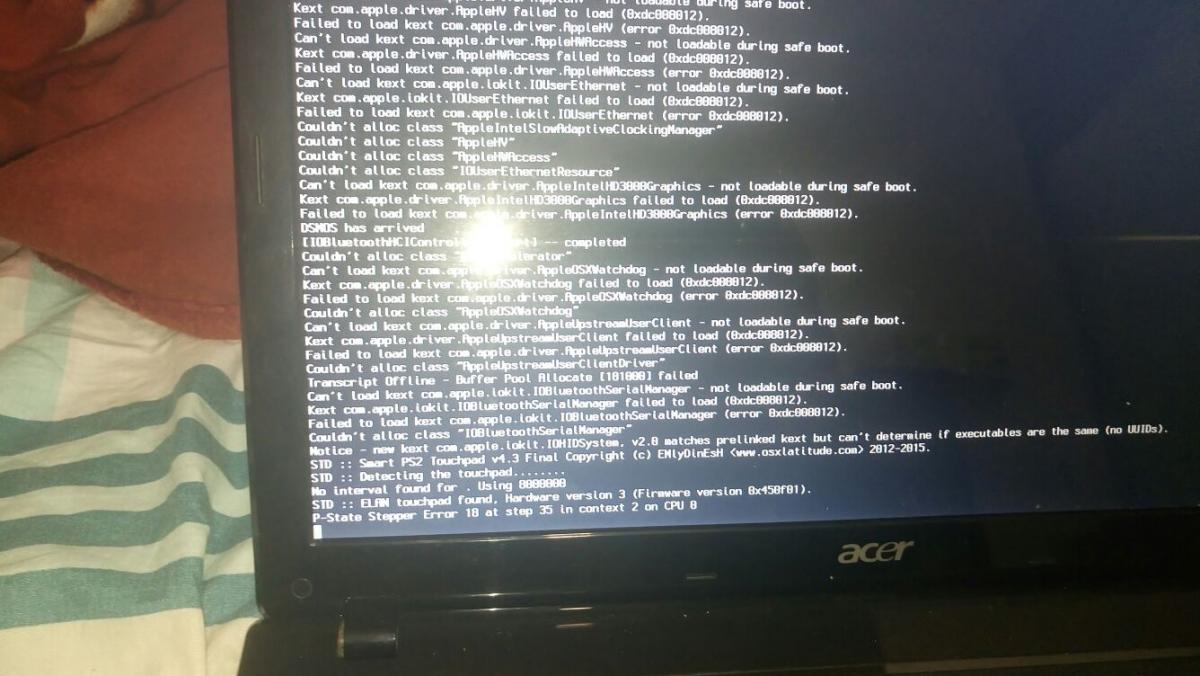

P-State Stepper Error 18 at step 35 in context 2 on CPU 0






After a few seconds restart, some help thank you



config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>slide=0 dart=0 npci=0x2000 kext-dev-mode=1 rootless=0</string>
		<key>Debug</key>
		<false/>
		<key>DefaultVolume</key>
		<string>El Capitan HD</string>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>3</integer>
		<key>XMPDetection</key>
		<false/>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>CustomIcons</key>
		<true/>
		<key>Hide</key>
		<array>
			<string>\EFI\BOOT\BOOTX64.EFI</string>
			<string>Windows</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<false/>
		</dict>
		<key>ScreenResolution</key>
		<string>1920x1080</string>
		<key>Theme</key>
		<string>ios7</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
		<key>PatchVBios</key>
		<true/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<false/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<true/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RXh0ZXJuYWw=
				</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>
				SW50ZXJuYWw=
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x67</string>
		<key>MLB</key>
		<string>C02140302D5DMT31M</string>
		<key>ROM</key>
		<string>b870f4ed9751</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>04/22/11</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>MBP81.88Z.0047.B0E.1104221557</string>
		<key>Board-ID</key>
		<string>Mac-94245B3640C91C81</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>C02HPU1WDH2G12345</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>MacBook-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>08</string>
		<key>Family</key>
		<string>MacBook Pro</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Mobile</key>
		<true/>
		<key>ProductName</key>
		<string>MacBookPro8,1</string>
		<key>SerialNumber</key>
		<string>C02HPU1WDH2G</string>
		<key>SmUUID</key>
		<string>42328A15-2BA1-5F74-B325-1FB2691E4416</string>
		<key>Trust</key>
		<false/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

Attached Files



#2
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Hi, I do not understand very well what you mean, what do I need?



Especificaciones:

  • Modelo: Acer Aspire AS5750G-2454G50Mnkk
  • Procesador Intel® Core™ i5-2450M 2.50GHz Cache 3Mb
  • Chipset HM65
  • Memoria RAM 4GB DDR3 1066Mhz (1x4GB) 2 slots, 1 libre
  • Disco duro 500GB
  • Gráfica  nVidia GeForce® GT 630M 2GB Dedicados
  • Almacenamiento óptico DVD-Super Multi DL drive
  • Display 15.6" HD Acer CineCrystal™ LED LCD
  • Conectividad


#3
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Hello, remove KernelPm the but still giving the same error. Thank you very much




#4
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,755 posts
  • Gender:Male
  • Location:Rio de Janeiro

Use nullcpupm at moment

Attached File  NullCPUPowerManagement.kext.zip   24.5KB   2 downloads

after, patch ur DSDT in HPET

if u need use asus aicpupm too



Clover have HPET patch. check in acpi section



#5
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Download link, I'll try out MaLd0n and comment.

http://ge.tt/5coaZni2


Can you post your EFI/Clover folder ?

http://ge.tt/5coaZni2



#6
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,755 posts
  • Gender:Male
  • Location:Rio de Janeiro

Attached File  CLOVER.zip   1.3MB   6 downloads



upload ur DSDT and ioreg too



#7
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

attachicon.gifCLOVER.zip



upload ur DSDT and ioreg too

Hello, perfect to started properly, thank you very much.
Where was the problem in CLOVER / KEXT /
FakeSMC.kext
NullCPUPowerManagement.kext ??


I have another problem, install lso kext of Audio but the microphone of the camera there is no way to turn it off. Any ideas



#8
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,755 posts
  • Gender:Male
  • Location:Rio de Janeiro

send me ur DSDT for later remove nullcpupm

for extract DSDT use it

https://bitbucket.or...L-2017-0117.zip

what ur audio coDec?



#9
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Hello in audio use VoodooHDA.kext, attachments you have the .dsl. Having to delete NullCPUPowerManagement.kext in CLOVER / kexts / other ?. Thank you very much :thumbsup_anim:

Attached Files



#10
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,755 posts
  • Gender:Male
  • Location:Rio de Janeiro

u use kexts in system/library/extensions?



use only voodoohda in s/l/e, the others kext use in clover



see ur full clover folder, with DSDT, kexts...

Attached File  CLOVER.zip   2.15MB   2 downloads



#11
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

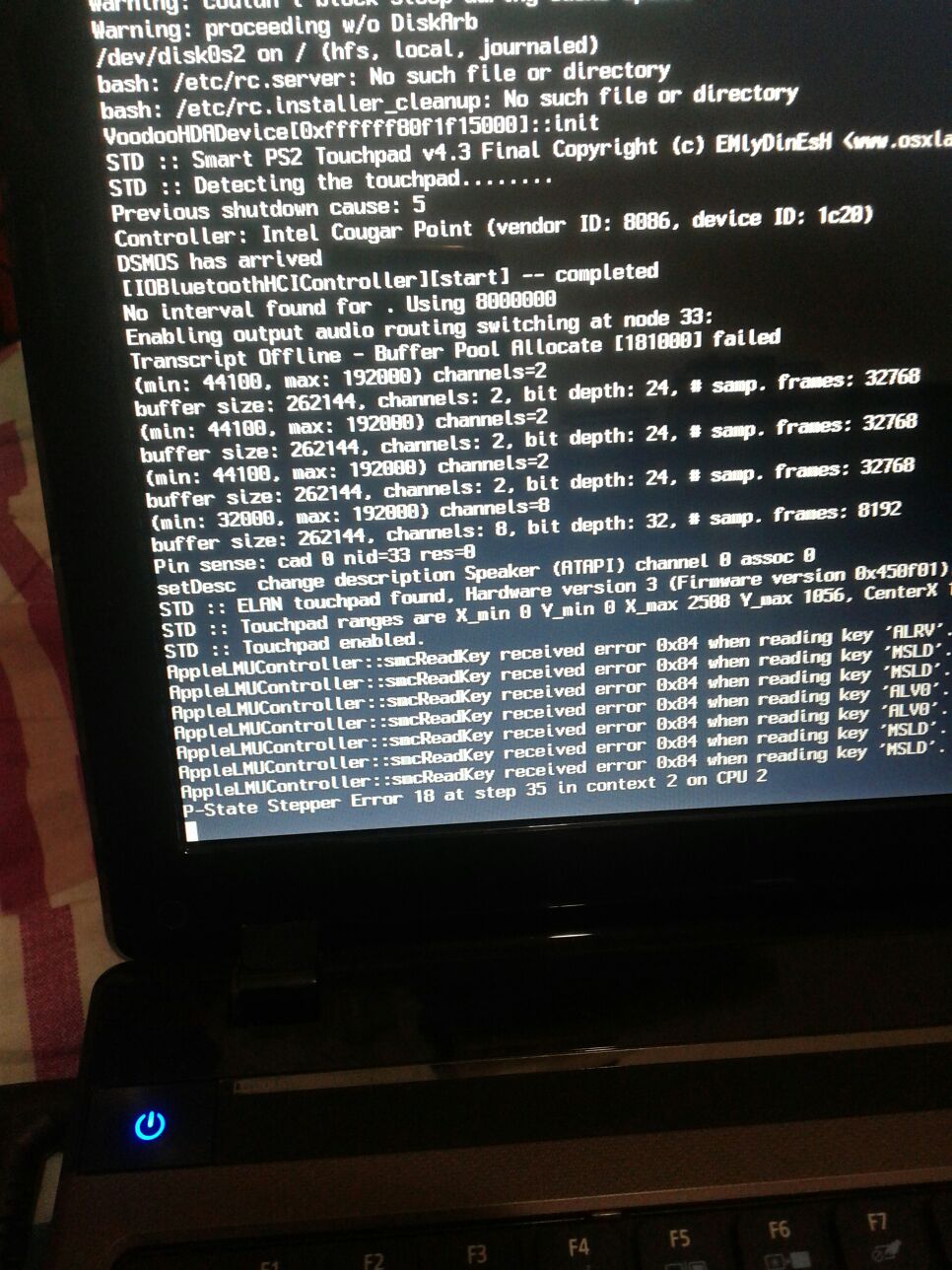

Hi, use the previous CLOVER and get that error: P-State Stepper Error 18 at step 35 in context 2 on CPU 2, so put the one that worked and install All in One Audio Solution.mpkg and solved the problem of the microphone.





Attached File  2017.jpeg   232.39KB   0 downloads



#12
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,755 posts
  • Gender:Male
  • Location:Rio de Janeiro

ok, ill check later in my home, i see problem.



#13
albertsuarez

albertsuarez

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Hello,my model is 5750G2454G50mnkk the wifi is broadcom, at the moment only the ethernet works for me. Buy a wifi card:



https://es.aliexpres...0608.0.0.CdpXXl



Could the broadcom card work?



#14
MaLd0n

MaLd0n

    ...filling veins with juice of chaos...

  • Moderators
  • 11,755 posts
  • Gender:Male
  • Location:Rio de Janeiro
ar9285 work



i dont think about ur model



ur DSDT, replace in clover/acpi/patched

Attached File  DSDT.02.zip   18.46KB   0 downloads
