Can boot only with cpus=1 (Kaby Lake)

VirusX · February 11, 2017

Hello all,

I just put together my new Kaby Lake system. Installation of Sierra went fine on a spare hard drive with cpus=1 as boot args.

Applied all patches as recommended for the CPU and the internal graphics as well as the patches for my RX480.

I used the following patches:

<key>KernelAndKextPatches</key>
    <dict>
        <key>FakeCPUID</key>
        <string>0x0506E3</string>

        <key>FakeID</key>
        <dict>
            <key>IntelGFX</key>
            <string>0x19168086</string>

<key>Devices</key>
    <dict>
        <key>AddProperties</key>
        <array>
            <dict>
                <key>Device</key>
                <string>IntelGFX</string>
                <key>Key</key>
                <string>AAPL,GfxYTile</string>
                <key>Value</key>
                <data>
                AQAAAA==
                </data>
            </dict>
        </array>

and some more for the RX480:

<key>KernelAndKextPatches</key>
 <dict>
  <key>ForceKextsToLoad</key>
  <array>
   <string>\System\Library\Extensions\AMDRadeonX4100.kext</string>
   <string>\System\Library\Extensions\AMD9500Controller.kext</string>
  </array>
  <key>KextsToPatch</key>
  <array>
   <dict>
    <key>Comment</key>
    <string>Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016</string>
    <key>Disabled</key>
    <false/>
    <key>Find</key>
    <data>
    D0LIiYuAAAAARIizmQAAAESIcyA=
    </data>
    <key>Name</key>
    <string>AMDRadeonX4100</string>
    <key>Replace</key>
    <data>
    kJCQiYuAAAAARIizmQAAAESIcyA=
    </data>
   </dict>
   <dict>
    <key>Comment</key>
    <string>Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016</string>
    <key>Disabled</key>
    <false/>
    <key>Find</key>
    <data>
    6EmF/v++SAEAAEyJ9w==
    </data>
    <key>Name</key>
    <string>AMDRadeonX4100</string>
    <key>Replace</key>
    <data>
    6EbkAAC+SAEAAEyJ9w==
    </data>
   </dict>
   <dict>
    <key>Comment</key>
    <string>Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016</string>
    <key>Disabled</key>
    <false/>
    <key>Find</key>
    <data>
    SLgCAAAAAQAAAEiJQ1THQ3wIAAAA
    </data>
    <key>Name</key>
    <string>AMDRadeonX4100</string>
    <key>Replace</key>
    <data>
    SLgEAAAAAQAAAEiJQ1THQ3wSAAAA
    </data>
   </dict>
   <dict>
    <key>Comment</key>
    <string>PP_DisablePowerContainment=1</string>
    <key>Disabled</key>
    <false/>
    <key>Find</key>
    <data>
    PGtleT5QUF9EaXNhYmxlUG93ZXJDb250YWlubWVudDwv
    a2V5PjxpbnRlZ2VyPjA8L2ludGVnZXI+
    </data>
    <key>InfoPlistPatch</key>
    <true/>
    <key>Name</key>
    <string>AMD9500Controller</string>
    <key>Replace</key>
    <data>
    PGtleT5QUF9EaXNhYmxlUG93ZXJDb250YWlubWVudDwv
    a2V5PjxpbnRlZ2VyPjE8L2ludGVnZXI+
    </data>
   </dict>
  </array>
 </dict>

What works:

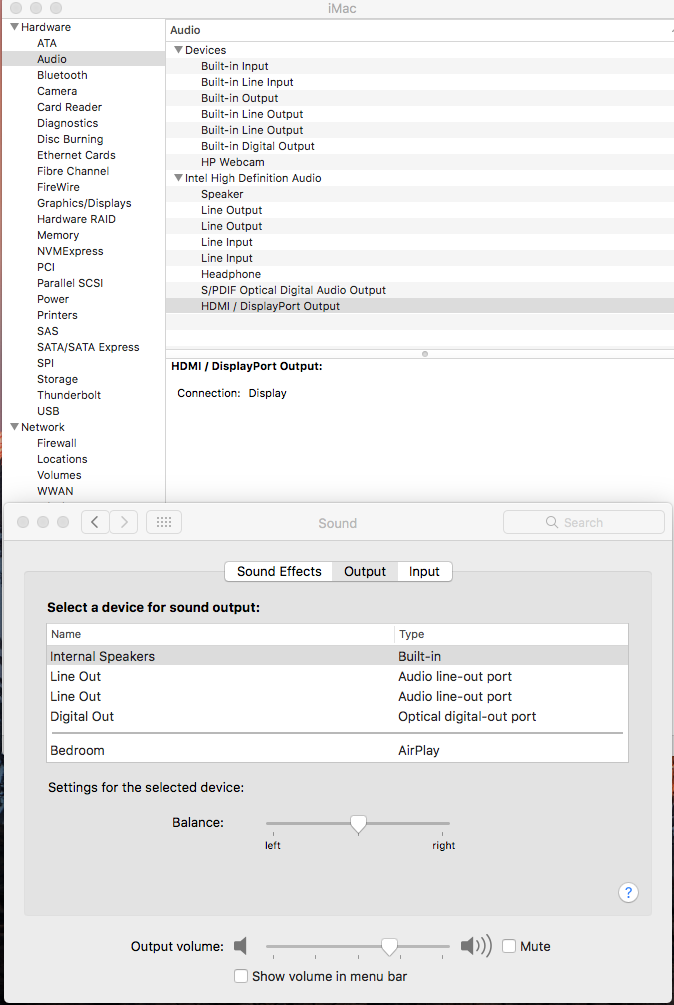

-Sound with VoodooHDA 2.8.9 in Clover/kexts/others

-Intel HD 630 without glitches and RehabMan's patches. HDMI and DVI tested

-RX480 when IGPU set as primary.

-LAN with IntelMausiEthernet

-USB with USBInjectAll

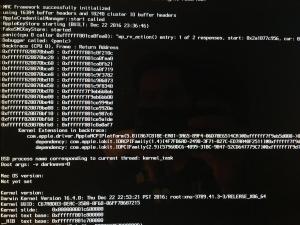

I can only boot with cpus=1, which is obviously not optimal. I would need your help now to get rid of that cpus=1. I've tried:

-dart=0

-darkwave=8

-darkwave=0

and every combination of those. Every time when I don't have cpus=1 set, I get a KP:

com.apple.driver.AppleACPIPlatform with iokit.IOACPIFamily and iokit.IOPCIFamily.

I've also tried Rehabman's SATA-200-series-unsupported.kext in Clover/kexts/others.

Further information:

Maxims-iMac:~ maxim$ kextstat|grep -y acpiplat
   13    1 0xffffff7f8255d000 0x60000    0x60000    com.apple.driver.AppleACPIPlatform (5.0) 867C81BE-EA01-3A65-89F4-06D78E6514CA <12 11 7 6 5 4 3 1>
Maxims-iMac:~ maxim$ kextstat|grep -y appleintelcpu
Maxims-iMac:~ maxim$ kextstat|grep -y applelpc
Maxims-iMac:~ maxim$ kextstat|grep -y applehda
  106    0 0xffffff7f824ab000 0x1d000    0x1d000    com.apple.driver.AppleHDAController (278.56) CFB0D0AE-F09A-3660-8F95-7A02FD5FBF07 <105 70 44 12 7 6 5 4 3 1>

Maxims-iMac:~ maxim$ sudo touch /System/Library/Extensions && sudo kextcache -u /
Password:
kext-dev-mode allowing invalid signature -67013 0xFFFFFFFFFFFEFA3B for kext AppleMobileDevice.kext
KernelCache ID: B8CB5638D5B16A8F2B5AE171E1076DF5
symlink("/System/Library/PrelinkedKernels/prelinkedkernel", "/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache") failed 17 (File exists) <createPrelinkedKernel 2795>

Please also check my config.plist for errors. I used the standard config and applied patches to my knowledge. There might be something wrong there as well...

Thanks in advance for your help!

Maxim

PS: here's a boot.log in case it helps.

0:100  0:100  MemLog inited, TSC freq: 3504471680
0:100  0:000  MemLog was calibrated without ACPI PM Timer: ACPI I/O space is not enabled.
0:100  0:000
0:100  0:000  Now is 9.2.2017,  19:0:11 (GMT)
0:100  0:000  Starting Clover revision: 3998 on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12.4 | XCODE: 8.2.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x14,0x0)\USB(0x3,0x0)\HD(1,GPT,FE77D187-F0F7-4F08-B0A7-D1A0B709F2EA,0x28,0x64000) @B676DB58
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 2400MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = 7139062E
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G4D240FSB.16FBR2
0:100  0:000  Type 17 Index = 2
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 2400MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = 7139026C
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G4D240FSB.16FBR2
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'B250-HD3P' with board 'B250-HD3P-CF'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=906E9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  got cores from CPUID_1 = 0
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i5-7600 CPU @ 3.50GHz
0:100  0:000   TSC/CCC Information Leaf:
0:100  0:000    numerator     : 292
0:100  0:000    denominator   : 2
0:100  0:000   Calibrated ARTFrequency: 24003230
0:100  0:000  FSBFrequency=100MHz DMIvalue=100000kHz
0:100  0:000  Corrected FSBFrequency=100MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x9E/0x9
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 39.0/6
0:100  0:000  Turbo: 0/0/0/0
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 16
0:100  0:000  Cores: 1
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3900 MHz
0:100  0:000  TSC: 3900 MHz
0:100  0:000  PIS: 400 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 591F class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 1901 class=060400
0:100  0:000  PCI (00|01:00.00) : 1002 67DF class=030000
0:100  0:000   - GFX: Model=AMD Radeon RX480 (ATI/AMD)
0:100  0:000   - RADEON_BIOS_0_SCRATCH = 0xFFFFFFFF
0:100  0:000  PCI (00|01:00.01) : 1002 AAF0 class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 5912 class=030000
0:100  0:000   - GFX: Model=Intel Unknown (Intel)
0:100  0:000  PCI (00|00:08.00) : 8086 1911 class=088000
0:100  0:000  PCI (00|00:14.00) : 8086 A2AF class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 A2BA class=078000
0:100  0:000  PCI (00|00:17.00) : 8086 A282 class=010601
0:100  0:000  PCI (00|00:1B.00) : 8086 A2EB class=060400
0:100  0:000  PCI (00|00:1C.00) : 8086 A294 class=060400
0:100  0:000  PCI (00|03:00.00) : 1B21 2142 class=0C0330
0:100  0:000  PCI (00|00:1C.06) : 8086 A296 class=060400
0:100  0:000  PCI (00|00:1C.07) : 8086 A297 class=060400
0:100  0:000  PCI (00|05:00.00) : 1283 8892 class=060401
0:100  0:000  PCI (00|00:1D.00) : 8086 A298 class=060400
0:100  0:000  PCI (00|00:1D.02) : 8086 A29A class=060400
0:100  0:000  PCI (00|00:1D.03) : 8086 A29B class=060400
0:100  0:000  PCI (00|00:1F.00) : 8086 A2C8 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 A2A1 class=058000
0:100  0:000  PCI (00|00:1F.03) : 8086 A2F0 class=040300
0:100  0:000  PCI (00|00:1F.04) : 8086 A2A3 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : 8086 15B8 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 0 bytes
0:111  0:010  EFI\CLOVER\config.plist loaded: Success
0:111  0:000  === [ GetListOfThemes ] ===================================
0:111  0:000  - [00]: embedded
0:114  0:003  - [00]: random
0:118  0:003  === [ Found config plists ] ===============================
0:118  0:000  - config copy.plist
0:120  0:002  - config.plist
0:130  0:010  === [ GetEarlyUserSettings ] ==============================
0:130  0:000  timeout set to 5
0:130  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:130  0:000  FakeCPUID: 506E3
0:130  0:000  ForceKextsToLoad: 2 requested
0:130  0:000   - [0]: System\Library\Extensions\AMDRadeonX4100.kext
0:130  0:000   - [1]: System\Library\Extensions\AMD9500Controller.kext
0:130  0:000  KextsToPatch: 4 requested
0:130  0:000   - [00]: AMD9500Controller (PP_DisablePowerContainment=1) :: PlistPatch :: data len: 57
0:130  0:000   - [01]: AMDRadeonX4100 (Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016) :: BinPatch :: data len: 13
0:130  0:000   - [02]: AMDRadeonX4100 (Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016) :: BinPatch :: data len: 21
0:130  0:000   - [03]: AMDRadeonX4100 (Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016) :: BinPatch :: data len: 20
0:130  0:000  Default theme: embedded
0:130  0:000  === [ LoadDrivers ] =======================================
0:133  0:003  Loading AppleImageCodec-64.efi  status=Success
0:134  0:000  Loading AppleKeyAggregator-64.efi  status=Success
0:135  0:000  Loading AppleUITheme-64.efi  status=Success
0:136  0:001  Loading DataHubDxe-64.efi  status=Success
0:138  0:001  Loading EmuVariableUefi-64.efi  status=Success
0:142  0:003  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
0:142  0:000  Loading FirmwareVolume-64.efi  status=Success
0:143  0:000  Loading FSInject-64.efi  status=Success
0:143  0:000  Loading OsxAptioFix2Drv-64.efi  status=Success
0:144  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:145  0:000  Loading SMCHelper-64.efi  status=Success
0:146  0:000  Loading VBoxHfs-64.efi  status=Success
0:147  0:000   - driver needs connecting
0:147  0:000  1 drivers needs connecting ...
0:147  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
0:147  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:412  0:264  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
0:473  0:061  === [ InitScreen ] ========================================
0:473  0:000  SetScreenResolution: 1920x1080 - not found!
0:473  0:000  SetMaxResolution: found best mode 0: 800x600
0:473  0:000   - already set
0:473  0:000  Console modes reported: 3, available modes:
0:473  0:000   - [01]: 80x25 (current mode)
0:473  0:000   - [03]: 100x31
0:473  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x14,0x0)\USB(0x3,0x0)\HD(1,GPT,FE77D187-F0F7-4F08-B0A7-D1A0B709F2EA,0x28,0x64000)
0:473  0:000  Using embedded font: Success
0:474  0:000  === [ GetMacAddress ] =====================================
0:474  0:000   get legacy LAN MAC, 1 card found
0:474  0:000  Legacy MAC address of LAN #0= 1C:1B:0D:90:0E:97:
0:474  0:000  === [ ScanSPD ] ===========================================
0:474  0:000  SMBus device : 8086 A2A3 class=0C0500 status=Success
0:474  0:000  SMBus CmdReg: 0x1
0:474  0:000  Scanning SMBus [8086:A2A3], mmio: 0xF724A004, ioport: 0xF040, hostc: 0x11
0:474  0:000  Slots to scan [8]...
0:475  0:000  SPD[1]: Type 12 @0x51
0:493  0:017  Unknown vendor bank=0x85 code=0x9B
0:493  0:000  XMP Profile1: 7*125 -42 ns
0:493  0:000  Found module with XMP version 2.0
0:493  0:000  DDR speed 2400MHz
0:493  0:000  Slot: 1 Type 26 8192MB 2400MHz Vendor=NoName PartNo=BLS8G4D240FSB.16FBR2 SerialNo=070103090006020E
0:493  0:000  SPD[3]: Type 12 @0x53
0:511  0:017  Unknown vendor bank=0x85 code=0x9B
0:511  0:000  XMP Profile1: 7*125 -42 ns
0:511  0:000  Found module with XMP version 2.0
0:511  0:000  DDR speed 2400MHz
0:511  0:000  Slot: 3 Type 26 8192MB 2400MHz Vendor=NoName PartNo=BLS8G4D240FSB.16FBR2 SerialNo=070103090002060C
0:512  0:000  === [ GetAcpiTablesList ] =================================
0:512  0:000  Get Acpi Tables List from RSDT:
0:512  0:000   - [00]: FACP  A M I  len=132
0:512  0:000   - [01]: APIC  A M I  len=132
0:512  0:000   - [02]: FPDT  A M I  len=68
0:512  0:000   - [03]: MCFG  A M I  len=60
0:512  0:000   - [04]: FIDT  A M I len=156
0:512  0:000   - [05]: SSDT  SaSsdt  len=12628
0:512  0:000   - [06]: SSDT  PegSsdt len=9540
0:512  0:000   - [07]: HPET  KBL len=56
0:512  0:000   - [08]: SSDT  Ther_Rvp len=3643
0:512  0:000   - [09]: SSDT  xh_rvp10 len=2303
0:512  0:000   - [10]: UEFI  EDK2     len=66
0:512  0:000   - [11]: SSDT  CpuSsdt len=3806
0:512  0:000   - [12]: LPIT  KBL len=148
0:512  0:000   - [13]: WSMT  KBL len=40
0:512  0:000   - [14]: SSDT  sensrhub len=671
0:512  0:000   - [15]: SSDT  PtidDevc len=12290
0:512  0:000   - [16]: DBGP   len=52
0:512  0:000   - [17]: DBG2   len=84
0:512  0:000   - [18]: BGRT  A M I  len=56
0:512  0:000  Calibrated TSC frequency =3504471680 =3504MHz
0:512  0:000  === [ GetUserSettings ] ===================================
0:512  0:000  Add 2 properties:
0:512  0:000   - [00]: IntelGFX, len: 22
0:512  0:000   - [01]: IntelGFX, len: 4
0:512  0:000  USB FixOwnership: yes
0:512  0:000  Dropping 3 tables:
0:512  0:000   - [00]: Drop table  signature="DMAR" (52414D44)
0:512  0:000           - set table: 52414D44,                0 to drop: no
0:512  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
0:512  0:000           - set table: 54445353,   74734930757043 to drop: no
0:512  0:000   - [02]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
0:512  0:000           - set table: 54445353,       6D50757043 to drop: no
0:512  0:000   - final DSDT Fix mask=9FE680D7
0:512  0:000  ChassisType: 0x13
0:512  0:000  === [ ScanVolumes ] =======================================
0:512  0:000  Found 11 volumes with blockIO
0:512  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x3,0x0)
0:514  0:001          Result of bootcode detection: bootable unknown (legacy)
0:514  0:000          USB volume
0:514  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x3,0x0)\HD(1,GPT,FE77D187-F0F7-4F08-B0A7-D1A0B709F2EA,0x28,0x64000)
0:515  0:001          Result of bootcode detection: bootable unknown (legacy)
0:515  0:000          USB volume
0:515  0:000          This is SelfVolume !!
0:515  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x3,0x0)\HD(2,GPT,DCAFDE38-CCA9-4B95-9F12-C8ADC0CC4DB3,0x64028,0xE44BB0)
0:517  0:001          USB volume
0:517  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)
0:517  0:000          Result of bootcode detection: bootable unknown (legacy)
0:517  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)
0:518  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,MBR,0x00DEB52F,0x800,0xFA000)
0:518  0:000          Result of bootcode detection: bootable Windows (vista,win)
0:518  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,MBR,0x00DEB52F,0xFA800,0x1DBF8000)
0:519  0:000          Result of bootcode detection: bootable Windows (vista,win)
0:519  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,591045C5-7C4F-4227-81E8-F937132B2B17,0x28,0x64000)
0:519  0:000          Result of bootcode detection: bootable unknown (legacy)
0:521  0:001  - [08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)
0:531  0:009  - [09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(3,GPT,8A957E79-F259-4661-A22B-23A9F0135C77,0xB9B1C78,0x135F20)
0:539  0:008  - [10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(4,GPT,748EC798-2B78-43DD-A1DF-532CE237511C,0xBAE7B98,0x3ED306F0)
0:559  0:019  PutNvramPlistToRtVars: nvram.plist not found
0:559  0:000  === [ InitTheme ] =========================================
0:559  0:000   using embedded theme
0:559  0:000  Using embedded font: Success
0:559  0:000  Choosing theme <null string>
0:559  0:000  after NVRAM boot-args=-v cpus=1
0:559  0:000  === [ Dump SMC keys from NVRAM ] ==========================
0:559  0:000  found AppleSMC protocol
0:559  0:000  === [ ScanLoader ] ========================================
0:559  0:000  - [01]: 'EFI'
0:560  0:000  - [02]: 'Install macOS Sierra'
0:564  0:004          AddLoaderEntry for Volume Name=Install macOS Sierra
0:565  0:001  Icon 13 decoded, pointer B5BC32D8
0:566  0:000  - [07]: 'EFI'
0:585  0:018  - [08]: 'Sierra'
0:606  0:021          AddLoaderEntry for Volume Name=Sierra
0:627  0:021      Check if volume Is Hibernated:
0:627  0:000      Check sleep image 'by signature':
0:661  0:033      using default sleep image name = \private\var\vm\sleepimage
0:674  0:013      sleepimage not found -> Not Found
0:674  0:000      hibernated: no - sign
0:674  0:000  Icon 17 decoded, pointer B57E5DD8
0:674  0:000  - [09]: 'Recovery HD'
0:686  0:012          AddLoaderEntry for Volume Name=Recovery HD
0:695  0:008  Icon 20 decoded, pointer B578CE98
0:695  0:000  - [10]: 'DataSierra'
0:695  0:000  Scanning legacy ...
0:695  0:000   0: 'Whole Disc Boot' (legacy) not legacy
0:695  0:000   1: 'EFI' (legacy) not legacy
0:695  0:000   2: 'Install macOS Sierra' (legacy) not legacy
0:695  0:000   3: 'Whole Disc Boot' (legacy) not legacy
0:695  0:000   4: 'Whole Disc Boot' (legacy) not legacy
0:695  0:000   5: 'Legacy HD1' (vista,win) add legacy
0:696  0:000  Icon 18 decoded, pointer B5656F18
0:696  0:000   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
0:696  0:000   6: 'Legacy HD2' (vista,win) add legacy
0:696  0:000   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
0:696  0:000   7: 'EFI' (legacy) not legacy
0:696  0:000   8: 'Sierra' (legacy) not legacy
0:696  0:000   9: 'Recovery HD' (legacy) not legacy
0:696  0:000  10: 'DataSierra' (legacy) not legacy
0:696  0:000  === [ AddCustomTool ] =====================================
0:696  0:000  Icon 8 decoded, pointer B5659F18
0:699  0:003  found tool \EFI\CLOVER\tools\Shell64U.efi
0:699  0:000  Checking EFI partition Volume 1 for Clover
0:699  0:000   Found Clover
0:699  0:000  Icon 2 decoded, pointer B5411E98
0:699  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
0:699  0:000  Icon 1 decoded, pointer B5446C98
0:699  0:000  Icon 0 decoded, pointer B5448F18
0:699  0:000  Icon 5 decoded, pointer B5446A98
0:699  0:000  Icon 6 decoded, pointer B59C6E98
0:700  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
0:761  0:061  === [ GetEfiBootDeviceFromNvram ] =========================
0:761  0:000  Default boot entry not found
0:761  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
0:761  0:000  DefaultIndex=-1 and MainMenu.EntryCount=11
0:761  0:000  Icon 21 decoded, pointer B5446B18
0:777  0:016  SelectionImages[2] == NULL
0:777  0:000  Icon 22 decoded, pointer B54479D8
0:777  0:000  SelectionImages[0] == NULL
0:777  0:000  Icon 23 decoded, pointer B54469D8
0:783  0:005  GUI ready
195:694  194:911  Boot option Boot0000 not found
195:694  0:000  === [ StartLoader ] =======================================
195:694  0:000  Finally: Bus=89858kHz CPU=3504MHz
195:694  0:000  Loading boot.efi  status=Success
195:801  0:106  GetOSVersion: 10.12.3 (16D32)
195:801  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
195:801  0:000  Filtering KextPatches:
195:801  0:000   - [00]: AMD9500Controller (PP_DisablePowerContainment=1) :: PlistPatch :: [OS: 10.12.3 | MatchOS: All | MatchBuild: All] ==> allowed
195:801  0:000   - [01]: AMDRadeonX4100 (Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016) :: BinPatch :: [OS: 10.12.3 | MatchOS: All | MatchBuild: All] ==> allowed
195:801  0:000   - [02]: AMDRadeonX4100 (Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016) :: BinPatch :: [OS: 10.12.3 | MatchOS: All | MatchBuild: All] ==> allowed
195:801  0:000   - [03]: AMDRadeonX4100 (Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016) :: BinPatch :: [OS: 10.12.3 | MatchOS: All | MatchBuild: All] ==> allowed
195:801  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
195:863  0:061  === [ PatchSmbios ] =======================================
195:863  0:000  insert table 9 for dev 0:0
195:863  0:000  insert table 9 for dev 0:1
195:863  0:000  insert table 9 for dev 1F:6
195:863  0:000  Channels: 2
195:863  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
195:863  0:000  SMBIOS Type 17 Index = 0 => 0 0:
195:863  0:000  BANK0 DIMM0 EMPTY
195:863  0:000  SMBIOS Type 17 Index = 1 => 2 2:
195:863  0:000  BANK1 DIMM0 EMPTY
195:863  0:000  SMBIOS Type 17 Index = 2 => 1 1:
195:863  0:000  BANK0 DIMM1 2400MHz 8192MB
195:863  0:000  SMBIOS Type 17 Index = 3 => 3 3:
195:863  0:000  BANK1 DIMM1 2400MHz 8192MB
195:863  0:000  mTotalSystemMemory = 16384
195:863  0:000  NumberOfMemoryDevices = 4
195:863  0:000  Type20[0]->End = 0x7FFFFF, Type17[2] = 0x2000
195:863  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 0x6000
195:863  0:000  Table 131 is present, CPUType=35
195:863  0:000  Change to: 402
195:863  0:000  === [ PatchACPI ] =========================================
195:863  0:000  RSDT 0xBA00D028
195:863  0:000  FADT from RSDT: 0xBA00D168
195:863  0:000  XSDT 0xBA00D0A0
195:863  0:000  FADT from XSDT: 0xBA033698
195:863  0:000  Xsdt reallocation done
195:863  0:000  old FADT length=114
195:863  0:000  Found OperationRegion(GNVS, SystemMemory, BA37E000, ...)
195:863  0:000  Found OperationRegion(CPSB, SystemMemory, B9B3CF98, ...)
195:863  0:000  Found OperationRegion(PNVA, SystemMemory, BA3B1018, ...)
195:863  0:000  Found OperationRegion(THBA, SystemMemory, FE200000, ...)
195:864  0:000  Found OperationRegion(ITSS, SystemMemory, FDC43100, ...)
195:864  0:000  Found OperationRegion(ABNV, SystemMemory, FFFF0000, ...)
195:864  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
195:864  0:000  Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
195:864  0:000  Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
195:864  0:000  Found OperationRegion(ATNV, SystemMemory, FFFF0000, ...)
195:864  0:000  Apply DsdtFixMask=0x9FE680D7 new way
195:864  0:000     drop _DSM mask=0x0000
195:864  0:000  === [ FixBiosDsdt ] =======================================
195:864  0:000  VideoCard devID=0x67DF1002
195:864  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
195:864  0:000  VideoCard devID=0x59128086
195:864  0:000  DisplayADR1[1] = 0x20000, DisplayADR2[1] = 0xFFFE
195:864  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
195:864  0:000  USBADR[1] = 0x1C0000 and PCIe = 0x0
195:864  0:000  first CPU found at A1E5 offset A1E8
195:864  0:000  score candidate at A1E1
195:864  0:000  score inserted in acpi_cpu_score _PR_
195:864  0:000  Found ACPI CPU: CPU0 | CPU1 | CPU2 | CPU3 | CPU4 | CPU5 | CPU6 | CPU7 , within the score: _PR_
195:865  0:000  Found PCIROOTUID = 0
195:865  0:000  Start RTC Fix
195:865  0:000  found RTC Length not match, Maybe will case CMOS reset will patch it.
195:865  0:000  found RTC had IRQNoFlag will move -3 bytes
195:865  0:000  ...len=264E2
195:865  0:000  new size written to 25620 shift=0 len=264E2
195:865  0:000  len after correct outers 264E2
195:865  0:000  Start TMR Fix
195:866  0:000  Start PIC Fix
195:866  0:000  PIC size=A5 at 25448
195:866  0:000  found CRS at 2545C size 8D
195:866  0:000  found PIC had IRQNoFlag will move -3 bytes
195:866  0:000  Fix Device PIC size -3
195:866  0:000  Start HPET Fix
195:867  0:000  Start SBUS Fix PCI=321D len=264B1
195:867  0:000  device (SBUS) found at BBC8
195:867  0:000  _DSM already exists, patch SBUS will not be applied
195:867  0:000  patch HDEF in DSDT
195:867  0:000  Start HDA Fix
195:867  0:000  found HDA device NAME(_ADR,0x001F0003) And Name is HDAS
195:867  0:000  Name HDAS present at 0x2FB, renaming to HDEF
195:867  0:000  Name HDAS present at 0x311, renaming to HDEF
195:867  0:000  Name HDAS present at 0x327, renaming to HDEF
195:868  0:000  Name HDAS present at 0xB8E4, renaming to HDEF
195:868  0:000  Name HDAS present at 0xCE6E, renaming to HDEF
195:868  0:000  Name HDAS present at 0xCEF6, renaming to HDEF
195:868  0:000  Name HDAS present at 0xCF07, renaming to HDEF
195:868  0:000  Name HDAS present at 0xCF36, renaming to HDEF
195:868  0:000  Name HDAS present at 0xCF6C, renaming to HDEF
195:868  0:000  Name HDAS present at 0xCFBF, renaming to HDEF
195:868  0:000  Name HDAS present at 0xD03E, renaming to HDEF
195:868  0:000  Name HDAS present at 0xD105, renaming to HDEF
195:868  0:000  _DSM already exists, patch HDA will not be applied
195:868  0:000  Start HDMI13 Fix
195:868  0:000  have no HDMI device while HDMIADR2=1
195:868  0:000  HDMIADR1=10000 HDMIADR2=1
195:868  0:000    with default properties
195:868  0:000  Start _WAK Return Fix
195:868  0:000  _WAK Method find return data, don't need to patch.
195:868  0:000  return len=2652D
195:868  0:000   deleting device CRT_
195:869  0:000   deleting device DVI_
195:869  0:000   deleting device SPKR
195:870  0:000   deleting device ECP_
195:870  0:000   deleting device LPT_
195:871  0:000   deleting device FDC0
195:871  0:000   deleting device ECP1
195:871  0:000   deleting device LPT1
195:872  0:001  Name APSS present at 0x25AA5, renaming to OPSS
195:873  0:000  Start PNLF Fix
195:873  0:000  found PWRB at 2577C
195:873  0:000  Start _S3D Fix
195:873  0:000    indirect name=PNVB
195:873  0:000  OperationRegion (THBA...) corrected to addr=0xFE200000
195:873  0:000    indirect name=TPMM
195:873  0:000    indirect name=FTPM
195:873  0:000    indirect name=PPIM
195:873  0:000  Start ADP1 fix
195:874  0:000  no device(AC) exists
195:874  0:000  Start Darwin Fix
195:874  0:000  Name _OSI present at 0xA5D1, renaming to OOSI
195:874  0:000  Name _OSI present at 0x1292B, renaming to OOSI
195:874  0:000  Name _OSI present at 0x12932, renaming to OOSI
195:874  0:000  Name _OSI present at 0x12947, renaming to OOSI
195:874  0:000  Name _OSI present at 0x12963, renaming to OOSI
195:874  0:000  Name _OSI present at 0x12983, renaming to OOSI
195:874  0:000  Name _OSI present at 0x129A3, renaming to OOSI
195:874  0:000  Name _OSI present at 0x129C1, renaming to OOSI
195:874  0:000  Name _OSI present at 0x129DD, renaming to OOSI
195:874  0:000  Name _OSI present at 0x129F9, renaming to OOSI
195:874  0:000  Name _OSI present at 0x12A15, renaming to OOSI
195:874  0:000  Name _OSI present at 0x12A31, renaming to OOSI
195:874  0:000  Start SHUTDOWN Fix len=26603
195:874  0:000  === [ ACPIDropTables ] ====================================
195:874  0:000  === [ PatchAllSSDT ] ======================================
195:874  0:000  Patch table: SSDT  SaSsdt
195:874  0:000   SSDT len = 0x3154
195:874  0:000  Patch table: SSDT  PegSsdt
195:874  0:000   SSDT len = 0x2544
195:874  0:000  Patch table: SSDT  Ther_Rvp
195:874  0:000   SSDT len = 0xE3B
195:874  0:000  Patch table: SSDT  xh_rvp10
195:874  0:000   SSDT len = 0x8FF
195:874  0:000  Patch table: SSDT  CpuSsdt
195:874  0:000   SSDT len = 0xEDE
195:874  0:000  Patch table: SSDT  sensrhub
195:874  0:000   SSDT len = 0x29F
195:874  0:000  Patch table: SSDT  PtidDevc
195:874  0:000   SSDT len = 0x3002
195:874  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
195:874  0:000   Xsdt has tables count=19
195:874  0:000  corrected XSDT length=188
195:874  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=1
195:874  0:000  Unsupported CPU (0x6): P-States not generated !!!
195:874  0:000  GeneratePStates failed: Status=Not Found
195:874  0:000  SSDT with CPU C-States generated successfully
195:874  0:000  === [ RestSetup macOS ] ===================================
195:874  0:000  EdidDiscovered size=0
195:875  0:000  Framebuffer @0xE0000000  MMIO @0xF0000000 I/O Port @0x0000E000 ROM Addr @0xF7140000
195:875  0:000  PCI region 1 = 0x00000000, region3 = 0x00000000, region5 = 0xF7100000
195:875  0:000  Use region5 as MMIO space
195:875  0:000  BIOS_0_SCRATCH=0xFFFFFFFF, 1=0xFFFFFFFF, 2=0xFFFFFFFF, 3=0xFFFFFFFF, 4=0xFFFFFFFF, 5=0xFFFFFFFF, 6=0xFFFFFFFF
195:875  0:000  RADEON_CRTC2_GEN_CNTL == 0xFFFFFFFF
195:875  0:000   card not posted because GEN_CNTL = -1
195:875  0:000  ATI card non-POSTed,
195:875  0:000  Set VRAM for Ellesmere =4294967295Mb
195:875  0:000  ATI: get_vram_size returned 0xFFF00000
195:875  0:000  ATI Radeon EVERGREEN+ family
195:875  0:000  Framebuffer set to device's default: Baladi
195:875  0:000   N ports defaults to 6
195:875  0:000  (AtiPorts) Nr of ports set to: 6
195:875  0:000  ATI Ellesmere AMD Radeon RX480 -1MB (Baladi) [1002:67DF] (subsys [148C:2372]):: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)
195:875  0:000  Intel Intel Unknown [8086:5912] :: PciRoot(0x0)\Pci(0x2,0x0)
195:875  0:000  custom IntelGFX properties injected, continue
195:875  0:000  Intel card id=5912 unsupported, please report to the project home
195:875  0:000  Intel GFX revision  =0x4
195:875  0:000   RCBA disabled; cannot use it
195:875  0:000   detected codec: 10EC:0892
195:875  0:000  stringlength = 5864
195:875  0:000  CurrentMode: Width=800 Height=600
195:875  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: B629CD98
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: B629CD98
195:879  0:004    Force kext: System\Library\Extensions\AMDRadeonX4100.kext
197:271  1:391    Force kext: System\Library\Extensions\AMD9500Controller.kext
198:675  1:403  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
198:675  0:000    Extra kext: EFI\CLOVER\kexts\Other\FakePCIID_Intel_HD_Graphics.kext
198:683  0:008    Extra kext: EFI\CLOVER\kexts\Other\FakePCIID.kext
198:700  0:016    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
198:708  0:007    Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext
198:786  0:078    Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext
198:798  0:011    Extra kext: EFI\CLOVER\kexts\Other\VoodooHDA.kext
198:828  0:030  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
198:834  0:005  SetStartupDiskVolume:
198:834  0:000    * Volume: 'Sierra'
198:834  0:000    * LoaderPath: '<null string>'
198:834  0:000    * DevPath: Sierra
198:834  0:000    * GUID = CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF
198:834  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF</string></dict></dict></dict></array>
198:834  0:000  Custom boot screen not used because entry has unset use graphics

IOREG.zip

CLOVER.zip

MaLd0n · February 11, 2017

CLOVER.zip

VirusX · February 12, 2017

thank you for your help. You changed my config.plist and added a patched DSDT, right? I installed Clover rev. 4003 on a spare USB thumb drive and booted from that with all your edits. But I still get a KP at exactly the same spot "AppleACPIPlatform" (see screenshot attached - ignore the darkwave=0 - that screenshot is from another try - KP is the same though ).

Do you have more ideas? I'm testing now darkwave=8 or =0 or so just to be sure...

What exactly did you patch in the DSDT? I've never patched a DSDT myself so I don't know much about that.

Thanks again

MaLd0n · February 12, 2017

Try fresh install with clover folder from my post, ur dsdt is full edit now, u dont need more patches. See the folder clover/acpi/patched.

VirusX · February 12, 2017

I am writing this from my fresh install. Nothing has changed though. I can't get into the installer without cpus=1, and after installation, I can't boot to desktop without cpus=1.

Before the fresh install, I installed clover 4003 on the Sierra hard drive to make sure, that it is not a USB/thumb drive problem since I've been booting from that all the time. Is it necessary to install/apply any of my patches to S/L/E or L/E for them to work properly?

I also tried replacing OsxAptioFixDrv-64.efi by OsxAptioFix2Drv-64.efi - did make a difference. Both worked.

Maybe you guys find anything else in my boot.log:

0:100  0:100  MemLog inited, TSC freq: 3504477000
0:100  0:000  MemLog was calibrated without ACPI PM Timer: ACPI I/O space is not enabled.
0:100  0:000
0:100  0:000  Now is 12.2.2017,  19:33:18 (GMT)
0:100  0:000  Starting Clover revision: 4003 on American Megatrends EFI
0:100  0:000  Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.12.4 | XCODE: 8.2.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(1,GPT,058DF4C7-BA17-4F71-B2C5-73775B373960,0x28,0x64000) @B606FF18
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 2400MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = 7139062E
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G4D240FSB.16FBR2
0:100  0:000  Type 17 Index = 2
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 2400MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 859B
0:100  0:000  SmbiosTable.Type17->SerialNumber = 7139026C
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G4D240FSB.16FBR2
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'B250-HD3P' with board 'B250-HD3P-CF'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=906E9
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  got cores from CPUID_1 = 0
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i5-7600 CPU @ 3.50GHz
0:100  0:000   TSC/CCC Information Leaf:
0:100  0:000    numerator     : 292
0:100  0:000    denominator   : 2
0:100  0:000   Calibrated ARTFrequency: 24003267
0:100  0:000  FSBFrequency=100MHz DMIvalue=100000kHz
0:100  0:000  Corrected FSBFrequency=100MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x9E/0x9
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 39.0/6
0:100  0:000  Turbo: 0/0/0/0
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 16
0:100  0:000  Cores: 1
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3900 MHz
0:100  0:000  TSC: 3900 MHz
0:100  0:000  PIS: 400 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 591F class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 1901 class=060400
0:100  0:000  PCI (00|01:00.00) : 1002 67DF class=030000
0:100  0:000   - GFX: Model=AMD Radeon RX480 (ATI/AMD)
0:100  0:000   - RADEON_BIOS_0_SCRATCH = 0xFFFFFFFF
0:100  0:000  PCI (00|01:00.01) : 1002 AAF0 class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 5912 class=030000
0:100  0:000   - GFX: Model=Intel Unknown (Intel)
0:100  0:000  PCI (00|00:08.00) : 8086 1911 class=088000
0:100  0:000  PCI (00|00:14.00) : 8086 A2AF class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 A2BA class=078000
0:100  0:000  PCI (00|00:17.00) : 8086 A282 class=010601
0:100  0:000  PCI (00|00:1B.00) : 8086 A2EB class=060400
0:100  0:000  PCI (00|00:1C.00) : 8086 A294 class=060400
0:100  0:000  PCI (00|03:00.00) : 1B21 2142 class=0C0330
0:100  0:000  PCI (00|00:1C.06) : 8086 A296 class=060400
0:100  0:000  PCI (00|00:1C.07) : 8086 A297 class=060400
0:100  0:000  PCI (00|05:00.00) : 1283 8892 class=060401
0:100  0:000  PCI (00|00:1D.00) : 8086 A298 class=060400
0:100  0:000  PCI (00|00:1D.02) : 8086 A29A class=060400
0:100  0:000  PCI (00|00:1D.03) : 8086 A29B class=060400
0:100  0:000  PCI (00|00:1F.00) : 8086 A2C8 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 A2A1 class=058000
0:100  0:000  PCI (00|00:1F.03) : 8086 A2F0 class=040300
0:100  0:000  PCI (00|00:1F.04) : 8086 A2A3 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : 8086 15B8 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 0 bytes
0:125  0:025  EFI\CLOVER\config.plist loaded: Success
0:125  0:000  === [ GetListOfThemes ] ===================================
0:125  0:000  - [00]: embedded
0:132  0:006  - [00]: random
0:138  0:005  === [ Found config plists ] ===============================
0:138  0:000  - config.plist
0:138  0:000  === [ GetEarlyUserSettings ] ==============================
0:138  0:000  timeout set to 5
0:138  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:138  0:000  FakeCPUID: 506E3
0:138  0:000  ForceKextsToLoad: 2 requested
0:138  0:000   - [0]: System\Library\Extensions\AMDRadeonX4100.kext
0:138  0:000   - [1]: System\Library\Extensions\AMD9500Controller.kext
0:138  0:000  KextsToPatch: 7 requested
0:138  0:000   - [00]: AMD9500Controller (PP_DisablePowerContainment=1) :: PlistPatch :: data len: 57
0:138  0:000   - [01]: AMDRadeonX4100 (Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016) :: BinPatch :: data len: 20
0:138  0:000   - [02]: AMDRadeonX4100 (Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016) :: BinPatch :: data len: 21
0:138  0:000   - [03]: AMDRadeonX4100 (Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016) :: BinPatch :: data len: 13
0:138  0:000   - [04]: AppleAHCIPort (External icons patch) :: BinPatch :: data len: 8
0:138  0:000   - patch disabled at config
0:138  0:000   - [05]: AppleUSBXHCIPCI (change 15 port limit to 26 in XHCI kext (100-series)) :: BinPatch :: data len: 7
0:138  0:000   - [06]: IOAHCIBlockStorage (TRIM function for non-Apple SSDs) :: BinPatch :: data len: 10
0:138  0:000   - patch disabled at config
0:138  0:000  Default theme: embedded
0:138  0:000  === [ LoadDrivers ] =======================================
0:145  0:006  Loading AppleImageCodec-64.efi  status=Success
0:146  0:000  Loading AppleKeyAggregator-64.efi  status=Success
0:146  0:000  Loading AppleUITheme-64.efi  status=Success
0:147  0:001  Loading DataHubDxe-64.efi  status=Success
0:154  0:006  Loading FirmwareVolume-64.efi  status=Success
0:155  0:000  Loading FSInject-64.efi  status=Success
0:156  0:000  Loading OsxAptioFixDrv-64.efi  status=Success
0:157  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:158  0:001  Loading SMCHelper-64.efi  status=Success
0:159  0:001  Loading VBoxHfs-64.efi  status=Success
0:160  0:001   - driver needs connecting
0:160  0:000  Loading HFSPlus.efi  status=Success
0:173  0:012   - driver needs connecting
0:173  0:000  2 drivers needs connecting ...
0:173  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
0:173  0:000  HFS+ driver loaded
0:173  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:447  0:273  === [ InitScreen ] ========================================
0:447  0:000  SetScreenResolution: 1920x1080 - not found!
0:447  0:000  SetMaxResolution: found best mode 5: 1920x1200
0:675  0:228  Video mode change to mode #5: Success
0:675  0:000   - set
0:675  0:000  Console modes reported: 5, available modes:
0:675  0:000   - [01]: 80x25
0:675  0:000   - [02]: 80x50
0:675  0:000   - [03]: 100x31
0:675  0:000   - [04]: 127x33 (current mode)
0:675  0:000   - [05]: 100x60
0:675  0:000  SetScreenResolution: 1920x1200 - already set
0:675  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(1,GPT,058DF4C7-BA17-4F71-B2C5-73775B373960,0x28,0x64000)
0:675  0:000  Using embedded font: Success
0:676  0:000  === [ GetMacAddress ] =====================================
0:676  0:000   get legacy LAN MAC, 1 card found
0:676  0:000  Legacy MAC address of LAN #0= 1C:1B:0D:90:0E:97:
0:676  0:000  === [ ScanSPD ] ===========================================
0:676  0:000  SMBus device : 8086 A2A3 class=0C0500 status=Success
0:676  0:000  SMBus CmdReg: 0x1
0:676  0:000  Scanning SMBus [8086:A2A3], mmio: 0xF724A004, ioport: 0xF040, hostc: 0x11
0:676  0:000  Slots to scan [8]...
0:677  0:000  SPD[1]: Type 12 @0x51
0:695  0:017  Unknown vendor bank=0x85 code=0x9B
0:695  0:000  XMP Profile1: 7*125 -42 ns
0:695  0:000  Found module with XMP version 2.0
0:695  0:000  Using XMP Profile1 instead of standard frequency 2400MHz
0:695  0:000  DDR speed 2400MHz
0:695  0:000  Slot: 1 Type 26 8192MB 2400MHz Vendor=NoName PartNo=BLS8G4D240FSB.16FBR2 SerialNo=070103090006020E
0:695  0:000  SPD[3]: Type 12 @0x53
0:713  0:017  Unknown vendor bank=0x85 code=0x9B
0:713  0:000  XMP Profile1: 7*125 -42 ns
0:713  0:000  Found module with XMP version 2.0
0:713  0:000  Using XMP Profile1 instead of standard frequency 2400MHz
0:713  0:000  DDR speed 2400MHz
0:713  0:000  Slot: 3 Type 26 8192MB 2400MHz Vendor=NoName PartNo=BLS8G4D240FSB.16FBR2 SerialNo=070103090002060C
0:714  0:000  === [ GetAcpiTablesList ] =================================
0:714  0:000  Get Acpi Tables List from RSDT:
0:714  0:000   - [00]: FACP  A M I  len=132
0:714  0:000   - [01]: APIC  A M I  len=132
0:714  0:000   - [02]: FPDT  A M I  len=68
0:714  0:000   - [03]: MCFG  A M I  len=60
0:714  0:000   - [04]: FIDT  A M I len=156
0:714  0:000   - [05]: SSDT  SaSsdt  len=12628
0:714  0:000   - [06]: SSDT  PegSsdt len=9540
0:714  0:000   - [07]: HPET  KBL len=56
0:714  0:000   - [08]: SSDT  Ther_Rvp len=3643
0:714  0:000   - [09]: SSDT  xh_rvp10 len=2303
0:714  0:000   - [10]: UEFI  EDK2     len=66
0:714  0:000   - [11]: SSDT  CpuSsdt len=3806
0:714  0:000   - [12]: LPIT  KBL len=148
0:714  0:000   - [13]: WSMT  KBL len=40
0:714  0:000   - [14]: SSDT  sensrhub len=671
0:714  0:000   - [15]: SSDT  PtidDevc len=12290
0:714  0:000   - [16]: DBGP   len=52
0:714  0:000   - [17]: DBG2   len=84
0:714  0:000   - [18]: BGRT  A M I  len=56
0:714  0:000  Calibrated TSC frequency =3504477000 =3504MHz
0:714  0:000  === [ GetUserSettings ] ===================================
0:714  0:000  Add 2 properties:
0:714  0:000   - [00]: IntelGFX, len: 4
0:714  0:000   - [01]: IntelGFX, len: 22
0:714  0:000  USB FixOwnership: yes
0:714  0:000  Dropping 3 tables:
0:714  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
0:714  0:000           - set table: 54445353,       6D50757043 to drop: no
0:714  0:000   - [01]: Drop table  signature="DMAR" (52414D44)
0:714  0:000           - set table: 52414D44,                0 to drop: no
0:714  0:000   - [02]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
0:714  0:000           - set table: 54445353,   74734930757043 to drop: no
0:714  0:000   - final DSDT Fix mask=90020000
0:714  0:000  ChassisType: 0x13
0:714  0:000  === [ ScanVolumes ] =======================================
0:714  0:000  Found 11 volumes with blockIO
0:714  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)
0:716  0:001          USB volume
0:716  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(1,GPT,058DF4C7-BA17-4F71-B2C5-73775B373960,0x28,0x64000)
0:718  0:001          Result of bootcode detection: bootable unknown (legacy)
0:718  0:000          USB volume
0:718  0:000          This is SelfVolume !!
0:718  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(2,GPT,C5CFA44C-BD02-414A-93EC-330B56D1FABA,0x64028,0x6B37B0)
0:720  0:001          USB volume
0:720  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)
0:720  0:000          Result of bootcode detection: bootable unknown (legacy)
0:720  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)
0:721  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,MBR,0x00DEB52F,0x800,0xFA000)
0:721  0:000          Result of bootcode detection: bootable Windows (vista,win)
0:721  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,MBR,0x00DEB52F,0xFA800,0x1DBF8000)
0:722  0:000          Result of bootcode detection: bootable Windows (vista,win)
0:722  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,591045C5-7C4F-4227-81E8-F937132B2B17,0x28,0x64000)
0:723  0:000          Result of bootcode detection: bootable unknown (legacy)
0:724  0:001  - [08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)
0:737  0:012  - [09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(3,GPT,8A957E79-F259-4661-A22B-23A9F0135C77,0xB9B1C78,0x135F20)
0:745  0:008  - [10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(4,GPT,748EC798-2B78-43DD-A1DF-532CE237511C,0xBAE7B98,0x3ED306F0)
0:746  0:000  === [ InitTheme ] =========================================
0:746  0:000   using embedded theme
0:746  0:000  Using embedded font: Success
0:746  0:000  Choosing theme <null string>
0:747  0:000  after NVRAM boot-args=-v
0:747  0:000  === [ Dump SMC keys from NVRAM ] ==========================
0:747  0:000  found AppleSMC protocol
0:763  0:016     fakesmc-key-#KEY-ui32:00 00 00 11
0:764  0:001     fakesmc-key-$Adr-ui32:00 00 03 00
0:766  0:001     fakesmc-key-$Num-ui8:01
0:767  0:001     fakesmc-key-RMde-char:41
0:769  0:002     fakesmc-key-RPlt-ch8*:6A 39 35 00 00 00 00 00
0:771  0:001     fakesmc-key-RBr -ch8*:6A 39 35 6A 39 35 61 00
0:772  0:001     fakesmc-key-EPCI-ui32:08 C0 F0 00
0:773  0:001     fakesmc-key-REV -ch8*:02 33 0F 00 00 10
0:774  0:001     fakesmc-key-BEMB-flag:00
0:775  0:001     fakesmc-key-BATP-flag:00
0:776  0:001     fakesmc-key-BNum-ui8:00
0:777  0:001     fakesmc-key-MSTc-ui8:00
0:778  0:001     fakesmc-key-MSAc-ui16:00 00
0:779  0:001     fakesmc-key-MSLD-ui8:00
0:781  0:001     fakesmc-key-MSWr-ui8:00
0:782  0:001     fakesmc-key-MSFW-ui8:01 00
0:783  0:001     fakesmc-key-MSPS-ui16:00 03
0:802  0:018  === [ ScanLoader ] ========================================
0:802  0:000  - [01]: 'EFI'
0:802  0:000  - [02]: 'Clover'
0:808  0:005  - [07]: 'EFI'
0:826  0:017  - [08]: 'Sierra'
0:867  0:041          AddLoaderEntry for Volume Name=Sierra
0:884  0:017      hibernated: set as never
0:884  0:000  Icon 17 decoded, pointer B535DDD8
0:885  0:000  - [09]: 'Recovery HD'
0:901  0:016          AddLoaderEntry for Volume Name=Recovery HD
0:905  0:003  Icon 20 decoded, pointer B4F55F18
0:905  0:000  - [10]: 'DataSierra'
0:907  0:002  Scanning legacy ...
0:907  0:000   0: 'Whole Disc Boot' (legacy) not legacy
0:907  0:000   1: 'EFI' (legacy) not legacy
0:907  0:000   2: 'Clover' (legacy) not legacy
0:907  0:000   3: 'Whole Disc Boot' (legacy) not legacy
0:907  0:000   4: 'Whole Disc Boot' (legacy) not legacy
0:907  0:000   5: 'Legacy HD1' (vista,win) add legacy
0:908  0:000  Icon 18 decoded, pointer B4F1FE58
0:908  0:000   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
0:908  0:000   6: 'Legacy HD2' (vista,win) add legacy
0:908  0:000   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
0:908  0:000   7: 'EFI' (legacy) not legacy
0:908  0:000   8: 'Sierra' (legacy) not legacy
0:908  0:000   9: 'Recovery HD' (legacy) not legacy
0:908  0:000  10: 'DataSierra' (legacy) not legacy
0:908  0:000  === [ AddCustomTool ] =====================================
0:908  0:000  Icon 8 decoded, pointer B4F3FED8
0:908  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
0:908  0:000  Checking EFI partition Volume 1 for Clover
0:908  0:000   Found Clover
0:908  0:000  Icon 2 decoded, pointer B4F0BE98
0:908  0:000  Icon 1 decoded, pointer B4F17D18
0:908  0:000  Icon 0 decoded, pointer B4F17A98
0:908  0:000  Icon 5 decoded, pointer B4F17C98
0:908  0:000  Icon 6 decoded, pointer B4F0BB58
0:908  0:000  === [ GetEfiBootDeviceFromNvram ] =========================
0:909  0:000   - efi-boot-device-data: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)
0:909  0:000    - Volume: 'PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)'
0:909  0:000    - LoaderPath: '<null string>'
0:909  0:000    - Guid = CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF
0:909  0:000  === [ FindStartupDiskVolume ] =============================
0:909  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)
0:909  0:000     - searching for that partition
0:909  0:000      - found entry 0. 'Boot macOS from Sierra', Volume 'Sierra'
0:909  0:000  Boot redirected to Entry 0. 'Boot macOS from Sierra'
0:909  0:000  DefaultIndex=0 and MainMenu.EntryCount=10
0:909  0:000  Icon 21 decoded, pointer B4F17B18
0:984  0:075  SelectionImages[2] == NULL
0:985  0:000  Icon 22 decoded, pointer B4F0B9D8
0:985  0:000  SelectionImages[0] == NULL
0:985  0:000  Icon 23 decoded, pointer B4F17898
0:994  0:009  GUI ready
7:714  6:719  EDITED: -v cpus=1
9:096  1:382  ReinitSelfLib after theme change
9:096  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(1,GPT,058DF4C7-BA17-4F71-B2C5-73775B373960,0x28,0x64000)
9:096  0:000  === [ ScanVolumes ] =======================================
9:096  0:000  Found 11 volumes with blockIO
9:096  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)
9:098  0:001          USB volume
9:098  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(1,GPT,058DF4C7-BA17-4F71-B2C5-73775B373960,0x28,0x64000)
9:100  0:001          Result of bootcode detection: bootable unknown (legacy)
9:100  0:000          USB volume
9:100  0:000          This is SelfVolume !!
9:100  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x14,0x0)\USB(0x4,0x0)\HD(2,GPT,C5CFA44C-BD02-414A-93EC-330B56D1FABA,0x64028,0x6B37B0)
9:101  0:001          USB volume
9:101  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)
9:102  0:000          Result of bootcode detection: bootable unknown (legacy)
9:102  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)
9:116  0:013  - [05]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(1,MBR,0x00DEB52F,0x800,0xFA000)
9:116  0:000          Result of bootcode detection: bootable Windows (vista,win)
9:116  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x0,0xFFFF,0x0)\HD(2,MBR,0x00DEB52F,0xFA800,0x1DBF8000)
9:117  0:000          Result of bootcode detection: bootable Windows (vista,win)
9:117  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(1,GPT,591045C5-7C4F-4227-81E8-F937132B2B17,0x28,0x64000)
9:117  0:000          Result of bootcode detection: bootable unknown (legacy)
9:122  0:004  - [08]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)
9:127  0:005  - [09]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(3,GPT,8A957E79-F259-4661-A22B-23A9F0135C77,0xB9B1C78,0x135F20)
9:136  0:008  - [10]: Volume: PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(4,GPT,748EC798-2B78-43DD-A1DF-532CE237511C,0xBAE7B98,0x3ED306F0)
9:141  0:005  Choosing theme <null string>
9:141  0:000  after NVRAM boot-args=-v cpus=1
9:141  0:000  === [ ScanLoader ] ========================================
9:141  0:000  - [01]: 'EFI'
9:142  0:000  - [02]: 'Clover'
9:142  0:000  - [07]: 'EFI'
9:164  0:021  - [08]: 'Sierra'
9:164  0:000          AddLoaderEntry for Volume Name=Sierra
9:164  0:000      hibernated: set as never
9:164  0:000  - [09]: 'Recovery HD'
9:165  0:000          AddLoaderEntry for Volume Name=Recovery HD
9:165  0:000  - [10]: 'DataSierra'
9:165  0:000  Scanning legacy ...
9:165  0:000   0: 'Whole Disc Boot' (legacy) not legacy
9:165  0:000   1: 'EFI' (legacy) not legacy
9:165  0:000   2: 'Clover' (legacy) not legacy
9:165  0:000   3: 'Whole Disc Boot' (legacy) not legacy
9:165  0:000   4: 'Whole Disc Boot' (legacy) not legacy
9:165  0:000   5: 'Legacy HD1' (vista,win) add legacy
9:165  0:000   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
9:165  0:000   6: 'Legacy HD2' (vista,win) add legacy
9:165  0:000   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
9:165  0:000   7: 'EFI' (legacy) not legacy
9:165  0:000   8: 'Sierra' (legacy) not legacy
9:165  0:000   9: 'Recovery HD' (legacy) not legacy
9:165  0:000  10: 'DataSierra' (legacy) not legacy
9:165  0:000  === [ AddCustomTool ] =====================================
9:165  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
9:165  0:000  Checking EFI partition Volume 1 for Clover
9:165  0:000   Found Clover
9:166  0:000  === [ GetEfiBootDeviceFromNvram ] =========================
9:166  0:000  === [ FindStartupDiskVolume ] =============================
9:166  0:000    - Volume: partition = PciRoot(0x0)\Pci(0x17,0x0)\Sata(0x5,0xFFFF,0x0)\HD(2,GPT,CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF,0x64028,0xB94DC50)
9:166  0:000     - searching for that partition
9:166  0:000      - found entry 0. 'Boot macOS from Sierra', Volume 'Sierra'
9:166  0:000  Boot redirected to Entry 0. 'Boot macOS from Sierra'
9:166  0:000  DefaultIndex=0 and MainMenu.EntryCount=10
9:239  0:073  selections ready
10:512  1:272  Boot option Boot0000 not found
10:512  0:000  === [ StartLoader ] =======================================
10:512  0:000  Finally: Bus=89858kHz CPU=3504MHz
10:512  0:000  Loading boot.efi  status=Success
10:673  0:161  GetOSVersion: 10.12.2 (16C67)
10:673  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
10:673  0:000  Filtering KextPatches:
10:673  0:000   - [00]: AMD9500Controller (PP_DisablePowerContainment=1) :: PlistPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> allowed
10:673  0:000   - [01]: AMDRadeonX4100 (Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016) :: BinPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> allowed
10:673  0:000   - [02]: AMDRadeonX4100 (Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016) :: BinPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> allowed
10:673  0:000   - [03]: AMDRadeonX4100 (Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016) :: BinPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> allowed
10:673  0:000   - [04]: AppleAHCIPort (External icons patch) :: BinPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> disabled by user
10:673  0:000   - [05]: AppleUSBXHCIPCI (change 15 port limit to 26 in XHCI kext (100-series)) :: BinPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> allowed
10:673  0:000   - [06]: IOAHCIBlockStorage (TRIM function for non-Apple SSDs) :: BinPatch :: [OS: 10.12.2 | MatchOS: All | MatchBuild: All] ==> disabled by user
10:673  0:000  === [ PatchSmbios ] =======================================
10:673  0:000  insert table 9 for dev 0:0
10:673  0:000  insert table 9 for dev 0:1
10:673  0:000  insert table 9 for dev 1F:6
10:674  0:000  Trusting SMBIOS...
10:674  0:000  Channels: 2
10:674  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
10:674  0:000  SMBIOS Type 17 Index = 0 => 0 0:
10:674  0:000  BANK0 DIMM0 EMPTY
10:674  0:000  SMBIOS Type 17 Index = 1 => 2 2:
10:674  0:000  BANK1 DIMM0 EMPTY
10:674  0:000   partNum=BLS8G4D240FSB.16FBR2
10:674  0:000  SMBIOS Type 17 Index = 2 => 1 1:
10:674  0:000  BANK0 DIMM1 2400MHz 8192MB
10:674  0:000   partNum=BLS8G4D240FSB.16FBR2
10:674  0:000  SMBIOS Type 17 Index = 3 => 3 3:
10:674  0:000  BANK1 DIMM1 2400MHz 8192MB
10:674  0:000  mTotalSystemMemory = 16384
10:674  0:000  NumberOfMemoryDevices = 4
10:674  0:000  Type20[0]->End = 0x7FFFFF, Type17[2] = 0x2000
10:674  0:000  Type20[1]->End = 0xFFFFFF, Type17[3] = 0x6000
10:674  0:000  Table 131 is present, CPUType=35
10:674  0:000  Change to: 402
10:674  0:000  === [ PatchACPI ] =========================================
10:674  0:000  RSDT 0xBA00D028
10:674  0:000  FADT from RSDT: 0xBA00D168
10:674  0:000  XSDT 0xBA00D0A0
10:674  0:000  FADT from XSDT: 0xBA033698
10:674  0:000  Xsdt reallocation done
10:674  0:000  old FADT length=114
10:674  0:000  Found OperationRegion(GNVS, SystemMemory, BA37E000, ...)
10:674  0:000  Found OperationRegion(CPSB, SystemMemory, B9B3CF98, ...)
10:674  0:000  Found OperationRegion(PNVA, SystemMemory, BA3B1018, ...)
10:674  0:000  Found OperationRegion(THBA, SystemMemory, FE200000, ...)
10:675  0:000  Found OperationRegion(ITSS, SystemMemory, FDC43100, ...)
10:675  0:000  Found OperationRegion(ABNV, SystemMemory, FFFF0000, ...)
10:675  0:000  Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
10:675  0:000  Found OperationRegion(CRBD, SystemMemory, FED40000, ...)
10:675  0:000  Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)
10:675  0:000  Found OperationRegion(ATNV, SystemMemory, FFFF0000, ...)
10:675  0:000  DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml
10:696  0:021  Apply DsdtFixMask=0x90020000 new way
10:696  0:000     drop _DSM mask=0x0000
10:696  0:000  === [ FixBiosDsdt ] =======================================
10:696  0:000  VideoCard devID=0x67DF1002
10:696  0:000  DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
10:696  0:000  VideoCard devID=0x59128086
10:696  0:000  DisplayADR1[1] = 0x20000, DisplayADR2[1] = 0xFFFE
10:696  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
10:696  0:000  USBADR[1] = 0x1C0000 and PCIe = 0x0
10:697  0:000  first CPU found at A660 offset A663
10:697  0:000  score candidate at A65C
10:697  0:000  score inserted in acpi_cpu_score _PR_
10:697  0:000  Found ACPI CPU: CPU0 | CPU1 | CPU2 | CPU3 | CPU4 | CPU5 | CPU6 | CPU7 , within the score: _PR_
10:697  0:000  Found PCIROOTUID = 0
10:697  0:000  Start RTC Fix
10:698  0:000  found RTC Length not match, Maybe will case CMOS reset will patch it.
10:698  0:000    indirect name=PNVB
10:698  0:000  OperationRegion (THBA...) corrected to addr=0xFE200000
10:698  0:000    indirect name=TPMM
10:698  0:000    indirect name=FTPM
10:698  0:000    indirect name=PPIM
10:698  0:000  === [ ACPIDropTables ] ====================================
10:698  0:000  === [ PatchAllSSDT ] ======================================
10:698  0:000  Patch table: SSDT  SaSsdt
10:698  0:000   SSDT len = 0x3154
10:698  0:000  Patch table: SSDT  PegSsdt
10:698  0:000   SSDT len = 0x2544
10:698  0:000  Patch table: SSDT  Ther_Rvp
10:698  0:000   SSDT len = 0xE3B
10:698  0:000  Patch table: SSDT  xh_rvp10
10:698  0:000   SSDT len = 0x8FF
10:698  0:000  Patch table: SSDT  CpuSsdt
10:698  0:000   SSDT len = 0xEDE
10:698  0:000  Patch table: SSDT  sensrhub
10:698  0:000   SSDT len = 0x29F
10:698  0:000  Patch table: SSDT  PtidDevc
10:698  0:000   SSDT len = 0x3002
10:698  0:000  Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
10:698  0:000   Xsdt has tables count=19
10:698  0:000  corrected XSDT length=188
10:698  0:000  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=1
10:698  0:000  === [ RestSetup macOS ] ===================================
10:698  0:000  EdidDiscovered size=128
10:698  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  22  F0
10:698  0:000  010  |  14  28  00  00  00  80  06  13  01  03
10:698  0:000  020  |  80  34  20  78  EE  B5  35  A5  56  4A
10:698  0:000  030  |  9A  25  10  50  54  A5  6B  80  81  40
10:698  0:000  040  |  95  00  A9  00  B3  00  A9  40  81  80
10:698  0:000  050  |  D1  00  01  01  28  3C  80  A0  70  B0
10:698  0:000  060  |  23  40  30  20  36  00  06  44  21  00
10:698  0:000  070  |  00  1A  00  00  00  FD  00  30  55  18
10:698  0:000  080  |  5E  11  00  0A  20  20  20  20  20  20
10:698  0:000  090  |  00  00  00  FC  00  48  50  20  77  32
10:698  0:000  100  |  34  34  38  68  0A  20  20  20  00  00
10:698  0:000  110  |  00  FF  00  43  5A  51  39  30  36  30
10:698  0:000  120  |  31  35  32  0A  20  20  00  EE
10:698  0:000  Framebuffer @0xE0000000  MMIO @0xF0000000 I/O Port @0x0000E000 ROM Addr @0xF7140000
10:698  0:000  PCI region 1 = 0x00000000, region3 = 0x00000000, region5 = 0xF7100000
10:698  0:000  Use region5 as MMIO space
10:698  0:000  BIOS_0_SCRATCH=0xFFFFFFFF, 1=0xFFFFFFFF, 2=0xFFFFFFFF, 3=0xFFFFFFFF, 4=0xFFFFFFFF, 5=0xFFFFFFFF, 6=0xFFFFFFFF
10:698  0:000  RADEON_CRTC2_GEN_CNTL == 0xFFFFFFFF
10:698  0:000   card not posted because GEN_CNTL = -1
10:698  0:000  ATI card non-POSTed,
10:698  0:000  Set VRAM for Ellesmere =4294967295Mb
10:698  0:000  ATI: get_vram_size returned 0xFFF00000
10:698  0:000  ATI Radeon EVERGREEN+ family
10:698  0:000  Framebuffer set to device's default: Baladi
10:698  0:000   N ports defaults to 6
10:698  0:000  (AtiPorts) Nr of ports set to: 6
10:698  0:000  ATI Ellesmere AMD Radeon RX480 -1MB (Baladi) [1002:67DF] (subsys [148C:2372]):: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)
10:698  0:000  Intel Intel Unknown [8086:5912] :: PciRoot(0x0)\Pci(0x2,0x0)
10:698  0:000  custom IntelGFX properties injected, continue
10:698  0:000  Intel card id=5912 unsupported, please report to the project home
10:698  0:000  Intel GFX revision  =0x4
10:698  0:000   RCBA disabled; cannot use it
10:698  0:000   detected codec: 10EC:0892
10:698  0:000  stringlength = 5864
10:698  0:000  CurrentMode: Width=1920 Height=1200
10:698  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: B5BA3F98
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: B5BA3F98
10:712  0:013  Use origin smbios table type 1 guid.
10:723  0:010    Force kext: System\Library\Extensions\AMDRadeonX4100.kext
12:150  1:427    Force kext: System\Library\Extensions\AMD9500Controller.kext
13:556  1:405  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
13:556  0:000    Extra kext: EFI\CLOVER\kexts\Other\FakePCIID.kext
13:564  0:007    Extra kext: EFI\CLOVER\kexts\Other\FakePCIID_Intel_HD_Graphics.kext
13:570  0:005    Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
13:581  0:011    Extra kext: EFI\CLOVER\kexts\Other\IntelMausiEthernet.kext
13:592  0:011    Extra kext: EFI\CLOVER\kexts\Other\SATA-200-series-unsupported.kext
13:593  0:000    Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext
13:685  0:091    Extra kext: EFI\CLOVER\kexts\Other\VoodooHDA.kext
13:717  0:032  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
13:723  0:006  SetStartupDiskVolume:
13:723  0:000    * Volume: 'Sierra'
13:723  0:000    * LoaderPath: '<null string>'
13:723  0:000    * DevPath: Sierra
13:723  0:000    * GUID = CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF
13:724  0:000    * efi-boot-device: <array><dict><key>IOMatch</key><dict><key>IOProviderClass</key><string>IOMedia</string><key>IOPropertyMatch</key><dict><key>UUID</key><string>CA0F3AF3-6DAB-4C4C-946F-7BB43DF979DF</string></dict></dict></dict></array>
13:724  0:000  Custom boot screen not used because entry has unset use graphics

The complete clover folder is from MaLd0n. I'm at my wit's end right now. I don't know enough about ACPI stuff but his is where the problem lies - from what I can see.

Thanks to your DSDT, the boot log looks definitely nicer than before. So that's something

I'd be happy about any pointers. Of course I can provide any information you might need. Thanks again!

MaLd0n · February 12, 2017

send me ioreg, extract with ioreg 3

try it

config.plist.zip

VirusX · February 13, 2017

Thank you MaLd0n again. The new config.plist didn't help my problem though. Same error. I booted now with cpus=1 and created IOReg once with version 2 and once with version 3 of IOReg. I've read that version 3 sometimes has problems when you want to open a copy. That's why I attached both.

IOReg2_VirusX.zip

IOReg3_VirusX.zip

MaLd0n · February 13, 2017

i think u need a VoodooTSCSync.kext. U need check IOCPUNumber in Info.plist for ur i5

try it

VoodooTSCSync.kext.zip

ur bios is a last version?

VirusX · February 14, 2017

Hi MaLd0n, I'm back... ~~with bad news. VoodooTSCSync didn't help. I checked the info.plist: it was already set to 3 which matches my 4 cores without HT.~~

~~https://ark.intel.com/products/97150/Intel-Core-i5-7600-Processor-6M-Cache-up-to-4_10-GHz~~

~~I also tried 7 - just to be sure since IOReg showed CPU0..CPU7. (Well, only CPU0..CPU3 had "AppleACPICPU" but anyways).~~

~~My BIOS is F3 which is the newest since my mainboard just got released.~~

~~I googled the cpus=1 problems and it seems that either it got solved by that VoodooTSCSync.kext (it seems that particularly Haswell users were affected) or people with laptops.~~

~~I'll try both versions of your edited config.plist now...~~

Any other recommendations are welcome. Thanks again for your continuous support!

EDIT: IT WORKS!!!

With VoodooTSCSync.kext (IOCPUNumber = 3) and your config.plist with Kernel CPU, KernelPm and Asus AICPU all true worked. I'll attach those files now in case people need run into the same problem.

I also attach a new IOReg for completeness' sake in case you want to compare.

Now onto other things to fix. Like sleep... let's try... so far my computer went to sleep but crashed& restarted after waking up...

CLOVER.zip

IOReg3_VirusX_again.zip

MaLd0n · February 14, 2017

post one photo with error, pls

try it

config.plist.zip

and

DSDT.VirusX 02.zip

remove VBoxHfs-64.efi, u dont need

if u use radeon gpu, remove FakePCIID.kext and FakePCIID_Intel_HD_Graphics.kext, dont work in hackintosh

what ur audio codec?

if u use voodoohda, use applehdadisabler too

AppleHDADisabler.kext.zip

VirusX · February 15, 2017

I threw out VBoxHfs as you suggested. Everything still works

I use my RX480 but since with the current patches, I can't display clover with that card and I have to boot blindly. That's why I still need to patch my iGPU and keep FakePCIID and FakePCIID_Intel_HD_Graphics.

For audio I use VoodooHDA 2.8.9 which enables the green rear out which I need. I also have a mic from my webcam. I put AppleHDADisabler in clover's kext folder even though VoodooHDA worked for me before.

What doesn't work right now is HDMI audio (neither Intel nor AMD) - but those are work in progress as far as I've read in other posts. This would definitely be nice to have. I'll follow up with that in other posts I guess. Maybe try toleda's patches and report back to him about HDMI audio... Maybe this weekend...

Sleep doesn't seem to work but I haven't done extensive research yet. Not sure if I'll be patient enough to figure that out.

You requested a picture of an error. I'm not sure which error you were referring to - sorry.

What else did you change with the DSDT? I'm currently using that one. Did you change something regarding sleep? Or sound?

Thanks again for your help

edit: I quick test with sleep worked. I put the computer to sleep and successfully woke it up again. HDMI connected to RX480. Wake to network and wake to bluetooth both deactivated. Have to test more before I celebrate

MaLd0n · February 15, 2017

the full patches

Fix errors and warnings

Hpet

Darwin

Sata

Dtgp

Slpb

Als0

Lpc

XHC

Hdas to Hdef

Hdef

Irqs

Smbus

Bus1

Shutdown

Mchc

Hdau

Lan

Pnlf

Ec

Plugin Type

Names in PCI Devices

i dont rename ur heci to imei

the last patch is complete shutdown with correct pmbase

voodoohda work, but the best is voodoohda with applehdadisabler to avoid problems.

What ur audio codec?

for hdmi audio i use it, wotk great

HDMIAudio.kext.zip

VirusX · February 19, 2017

Thank you once again.

My audio codec is ALC892. There are already other threads regarding that codec such as this one. For right now, Voodoo HDA works - I don't have much time to test all the different ways. I will get back to that at some other point and post in the according threads.

Your HDMIAudio.kext did not help unfortunately. There are 6 "Digital-out (HDMI)" showing up about my line-out, headphones and SPDIF and then another one "Digital-out (HDMI)" after that. Something gets detected but not properly. Again, since this is going too far from the original problem of this post, I will eventually post in other threads.

MaLd0n · February 19, 2017

Thank you once again.

My audio codec is ALC892. There are already other threads regarding that codec such as this one. For right now, Voodoo HDA works - I don't have much time to test all the different ways. I will get back to that at some other point and post in the according threads.

Your HDMIAudio.kext did not help unfortunately. There are 6 "Digital-out (HDMI)" showing up about my line-out, headphones and SPDIF and then another one "Digital-out (HDMI)" after that. Something gets detected but not properly. Again, since this is going too far from the original problem of this post, I will eventually post in other threads.

for audio use it

DSDT.VirusX 03.zip

and it

AppleALC.kext.zip

and remove voodoohda and applehdadisabler

https://github.com/vit9696/AppleALC

native applehda amazin work.

VirusX · February 26, 2017

Hi MaLd0n, I finally got around installing your new DSDT and the AppleALC.kext in my EFI clover folder. I removed HDAdisabler and VoodooHDA of course. I don't have any sound now, though.

I have several options for sound in system preferences (see attached screenshot) but no matter what I choose and no matter which outlet I use, there's no sound. Furthermore, I can't play any files with sound (youtube, soundcloud, etc) they just load and buffer but don't start playing.

I attached my IOReg again in case that helps. Do you have any other ideas how to fix that? Otherwise, I will just monitor some threads about RX480 HDMI audio or contact one of those audio gurus in the other threads

kextstat|grep -y applehda
  121    1 0xffffff7f83b92000 0x1b000    0x1b000    com.apple.driver.AppleHDAController (278.56) CFB0D0AE-F09A-3660-8F95-7A02FD5FBF07 <120 71 68 12 7 6 5 4 3 1>
  131    0 0xffffff7f83d71000 0xb4000    0xb4000    com.apple.driver.AppleHDA (278.56) A4EB06C9-A40A-39EF-9C4A-D7F23DB9A2F9 <130 121 120 99 71 68 6 5 4 3 1>

edit: do I need to change something in my config.plist when I use AppleALC and your DSDT patch?

edit2: it says here https://github.com/vit9696/AppleALC/wiki/Installation-and-usagethat I need "Lilu" for it to work...

IOReg3_no_sound_VirusX.zip

MaLd0n · February 26, 2017

try with id 7 and new applealc

DSDT.id 7.zip

AppleALC.kext.zip

remove all audio kexts like a voodoohda and applehdadisabler

Use DSDT + AppleAlc

after replace and remove, run it

Olarila.command.zip

https://github.com/vit9696/AppleALC

VirusX · February 26, 2017

sound is back (rear green out)! nice! thanks! This works for now. Regarding HDMI audio, I think I need to wait for either RX480 audio or Intel HD630 HDMI audio...

/Downloads/Olarila.command ; exit;
Password:
kext-dev-mode allowing invalid signature -67013 0xFFFFFFFFFFFEFA3B for kext AppleMobileDevice.kext
KernelCache ID: 198F0F3A379393CC3121DD436AD72933
symlink("/System/Library/PrelinkedKernels/prelinkedkernel", "/System/Library/Caches/com.apple.kext.caches/Startup/kernelcache") failed 17 (File exists) <createPrelinkedKernel 2795>
logout
Saving session...
...copying shared history...
...saving history...truncating history files...
...completed.
Deleting expired sessions...none found.

MaLd0n · March 10, 2017

I think I need to wait for either RX480 audio or Intel HD630 HDMI audio...

ofc

Can boot only with cpus=1 (Kaby Lake)

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
