Hacaira2 Posted January 16, 2017 Share Posted January 16, 2017 Happy new year to all of you! I have successfully installed Sierra on an H87N-Wifi mobo using Clover. Everything was working OTB except for usb (some ports not working or slow), trim support, and a reboot loop when asking to shutdown. I have solved the usb problems (using [url="http://www.insanelymac.com/forum/topic/279450-why-insanelymac-does-not-support-tonymacx86/"]#####[/url]) and enabled trim support on both disks, the only problem remaining concern the reboot loop. To make it clear, it is not a reboot loop during installation problem, it is occurring when trying to shut the system down (via the Finder menu). The computer does not shutdown but restart the system and display an error message ("your computer has been shutdown because of a problem...") and a message asking if I want to report the problem. At first I tried to use Clover option's to solve the problem but no success. Then I did all the possible disk repair on root volume via single user mode, nothing changed. Then I verified all the bios settings, no problem found. I verified all the kext and the EFI partition but it is OK. I have four kext (fakesmc, NullCPUPowerManagement.kext, and two network kext) inside the "10.12" folder. I have noticed that when I connect the second disk (Sata1), the system disk change his name to "hidsk1" (instead of "hdisk0"), might it be related? I have also found that it takes minutes to recognize any audio peripheral connected to a USB port... I'll appreciate any help. Here are my specs : H87N-Wifi(F8) - core i3 Haswell - HD 4600 - 8 GB DDR3 XMP - 120 GB SSD(Sata0) + 240 GB SSD(Sata1) - iMac 14,2 Link to comment Share on other sites More sharing options...
nawcom Posted January 16, 2017 Share Posted January 16, 2017 So you've tried enabling FixShutdown_0004 in Clover? if by hdisk0/1 you're referring to /dev/disk0 and /dev/disk1, that's just the order the OS detects multiple disks on one storage controller. It can differ every time you boot. Disk volumes are identified by UUID so that doesn't cause any issues. Link to comment Share on other sites More sharing options...
MaLd0n Posted January 16, 2017 Share Posted January 16, 2017 many mobos and chipsets have problem with shutdown clover patch, upload ur DSDT and i'll try fix it. Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 17, 2017 Author Share Posted January 17, 2017 Thanks a lot for all yours answers and help proposal. I 'll try the Clover fix and report the result. Here attached are all the files (3) I have found inside the "origin" folder of Clover. Cheers. I have enabled FixShutdown_0004 inside the config.plist of Clover but after several restarts, the problem still the same. DSDT-origin.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted January 17, 2017 Share Posted January 17, 2017 try it i think work DSDT.Hacaira2.zip i apply many others patches 1 Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 17, 2017 Author Share Posted January 17, 2017 So, I have copied the DSDT.aml to the following folders : /EFI/CLOVER/ACPI/Patched and /EFI/CLOVER/OEM/SystemProductName/ACPI/Patched. Still, after several reboots (also cold reboot), I have theses two error messages and usb problems with audio devices. Thanks for the efforts. Is there anything else we could try? It is related to power management, maybe a kext could help? I am surprised to be the only one (or almost) to report this problem because I have got this error every time I installed El Capitan or Sierra. Is it related to my machine? I was thinking that (earlier), so I installed the last "BIOS" version (F9), but it was not working right and I went back to F8. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 17, 2017 Share Posted January 17, 2017 put only in EFI/CLOVER/ACPI/Patched Power management run in terminal curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/master/ssdtPRGen.sh chmod +x ~/ssdtPRGen.sh sudo ~/ssdtPRGen.sh Audio https://github.com/vit9696/AppleALC/releases put kext in 10.12 folder, id 1 in ur DSDT, if u need inject other id, look at HDEF device / 0x001B0000 post ioreg and kextstat here if shutdown not work, try HaltEnabler in clover Acpi sections 1 Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 17, 2017 Author Share Posted January 17, 2017 I have deleted DSDT.aml from the /EFI/CLOVER/OEM/SystemProductName/ACPI/Patched folder. Regarding ssdtPFGen : Compilation complete. 0 Errors, 0 Warnings, 0 Remarks, 0 Optimizations But it could not make the copy to /Extra/ssdt.aml because chameleon is not installed. Should I do something else? I have also enabled HaltEnabler inside config.plist Here is the ACPI section of my config.plist <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Debug</key> <false/> <key>DropOEM_DSM</key> <false/> <key>Fixes</key> <dict> <key>FixShutdown_0004</key> <true/> <key>HaltEnabler</key> <true/> </dict> <key>Name</key> <string>DSDT.aml</string> <key>ReuseFFFF</key> <false/> </dict> <key>SSDT</key> <dict> <key>DropOem</key> <false/> <key>Generate</key> <false/> </dict> </dict> Problems still remain the same. Regarding audio, I only use usb peripherals (Complete audio 6, Vrm-box), I don’t need the onboard audio, do I have to install AppleALC.kext? Cheers Here are Ioreg and kextstat... ioreg.rtf kextstat.rtf Link to comment Share on other sites More sharing options...
MaLd0n Posted January 17, 2017 Share Posted January 17, 2017 the patch shutdown is ok. try other clover version, only mouse and keyboard in usb ports. need some tests. if u dont use onboard audio, dont need AppleAlc Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 17, 2017 Author Share Posted January 17, 2017 I have try other versions of Clover (using installation inside ESP) : r3577, r3726, but it still the same. I have disconnected all peripherals except keyboard and mouse. Could it be related to the format of the ESP? Should I reformat the EFI partition in FAT32? Link to comment Share on other sites More sharing options...

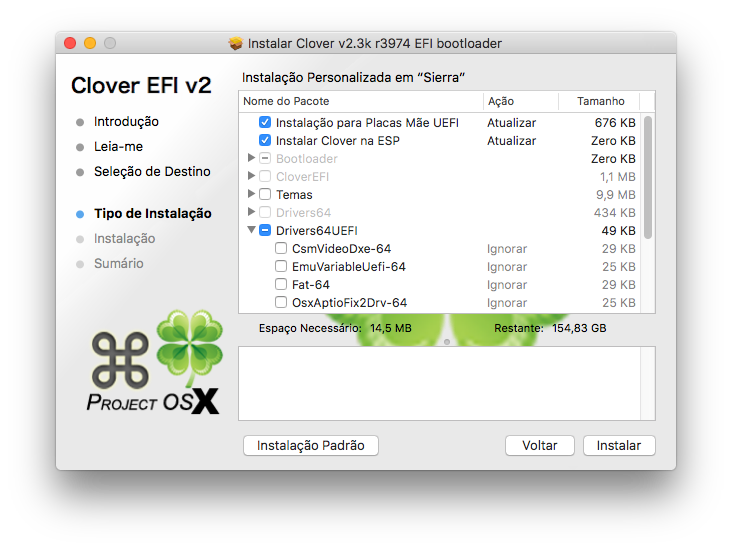

MaLd0n Posted January 17, 2017 Share Posted January 17, 2017 https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.3k_r3974.zip/download i use only EFI Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 17, 2017 Author Share Posted January 17, 2017 Yes, this is what I am doing. I remember that I once solved the problem by making some changes to usb (something to do with IOreg or some patch to add in config.plist). I 'll keep on searching. Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 20, 2017 Author Share Posted January 20, 2017 I have reinstall the bios (F8) and reset all the parameters like it should (AHCI-profile1 - onboard audio off - WOL off) but still, the problem persist. Link to comment Share on other sites More sharing options...

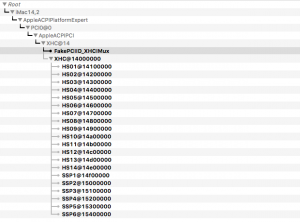

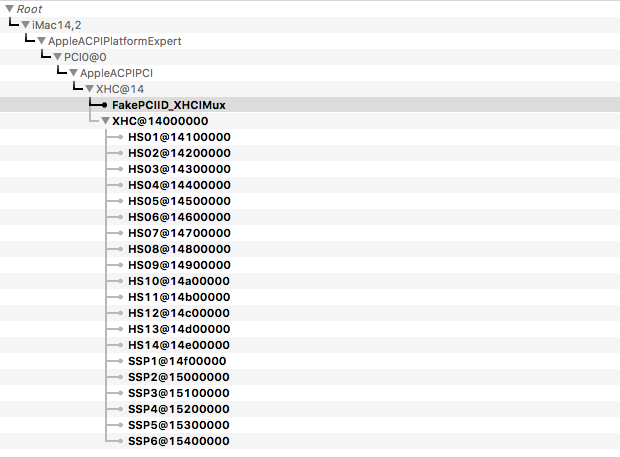

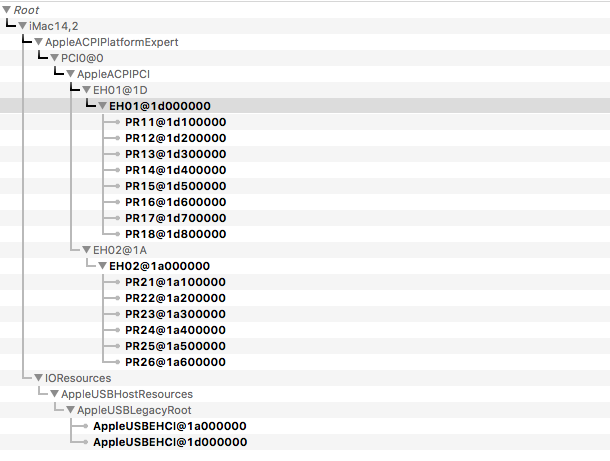

Hacaira2 Posted January 23, 2017 Author Share Posted January 23, 2017 I have attached two pictures with the specs for EHCI and XHCI Everything seems correct for EHCI. For XHCI I guess it also correct. Could it be that the Mac definition is not correct? I am using 14,2 but maybe 11,1 would be better? Is it easy to change? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 23, 2017 Share Posted January 23, 2017 post ur full clover folder here Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 23, 2017 Author Share Posted January 23, 2017 Here it is. CLOVER-hacaira2.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 23, 2017 Share Posted January 23, 2017 Here it is. CLOVER Hacaira2.zip replace full folder u need a ssdt run this command ssdtPRGen.command.zip 1 Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 23, 2017 Author Share Posted January 23, 2017 Thank U very much for your help. I have replaced the complete folder with the one you provided but it crashed on startup (osxaptiofixdrv error). I have realized that there are two files called like that in the driver64UEFI folder (osxaptiofixdrv.efi and osxaptiofix2drv.efi). I have deleted osxaptiofixdrv.efi and the machine finally boots. I ran the ssdtPRGen script and placed the resulting ssdt.aml inside the patched folder (EFI/Clover/ACPI/). Still the problem persist (and it is now also slow during shutdown). 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 23, 2017 Share Posted January 23, 2017 remove halt enabler in acpi section 1 Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 23, 2017 Author Share Posted January 23, 2017 Halt enabler changed to "false"... It works! At least for the shutdown-reboot problem. I have successfully shutdown the machine and after restart, the error messages are gone. It still takes some times (30 secondes) to shutdown and almost the same time to recognize audio peripherals but I can live with that. I am very happy that theses annoying messages at startup are gone. Thank U 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 23, 2017 Share Posted January 23, 2017 strange delay u try a fresh install? Link to comment Share on other sites More sharing options...

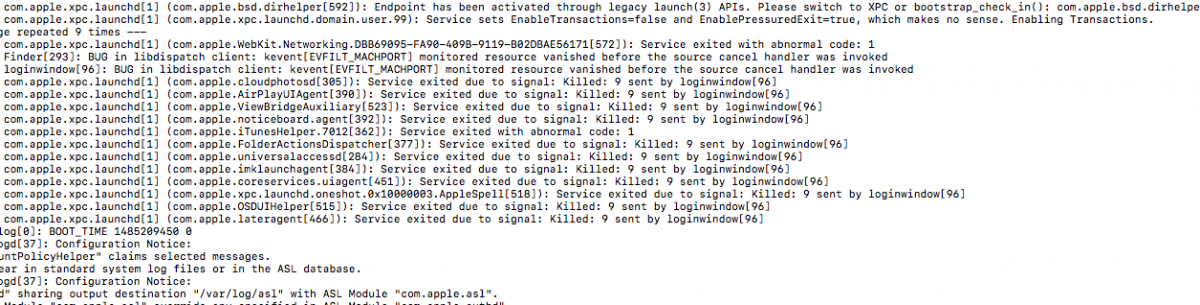

Hacaira2 Posted January 23, 2017 Author Share Posted January 23, 2017 I made some copy tests between a usb3 key (in the front USB ports) and the ssd and the results are around 200MB/s (which is very good). USB keys, bluetooth dongle, usb disks are quickly recognized, but it still slow for usb audio devices. Maybe this is also the reason why the shutdown is so slow, it is waiting that the audio device get disconnected? I have joined a sample of the system log files (during shutdown) , I have not found anything about audio but a bug inside the Finder (line 5). If you prefer I can mark the present topic as solved and open a new one for the audio problem? I 'll try a fresh install. Thank you 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 23, 2017 Share Posted January 23, 2017 yes, try a fresh install and use files. Link to comment Share on other sites More sharing options...
Hacaira2 Posted January 24, 2017 Author Share Posted January 24, 2017 Reinstallation completed. What I did : disconnect all usb except keyboard - Sierra usb install (UEFI) - Clover installation (last version) - copy to macHD of the CLOVER folder you gave me (with dsdt and ssdt included) - restart. At this point the machine boot properly except that a shutdown error message appeared (this time it was after login in). I copied NULLCPUPM kext to the 10.12 folder of CLOVER and, after reboot, the message disappeared. It is NOT slow during shutdown anymore and my machine boots faster than ever. :-) Still, the recognition of audio usb device is slow (around 30 secondes), but it is not a big problem. Todo ben. Thank you very much. Link to comment Share on other sites More sharing options...
MaLd0n Posted January 24, 2017 Share Posted January 24, 2017 the shutdown message is not a problem, dont use null, use ssdt pike script. post photo with shutdown error Link to comment Share on other sites More sharing options...
