Montelli Posted November 24, 2016 Share Posted November 24, 2016 Greetings, I finally installed sierra on my ultrabook Asus (K56CB Family) S56CB-XX173H , but I have some problems to be corrected:-the display preferences don't open (anyway the hdmi it work) -brightness controls not working-battery status not workingfor the moment theseHow to fix them?Thank you so much Asus (K56CB Family) S56CB-XX173H + (Clover) / i7-3537U / Ivy Bridge (Chipset) / Intel HM76 (Southbridge) / HD4000 1366x768 / NVIDIA GT740M Link to comment Share on other sites More sharing options...
SavageAUS Posted November 24, 2016 Share Posted November 24, 2016 Display pref pane can be fixed by using a custom EDID. Brightness controls require DSDT edit + kext. Battery status requires DSDT edit + kext Link to comment Share on other sites More sharing options...
SavageAUS Posted November 25, 2016 Share Posted November 25, 2016 If you need help post native and/or modified DSDT & SSDT. Press F4 at clover boot screen, it will dump DSDT, SSDT into EFI > EFI > CLOVER > ACPI > original. Compress and attach. Attach config.plist as well. Link to comment Share on other sites More sharing options...
Montelli Posted November 25, 2016 Author Share Posted November 25, 2016 If you need help post native and/or modified DSDT & SSDT. Press F4 at clover boot screen, it will dump DSDT, SSDT into EFI > EFI > CLOVER > ACPI > original. Compress and attach. Attach config.plist as well. I need help, Can you help me? Thank you so much! I attached /EFI/Clover/ACPI/Origin and file config EFI.rar config.rar Link to comment Share on other sites More sharing options...
artur_pt Posted November 25, 2016 Share Posted November 25, 2016 hello try this one .. in clover disable all dsdt fix DSDT.aml.zip and check also this https://bitbucket.org/RehabMan/ good hack 1 Link to comment Share on other sites More sharing options...
Montelli Posted November 25, 2016 Author Share Posted November 25, 2016 hello try this one .. in clover disable all dsdt fix DSDT.aml.zip and check also this https://bitbucket.org/RehabMan/ good hack I put that file in the folder patched, I installed the kext: ACPIBatteryManager and IntelBackLight and now everything works .. but, how do I set the brightness? Now when I plug and unplug the power, the screen lights up more, or less (the display preference can't load) Link to comment Share on other sites More sharing options...
SavageAUS Posted November 26, 2016 Share Posted November 26, 2016 These are the files i already send you im PM. patched.zip For display preference pane you need to modify your EDID. Link to comment Share on other sites More sharing options...
Montelli Posted November 26, 2016 Author Share Posted November 26, 2016 These are the files i already send you im PM. patched.zip For display preference pane you need to modify your EDID. Yes, thank you, this file work 100 % Link to comment Share on other sites More sharing options...
SavageAUS Posted November 26, 2016 Share Posted November 26, 2016 You will still need to disable your nvidia card in bios or via dsdt/ssdt. Have you looked into the EDID? Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
artur_pt Posted November 26, 2016 Share Posted November 26, 2016 hello take a look here http://www.insanelymac.com/forum/topic/314776-macos-sierra-hd4000-display-public-7/?do=findComment&comment=2323782 the issue is the same .. must inject the edid for ur monitor good hack Link to comment Share on other sites More sharing options...
Montelli Posted November 26, 2016 Author Share Posted November 26, 2016 in tonymac osx I read that FixEDID.app is not a solution because it decreases the brightness and graphics Link to comment Share on other sites More sharing options...
SavageAUS Posted November 26, 2016 Share Posted November 26, 2016 I used the other method to fix mine and it works 100% just need to read it thoroughly and follow it to the T. I did not use fixedid.app. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
SavageAUS Posted November 27, 2016 Share Posted November 27, 2016 Here is your config.plist with edited EDID. Let me know if it works. config.plist.zip 1 Link to comment Share on other sites More sharing options...

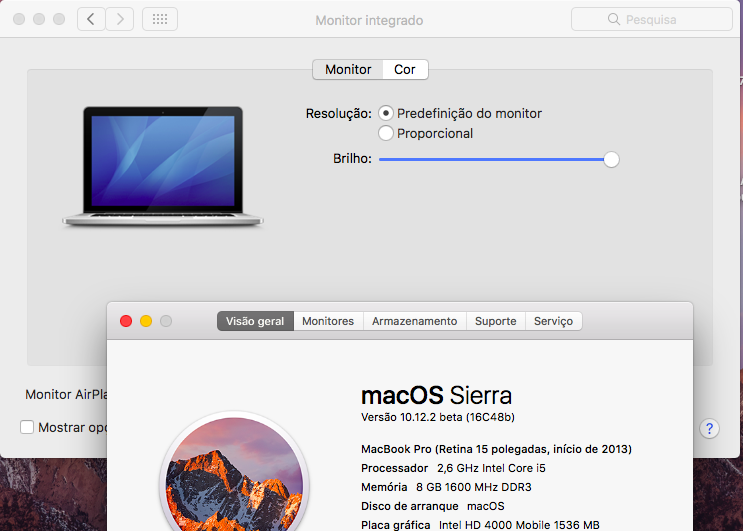

Montelli Posted November 27, 2016 Author Share Posted November 27, 2016 I used that file config for fix the display.. it work Bomboklat!! both you have been of great help, I solved all three problems listed, thank you so much! Link to comment Share on other sites More sharing options...
SavageAUS Posted November 27, 2016 Share Posted November 27, 2016 And as I said in PM VGA is unsupported:-( Have messaged you about audio. Sent from my SM-G930F using Tapatalk Link to comment Share on other sites More sharing options...
