intel HD6000 i5 5250U won't run via HDMI


shaburshunchik
 Share

4 posts in this topic

Recommended Posts

Hello guys!.

I bought mini pc with i5 5250u from aliexpress - it has 2 hdmi outputs,

(hd6000) won't work properly via HDMI - I got video 7mb (when inject 0x16260006 via clover) or black screen when patching 16260004 from SSDT-GPU-HD6000.aml (but when I connected via VNC - it seems work, please see video



https://www.youtube.com/watch?v=hgNSp0mJNNY



please help me to fix hdmi output from i5 5250u hd6000

os: el capitan or sierra - same trouble

dsdt and other stuff in EFI/CLOVER/ACPI/origin

EFI.zip


Link to comment
Share on other sites

  • 5 months later...

Hey,



0x1626, 0x162b, 0x1622, 0, Package()   {   "AAPL,ig-platform-id", Buffer() { 0x06, 0x00, 0x26, 0x16 },   "hda-gfx", Buffer() { "onboard-1" },

},



0) remove all changes you made to any OSX files

0.5) get the latest clover

1) You have a few options here 0x06, 0x00, 0x26, 0x16 try all of them

2) Try and let Clover inject the id on it's own

3) inject the EDID even though it is blank

4) try the other video plugs of the device



it is not related to the eglobal system, this is a normal GFX hackintosh issue

Link to comment
Share on other sites

Hey,



0x1626, 0x162b, 0x1622, 0, Package()   {   "AAPL,ig-platform-id", Buffer() { 0x06, 0x00, 0x26, 0x16 },   "hda-gfx", Buffer() { "onboard-1" },

},



0) remove all changes you made to any OSX files

0.5) get the latest clover

1) You have a few options here 0x06, 0x00, 0x26, 0x16 try all of them

2) Try and let Clover inject the id on it's own

3) inject the EDID even though it is blank

4) try the other video plugs of the device



it is not related to the eglobal system, this is a normal GFX hackintosh issue





Thanks for reply



I tried all of this with no luck, what can I do more ?

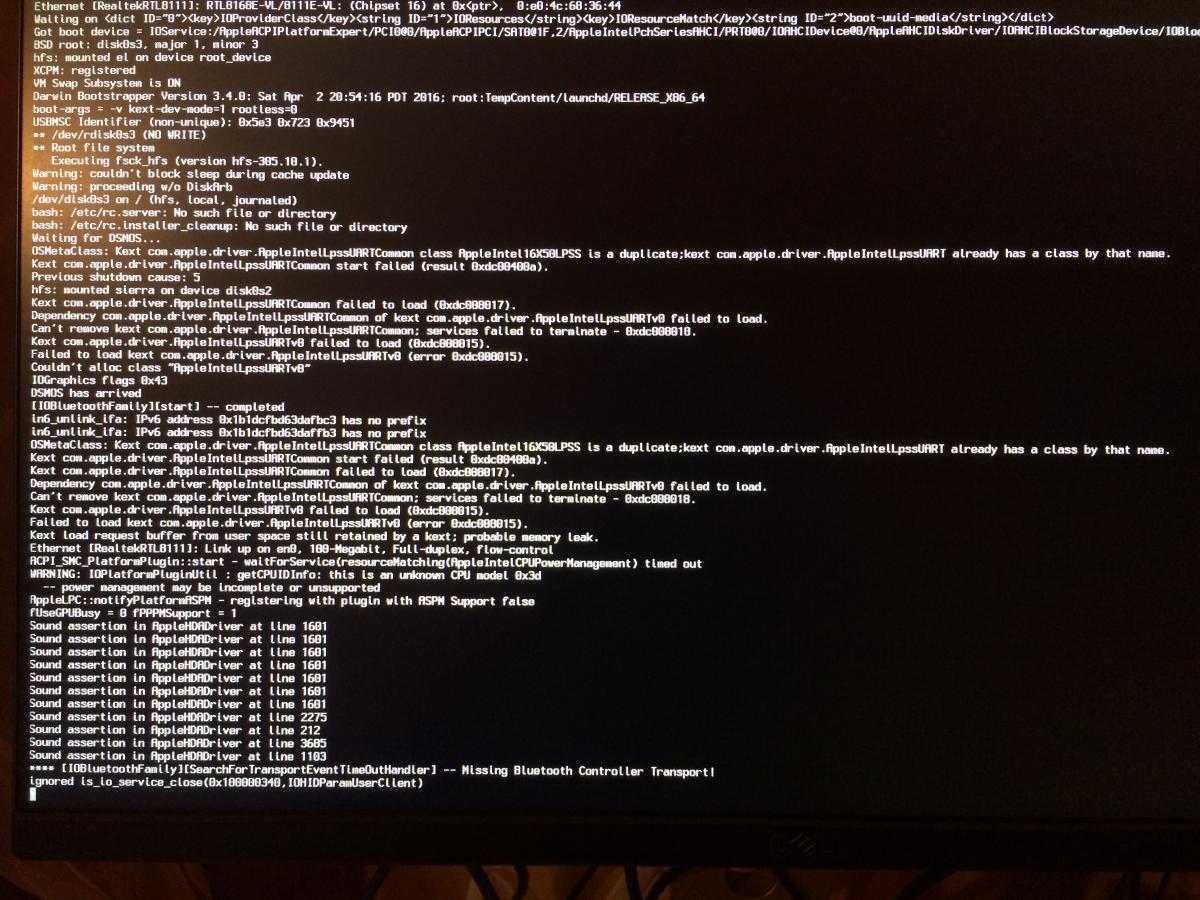

BTW I checked (via VNC) situation when gpu recognize (hd6000 1536mb) but window server not run, and find that acceleration quartz  QE /CI  not working ;(

my last efi with configs

my last efi with configs

EFI 2.zip
