Hi All,



I have a previous hackintosh from 2 yrs ago that's running 10.11.6. Recently due to needing additional resources I purchased new hardware to support running more VMs. I installed the clover software and attempted to install 10.11.6 but it keeps rebooting after i attempt to run clover.

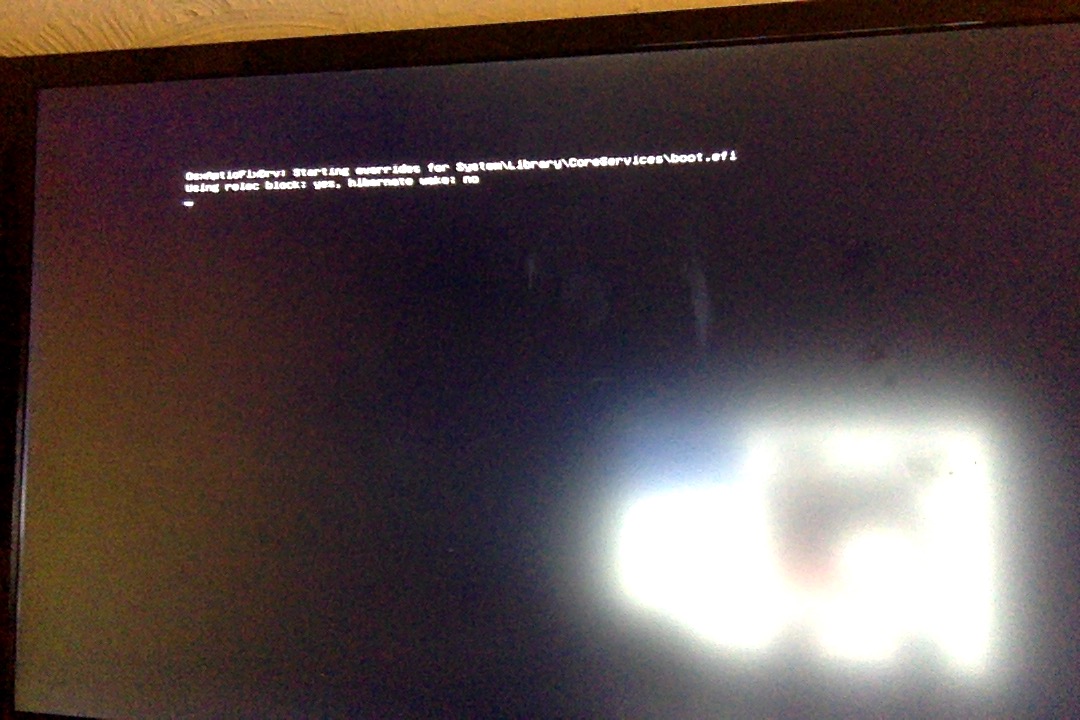

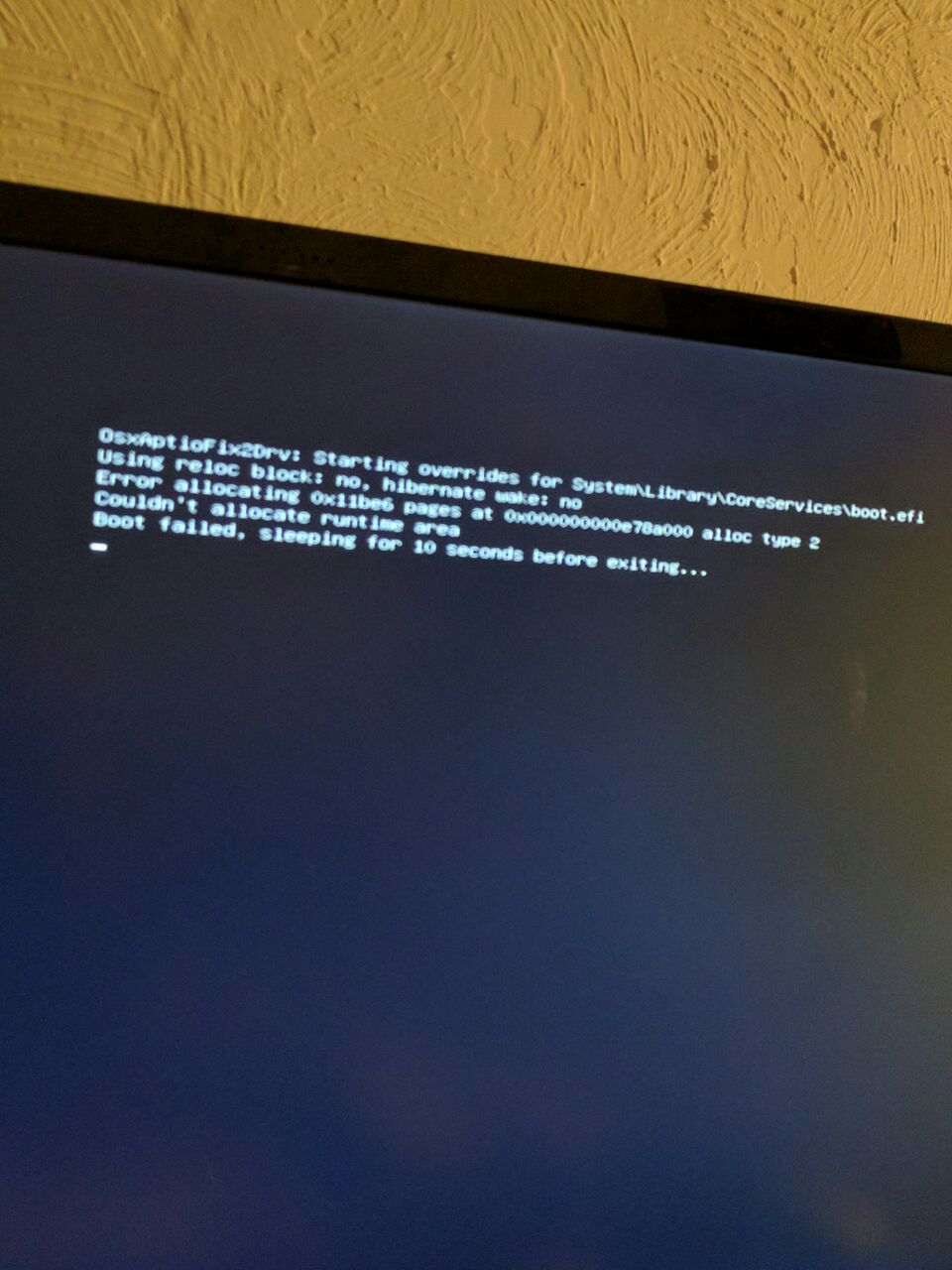

I installed the boot commands and was able to see some errors but i don't understand to well. Not sure if it's something with my bios or the usb installer. I tried my best to follow the guides but i'm still stuck with trying to install the OS. I have the following specs and i will attach pictures.



Asus Deluxe II

Core i7 Intel 6950K Processor

128GB Ram

Corsair Hydro Series H110i GT

Asus 24x DVD-RW Serial-ATA Internal OEM Optical Drive DRW-24B1ST (Black)

Corsair Carbide Series Air 540 ATX Cube Case - Steel Silver

Samsung 950 PRO Series - 512GB PCIe NVMe - M.2 Internal SSD

EVGA GeForce GTX 980 4GB SC GAMING ACX 2.0

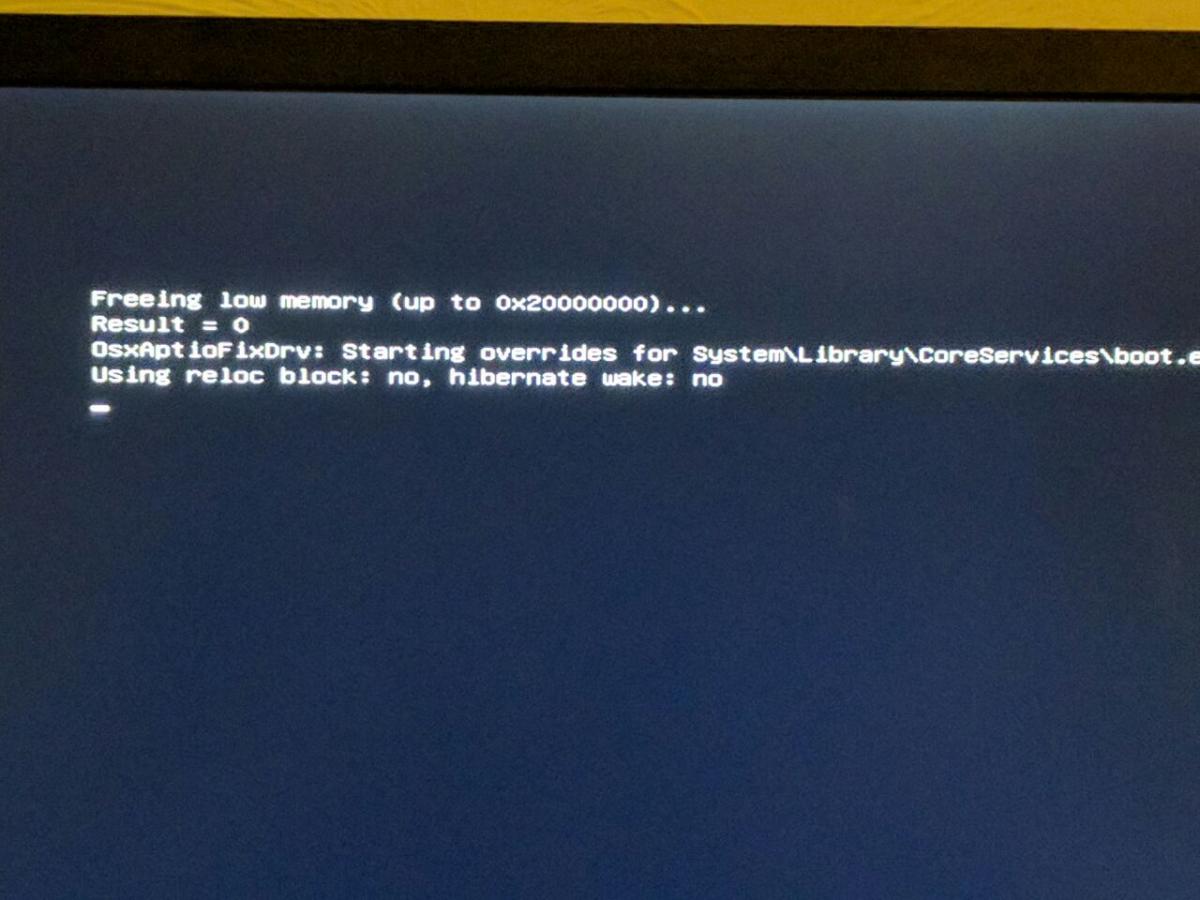

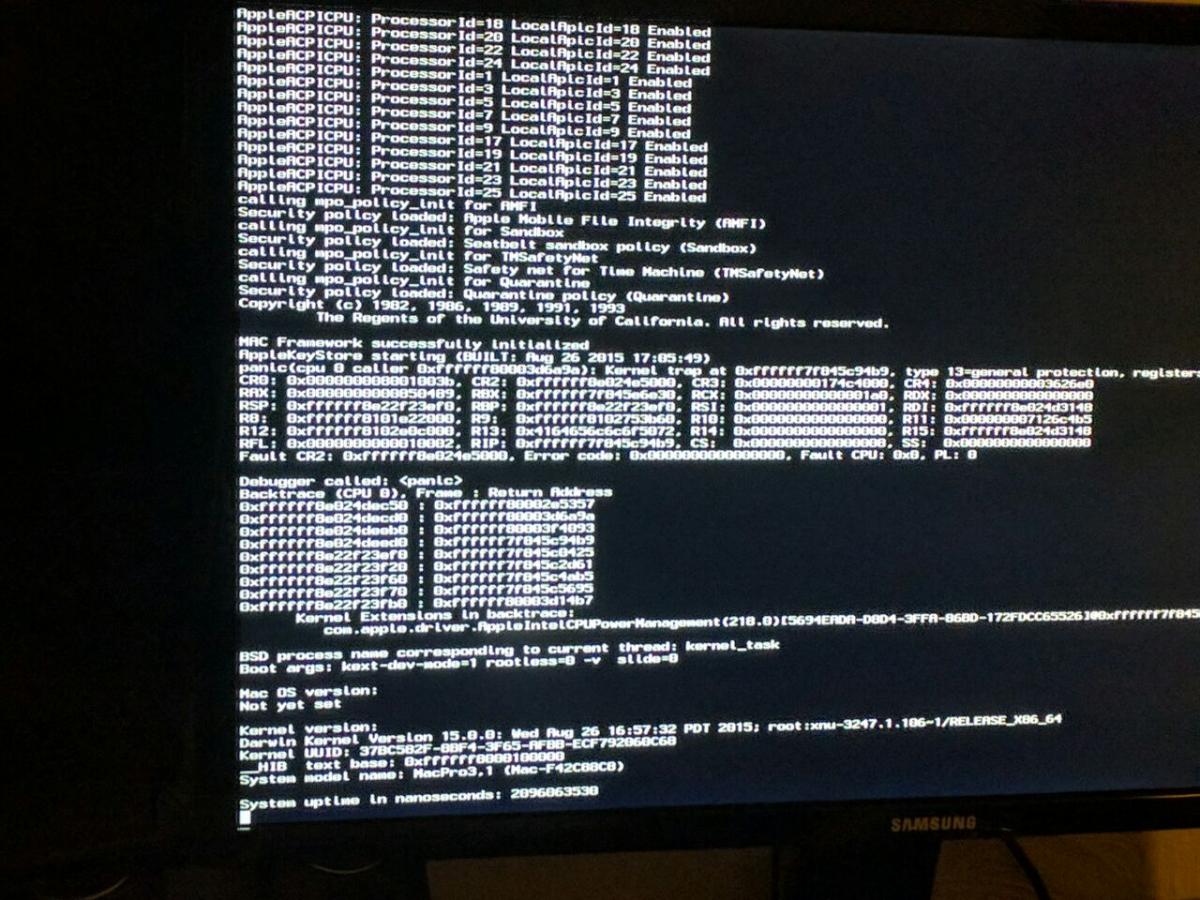

I also tried to configure the kexts and that's when you see all the lines in the second picture but other than that i kept running into the same issue. First with the osxapt i ended up deleting the file and copying the new one to the mount drive. Now i get the low memory problem as well.





Link to comment
Share on other sites

Almost forgot to post my config.plist setting if anyone wants to view or recommend any changes. It's my first time creating a hack using this format so i hope you can bear with me  :)



<?xml version="1.0" encoding="UTF-8"?>

<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>ACPI</key>
<dict>
<key>DSDT</key>
<dict>
<key>Debug</key>
<false/>
<key>Fixes</key>
<dict>
<key>AddDTGP_0001</key>
<true/>
<key>AddMCHC_0008</key>
<false/>
<key>FakeLPC_0020</key>
<false/>
<key>FixAirport_4000</key>
<true/>
<key>FixDarwin_0002</key>
<false/>
<key>FixDisplay_0100</key>
<true/>
<key>FixFirewire_0800</key>
<true/>
<key>FixHDA_8000</key>
<true/>
<key>FixHPET_0010</key>
<true/>
<key>FixIDE_0200</key>
<false/>
<key>FixIPIC_0040</key>
<true/>
<key>FixLAN_2000</key>
<true/>
<key>FixSATA_0400</key>
<false/>
<key>FixSBUS_0080</key>
<false/>
<key>FixShutdown_0004</key>
<true/>
<key>FixUSB_1000</key>
<false/>
<key>NewWay_80000000</key>
<true/>
<key>FIX_RTC_20000</key>
<true/>
<key>FIX_TMR_40000</key>
<true/>
<key>AddIMEI_80000</key>
<true/>
<key>FIX_INTELGFX_100000</key>
<false/>
<key>FIX_WAK_200000</key>
<true/>
<key>DeleteUnused_400000</key>
<true/>
<key>FIX_ADP1_800000</key>
<true/>
<key>AddPNLF_1000000</key>
<true/>
<key>FIX_S3D_2000000</key>
<true/>
<key>FIX_ACST_4000000</key>
<true/>
<key>AddHDMI_8000000</key>
<true/>
<key>FixRegions_10000000</key>
<true/>
</dict>
<key>Name</key>
<string>DSDT.aml</string>
</dict>
<key>DropTables</key>
<array>
<dict>
<key>Signature</key>
<string>DMAR</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>CpuPm</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>Cpu0Ist</string>
</dict>
</array>
<key>HaltEnabler</key>
<true/>
<key>SSDT</key>
<dict>
<key>Generate</key>
<dict>
<key>CStates</key>
<true/>
<key>PStates</key>
<true/>
</dict>
<key>EnableC7</key>
<false/>
<key>EnableC6</key>
<true/>
<key>EnableC4</key>
<false/>
<key>EnableC2</key>
<false/>
</dict>
</dict>
<key>Boot</key>
<dict>
<key>Arguments</key>
<string>rootless=0</string>
<key>CustomLogo</key>
<false/>
<key>DefaultVolume</key>
<string>MacHDD</string>
<key>Fast</key>
<false/>
<key>Legacy</key>
<string>PBR</string>
<key>Log</key>
<false/>
<key>Timeout</key>
<integer>8</integer>
<key>XMPDetection</key>
<string>-1</string>
</dict>
<key>Devices</key>
<dict>
<key>Audio</key>
<dict>
<key>Inject</key>
<string>No</string>
</dict>
<key>FakeID</key>
<dict>
<key>ATI</key>
<string>0x0</string>
<key>IntelGFX</key>
<string>0x0</string>
<key>LAN</key>
<string>0x0</string>
<key>NVidia</key>
<string>0x0</string>
<key>SATA</key>
<string>0x0</string>
<key>WIFI</key>
<string>0x0</string>
<key>XHCI</key>
<string>0x0</string>
<key>IMEI</key>
<string>0x0</string>
</dict>
<key>Inject</key>
<false/>
<key>USB</key>
<dict>
<key>AddClockID</key>
<true/>
<key>FixOwnership</key>
<true/>
<key>Inject</key>
<true/>
</dict>
</dict>
<key>DisableDrivers</key>
<array>
<string>Nothing</string>
</array>
<key>GUI</key>
<dict>
<key>Hide</key>
<array>
<string>Windows</string>
<string>BOOTX64.EFI</string>
</array>
<key>Language</key>
<string>en:0</string>
<key>Mouse</key>
<dict>
<key>Enabled</key>
<true/>
<key>Speed</key>
<integer>8</integer>
</dict>
<key>Scan</key>
<dict>
<key>Entries</key>
<true/>
<key>Legacy</key>
<true/>
<key>Tool</key>
<true/>
</dict>
<key>TextOnly</key>
<false/>
<key>Theme</key>
<string>Hackintosh-MF</string>
</dict>
<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>PatchVBios</key>
<false/>
</dict>
<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<true/>
<key>AsusAICPUPM</key>
<true/>
<key>Debug</key>
<false/>
<key>KernelCpu</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>External icons patch</string>
<key>Find</key>
<data>RXh0ZXJuYWw=</data>
<key>Name</key>
<string>AppleAHCIPort</string>
<key>Replace</key>
<data>SW50ZXJuYWw=</data>
</dict>
</array>
</dict>
<key>RtVariables</key>
<dict>
<key>CsrActiveConfig</key>
<string>0x67</string>
<key>BooterConfig</key>
<string>0x28</string>
<key>LogEveryBoot</key>
<string>10</string>
<key>LogLineCount</key>
<integer>3000</integer>
<key>MountEFI</key>
<true/>
</dict>
<key>SystemParameters</key>
<dict>
<key>InjectKexts</key>
<string>Detect</string>
<key>InjectSystemID</key>
<true/>
</dict>
</dict>
</plist>
