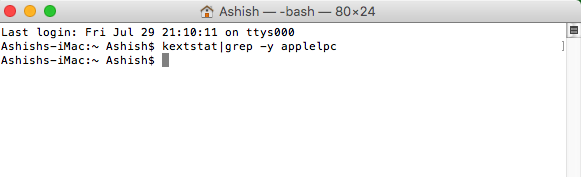

hashish.k Posted July 30, 2016 Share Posted July 30, 2016 I have been working to get the power management working on my hack for sometime without success. The lowest speed that my computer idles is 1.4 Ghz. I have SSDT generated from ssdtprgen in my ACPI/patched folder. I am using SMBIOS for iMAC 17,1. It seems the problem is AppleLPC.kext is not loading when the OSX starts. I searched the forums but could not find an easy answer on how to load it. I am not comfortable modifying DSDT so the best way for me would be to create an injector kext. The problems I am encountering are I don’t know the device ID of my LPC device. I tried DPCI manager but its not listed there. Don’t know where it would be in the DSDT I tried “fakeLPC=true” on the clover config.plist but my computer does not boot after that. I was wondering if someone could help me make an injector kext. I found another thread with an injector kext but it has 9 series motherboard on the info.plist. http://www.insanelymac.com/forum/topic/309205-applelpckext-not-loading/?hl=%2Bapplelpc&do=findComment&comment=2185351 can I use this kext and replace the device ID of LPC device of my motherboard or additional modifications are needed? I am attaching my config.plist, DSDT.aml If you need anything else please let me know. TIA Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 Download DPCIManager, go to PCIList, take a screenshot and post here. Link to comment Share on other sites More sharing options...

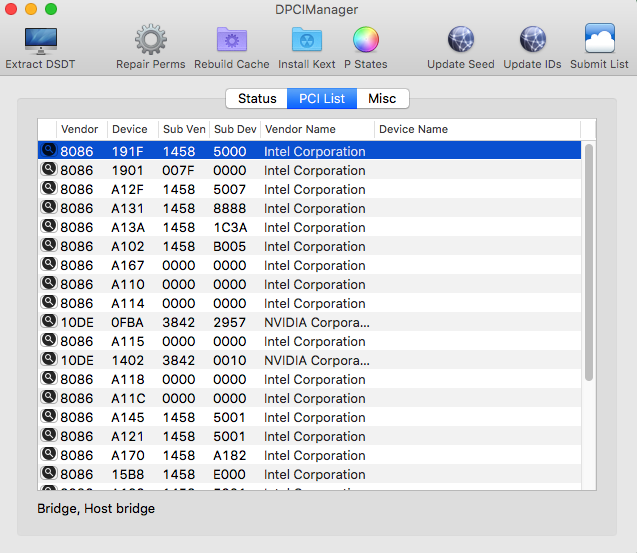

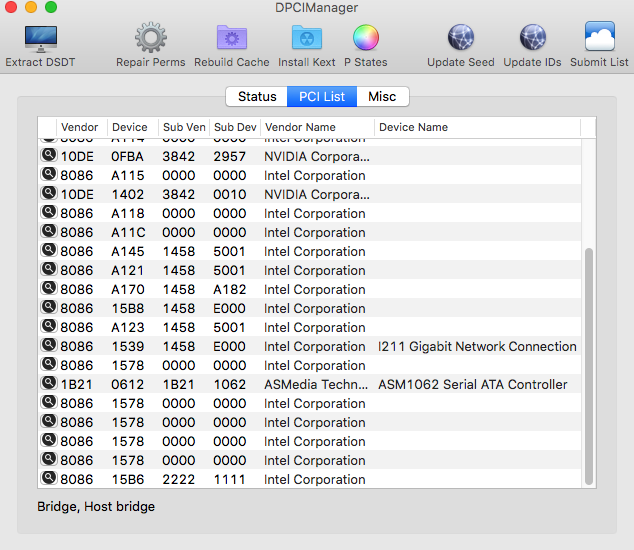

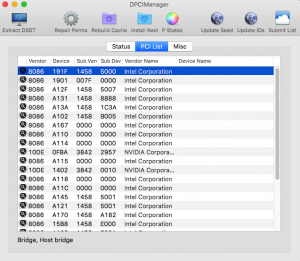

hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 Hi Allan, Thanks for a quick reply. I read your post on OSX86.net Please find the screen shots attached. 1 Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 Hmmm, can you stretch the app window? I need more information, sorry Link to comment Share on other sites More sharing options...

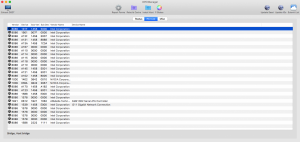

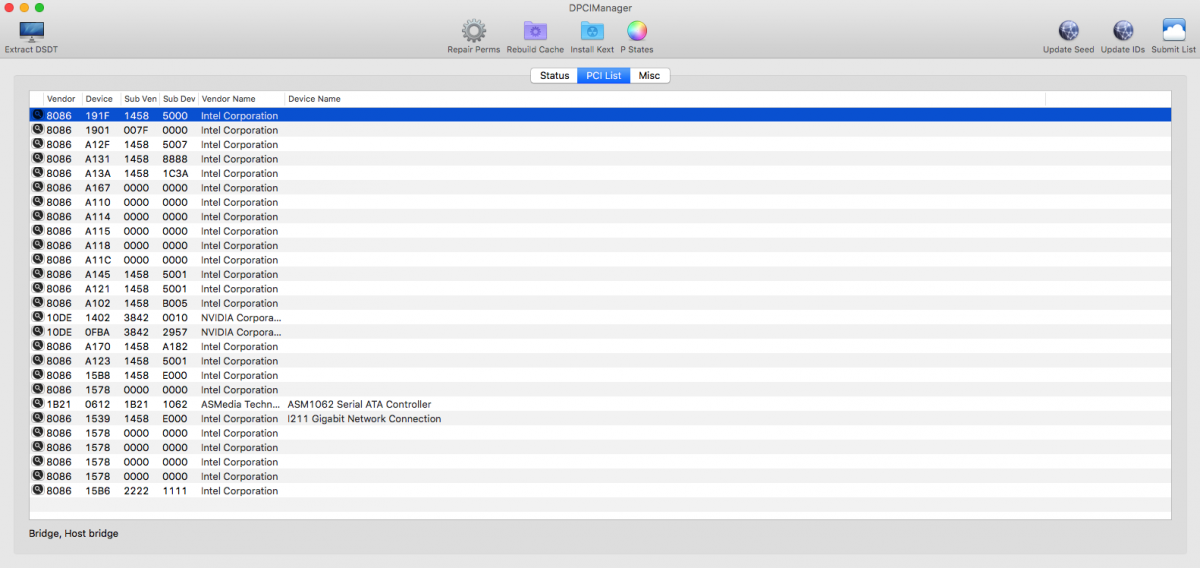

hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 I am not sure why DPCI manager is not showing the names of the devices. This screen shot puts all the devices on a single page. Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 Ok, no problem. Send me your config.plist + DSDT (original) and the patched. Link to comment Share on other sites More sharing options...
nomadturk Posted July 30, 2016 Share Posted July 30, 2016 Ok, no problem. Send me your config.plist + DSDT (original) and the patched. I have same problem. When i checked Power Management with AppleInfo.kext by Pike, It seems the speedstep work, but AppleLPC not loading. I'm attached DSDT,Config and ioreg. Thank you! https://db.tt/aqyfFrxj Link to comment Share on other sites More sharing options...
hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 I don't have a patched DSDT. I use SSDT for power management and skylake USB fix by pike I have attached my config and original DSDT (obtained by pressing f4 on clover) Archive.zip Link to comment Share on other sites More sharing options...

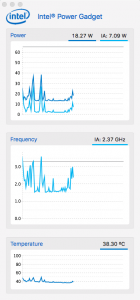

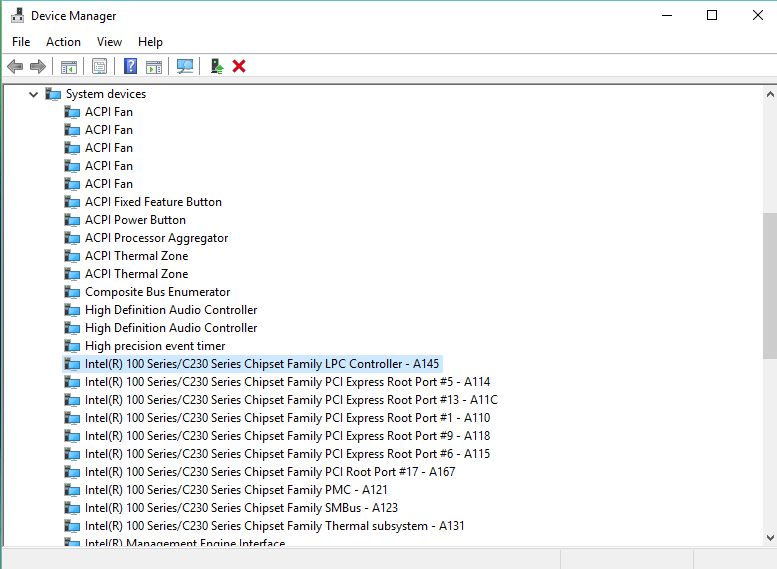

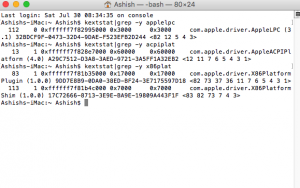

hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 I was finally able to get the LPC device ID from the windows device manager, properties. mine was a145. I used the injector kext and changed the value to a145 and the AppleLPC loads. However, no change in the baseline frequency. Still idles around 1.4 to 1.5 Ghz. May be the intel power gadget is not showing accurate frequencies. console does show that XCPM is enable. Anyway thanks for your help Allan. Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 Test this config.plist: config.plist.zip Post your SSDT here too, for analysis. Link to comment Share on other sites More sharing options...
hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 Thanks Allan, I tried the config.plist but it will not boot with it. I believe whats happening is its dropping all other SSDTs that are needed to boot. I don't have other SSDTs except the once I mentioned above in my ACPI/patched folder. Here is my SSDT SSDT.aml.zip Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 So put DropOEM as false. Link to comment Share on other sites More sharing options...
hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 Did that as well. It boots up but no luck with the lower frequencies. so far I have tried a lot of things to make it work, without luck. I tried a clean install. I tried macOS Sierra DP1. Played around with clover settings etc. changed frequency vectors to haswell iMac. Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 Try use AppleIntelInfo. And durant the tests, run something "heavy" like Geekbench or Novabench. Link to comment Share on other sites More sharing options...
hashish.k Posted July 30, 2016 Author Share Posted July 30, 2016 please see the appleintelinfo output and geek bench results. Archive.zip Link to comment Share on other sites More sharing options...
Allan Posted July 30, 2016 Share Posted July 30, 2016 The SSDT are ok, and the AppleIntelInfo shows that you got all the states, less the 39. Did you do some changes in your config.plist? Take in mind that using iMac SMBios you'll get the same P-States that a real Mac has. Maybe you'll get more results using MacPro SMBios. But for using the newest MacPro models, is necessary change somethings in your Hackintosh. I can't specify what exactly thing is, 'cause I've never do that Link to comment Share on other sites More sharing options...
ergot Posted August 4, 2016 Share Posted August 4, 2016 Hi Allan, My hack working fine (i guess) I can see that my CPU having some states, lower as well but I'm not sure I'm OK with my DSDT patching. Also have problem when hack return from sleep...sometimes no audio, wifi not functioning but sometimes it works - except audio. Can you check my files? Which files do you need? my AppleLPC, XCPM are all loaded btw Link to comment Share on other sites More sharing options...
chemary85 Posted September 2, 2016 Share Posted September 2, 2016 In my case, i have to use addDTGP and FakeLPC in Clover config, to get AppleLPC active. 1 Link to comment Share on other sites More sharing options...
Allan Posted September 2, 2016 Share Posted September 2, 2016 Also have problem when hack return from sleep...sometimes no audio, wifi not functioning but sometimes it works - except audio. I don't have much experience with X99 boards and Xeon E processors, but I'll try find a solution for this, if I found something, I'll report for you back. Link to comment Share on other sites More sharing options...
