Mork vom Ork Posted May 22, 2016 Share Posted May 22, 2016 Hello Folks, could someone please be so kind and check (fix) my DSDT.aml for me, so i can insert any patch to it. I am an absolute Noob in DSDT-Editing, can't find any good Beginners Guide on this... so i ask the community for help. Attached you will find my EFI/CLOVER/ACPI/origin Folder with all extracted files from Clover (rev. 3545) F4 feature. Thanx in advance... ACPI_origin.zip Link to comment Share on other sites More sharing options...
Allan Posted May 22, 2016 Share Posted May 22, 2016 Try this: DSDT.aml.zip Link to comment Share on other sites More sharing options...
Mork vom Ork Posted May 23, 2016 Author Share Posted May 23, 2016 Try this: DSDT.aml.zip Thanx, but this one gave me 32 errors when trying to compile it with MacAISL 1.4 Should this be normal? i used it without an problems, but it seems not to be error-free when compiling. Any suggestions? Regards, Mork vom Ork Link to comment Share on other sites More sharing options...

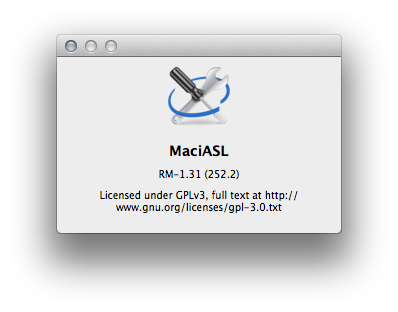

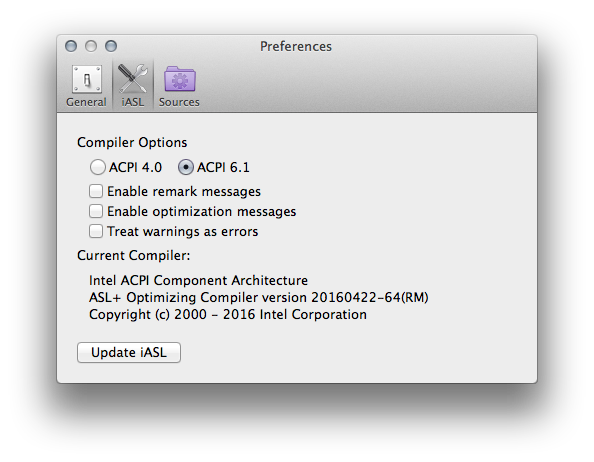

Allan Posted May 23, 2016 Share Posted May 23, 2016 I used this version - The last in RehabMan's site: And compiled with ACPI 6.1: Link to comment Share on other sites More sharing options...
Mork vom Ork Posted May 23, 2016 Author Share Posted May 23, 2016 Do you have a link to download this one? Please... Link to comment Share on other sites More sharing options...
Allan Posted May 23, 2016 Share Posted May 23, 2016 You can find here: https://bitbucket.org/RehabMan/ Link to comment Share on other sites More sharing options...
magnifico Posted May 25, 2016 Share Posted May 25, 2016 to my knowledge, there are no patches for Z170, at least I think that is so....or not Allan? Link to comment Share on other sites More sharing options...
Allan Posted May 25, 2016 Share Posted May 25, 2016 I didn't research about these new boards yet. But in @Mork vom Ork case, i've just fixed the errors. Link to comment Share on other sites More sharing options...
magnifico Posted May 25, 2016 Share Posted May 25, 2016 I didn't research about these new boards yet. But in @Mork vom Ork case, i've just fixed the errors. can you search ? Link to comment Share on other sites More sharing options...
Allan Posted May 25, 2016 Share Posted May 25, 2016 can you search ? If the patches for this mobo exists? 1 Link to comment Share on other sites More sharing options...
magnifico Posted May 25, 2016 Share Posted May 25, 2016 If the patches for this mobo exists? no , i thing no Link to comment Share on other sites More sharing options...

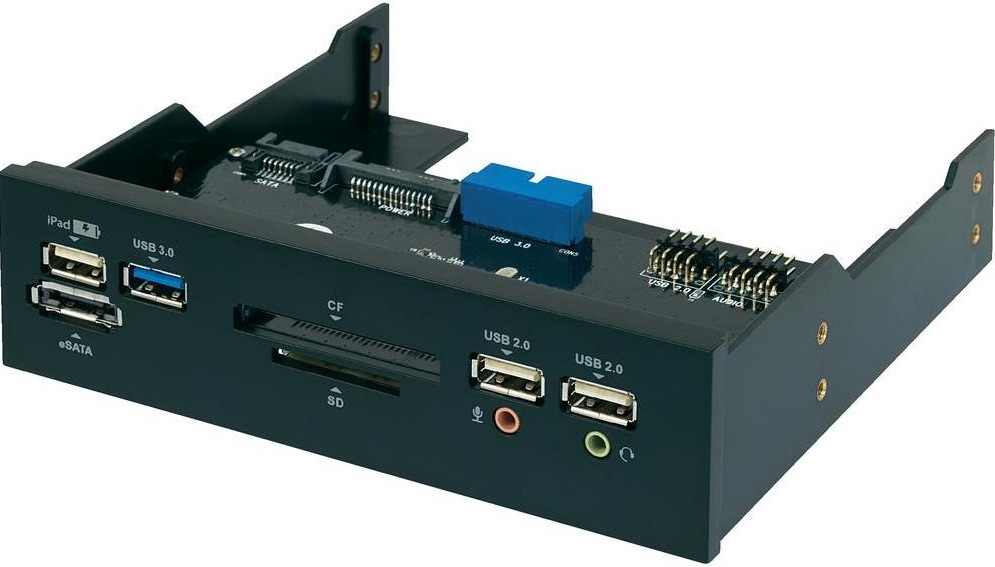

Mork vom Ork Posted May 25, 2016 Author Share Posted May 25, 2016 Oh, for those who are interested: this is my USBFix.aml (in this case DSL for you to edit) file for the ASRock Z170 Extreme7+ motherboard. I have included all available ports (up to port# 1a). All working w/o USB3.1 ports (neither type C, nor type A Connector). Use this one to make your own. To use this one, i have excluded some ports (which i currently do not use) with the following command in CLOVERS config.plist under boot/arguments/: uia_exclude=HS08;HS09;HS10;HS11;HS12;HS13;HS14;USR1;USR2;SS10 Using this bootstring i could delete the KernelAndKextPatches for "Raise USB Port limit". All USB-Ports are working with their expected speed when connected with either USB2 or USB3 devices. So here is the file: USBFix.dsl.zip PS: having a USB3 Cardreader on Port SS05. Trying to make it appear as internal Apple Card Reader within SystemInfo. Will let you know, when i succeed. Edit I: as you can see in the DSL file within the commented ports, i use an USB2/3 CardReader like this one (exactly this one): so delete these ports if you don't have one simular. Edit II: the uncommented ports are uncommented, cause i could not figure out, which ports these are. To get the ports commented, i put one USB2 stick and one USB3 stick in each reachable port. Some uncommented HS0x ports could be the onboard USB2 ports 5&6 and 7&8 (cause Extreme7+ uses 3 onbaord USB2 connectors (2 ports each connector) and 2 onboard USB3 connectors). Link to comment Share on other sites More sharing options...

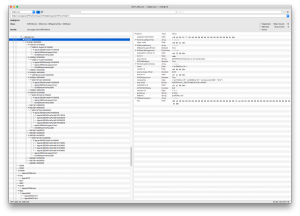

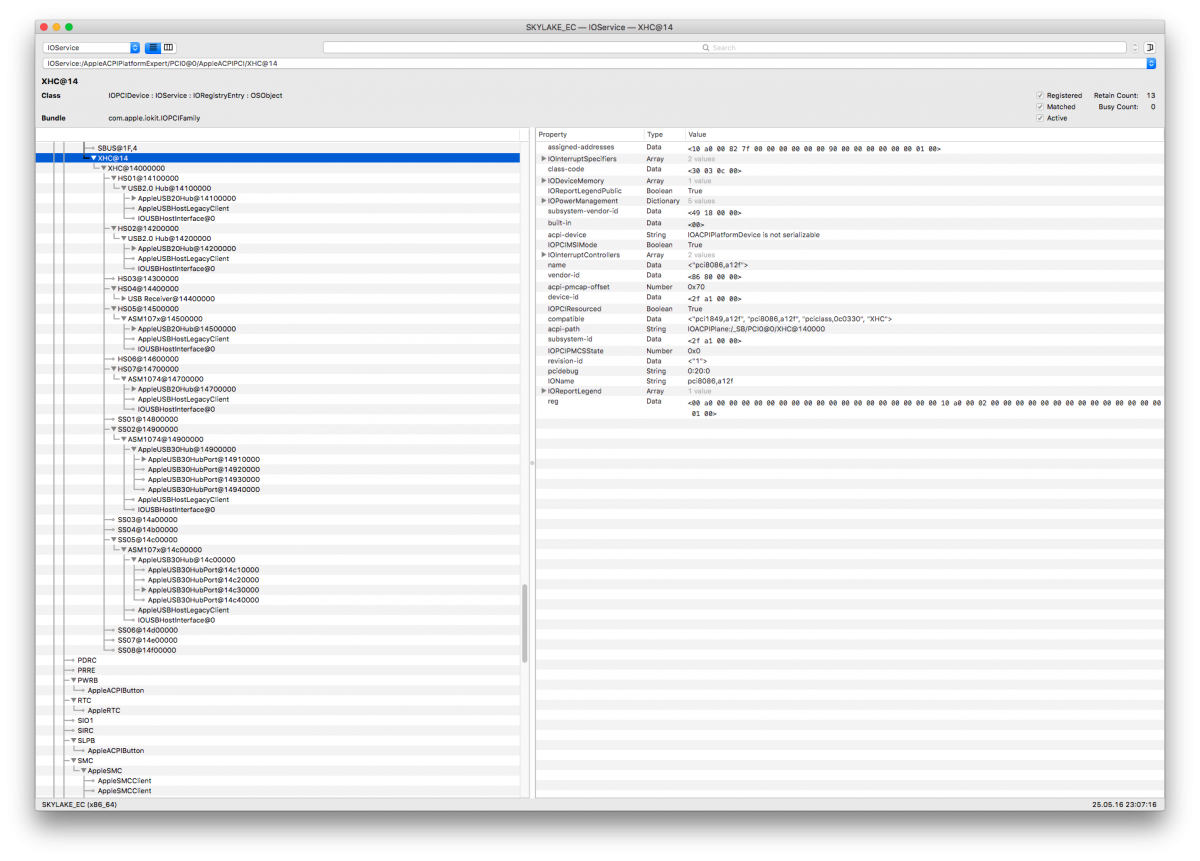

Denicio Posted May 25, 2016 Share Posted May 25, 2016 Oh, for those who are interested: this is my USBFix.aml (in this case DSL) file for the ASRock Extreme7+ motherboard. I have included all available ports (up to port# 1a). All working w/o USB3.1 ports (neither type C, nor type A Connector). Use this one to make your own. To use this one, i have excluded some ports (which i currently do not use) with the following command in CLOVERS config.plist under boot/arguments/: uia_exclude=HS08;HS09;HS10;HS11;HS12;HS13;HS14;USR1;USR2;SS10 Using this bootstring i could delete the KernelAndKextPatches for "Raise USB Port limit". All USB-Ports are working with their expected speed when connected with either USB2 or USB3 devices. So here is the file: ASRock_Extreme7+_UsbPortsWorking.png USBFix.dsl.zip PS: having a USB3 Cardreader on Port SS05. Trying to make it appear as internal Apple Card Reader within SystemInfo. Will let you know, when i succeed. Great work, keep it up. Does it make a difference if you keep your .aml USB patch in /patched/ or not? I can't figure out that part on my build. Link to comment Share on other sites More sharing options...
Mork vom Ork Posted May 25, 2016 Author Share Posted May 25, 2016 Great work, keep it up. Does it make a difference if you keep your .aml USB patch in /patched/ or not? I can't figure out that part on my build. Tried that with UEFI boot: w/o this USBFix.aml in ACPI/patched and the KernelAndKext patch to raise the usb port limit up to 2A i got the same port config under DCPIManager. Also all ports work as expected with usb2 or usb3 port speed. So i believe that u don't need this USBFix.aml to use all usb-ports on this board (just the "raise usb port limit" patch if you want to use more than 15 ports.) I did this aml-file for my own just to keep my "Hackintosh" as regular as possible Link to comment Share on other sites More sharing options...
Denicio Posted May 26, 2016 Share Posted May 26, 2016 Yeah that was my experience as well. Do you still use "USBInjectAll.kext" even after having the Raise USB Port limit removed? Link to comment Share on other sites More sharing options...
Mork vom Ork Posted May 26, 2016 Author Share Posted May 26, 2016 Yeah that was my experience as well. Do you still use "USBInjectAll.kext" even after having the Raise USB Port limit removed? yes, using this kext in EFI/CLOVER/kexts/other Link to comment Share on other sites More sharing options...
Denicio Posted May 26, 2016 Share Posted May 26, 2016 I always thought you can remove "USBInjectAll.kext" once you have the patched USB .aml in /patched/. Turns out this is not the case. Link to comment Share on other sites More sharing options...
bs0d Posted May 27, 2016 Share Posted May 27, 2016 The Aptio 5 based systems comprising of the 100 series boards all have generic ACPI tables that are just full of junk. Link to comment Share on other sites More sharing options...
magnifico Posted May 27, 2016 Share Posted May 27, 2016 friend how are you? About sleep, work ? Link to comment Share on other sites More sharing options...

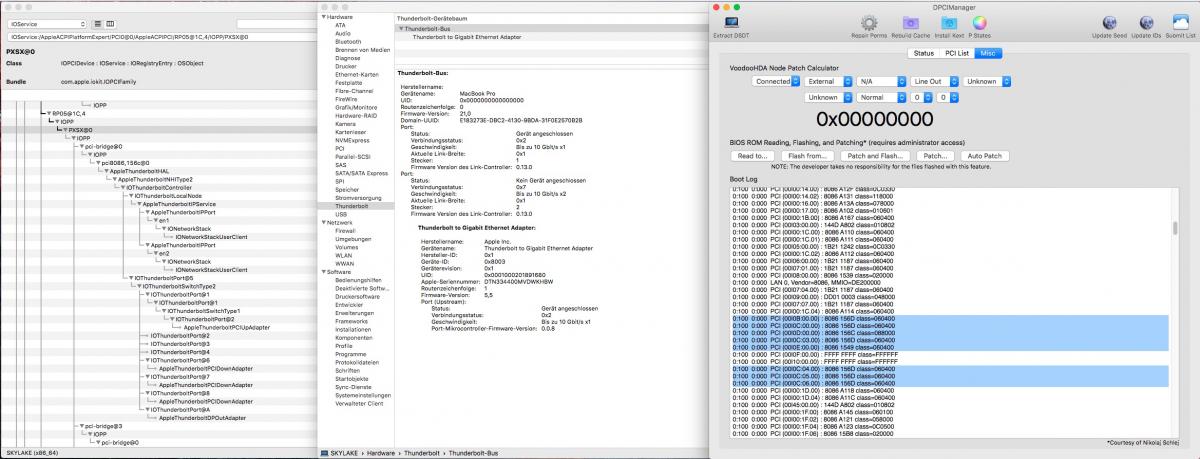

Mork vom Ork Posted May 28, 2016 Author Share Posted May 28, 2016 Today i just installed my ASUS ThunderboltEX DUAL card into PCIslot#3, turned on "Intel Thunderbold" in BIOS and selected "one time saved key" instead of "legacy"... and guess what: Can see Thunderbolt card in System Information under the Thunderbolt options!!! Surprise, surprise, surprise... Used an ASRock Thunderbolt 2 AIC the last weeks and no matter what i selected, i can't get to see under the Thunderbolt Options within System Information - even if the connected Thunderbolt device gets recognized by El Capitan/Yosemite and being able to use the connected Thunderbolt devices. Havent change anything here, no CLOVER settings changed, no Extensions patched, nothing. Just changed the card. Was using this card in my old ASUS X99-E WS board w/o any hassle, but wasn't able to get it installed on this ASRock Z170 Extreme7+ so that it will be shown under Thunderbolt in System Information. Very strange, but makes me happy. Another point solved on my list. 1 Link to comment Share on other sites More sharing options...
magnifico Posted July 11, 2016 Share Posted July 11, 2016 Marc about hd530 have you a solution ^? i have many artifacts i wait carmine Link to comment Share on other sites More sharing options...
palladino.al Posted October 10, 2016 Share Posted October 10, 2016 it's as compatible for as rock fatality k6 ? Link to comment Share on other sites More sharing options...
MaLd0n Posted April 18, 2017 Share Posted April 18, 2017 DSDT.ASRock Extreme7.zip Link to comment Share on other sites More sharing options...
magnifico Posted April 18, 2017 Share Posted April 18, 2017 DSDT.ASRock Extreme7.zip daniel ...mork dont have asrock now..only mag have this good main ...jajajajajajaj 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted April 18, 2017 Share Posted April 18, 2017 Good, ur DSDT is fully edit 1 Link to comment Share on other sites More sharing options...
