Sound for AD1984 - can you help me?


MacPeet
 Share

19 posts in this topic

Recommended Posts

This is a new patch project: for AD1984 - older laptops IBM/Lenovo ThinkPad T61 and others.


(Speakers and HP in single configuration)

all connections are working (laptop and docking station), only one problem: HP working only for 30 seconds

Do you know this problem?

(Speakers and HP in Switch Mode)

changes to HP, but no sound

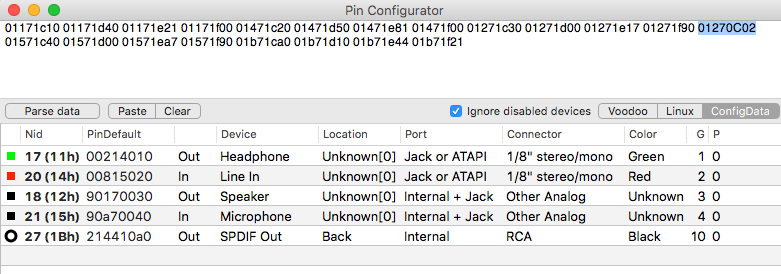

dump:

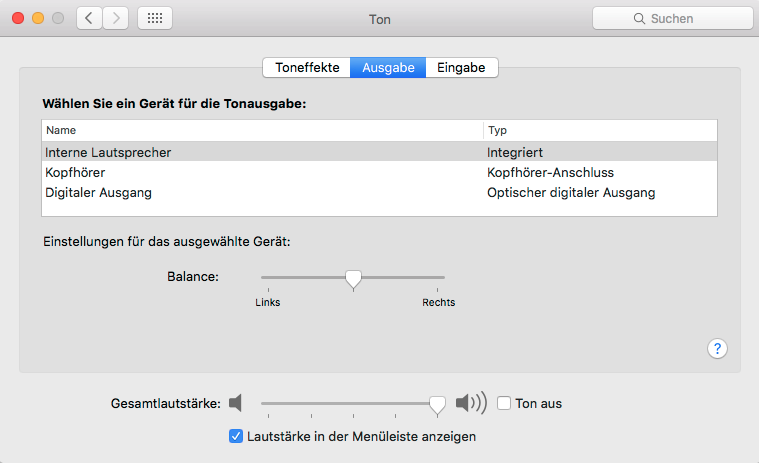

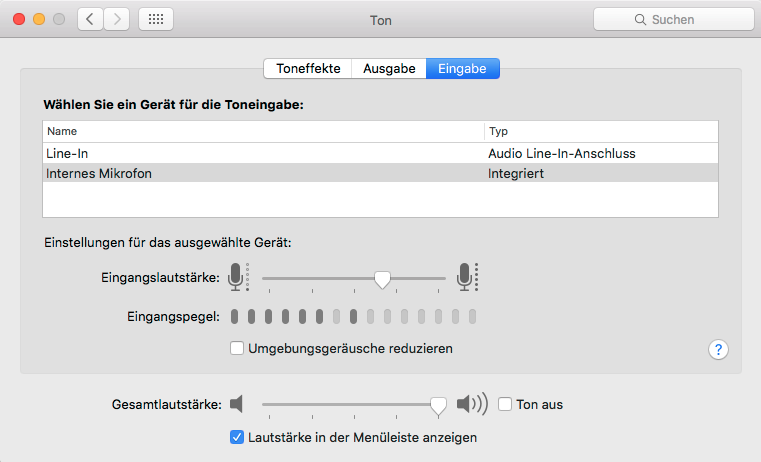

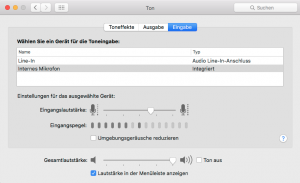

post-1358580-0-18834400-1462728459_thumb.png   post-1358580-0-39560800-1462728485_thumb.png


Edited by Allan
Topic title edited, we are in a public Forum.
  • Like 1
Link to comment
Share on other sites

Mirone hat fundierte Kenntnisse, ich denke dass er sich kurzfristig melden wird.



Mirone has sound knowledge, I think that he will get back shortly

Edited by Allan
English please
Link to comment
Share on other sites

@MacPeet,



try this,



change Verbs:



HeadPhones:  01171c10 01171d40 01171e21 01171f00 --> 01171c10 01171d40 01171e21 01171f02

LineIn:           01471c20 01471d50 01471ea1 01471f00 --> 01471c20 01471d50 01471e81 01471f02



Use CodecCommander.

  • Like 1
Link to comment
Share on other sites

ok, we will try.



Edit:

Unfortunately it does not help.

What we are also trying to PinConfig, layout and platform, HP is only 30 seconds in normal operation before Sleep.

:wallbash:
Link to comment
Share on other sites

No, I do not have this hardware.

The hardware has griven (Admin of hackintosh-forum.de).

We have new information which we test tonight.

Linux dump says:

Internal Speakers 18->10->4
Headphone 17->7->34->3      (HP only 30 seconds)

With VoodooHDA works Headphone and Voodoo dump says:

Internal Speakers 18->10->4
Headphone 17->7->34->4

tonight will griven test it with 4

I will report and thank you for your Help.
Link to comment
Share on other sites



No, I do not have this hardware.

The hardware has griven (Admin of hackintosh-forum.de).

We have new information which we test tonight.

Linux dump says:

Internal Speakers 18->10->4
Headphone 17->7->34->3      (HP only 30 seconds)

With VoodooHDA works Headphone and Voodoo dump says:

Internal Speakers 18->10->4
Headphone 17->7->34->4

tonight will griven test it with 4

I will report and thank you for your Help.



Within your layout in key Headphone add a MuteGPIO = 872480791.
let's see if something changes.
Link to comment
Share on other sites

status report:



realtekALC.kext.zip

layout3.xml.zip



Platforms.xml_SingleMode.zip HP operates continuously when HP plugged, but not HP is selected. If HP is selected, then works only 30 seconds. That's better, but still not perfect.


Platforms.xml_SwitchMode.zip HP is not working

We are now trying to MuteGPIO=872480791. I will report. thank you
Link to comment
Share on other sites



All attempts with MuteGPIO at HP are not loaded.

Regardless, we will use the solution of post #12. The works so reasonably.
Big thank you until then.



ok, I'll investigate it and let you know
if any progress.
