kobe80 Posted April 20, 2016 Share Posted April 20, 2016 Hi guys, crazy problem. so, i can boot from NVME. but not if Thunderbolt card is plugged in. screen just goes black when apple logo would normally show up, then desktop. it just stops. I can boot from normal SSD, and be able to mount the NVME (non-booting), and use Thunderbolt, but i want to be able to boot from the NVME and use Thunderbolt. I've tried putting the Thunderbolt card in different slots, and that hasn't been helping so far. Might there be any Clover flags perhaps, that could fix this? or any other solution? Donation for working solution! my config:5960X X99-A YosemiteClover ThunderboltEX IISamsung 950 Pro NVME SSD Link to comment Share on other sites More sharing options...
Fljagd Posted April 20, 2016 Share Posted April 20, 2016 Hi Kobe 80I see your Thunderbolt worksCan you put your file DawinDumperThank it is likely that the operation of the M2 comes default sharing the same bandwidth as the Thunderbolt on the Motherboard look in the manual andon what PCI is set your Thunderbolt Link to comment Share on other sites More sharing options...

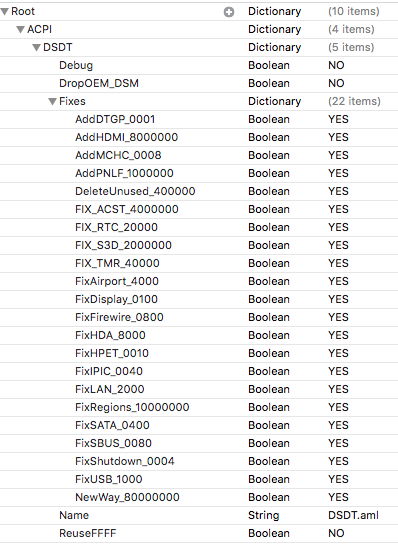

kobe80 Posted April 20, 2016 Author Share Posted April 20, 2016 Hi Kobe 80 I see your Thunderbolt works Can you put your file DawinDumper Thank it is likely that the operation of the M2 comes default sharing the same bandwidth as the Thunderbolt on the Motherboard look in the manual and on what PCI is set your Thunderbolt Hello my friend! yes it works, but i don't think it's PCI-E... i now have it sort of working, but without USB! I was able to get a KP screen and it was showing USB kext issues. so in BIOS i changed Intel xHCI Mode to Disabled.. and it booted from NVME! and had thunderbolt! but, now, no USB... which is terrible bc obviously my mouse and keyboard and so many other things are USB. i can control it via Remote Desktop, but i need to get USB working with it now.. KP screen attached.. i'm thinking maybe new USB kexts might help? Link to comment Share on other sites More sharing options...
Fljagd Posted April 20, 2016 Share Posted April 20, 2016 Yosemite normally with no needs Kext for USB ports instead use patches of clover Link to comment Share on other sites More sharing options...
kobe80 Posted April 20, 2016 Author Share Posted April 20, 2016 Yosemite normally with no needs Kext for USB ports instead use patches of clover so you're saying i should change all those settings in the screenshot to yes? Link to comment Share on other sites More sharing options...
Fljagd Posted April 20, 2016 Share Posted April 20, 2016 yes I just started on Yosemite Link to comment Share on other sites More sharing options...
kobe80 Posted April 20, 2016 Author Share Posted April 20, 2016 yes I just started on Yosemite worked! thanks! Link to comment Share on other sites More sharing options...
Fljagd Posted April 20, 2016 Share Posted April 20, 2016 Have a good day Link to comment Share on other sites More sharing options...

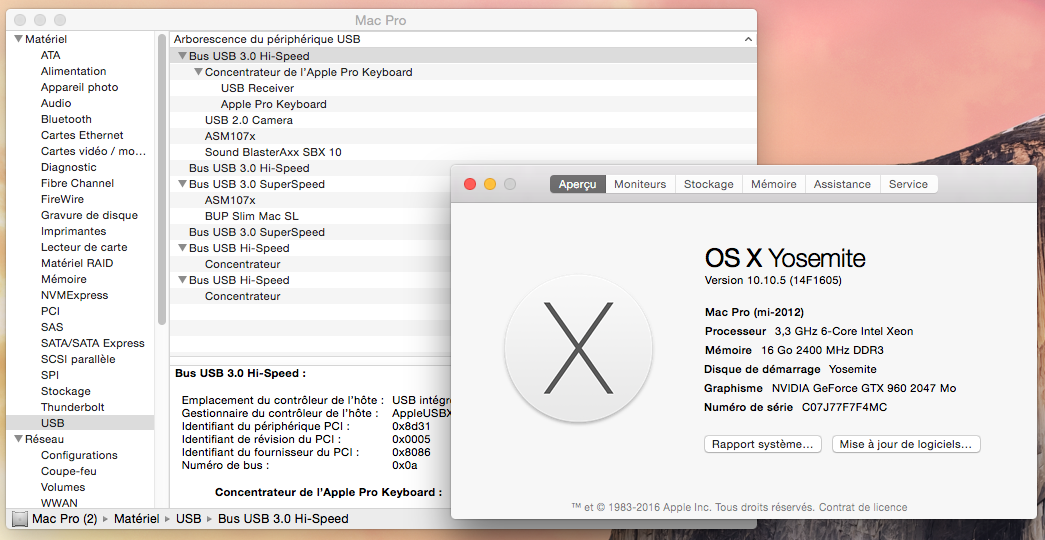

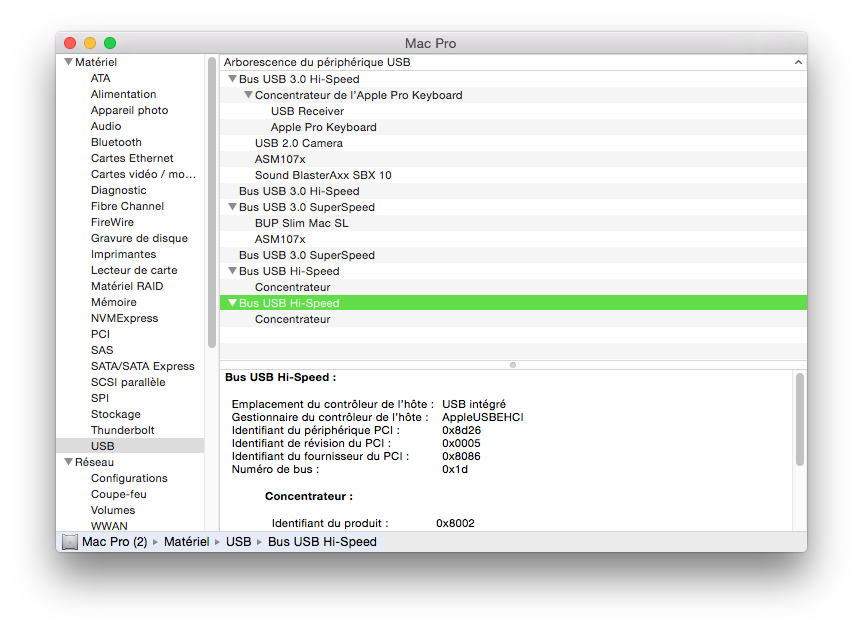

LockDown Posted April 20, 2016 Share Posted April 20, 2016 (edited) yes I just started on Yosemite In your 2nd Pic, I dont think Yose has AppleUSBXHCIPCI. It can only be found in El Capitan. you shouldnt have posted the 2nd pic as it is not matching the 1st pic. Edited April 20, 2016 by ellaosx Link to comment Share on other sites More sharing options...
LockDown Posted April 20, 2016 Share Posted April 20, 2016 (edited) how could AppleUSBEHCI be patch if you are targeting AppleUSBXHCIPCI is what im saying you shouldnt have posted the 2nd pic as it is not matching the 1st pic. Edited April 20, 2016 by ellaosx Link to comment Share on other sites More sharing options...
Fljagd Posted April 20, 2016 Share Posted April 20, 2016 (edited) you are right the patch (AppleUSBXHCIPCI) is only useful for El CapitanI just tested the config.plist without patch the patch did not influence Yosemiteit is necessary for me, as I also use El Capitan Edited April 20, 2016 by Fljagd 1 Link to comment Share on other sites More sharing options...
