teeodor Posted December 26, 2015 Share Posted December 26, 2015 Hi,i have an asus k53sc notebook with the last macosx. Before now i have always used chamaleon bootloader with a fully working packet (dsdt,kext,ecc..) Now i make a clearly installation with clover,it work good but there are some things that need a dsdt edit. I never edit my dsdt,but i want to learn to make almost the basic feature. Now i have to fix_ - shutdown -usb 3 -Optimus technology Now when i shutdown the system restart (i've tried with kext and clover option) Usb3 port need to disable it,or maybe fix it Geforce 520 need to disable it My system is i5 on sandy bridge with 8gb ram Intel hd3000/ge force 520 USB3 Controller ASMedia ASM1042 USB 3.0 xHCI Controller Thanks for any reply! Link to comment Share on other sites More sharing options...
gengik84 Posted December 26, 2015 Share Posted December 26, 2015 The Optimus technology is not supported by OS X. you can turn off the video card through dsdt. Link to comment Share on other sites More sharing options...
teeodor Posted December 26, 2015 Author Share Posted December 26, 2015 Yes,i know,than i have writed "Geforce 520 need to disable it" Link to comment Share on other sites More sharing options...
gengik84 Posted December 26, 2015 Share Posted December 26, 2015 Post the dsdt, if you want we can try to turn it off Link to comment Share on other sites More sharing options...
teeodor Posted December 26, 2015 Author Share Posted December 26, 2015 No problem,if you explain me i am very happy to fix for my self. Refresh me how i have to extract dsdt from my system Link to comment Share on other sites More sharing options...
Codinger Posted December 26, 2015 Share Posted December 26, 2015 No problem,if you explain me i am very happy to fix for my self. Refresh me how i have to extract dsdt from my system Zip it and upload it here Link to comment Share on other sites More sharing options...
teeodor Posted December 26, 2015 Author Share Posted December 26, 2015 No,you don't understand. I don't know how extract original dsdt from my system Link to comment Share on other sites More sharing options...
gengik84 Posted December 26, 2015 Share Posted December 26, 2015 Gui of the clover, press F4, wait a little '... Later Start normally osx. Go to EFI / Clover / acpi / origin Compress and mail the entire folder Origin. For this you need that clover is installed in the ESP Link to comment Share on other sites More sharing options...
teeodor Posted December 26, 2015 Author Share Posted December 26, 2015 I did do origin.zip 1 Link to comment Share on other sites More sharing options...
gengik84 Posted December 27, 2015 Share Posted December 27, 2015 Try the DSDT attached. Put it in EFI / Clover / acpi / patched Do not rename it. Gui of the clover, visited in options. Find DSDT name = DSDT.aml, you will need to change by getting this: DSDT name= DSDT1.aml did this start OSX. Check nvidia is off If you have problems to boot, you just restart normally DSDT1.aml.zip 1 Link to comment Share on other sites More sharing options...
teeodor Posted December 27, 2015 Author Share Posted December 27, 2015 Boot good! Link to comment Share on other sites More sharing options...
gengik84 Posted December 27, 2015 Share Posted December 27, 2015 I'm really happy to have helped you. Now rename DSDT1.aml in DSDT.aml At least it will be loaded automatically without requiring any changes to the GUI of clover 1 Link to comment Share on other sites More sharing options...
teeodor Posted December 27, 2015 Author Share Posted December 27, 2015 Thanks very much,you are great! Do you did do some also for usb and shutdown problem? Link to comment Share on other sites More sharing options...
teeodor Posted December 27, 2015 Author Share Posted December 27, 2015 I try to fix some artifact with this https://github.com/RehabMan/Laptop-DSDT-Patch/blob/master/graphics/graphics_HD3K_low.txtbut i don't understard how patch my dsdt Link to comment Share on other sites More sharing options...

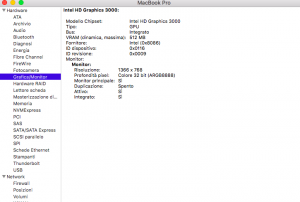

gengik84 Posted December 27, 2015 Share Posted December 27, 2015 hi, I have already put the patch HD3000 Low resolution HD3000 is sometimes problematic, I see how I can help you Post your config.plist. First, Remove serial etc., Link to comment Share on other sites More sharing options...
teeodor Posted December 28, 2015 Author Share Posted December 28, 2015 can you fix also shutdown problem? Or explain me how apply a patch config.plist.zip Link to comment Share on other sites More sharing options...
teeodor Posted December 30, 2015 Author Share Posted December 30, 2015 Up Link to comment Share on other sites More sharing options...
gengik84 Posted December 30, 2015 Share Posted December 30, 2015 same test listed in the post No. 10. Put dsdt in EFI.... patched Config1.plist put in EFI / Clover The GUI of clover, you will need to edit the following options DSDT name = DSDT1.aml You do it with the config. Config= config after config=config1 If you have problems to boot, you just restart normally The problem of shutdown is very frequent on asus laptop in OSX 10.11 So I can not promise anything. test.zip Link to comment Share on other sites More sharing options...
teeodor Posted December 30, 2015 Author Share Posted December 30, 2015 Thanks for the time lost! The system boot normally but the problem remain Link to comment Share on other sites More sharing options...
artur_pt Posted December 30, 2015 Share Posted December 30, 2015 hello test this one is full patched DSDT.aml.zip good hack Link to comment Share on other sites More sharing options...
teeodor Posted December 31, 2015 Author Share Posted December 31, 2015 hi,thanks so much! i try it for 2 hours,artifacts and the reboot problem still continue Link to comment Share on other sites More sharing options...
gengik84 Posted December 31, 2015 Share Posted December 31, 2015 @Artur_pt If I can. I wanted to ask you, how you solved the problems of the graphic? In advance, thank you very much.... Link to comment Share on other sites More sharing options...
teeodor Posted December 31, 2015 Author Share Posted December 31, 2015 sorry,i correct the post,artifact still Link to comment Share on other sites More sharing options...
gengik84 Posted December 31, 2015 Share Posted December 31, 2015 sorry,i correct the post,artifact still ah...ok.... Link to comment Share on other sites More sharing options...
artur_pt Posted December 31, 2015 Share Posted December 31, 2015 hello man .. is a little crazy this post now u have graphics problem ? never see that .. where is posted ? so .. what i see in this post is shutdown problem .. but now is a bigger problem post ur ioregisterexplorer .. to see what is happen and post also a clean dsdt ... now become a hoob problem .. don't know what is doing with a patched dsdt good hack Link to comment Share on other sites More sharing options...
