How to create a clover custom entry?


viking07
 Share

3 posts in this topic

Recommended Posts

Hello Friends,

I have installed El Capitan and Windows 10 in separated drives but i have a problem with clover, detects two entries more than El Capitan (Recovery its hidden) but it doesn't work, they are called 'HD1' and 'HD2'
I suppose that i need to hidden legacy entries and create a custom for my Windows10 disk.

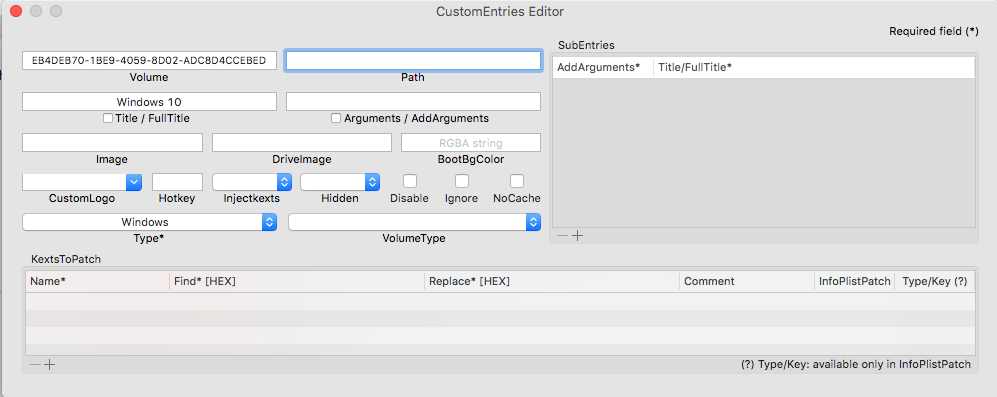

I need some help creating a custom legacy entry for Windows.

¿Where I can find the path of my Windows 10 disk?

I have 3 HDD

  • OCZ -> El Capitan
  • KINGTON -> Windows 10 (Legacy)
  • WD -> Exfat for sharing info

Thanks 4 all.

config.plist.zip

DarwinDumper_2.9.9.1_AMI_X64_3320_Cap_Thor.zip


Link to comment
Share on other sites

¿Anyone?



Looking that, i think that Clover doesn't find my windows legacy, i tried Windows Legacy and UEFI first and no one. I don't know how to do it.



1:359  0:000  found 9 volumes with blockIO

1:359  0:000   0. Volume:
1:359  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
1:367  0:008   1. Volume:
1:367  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
1:373  0:005    Result of bootcode detection: bootable unknown (legacy)
1:373  0:000   2. Volume:
1:373  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)
1:373  0:000   3. Volume:
1:373  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,F474C21F-A41F-42FC-8C26-AF4D28FB635A,0x28,0x64000)
1:374  0:000    Result of bootcode detection: bootable unknown (legacy)
1:379  0:005    This is SelfVolume !!
1:379  0:000   4. Volume:
1:379  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,B1A9F7CE-601F-4F12-AEC0-3069DAD89841,0x64028,0xDDFAC40)
1:380  0:000   5. Volume:
1:380  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,B4C22E21-C794-4756-9BB7-DB7A706A0911,0xDE5EC68,0x135F20)
1:380  0:000    hiding this volume
1:380  0:000   6. Volume:
1:380  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,MBR,0x4B58D896,0x800,0xFA000)
1:381  0:000    Result of bootcode detection: bootable Windows (vista,win)
1:381  0:000   7. Volume:
1:381  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,MBR,0x4B58D896,0xFA800,0x1BE29000)
1:382  0:000    Result of bootcode detection: bootable Windows (vista,win)
1:382  0:000   8. Volume:
1:382  0:000    PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,MBR,0xF6E675D8,0x2,0x74706DAE)
1:382  0:000    Result of bootcode detection: bootable unknown (legacy)

It seems that Legacy no detect here.


1:386  0:000  Custom entries start
1:386  0:000  Custom entries finish
1:386  0:000  Scanning loaders...
1:386  0:000   0: 'Whole Disc Boot' no file system
1:386  0:000   1: 'Whole Disc Boot' no file system
1:386  0:000   2: 'Whole Disc Boot' no file system
1:386  0:000   3: 'EFI'
1:402  0:016   4: 'El Capitan'
1:409  0:006      AddLoaderEntry for Volume Name=El Capitan
1:411  0:002      Check if volume Is Hibernated:
1:411  0:000      Check sleep image 'by signature':
1:418  0:006      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
1:418  0:000      SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage'
1:422  0:004      Reading first 512 bytes of sleepimage ...
1:423  0:000   OurBlockIoRead: Lba=1965208, Offset=32CA41000 (BlockSize=512)
1:423  0:000   sig lion: 0
1:423  0:000   sig snow: 0
1:423  0:000   no valid sleep image offset was found
1:423  0:000      Reading completed -> Success
1:423  0:000       sleepimage offset could not be acquired
1:423  0:000       hibernated: no - sign
1:467  0:044   5: 'Recovery HD' hidden
1:467  0:000   6: 'Legacy HD1' no file system
1:467  0:000   7: 'Legacy HD2' no file system
1:467  0:000   8: 'Legacy HD1' no file system
1:467  0:000  Custom legacy start
1:467  0:000  Custom legacy end
1:467  0:000  Scanning legacy ...
1:467  0:000   0: 'Whole Disc Boot' (legacy) not legacy
1:467  0:000   1: 'Whole Disc Boot' (legacy) not legacy
1:467  0:000   2: 'Whole Disc Boot' (legacy) not legacy
1:467  0:000   3: 'EFI' (legacy) not legacy
1:467  0:000   4: 'El Capitan' (legacy) not legacy
1:467  0:000   5: 'Recovery HD' (legacy) not legacy
1:467  0:000   6: 'Legacy HD1' (vista,win) add legacy
1:469  0:001   added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
1:469  0:000   7: 'Legacy HD2' (vista,win) add legacy
1:470  0:000   added 'Boot Windows from Legacy HD2' OSType=2 Icon=vista,win
1:470  0:000   8: 'Legacy HD1' (legacy) not legacy
1:470  0:000  Custom tool start
1:470  0:000  Custom tool end
