RenegadePC Posted October 25, 2015 Share Posted October 25, 2015 Hi all. After spotting a thread asking for a list of motherboards with working/non working USB under El Cap 10.11 I have decided make a post and update results as I test motherboards since I am in the position to test many boards, allowing time. Anyone who finds they have a fully working USB ports out of the box please reply here your results and motherboard details so we may help others looking for OOB working USB compatible motherboards for El Capitan 10.11.... It may only take you 5 minutes but could save a lot of time for others!! USB controllers supported = Intel only. Motherboards tested: --------------------------------------------- Socket 1150: OOB Working fully: ASUS H81M-K Working fully, no fix needed, OOB USB 3.0/2.0 Gigabyte z97x Gaming 5 Working fully, no fix needed, OOB USB 3.0/2.0 EDIT: All running at USB 2.0 speeds All Fixable: Gigabyte H81-S2H Rear and mid board USB 2.0 working, Mid board USB 3.0 working OOB. Fix needed for rear USB 3.0 intel USB controller Port injector kext needed Gigabyte Z87X-UD3H Mid and rear USB 2.0 working Fix Needed for USB 3.0 Intel USB controller Port injector kext needed ASUS H81M-PLUS Mid and rear USB 2.0 working Mid board USB 3.0 working Rear 4 USB 3.0 not working ASMEDIA should now work with GenericUSBXHCI.kext 3 Link to comment Share on other sites More sharing options...
Slice Posted November 2, 2015 Share Posted November 2, 2015 I think you are asking about USB 3.0? I have H61 board without USB30 and without problems in ElCapitan related to USB. 2 Link to comment Share on other sites More sharing options...
RenegadePC Posted November 19, 2015 Author Share Posted November 19, 2015 I think you are asking about USB 3.0? I have H61 board without USB30 and without problems in ElCapitan related to USB. Thank you. Link to comment Share on other sites More sharing options...
monoxido Posted January 21, 2016 Share Posted January 21, 2016 Asus p8h61m lx2.i5 8gb ddr3 everything working less sleep wake up .. 4 monitors 2 from intel hd+2 from asus geforce210 1gb El capitan 10.11.2 socket 1155 Link to comment Share on other sites More sharing options...
buoo Posted January 22, 2016 Share Posted January 22, 2016 I think could be useful a thread where sharing the USB map. It will help the people to fix them! Link to comment Share on other sites More sharing options...

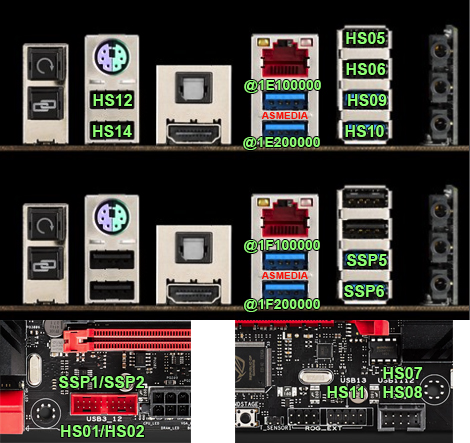

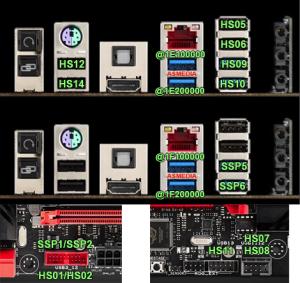

RenegadePC Posted February 1, 2016 Author Share Posted February 1, 2016 I think could be useful a thread where sharing the USB map. It will help the people to fix them! map.jpg Excellent idea. Has anyone started such a thread yet? Asus p8h61m lx2.i5 8gb ddr3 everything working less sleep wake up .. 4 monitors 2 from intel hd+2 from asus geforce210 1gb El capitan 10.11.2 socket 1155 Than you .... Have you attempted to fix sleep? Link to comment Share on other sites More sharing options...
flip360 Posted March 1, 2016 Share Posted March 1, 2016 Gugabyte Z97P-D3 fully working OOTB along with USB2 and USB3 ports, 10.11.3, Clover bootloader. Link to comment Share on other sites More sharing options...
