DonDonnelly Posted September 29, 2015 Share Posted September 29, 2015 In the past I've used stock "approved" configs with good results. I've decided to dive in a bit deeper with a massive build on a SuperMicro 7048GR-TR (x10DRG mobo) and it seems I'll need a custom DSDT just to boot the 10.10.5 installer. I'm definitely new to making a custom DSDT and would greatly appreciate any assistance, even just a direction to go in. I've pulled the existing DSDT and SSDT via Clover, however for simplicity I've removed the 3x nVidia gtx 980ti, just the 960 is installed, not sure if that makes a difference... origin.zip Link to comment Share on other sites More sharing options...

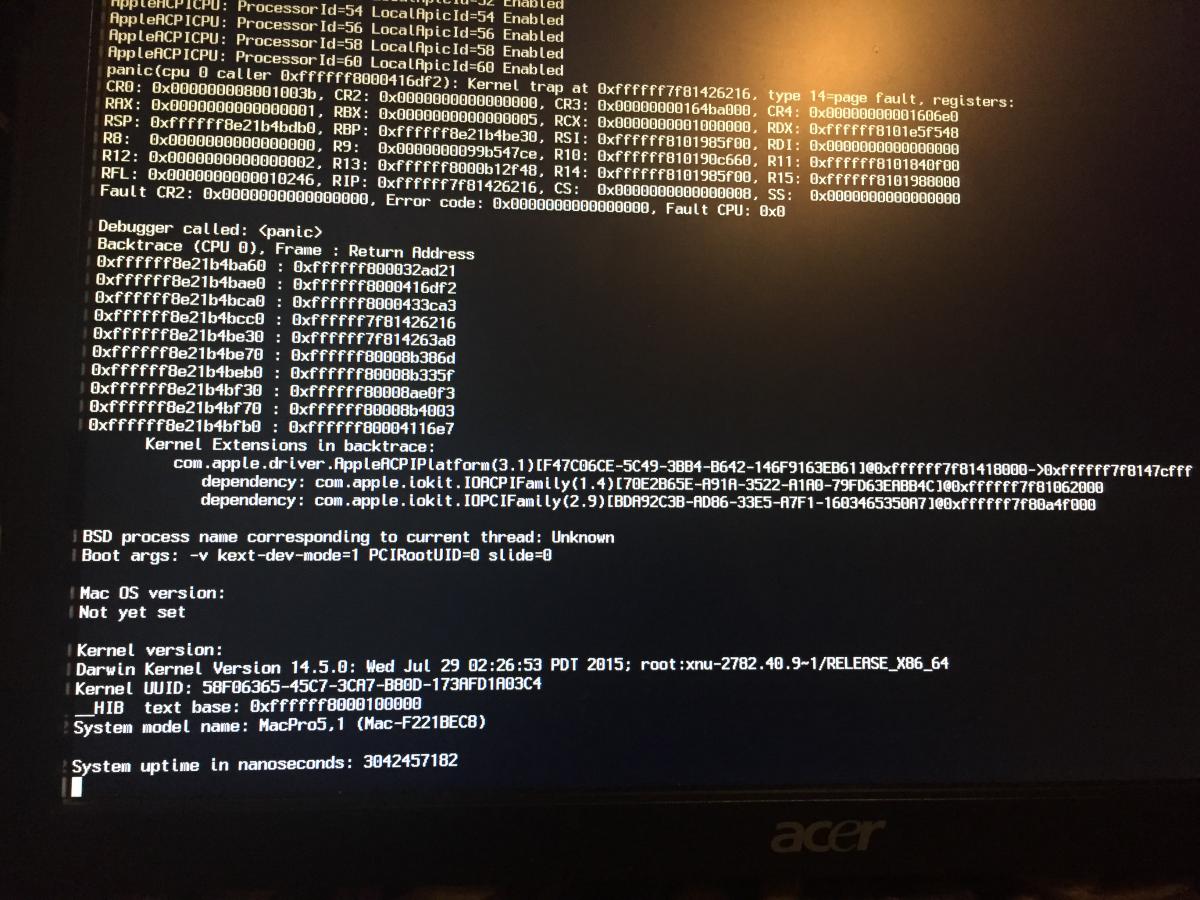

DonDonnelly Posted September 29, 2015 Author Share Posted September 29, 2015 Thanks Spakk! Currently at an AppleACPIPlatform related panic, guessing it is because of the lack of a gfx patch. Any recommendations for a method you prefer? Link to comment Share on other sites More sharing options...
spakk Posted September 30, 2015 Share Posted September 30, 2015 Nice, the system does not stop at "PCI Confugiration begin" now you need make a rollback AppleACPIPlatform.kext, then repair the disk permissions and start again with: -v -f npci=0x3000 ....... the graphics card can patching later, is not a problem but the system should boot with the rollback Google for a rollback. good luck! Link to comment Share on other sites More sharing options...
DonDonnelly Posted September 30, 2015 Author Share Posted September 30, 2015 Thanks Spakk. Installed a 10.9.5 rollback, still getting the same KP with a myriad of boot arg combos. I've since figured out that if I remove the GTX 960 and switch to onboard GFX the KP goes away, but it still hangs at "AppleKeyStore Starting"... Link to comment Share on other sites More sharing options...
spakk Posted September 30, 2015 Share Posted September 30, 2015 use the nullpowermanagement.kext in Extra-folder? If not, then install the driver and try again Link to comment Share on other sites More sharing options...
DonDonnelly Posted September 30, 2015 Author Share Posted September 30, 2015 Using NullCPUPowerManagement.kext, still getting the same result. Should I attempt to build an ssdt for this system? Link to comment Share on other sites More sharing options...
anonymousnbs Posted September 30, 2015 Share Posted September 30, 2015 In the past I've used stock "approved" configs with good results. I've decided to dive in a bit deeper with a massive build on a SuperMicro 7048GR-TR (x10DRG mobo) and it seems I'll need a custom DSDT just to boot the 10.10.5 installer. I'm definitely new to making a custom DSDT and would greatly appreciate any assistance, even just a direction to go in. I've pulled the existing DSDT and SSDT via Clover, however for simplicity I've removed the 3x nVidia gtx 980ti, just the 960 is installed, not sure if that makes a difference... GTX 960 update OSX 10.10 and i have attachment config.plist ? and GTX 960 use nvdia web driver Link to comment Share on other sites More sharing options...
DonDonnelly Posted September 30, 2015 Author Share Posted September 30, 2015 Unfortunately still stops at the same KP... Link to comment Share on other sites More sharing options...
spakk Posted September 30, 2015 Share Posted September 30, 2015 this should work dsdt.zip Link to comment Share on other sites More sharing options...

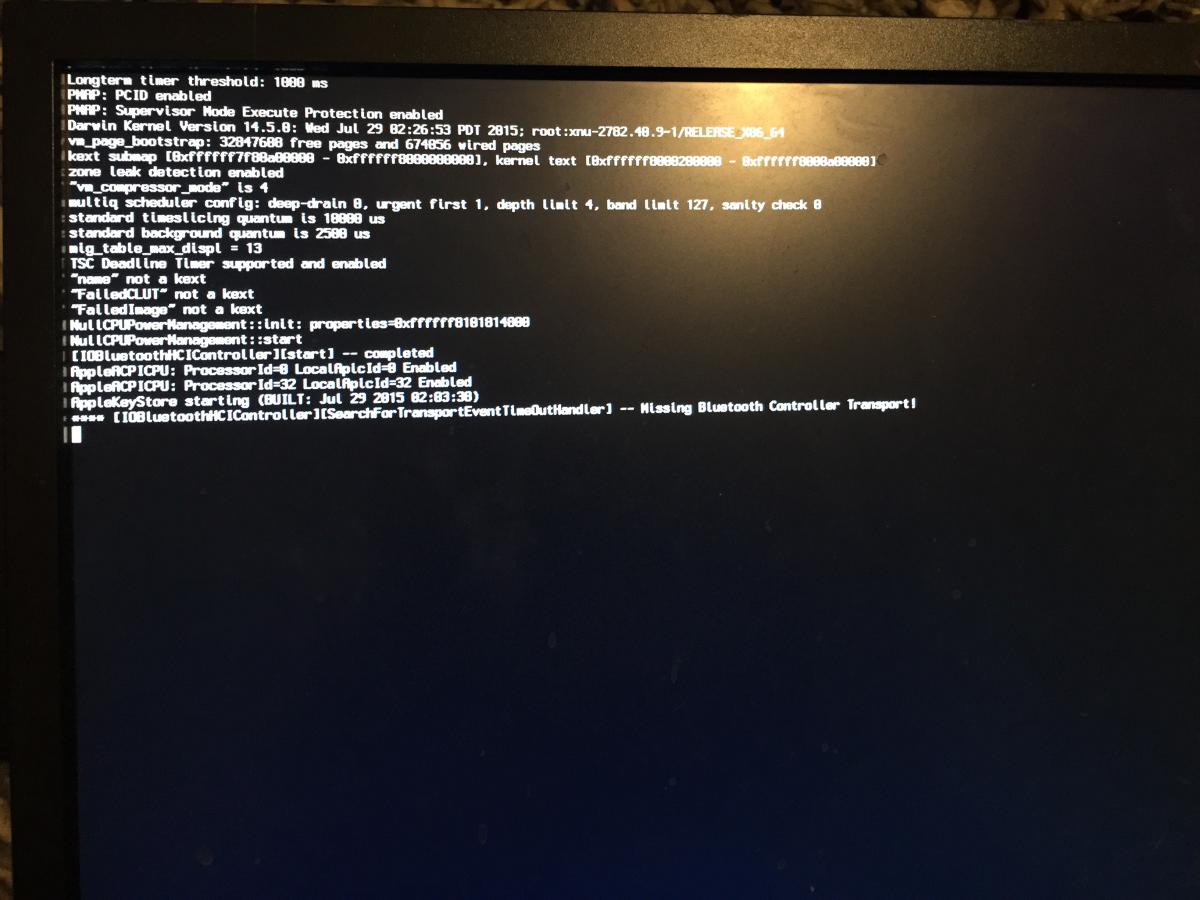

DonDonnelly Posted October 1, 2015 Author Share Posted October 1, 2015 Unfortunately I still get the same KP. I managed to get to the attached screen by limiting the CPU count in the BIOS to 1 (2 total). Not a kernel panic but it does hang here. Link to comment Share on other sites More sharing options...
DonDonnelly Posted October 27, 2015 Author Share Posted October 27, 2015 UPDATE: After a few more days of trial and error, I've managed to extract my ACPI tables via Ubuntu. I've removed all errors and warnings, however I don't know which patches to apply as I can't find anything related to this configuration. Attached are my cleaned .dsl, PCI Reg, and a screenshot of where the system hangs/reboots. Archive.zip Link to comment Share on other sites More sharing options...
