Couldn't shutdown completely (GA-P67A-UD3R-B3)


thy1225
 Share

15 posts in this topic

Recommended Posts

I'm running 10.10.4 with Clover Bootloader

Everything works find except I couldn't shutdown my computer completely  (The Power LED is still on and the Fan is still spinning)

Tried a lot of solutions on the forum but none of it works.



Can someone help me out?

Here's my setup and configuration files



Motherboard: GA-P67A-UD3R-B3

CPU: 3.39 GHz Intel Core i7

Graphic: AMD Radeon HD 6xxx 1024 MB

SSD: Intel 256GB



I attach the bootLog, Clover config file, DSDT and SSDT file

and here's the kexts I currently use:

     FakeSMC.kext
     GenericUSBXHCI.kext
     realtekALC.kext
     RealtekRTL8111.kext




Restart function kind of works.... (after the shutdown process, the LED and the fan will still on for like 30 secs before it start to boot )



Please help me solve this problem...

I'll try any solution if possible!

and if you need any other information, I'll post it up asap

thank!



BootLog_20150901.txt

clover_config_DSDT_SSDT_20150901.zip

Link to comment
Share on other sites

have you applied patch on dsdt and ssdt ? wich one ?



in clover config.plist:

in ACPI:

check FixHPET

check drop_oem_dsm

SSDT, check dropoem



your config fie is really not complete, don't you configure smbios in it ?

Link to comment
Share on other sites

have you applied patch on dsdt and ssdt ? wich one ?



in clover config.plist:

in ACPI:

check FixHPET

check drop_oem_dsm

SSDT, check dropoem



your config fie is really not complete, don't you configure smbios in it ?



My apology, I just notice the config.plist file I attached is not correct. Don't know how I ended up uploading that wrong one.

Here's the right config.plist I'm using right now and Yes, I configure the smbios in it, and you can see that in the config file this time.



I didn't patch the dsdt nor the ssdt file myself. (don't know how actually..)

I just download them from the web which said it's for this motherboard and use it till now @@



I configure the config.plist according your instruction but the problem remain, any idea what else I can try ?

Thanks a lot for helping :)

Link to comment
Share on other sites

Why don't you try fixing it with EvOreboot.kext and patched AppleRTC.kext.

It always solves all my reboot, shutdown, usb and cmos reset problems.



Thanks but I tried EvOreboot.kext and still no luck with it....

nothing happened~

so weird~

Link to comment
Share on other sites

I have seen interactions between DSDTs and the FixShutdown setting in the Acpi section of Clover. Secifically, if the setting was true the system would hang at shutdown. I assume you have tried this with FixShutdown false?



-MH



Yes, I tried setting the "FixShutdown" false but the shutdown still doesn't work as it should~



Thanks!

I don't know I can flash the MB from bios to UEFI and am willing to try this out!

btw, Is it possible to have your UEFI bios settings and clover config, DSDT, SSDT..etc

very appreciate :)

Link to comment
Share on other sites

Yes, I tried setting the "FixShutdown" false but the shutdown still doesn't work as it should~



Thanks!

I don't know I can flash the MB from bios to UEFI and am willing to try this out!

btw, Is it possible to have your UEFI bios settings and clover config, DSDT, SSDT..etc

very appreciate :)

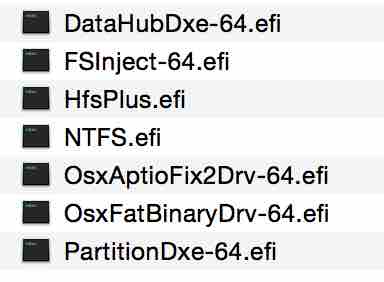

Fill the blank values (serial numbers,MLB... etc) in the config.plist on your own. And Good Luck. ;)

P67A-UD3R-B3 config.zip






kexts: FakeSMC&HWSensors,AppleHDA,AppleUSBXHCI(patch is already in config.plist)
