Enabling Intel HD4600 on Asus GL552JX on Clover Bootloader


pokerface
 Share

12 posts in this topic

Recommended Posts

Hello insanelymac!

I have bought Asus GL552JX recently. Its specs is:

i5-4200H

GTX 950M

6GB DDR3



I have installed Hackintosh through Niresh (Which is free). I have boot to desktop successfully. But it doesn't have full QE/CI. I tried to fix the problem by adding stuff to config.plist. But it hasn't fixed the problems. Can anyone help me figure this out? I'm just a 15 yo noob. Any help or suggestion would be appreciated.



Link to comment
Share on other sites

Hi and Welcome to InsanelyMac!



Try this:

<key>Devices</key>
<dict>
<key>FakeID</key>
<dict>
<key>IntelGFX</key>
<string>0x04168086</string>
...
<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>Intel</key>
<true/>
</dict>
<key>ig-platform-id</key>
<string>0x0d220003</string>

And install FakePCIID.kextFakePCIID_HD4600_HD4400.kext

Source: https://github.com/RehabMan/OS-X-Fake-PCI-ID

  • Like 2
Link to comment
Share on other sites

1 - Download Xcode (via AppStore) and Property List Editor (in the link that i send to you).

2 - After this, download Property List Editor (the .zip file), and follow the instrunctions for install this app.

3 - Open your config.plist with Property List Editor, and edit  ^_^

Link to comment
Share on other sites

  • 3 weeks later...

Hello,

at this moment I'm trying to make the HDMI output work on a HD4600 on GA z97x UD3H (CLOVER).

The system information shows the card model and says it has 1536MB of VRAM.

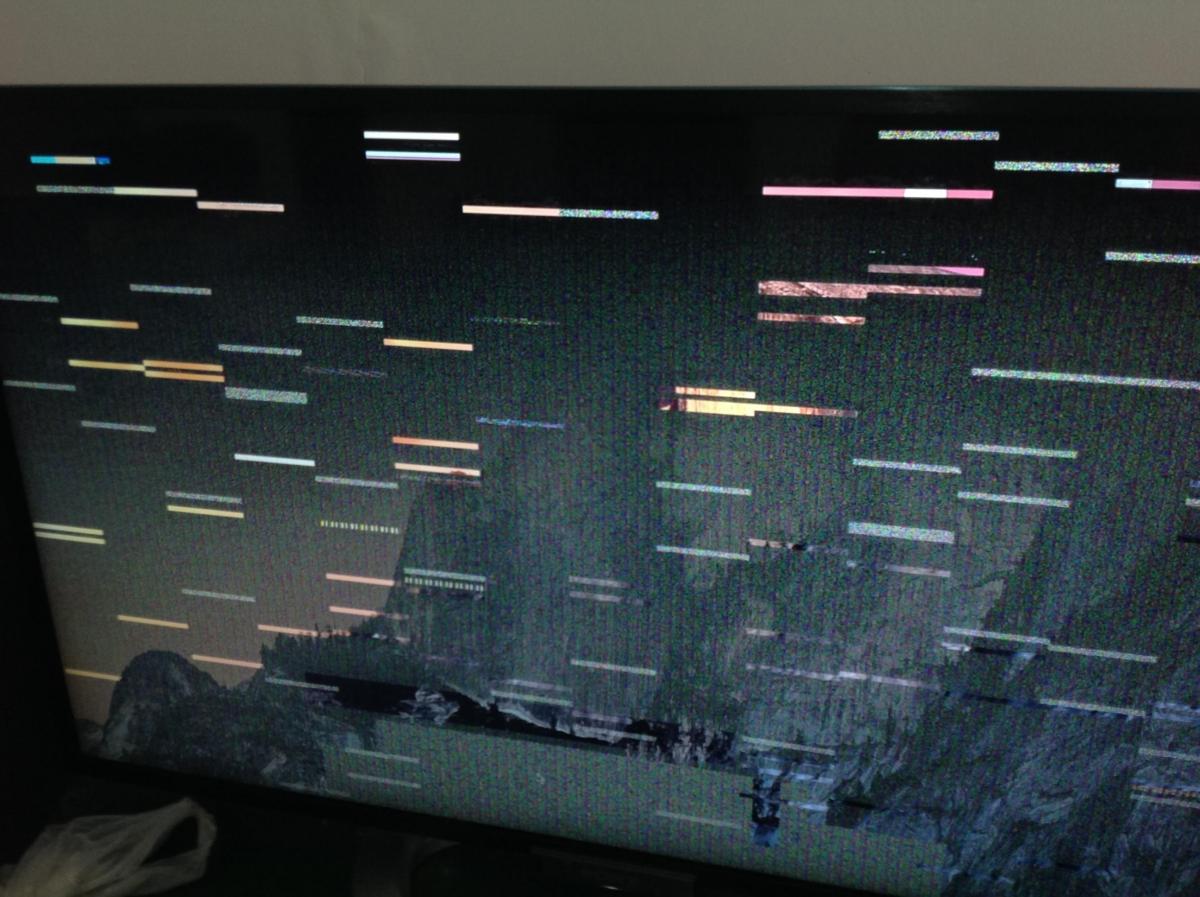

However video output is all messed up (attached image)



Could you give me a tip on how to make it work ?

Thank you very much in advance.



Juanma














Link to comment
Share on other sites

Hello,

at this moment I'm trying to make the HDMI output work on a HD4600 on GA z97x UD3H (CLOVER).

The system information shows the card model and says it has 1536MB of VRAM.

However video output is all messed up (attached image)



Could you give me a tip on how to make it work ?

Thank you very much in advance.



Juanma



Hi Juanma.



Try the methods that i've said above.

Link to comment
Share on other sites

BTW,



My cpu is:



i7 4790k



GAZ97xUD3H

 (hd4600 gpu showing 1536MB but hdmi integrated video not working)

 (audio via voodoo)



32gb 2400Mhz Kingston Beast RAM (showing 32gb 1333Mhz on Sys Info)



EVGA GT740sc 2GB

(installed with webdrivers, showing correct model and ram on sys info)

(hdmi not tested yet because of "mini" hdmi)

Link to comment
