[WIP] Z97X-UD7 TH thunderbolt DSDT


shiecldk
 Share

22 posts in this topic

Recommended Posts

In order to test thunderbolt dsdt codes (for Hot swapping & TB Ethernet), I'm trying to embed Real Mac's OperationRegion GPIO into my dsdt.

But I have repeated names in OperationRegion GPR in my original dsdt and recognized as errors.



Could anyone help me to combine these two together? :rolleyes:

        OperationRegion (GPIO, SystemIO, \GPBS, 0x64)
        Field (GPIO, ByteAcc, NoLock, Preserve)
        {
                ,   5,
            GU05,   1,
            Offset (0x01),
            Offset (0x02),
            Offset (0x03),
            Offset (0x04),
            GD00,   1,
                ,   3,
            GD04,   1,
                ,   5,
            GD10,   1,
                ,   1,
            GD12,   1,
                ,   1,
            GD14,   1,
            Offset (0x07),
            GD24,   1,
            Offset (0x08),
            Offset (0x0C),
                ,   3,
            GP03,   1,
            GP04,   1,
            GP05,   1,
            GP06,   1,
            GP07,   1,
            GP08,   1,
            GP09,   1,
            GP10,   1,
            GP11,   1,
            GP12,   1,
            GP13,   1,
            GP14,   1,
            GP15,   1,
            GP16,   1,
            GP17,   1,
            GP18,   1,
            GP19,   1,
            GP20,   1,
            GP21,   1,
            GP22,   1,
            GP23,   1,
            GP24,   1,
                ,   2,
            GP27,   1,
            GP28,   1,
            Offset (0x10),
            Offset (0x18),
            GB00,   8,
            GB01,   8,
            GB02,   8,
            GB03,   8,
            Offset (0x2C),
            GI00,   1,
                ,   2,
            GI03,   1,
            GI04,   1,
            GI05,   1,
            GI06,   1,
            Offset (0x2D),
            GI08,   1,
            GI09,   1,
            GI10,   1,
            GI11,   1,
            Offset (0x2E),
            Offset (0x2F),
            Offset (0x30),
            Offset (0x31),
            Offset (0x32),
            Offset (0x33),
            Offset (0x34),
            Offset (0x35),
            GD40,   1,
            GD41,   1,
            GD42,   1,
                ,   1,
            GD44,   1,
                ,   1,
            GD46,   1,
            Offset (0x36),
                ,   6,
            GD54,   1,
                ,   4,
            GD59,   1,
            GD60,   1,
            Offset (0x38),
                ,   1,
            GP33,   1,
                ,   2,
            GP36,   1,
            Offset (0x39),
            GP40,   1,
            GP41,   1,
            GP42,   1,
                ,   1,
            GP44,   1,
            GP45,   1,
            GP46,   1,
            Offset (0x3A),
            GP48,   1,
            GP49,   1,
            GP50,   1,
            GP51,   1,
            GP52,   1,
            GP53,   1,
            GP54,   1,
                ,   4,
            GP59,   1,
            GP60,   1,
            Offset (0x3C),
            Offset (0x40),
            Offset (0x41),
            Offset (0x42),
            Offset (0x43),
            Offset (0x44),
                ,   4,
            GD68,   1,
            GD69,   1,
            GD70,   1,
            GD71,   1,
            GD72,   1,
            GD73,   1,
            GD74,   1,
                ,   4,
                ,   8,
                ,   8,
            Offset (0x48),
            GP64,   1,
                ,   3,
            GP68,   1,
            GP69,   1,
            Offset (0x49),
            GP72,   1,
            GP73,   1,
            GP74,   1,
            Offset (0x4A),
            Offset (0x4B),
            Offset (0x4C)
        }
        OperationRegion (GPR, SystemIO, GPBS (), 0x0400)
        Field (GPR, ByteAcc, NoLock, Preserve)
        {
            GU00,   8,
            GU01,   8,
            GU02,   8,
            GU03,   8,
            GIO0,   8,
            GIO1,   8,
            GIO2,   8,
            GIO3,   8,
            Offset (0x0C),
            GL00,   8,
            GL01,   8,
            GL02,   8,
            GP24,   1,
                ,   2,
            GP27,   1,
            GP28,   1,
            Offset (0x10),
            Offset (0x18),
            GB00,   8,
            GB01,   8,
            GB02,   8,
            GB03,   8,
            Offset (0x2C),
            GIV0,   8,
            GIV1,   8,
            GIV2,   8,
            GIV3,   8,
            GU04,   8,
            GU05,   8,
            GU06,   8,
            GU07,   8,
            GIO4,   8,
            GIO5,   8,
            GIO6,   8,
            GIO7,   8,
            GL04,   8,
            GL05,   8,
            GL06,   8,
            GL07,   8,
            Offset (0x40),
            GU08,   8,
            GU09,   8,
            GU0A,   8,
            GU0B,   8,
            GIO8,   8,
            GIO9,   8,
            GIOA,   8,
            GIOB,   8,
            GL08,   8,
            GL09,   8,
            GL0A,   8,
            GL0B,   8
        }
Link to comment
Share on other sites

Sounds like your ACPI tables were disassembled incorrectly; when I did it (extracted them from the UEFI image), I got zero errors. You need to extract all of the SSDTs with the DSDT, place them in the same folder, and disassembled them properly with iasl:

iasl -da -dl *.aml

With this, I get zero errors in the DSDT:

ASL Input:     DSDT.dsl - 20243 lines, 632926 bytes, 9026 keywords
AML Output:    DSDT.aml - 74594 bytes, 2266 named objects, 6760 executable opcodes

Compilation complete. 0 Errors, 81 Warnings, 129 Remarks, 340 Optimizations

I'm not sure if GPIO is used for Thunderbolt hotplugging. I do not have any Thunderbolt hardware, but I think it might (key word might, I am not 100% sure) it has to do with the _GPE methods, or some of the other methods under the Thunderbolt device in a real Mac's ACPI tables. I've attached a disassembled ACPI table dump from an iMac15,1 (Retina 5K) [thanks to Pavo] which has the same Thunderbolt 2 controller (Intel DSL5520). SSDT-4 contains the Thunderbolt device. Perhaps it could be of some use.



Also, I think you can drop all of your OEM SSDTs except for the SaSsdt, which contains your graphics devices and HDMI audio devices.

iMac15,1 ACPI.zip

  • Like 1
Link to comment
Share on other sites

Sounds like your ACPI tables were disassembled incorrectly; when I did it (extracted them from the UEFI image), I got zero errors. You need to extract all of the SSDTs with the DSDT, place them in the same folder, and disassembled them properly with iasl:

iasl -da -dl *.aml

With this, I get zero errors in the DSDT:

ASL Input:     DSDT.dsl - 20243 lines, 632926 bytes, 9026 keywords
AML Output:    DSDT.aml - 74594 bytes, 2266 named objects, 6760 executable opcodes

Compilation complete. 0 Errors, 81 Warnings, 129 Remarks, 340 Optimizations

I'm not sure if GPIO is used for Thunderbolt hotplugging. I do not have any Thunderbolt hardware, but I think it might (key word might, I am not 100% sure) it has to do with the _GPE methods, or some of the other methods under the Thunderbolt device in a real Mac's ACPI tables. I've attached a disassembled ACPI table dump from an iMac15,1 (Retina 5K) [thanks to Pavo] which has the same Thunderbolt 2 controller (Intel DSL5520). SSDT-4 contains the Thunderbolt device. Perhaps it could be of some use.



Also, I think you can drop all of your OEM SSDTs except for the SaSsdt, which contains your graphics devices and HDMI audio devices.

Thanks! I've figured it out. That's exactly what I've done.  :)

Btw, I use the latest complied iasl, which is 20150619, by google searching and found hackintoshosx.com... :P  As I don't know how to comply the newest 20150818 source code from acpica.org in OSX lol.



That's the same ACPI files I'm investigating right now! Ha ha. I'm trying to insert all thunderbolt-related codes located in SSDT-4 (PcieTbt) to my current DSDT. And some required keys is located in GPIO in DSDT. I'm dropping SSDTs like CpuPm and Cpu0Ist with help of Clover.



MaciAsl consoled errors of repeated names in "OperationRegion GPR", after I inserted "OperationRegion GPIO". So I tried to delete the entire "OperationRegion GPR", and there is another error of "Object does not exist (GL08)". Therefore, I added GPR's GL08 into GPIO:

        OperationRegion (GPIO, SystemIO, GPBS (), 0x64)
        Field (GPIO, ByteAcc, NoLock, Preserve)
        {
                ,   5,
            GU05,   1,
//skip...
            Offset (0x40),
            GL08,   8,
            Offset (0x41),
//skip...
            Offset (0x4C)
        }

Hope it'll be no problem if I do nothing to "(GPIO, SystemIO, GPBS (), 0x64)" after adding it?



Thunderbolt DSDT fixes were tried and tested over a year ago with no success. On PCs the TB controller is not initialized in the same mode as on a Mac there for the Mac OS never sees it as TB but merely as normal PCIe. We even atempted to extract the TB EFI module from a mac pro and insert to a PC UEFI with no success.



While Ignoring warnings will let you compile, its still not good to ignore them, just use my patch for this mobo, its not that hard.

Good to see you in here PJALM! :D



I did see your repo fixs and fixed some warnings.

Could you help me fix the rests? This is my current DSDT with thunderbolt patches. (Not tested yet)

DSDT_TB_P1.dsl.zip



And this is my original DSDT extracted by iasl if you are interesting. Bios version is F6d

DSDT_F6d_Original.dsl.zip





Btw, I found out if I add this method (in the code boxes) under RP05.UPSB.DSM, OS X simply won't boot at all and stuck at PCI Configuration or FakeSMC.

And could you point me to the TB EFI module source?  :D

I'll post the exact screenshot later.



Scope (_SB.PCI0.RP05.UPSB)

    {
        Method (_DSM, 4, Serialized)  // _DSM: Device-Specific Method
        {
            Name (_T_1, Zero)  // _T_x: Emitted by ASL Compiler
            Name (_T_0, Zero)  // _T_x: Emitted by ASL Compiler
If (OSDW ())
                    {
                        If (LEqual (Arg0, Buffer (0x10)
                                {
                                    /* 0000 */   0xC6, 0xB7, 0xB5, 0xA0, 0x18, 0x13, 0x1C, 0x44,
                                    /* 0008 */   0xB0, 0xC9, 0xFE, 0x69, 0x5E, 0xAF, 0x94, 0x9B
                                }))
                        {
                            Store (Package (0x02)
                                {
                                    "PCI-Thunderbolt",
                                    0x01
                                }, Local0)
                            DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                            Return (Local0)
                        }
                    }

If ((Arg0 == ToUUID ("1730e71d-e5dd-4a34-be57-4d76b6a2fe37")))
//skip...
                Else
                {
                    Return (Buffer (One)
                    {
                         0x00                                             /* . */
                    })



                }
                    Return (Zero)
            }
        }



    }





Another tricky thing is that, if I put the DSDT into Clover without flash the DSDT into Bios, thunderbolt will not load at all when I check IOReg and thunderbolt-related kext won't load too.



RampageDev claims to have gotten one of the Thunderbolt ports on the GA-Z97X-UD7 TH working with hot plug support with an SSDT edit, but it appears he never released it.

I've seen that page too. Seems he's not gonna publish it, since according to his claim hot plug only work in one port sometimes?  :blink: I did ask him about thunderbolt problem too, he said the ports are usable without DSDT modifications, but my TB to Ethernet adapter just can't work... And I'd like to fix the slow boot speed problem without deleting AppleThunderboltNHI.kext after enabling thunderbolt. :P

Edited by shiecldk
Link to comment
Share on other sites

Thunderbolt DSDT fixes were tried and tested over a year ago with no success. On PCs the TB controller is not initialized in the same mode as on a Mac there for the Mac OS never sees it as TB but merely as normal PCIe. We even atempted to extract the TB EFI module from a mac pro and insert to a PC UEFI with no success.



While Ignoring warnings will let you compile, its still not good to ignore them, just use my patch for this mobo, its not that hard.

Could you tell us how and what are the advantages

to eliminate all Warnings and Remarks?

Link to comment
Share on other sites



While Ignoring warnings will let you compile, its still not good to ignore them, just use my patch for this mobo, its not that hard.

It's not hard to use your Patch, but It seems that your Patch was unable to fix all Warnings.

Don't believe everything he says. We have been working on a TB fix for over a year now with no luck.



I never mentioned 'Remarks' as a remark is just a comment but a warning is definitely something you need to pay attention too. Is it really that hard to fix them?



However, even the remarks are easy fixes.

You answer a question with a question, you're really funny guy.

Link to comment
Share on other sites

Have you set the Thunderbolt Security mode to legacy in your BIOS? You also might need to boot Windows and install the Thunderbolt drivers before the ports will work (not 100% sure).

I'm already in Legacy mode ;), not even had I ever tried Unique ID mode. I haven't installed Windows yet, will try later. :) Does that means each time I want to use thunderbolt, I need to boot into Windows first? :cry:

Is it possible to develop a thunderbolt driver just like BTFirmwareUpdater but it's out of my ability as a student of dept. physics.  :|

Link to comment
Share on other sites

Don't believe everything he says. We have been working on a TB fix for over a year now with no luck.



I never mentioned 'Remarks' as a remark is just a comment but a warning is definitely something you need to pay attention too. Is it really that hard to fix them?



However, even the remarks are easy fixes.

being so easy you could explain how to correct them?

Link to comment
Share on other sites

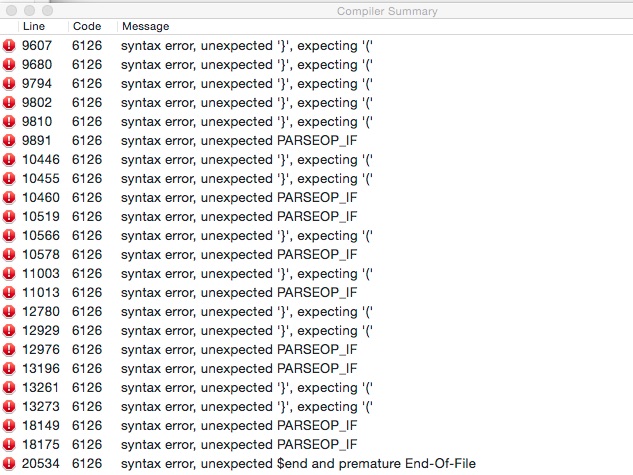

Hello!
