Yosemite MacPro6,1 SMBios problem


Diazz72
 Share

6 posts in this topic

Recommended Posts

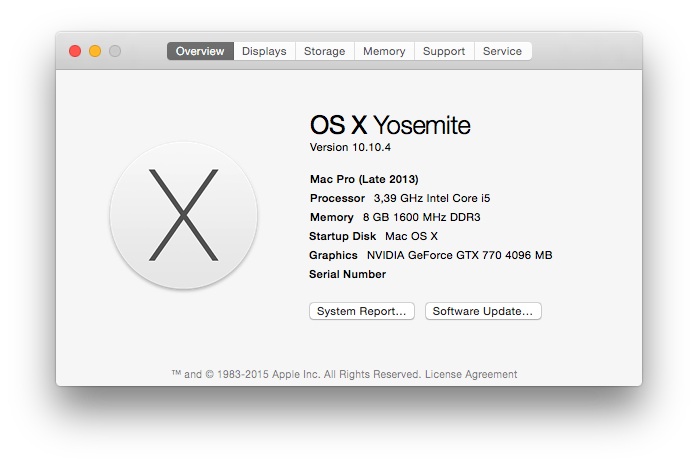

Hi guys, i am having problem on my hackintosh while using MacPro6,1 SMBios, the problem is when i use MacPro6,1 SMBios after first Boot Stage i get black screen, and if i use iMac SMBios everything is OK, strange thing is 10.10 is working ok whit my MacPro6,1 SMBios and 10.10.4 is not.

Now you must ask your self why is this guy trying to use MacPro6,1 SMBios is iMac is working whit out of a problem...well i do not have legit iMac SN but i have legit SN of MacPro6,1 from work so that is the reason...i want to use AppStore, iTunes, Messages...etc whit out problem and risking a ban.




Now my PC is:
CPU: Intel i5 - 4670K
GPU: Gainward GeForce GTX 770 Phantom II 4GB
MBO: Asus Vanguard B85 ( TUF )

Here is my Config.plist

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
        <key>Hide Partition</key>
        <string>"Recovery HD"</string>
<key>ACPI</key>
<dict>
<key>DSDT</key>
<dict>
<key>Debug</key>
<false/>
<key>Fixes</key>
<dict>
<key>AddDTGP_0001</key>
<true/>
<key>AddHDMI_8000000</key>
<true/>
<key>AddIMEI_80000</key>
<true/>
<key>AddMCHC_0008</key>
<false/>
<key>AddPNLF_1000000</key>
<true/>
<key>DeleteUnused_400000</key>
<true/>
<key>FIX_ACST_4000000</key>
<true/>
<key>FIX_ADP1_800000</key>
<true/>
<key>FIX_INTELGFX_100000</key>
<false/>
<key>FIX_RTC_20000</key>
<true/>
<key>FIX_S3D_2000000</key>
<true/>
<key>FIX_TMR_40000</key>
<true/>
<key>FIX_WAK_200000</key>
<true/>
<key>FakeLPC_0020</key>
<false/>
<key>FixAirport_4000</key>
<true/>
<key>FixDarwin_0002</key>
<false/>
<key>FixDisplay_0100</key>
<true/>
<key>FixFirewire_0800</key>
<true/>
<key>FixHDA_8000</key>
<true/>
<key>FixHPET_0010</key>
<true/>
<key>FixIDE_0200</key>
<false/>
<key>FixIPIC_0040</key>
<true/>
<key>FixLAN_2000</key>
<true/>
<key>FixRegions_10000000</key>
<true/>
<key>FixSATA_0400</key>
<false/>
<key>FixSBUS_0080</key>
<false/>
<key>FixShutdown_0004</key>
<true/>
<key>FixUSB_1000</key>
<false/>
<key>NewWay_80000000</key>
<true/>
</dict>
<key>Name</key>
<string>DSDT.aml</string>
</dict>
<key>DropTables</key>
<array>
<dict>
<key>Signature</key>
<string>DMAR</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>CpuPm</string>
</dict>
<dict>
<key>Signature</key>
<string>SSDT</string>
<key>TableId</key>
<string>Cpu0Ist</string>
</dict>
</array>
<key>HaltEnabler</key>
<true/>
<key>SSDT</key>
<dict>
<key>EnableC2</key>
<false/>
<key>EnableC4</key>
<false/>
<key>EnableC6</key>
<true/>
<key>EnableC7</key>
<false/>
<key>Generate</key>
<dict>
<key>CStates</key>
<true/>
<key>PStates</key>
<true/>
</dict>
</dict>
</dict>
<key>Boot</key>
<dict>
<key>Arguments</key>
<string>kext-dev-mode=1</string>
<key>CustomLogo</key>
<false/>
<key>DefaultVolume</key>
<string>Mac OS X</string>
<key>Fast</key>
<false/>
<key>Legacy</key>
<string>PBR</string>
<key>Log</key>
<false/>
<key>Timeout</key>
<integer>8</integer>
<key>XMPDetection</key>
<string>-1</string>
</dict>
<key>Devices</key>
<dict>
<key>Audio</key>
<dict>
<key>Inject</key>
<string>No</string>
</dict>
<key>FakeID</key>
<dict>
<key>ATI</key>
<string>0x0</string>
<key>IMEI</key>
<string>0x0</string>
<key>IntelGFX</key>
<string>0x0</string>
<key>LAN</key>
<string>0x0</string>
<key>NVidia</key>
<string>0x0</string>
<key>SATA</key>
<string>0x0</string>
<key>WIFI</key>
<string>0x0</string>
<key>XHCI</key>
<string>0x0</string>
</dict>
<key>Inject</key>
<false/>
<key>USB</key>
<dict>
<key>AddClockID</key>
<true/>
<key>FixOwnership</key>
<true/>
<key>Inject</key>
<true/>
</dict>
</dict>
<key>DisableDrivers</key>
<array>
<string>Nothing</string>
</array>
<key>GUI</key>
<dict>
<key>Hide</key>
<array>
<string>Windows</string>
<string>BOOTX64.EFI</string>
</array>
<key>Language</key>
<string>en:0</string>
                <key>Custom</key>
                <dict>
<key>Type</key>
<string>OSXRecovery</string>
        <key>Hidden</key>
        <true/>
                </dict>
<key>Mouse</key>
<dict>
<key>Enabled</key>
<true/>
<key>Speed</key>
<integer>8</integer>
</dict>
<key>Scan</key>
<dict>
<key>Entries</key>
<true/>
<key>Legacy</key>
<false/>
<key>Tool</key>
<true/>
</dict>
<key>ScreenResolution</key>
<string>1920x1080</string>
<key>TextOnly</key>
<false/>
<key>Theme</key>
<string>applestyle000</string>
</dict>
<key>Graphics</key>
<dict>
<key>Inject</key>
<dict>
<key>ATI</key>
<false/>
<key>Intel</key>
<true/>
<key>NVidia</key>
<false/>
</dict>
<key>PatchVBios</key>
<true/>
<key>VRAM</key>
<integer>4096</integer>
</dict>
<key>KernelAndKextPatches</key>
<dict>
<key>AppleRTC</key>
<true/>
<key>AsusAICPUPM</key>
<true/>
<key>Debug</key>
<false/>
<key>KernelCpu</key>
<false/>
<key>KextsToPatch</key>
<array>
<dict>
<key>Comment</key>
<string>External icons patch</string>
<key>Find</key>
<data>
RXh0ZXJuYWw=
</data>
<key>Name</key>
<string>AppleAHCIPort</string>
<key>Replace</key>
<data>
SW50ZXJuYWw=
</data>
</dict>
</array>
</dict>
<key>RtVariables</key>
<dict>
<key>LogEveryBoot</key>
<string>10</string>
<key>LogLineCount</key>
<integer>3000</integer>
<key>MountEFI</key>
<true/>
</dict>
<key>SMBIOS</key>
<dict>
<key>BiosReleaseDate</key>
<string>06/12/13</string>
<key>BiosVendor</key>
<string>Apple Inc.</string>
<key>BiosVersion</key>
<string>MP61.88Z.0116.B04.1312061508</string>
<key>Board-ID</key>
<string>Mac-F60DEB81FF30ACF6</string>
<key>BoardManufacturer</key>
<string>Apple Inc.</string>
<key>BoardType</key>
<integer>11</integer>
<key>BoardVersion</key>
<string>MacPro6,1</string>
<key>ChassisAssetTag</key>
<string>Pro-Enclosure</string>
<key>ChassisManufacturer</key>
<string>Apple Inc.</string>
<key>ChassisType</key>
<integer>6</integer>
<key>Family</key>
<string>Mac Pro</string>
<key>Manufacturer</key>
<string>Apple Inc.</string>
<key>ProductName</key>
<string>MacPro6,1</string>
<key>SerialNumber</key>
<string>XXXXXXXXXXXX</string>
<key>Server</key>
<string>No</string>
<key>Trust</key>
<true/>
<key>Version</key>
<string>1.0</string>
</dict>
<key>SystemParameters</key>
<dict>
<key>InjectKexts</key>
<string>Detect</string>
<key>InjectSystemID</key>
<true/>
</dict>
</dict>
</plist>
