NagRaj Posted June 30, 2015 Share Posted June 30, 2015 I've a HP Envy 15-k204tx, 5th Gen i7- 5500U ( broadwell ). Task : Trying to make Yosemite work on this laptop. It has Intel HD 5500 Graphics and NVIDIA GeForce GTX 850M (Optimus). Success so far : I've successfully installed Yosemite 10.10.3 on a separate partition. Can boot from the clover pen drive. Issues : Graphics is not accelerated. There are a few more but my primary focus here is to make Graphics work. What is understood : 1) Optimus does not work, so forget about nvdia. How / What I did : 1) Created a bootable pendrive from the Yosemite app downloaded from app store. 2) Installed Clover to the fat partition of the pendrive. 3) Used clover options like kext-dev-mode=1 nv_disable=1 4) Successfully installed Yosemite and booted successfully using the clover on pendrive. Using config.plist, injected Intel and ig-platform-id=16160000 and also tried with ig-platform-id=16160002 device-id=80861616 Graphics card is identified as "Intel HD 5500" but the vram that it shows is 7 mb. My system has 4 GB of graphics memory. From what I've read on the internet, atleast 1536 mb should be recognized as vram. No kext for graphics is loaded - obviously. In tutorials on the internet, I come to know that I have to check DVMT and it should be atleast 64 mb to pass the stolenMemory error. I tried to change DVMT in various ways. For instance, I booted with EFI-shell, used "setup_var 0x18c 0x3" which could not change the variable value and threw error. So i checked with "setup_var2 0x18c 0x3" which did change the value but it was reverted once the system rebooted. I tried to edit the file "/sys/firmware/efi/efivars/Setup-XXX" but was unable to save it. Access to write to efivars was denied each time. (Yes i did use sudo). [P.S. 0x18c is my DVMT variable. Bios is Insyde F.34] So I had to patch AppleIntelBDWGraphicsFramebuffer binary to skip stolenMemory Error. This allowed me to install Yosemite and boot. What is working : 1) Ethernet. 2) Keyboard / touchpad / touchscreen. What is not working : 1) Graphics 2) Wireless 3) Audio 4) Bluetooth 5) and more. Can anyone help me out here to make the graphics work ? Link to comment Share on other sites More sharing options...
vusun123 Posted June 30, 2015 Share Posted June 30, 2015 Austere J has the info you need about the VRAM thing. In many situation, EFI Shell methods won't work, so I suggest using Linux to change it Link to comment Share on other sites More sharing options...
NagRaj Posted June 30, 2015 Author Share Posted June 30, 2015 Ya I tried with Ubuntu. Won't let me write to /sys/firmware/efi/efivars. Its always access denied or invalid argument. If you've the same system could you please share your bios? Link to comment Share on other sites More sharing options...
vusun123 Posted July 2, 2015 Share Posted July 2, 2015 Did you use sudo ? Link to comment Share on other sites More sharing options...
NagRaj Posted July 2, 2015 Author Share Posted July 2, 2015 Did you use sudo ? Yes I did. Link to comment Share on other sites More sharing options...
xzones2015 Posted July 18, 2015 Share Posted July 18, 2015 @nagraj man how do you patch AppleIntelBDWGraphicsFramebuffer binary? please enlighten me Link to comment Share on other sites More sharing options...
duduclx Posted August 13, 2015 Share Posted August 13, 2015 hi, two way to patch AppleIntelBDWGraphicsFramebuffer binary: 1: Patch the file directly Make a copy of the kext on your desktop show packages / contents/mac/AppleIntelBDWGraphicsFramebuffer Open this file with hex editor (hex fiend) select file/find... type your code to find and replace apply and save That's it ! 2: patch on vram use clover kext to patch options open your config.plist with your favorite editor (plistedit pro is good for hexa patching) you should have something like that: <key>KernelAndKextPatches</key> <dict> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Disable minStolenSize less or equal fStolenMemorySize assertion, 10.10.x (based on Austere.J patch)</string> <key>Name</key> <string>disabled:AppleIntelBDWGraphicsFramebuffer</string> <key>Find</key> <data>Oc92PA==</data> <key>Replace</key> <data>Oc/rPA==</data> </dict> this code is one for HD5500 from rehabman, you can have the full config.plist here: https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/config_HD5300_5500_6000.plist cheers Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted December 14, 2015 Share Posted December 14, 2015 hi, two way to patch AppleIntelBDWGraphicsFramebuffer binary: 1: Patch the file directly Make a copy of the kext on your desktop show packages / contents/mac/AppleIntelBDWGraphicsFramebuffer Open this file with hex editor (hex fiend) select file/find... type your code to find and replace apply and save That's it ! 2: patch on vram use clover kext to patch options open your config.plist with your favorite editor (plistedit pro is good for hexa patching) you should have something like that: <key>KernelAndKextPatches</key> <dict> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Disable minStolenSize less or equal fStolenMemorySize assertion, 10.10.x (based on Austere.J patch)</string> <key>Name</key> <string>disabled:AppleIntelBDWGraphicsFramebuffer</string> <key>Find</key> <data>Oc92PA==</data> <key>Replace</key> <data>Oc/rPA==</data> </dict> this code is one for HD5500 from rehabman, you can have the full config.plist here: https://github.com/RehabMan/OS-X-Clover-Laptop-Config/blob/master/config_HD5300_5500_6000.plist cheers I think itu should be <key>Name</key> <string>AppleIntelBDWGraphicsFramebuffer</string> You need to remove "disable:" before "AppleIntelBDWGraphicsFramebuffer" or it won't work. Am i right?? Link to comment Share on other sites More sharing options...
Laquari95 Posted December 25, 2015 Share Posted December 25, 2015 i have syccesfulyly installed , how can i activate the grphics? i have set in bios 64mb , and i use the config of rehabman, my hd5500 isnt recognize Link to comment Share on other sites More sharing options...
Codinger Posted December 25, 2015 Share Posted December 25, 2015 i have syccesfulyly installed , how can i activate the grphics? i have set in bios 64mb , and i use the config of rehabman, my hd5500 isnt recognize Upload your Vendor and Device ID and i will patch it for you Link to comment Share on other sites More sharing options...
Laquari95 Posted December 25, 2015 Share Posted December 25, 2015 Upload your Vendor and Device ID and i will patch it for you i dont understand what is vendor and device id i have an hp 15 ac158nl with i3 5005u and hd5500 i have uploaded my clover folder thank you! Merry Christmas CLOVER.rar Link to comment Share on other sites More sharing options...

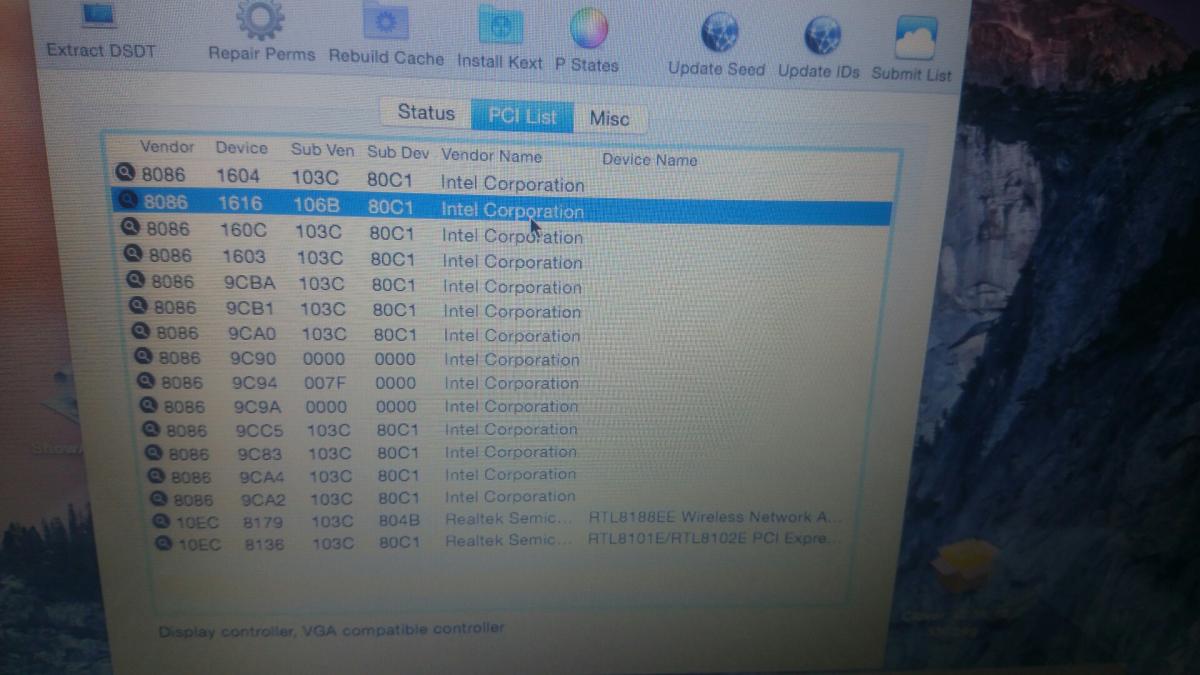

Laquari95 Posted December 26, 2015 Share Posted December 26, 2015 Upload your Vendor and Device ID and i will patch it for you hi i have used dpci manager for vendor and device id i uploaded a photo of vga i will list all vendor and device Vendor is the same for all : 8086, device:1604 (bridge,host brisge),device: 1616 (display controller, vga compatible controller),device:160C (multimedia controller,audio device) device:1603(signal processing controller, signal processing controller),device:9CBA comunication controller,device: 9CA0 multimedia controller audio device, device:9C90 BRIDGE, pci bridge ; Link to comment Share on other sites More sharing options...
Codinger Posted December 26, 2015 Share Posted December 26, 2015 hi i have used dpci manager for vendor and device id i uploaded a photo of vga i will list all vendor and device Vendor is the same for all : 8086, device:1604 (bridge,host brisge),device: 1616 (display controller, vga compatible controller),device:160C (multimedia controller,audio device) device:1603(signal processing controller, signal processing controller),device:9CBA comunication controller,device: 9CA0 multimedia controller audio device, device:9C90 BRIDGE, pci bridge ; Try with this config -- config.plist.zip Link to comment Share on other sites More sharing options...
Laquari95 Posted December 26, 2015 Share Posted December 26, 2015 Try with this config -- config.plist.zip pm for you osb i am on 10.10 Link to comment Share on other sites More sharing options...
