Yosemite installation working almost flawless except one problem [HELP]

Genty · April 18, 2015

My build: AMD FX 8150 + Asus m5a99x evo + Radeon HD 7850+ 16 GB RAM

After failing to make Mavericks work, I tried Yosemite and succeeded. Its working really well with full Graphics Support.

My only problem is CPU clockspeed.My CPU is always running at a high clockspeed due to which it gets hot very quickly. in just 15-20 minutes of normal usage it can get upto 60 C or even above that. I also run windows and Linux mint on same machine but it hardly ever gets hotter than 48 C on them with normal usage. I understand that CPU throttling might not work on Hackintosh but is there a way to downclock my CPU just on Mac without affecting its Performance on Windows and Linux?

I tried "busratio=7" bootflag. Instead of solving my problem it created one more. Everything speeds up in Mac using it (for example shutdown countdown runs twice the normal speed of time).

I have also tried SSDT from Rampage Dev's AMD DMG. It seemed to help, decreased my temps from 60-61 to 56- 58. But its still bad. I did not try anything else from AMD DMG, only the SSDT, as I do not want to break otherwise flawless installation of Yosemite.

gils83 · April 18, 2015

My build: AMD FX 8150 + Asus m5a99x evo + Radeon HD 7850+ 16 GB RAM

After failing to make Mavericks work, I tried Yosemite and succeeded. Its working really well with full Graphics Support.

My only problem is CPU clockspeed.My CPU is always running at a high clockspeed due to which it gets hot very quickly. in just 15-20 minutes of normal usage it can get upto 60 C or even above that. I also run windows and Linux mint on same machine but it hardly ever gets hotter than 48 C on them with normal usage. I understand that CPU throttling might not work on Hackintosh but is there a way to downclock my CPU just on Mac without affecting its Performance on Windows and Linux?

I tried "busratio=7" bootflag. Instead of solving my problem it created one more. Everything speeds up in Mac using it (for example shutdown countdown runs twice the normal speed of time).

I have also tried SSDT from Rampage Dev's AMD DMG. It seemed to help, decreased my temps from 60-61 to 56- 58. But its still bad. I did not try anything else from AMD DMG, only the SSDT, as I do not want to break otherwise flawless installation of Yosemite.

cool n' quiet is enable ?

Genty · April 18, 2015

cool n' quiet is enable ?

Yes it is enabled in Bios and works in both Linux and Windows 8.1 but does not work in Mac

gils83 · April 18, 2015

C6State enable ?

<key>Generate</key>

<dict>

<key>CStates</key>

<true/>

<key>PStates</key>

<true/>

</dict>

<key>EnableC7</key>

<key>EnableC6</key>

<true/>

<key>EnableC4</key>

<key>EnableC2</key>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FixAirport_4000</key>
				<true/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<true/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<true/>
				<key>FixLAN_2000</key>
				<true/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<true/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<true/>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FIX_TMR_40000</key>
				<true/>
				<key>AddIMEI_80000</key>
				<true/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_WAK_200000</key>
				<true/>
				<key>DeleteUnused_400000</key>
				<true/>
				<key>FIX_ADP1_800000</key>
				<true/>
				<key>AddPNLF_1000000</key>
				<true/>
				<key>FIX_S3D_2000000</key>
				<true/>
				<key>FIX_ACST_4000000</key>
				<true/>
				<key>AddHDMI_8000000</key>
				<true/>
				<key>FixRegions_10000000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<true/>
			</dict>
			<key>EnableC7</key>
			<false/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC4</key>
			<false/>
			<key>EnableC2</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
                <key>Arguments</key>
		<string>npci=0x2000 kext-dev-mode=1</string>
                <key>DefaultVolume</key>
		<string>Yosemite</string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>1</integer>
		<key>XMPDetection</key>
		<string>-1</string>
        </dict>
	<key>CPU</key>
	<dict>
		<key>BusSpeedkHz</key>
		<integer>100000</integer>
		<key>FrequencyMHz</key>
		<integer>2050</integer>
        </dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>No</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
		</dict>
		<key>Inject</key>
		<false/>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>metal</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Lotus</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>VRAM</key>
		<integer>1024</integer>
		<key>VideoPorts</key>
		<integer>2</integer>

		</dict>
		<key>PatchVBios</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<true/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

https://youtu.be/Q6Ufmwa8vhs

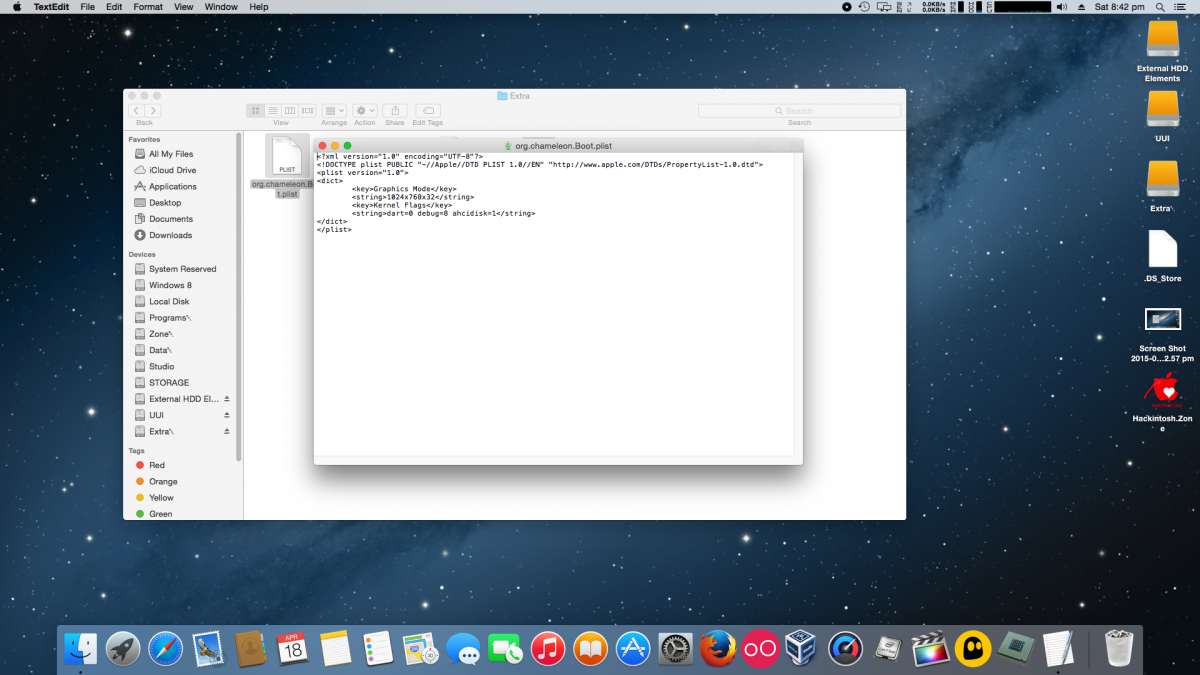

Genty · April 18, 2015

C6State enable ?

<key>Generate</key>

<dict>

<key>CStates</key>

<true/>

<key>PStates</key>

<true/>

</dict>

<key>EnableC7</key>

<key>EnableC6</key>

<true/>

<key>EnableC4</key>

<key>EnableC2</key>

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>Fixes</key>
			<dict>
				<key>AddDTGP_0001</key>
				<true/>
				<key>AddMCHC_0008</key>
				<false/>
				<key>FakeLPC_0020</key>
				<false/>
				<key>FixAirport_4000</key>
				<true/>
				<key>FixDarwin_0002</key>
				<false/>
				<key>FixDisplay_0100</key>
				<true/>
				<key>FixFirewire_0800</key>
				<true/>
				<key>FixHDA_8000</key>
				<true/>
				<key>FixHPET_0010</key>
				<true/>
				<key>FixIDE_0200</key>
				<false/>
				<key>FixIPIC_0040</key>
				<true/>
				<key>FixLAN_2000</key>
				<true/>
				<key>FixSATA_0400</key>
				<false/>
				<key>FixSBUS_0080</key>
				<false/>
				<key>FixShutdown_0004</key>
				<true/>
				<key>FixUSB_1000</key>
				<false/>
				<key>NewWay_80000000</key>
				<true/>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FIX_TMR_40000</key>
				<true/>
				<key>AddIMEI_80000</key>
				<true/>
				<key>FIX_INTELGFX_100000</key>
				<false/>
				<key>FIX_WAK_200000</key>
				<true/>
				<key>DeleteUnused_400000</key>
				<true/>
				<key>FIX_ADP1_800000</key>
				<true/>
				<key>AddPNLF_1000000</key>
				<true/>
				<key>FIX_S3D_2000000</key>
				<true/>
				<key>FIX_ACST_4000000</key>
				<true/>
				<key>AddHDMI_8000000</key>
				<true/>
				<key>FixRegions_10000000</key>
				<true/>
			</dict>
			<key>Name</key>
			<string>DSDT.aml</string>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>CpuPm</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>Cpu0Ist</string>
			</dict>
		</array>
		<key>HaltEnabler</key>
		<true/>
		<key>SSDT</key>
		<dict>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<true/>
				<key>PStates</key>
				<true/>
			</dict>
			<key>EnableC7</key>
			<false/>
			<key>EnableC6</key>
			<true/>
			<key>EnableC4</key>
			<false/>
			<key>EnableC2</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
                <key>Arguments</key>
		<string>npci=0x2000 kext-dev-mode=1</string>
                <key>DefaultVolume</key>
		<string>Yosemite</string>
		<key>Fast</key>
		<false/>
		<key>Legacy</key>
		<string>PBR</string>
		<key>Log</key>
		<false/>
		<key>Timeout</key>
		<integer>1</integer>
		<key>XMPDetection</key>
		<string>-1</string>
        </dict>
	<key>CPU</key>
	<dict>
		<key>BusSpeedkHz</key>
		<integer>100000</integer>
		<key>FrequencyMHz</key>
		<integer>2050</integer>
        </dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>No</string>
		</dict>
		<key>FakeID</key>
		<dict>
			<key>ATI</key>
			<string>0x0</string>
			<key>IntelGFX</key>
			<string>0x0</string>
			<key>LAN</key>
			<string>0x0</string>
			<key>NVidia</key>
			<string>0x0</string>
			<key>SATA</key>
			<string>0x0</string>
			<key>WIFI</key>
			<string>0x0</string>
			<key>XHCI</key>
			<string>0x0</string>
			<key>IMEI</key>
			<string>0x0</string>
		</dict>
		<key>Inject</key>
		<false/>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<false/>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>Hide</key>
		<array>
			<string>Windows</string>
			<string>BOOTX64.EFI</string>
		</array>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<true/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<true/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>TextOnly</key>
		<false/>
		<key>Theme</key>
		<string>metal</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>FBName</key>
		<string>Lotus</string>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>VRAM</key>
		<integer>1024</integer>
		<key>VideoPorts</key>
		<integer>2</integer>

		</dict>
		<key>PatchVBios</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>Debug</key>
		<false/>
		<key>KernelCpu</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>External icons patch</string>
				<key>Find</key>
				<data>RXh0ZXJuYWw=</data>
				<key>Name</key>
				<string>AppleAHCIPort</string>
				<key>Replace</key>
				<data>SW50ZXJuYWw=</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>LogEveryBoot</key>
		<string>10</string>
		<key>LogLineCount</key>
		<integer>3000</integer>
		<key>MountEFI</key>
		<true/>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
		<key>InjectSystemID</key>
		<true/>
	</dict>
</dict>
</plist>

https://youtu.be/Q6Ufmwa8vhs

Yes C6 state is also Enabled in BIOS. I am posting the screen shot of my SMbios.list file. I have tried enable "Generate the P-States and C-states in Chameleon Wizard. But it had no effect. :-(

Allan · April 25, 2015

Topic moved fot the right place.

Note: This area is dedicated to developing, not for asking help.

Yosemite installation working almost flawless except one problem [HELP]

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
