Help with BCM94360CD Bluetooth


leisgean
 Share

12 posts in this topic

Recommended Posts

I purchased this and plugged it in:



          Set of Hackintosh Apple BCM94360CD BT4.0 Wifi Card & PCI-E Adapter With Antenna



Wi-Fi is working fine (system report):



en0:

  Card Type: AirPort Extreme  (0x14E4, 0x111)

  Firmware Version: Broadcom BCM43xx 1.0 (7.15.159.13.12)

  MAC Address: b8:09:8a:cd:8b:e3

  Locale: FCC

  Country Code: US

  Supported PHY Modes: 802.11 a/b/g/n/ac

  Supported Channels: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165

  Wake On Wireless: Supported

  AirDrop: Supported



  Status: Connected



Bluetooth however is not. System report say 'no information available' under bluetooth.  The following shows up in the system report under USB, which makes me think it's recognizing the device as bluetooth capable, but not utilizing it for some reason.  Any help would be appreciated.



          BRCM20702 Hub:



  Product ID: 0x4500

  Vendor ID: 0x0a5c  (Broadcom Corp.)

  Version: 1.00

  Speed: Up to 12 Mb/sec

  Manufacturer: Apple Inc.

  Location ID: 0x14e00000 / 10

  Current Available (mA): 500

  Current Required (mA): 94



Broadcom Bluetooth Download Device:



  Product ID: 0xf007

  Vendor ID: 0x05ac  (Apple Inc.)

  Version: 0.65

  Speed: Up to 12 Mb/sec

  Manufacturer: Broadcom Corp

  Location ID: 0x14e30000 / 11

  Current Available (mA): 500

  Current Required (mA): Unknown (Device has not been configured)

Link to comment
Share on other sites

hello



i think ur problem is here



Current Required (mA): Unknown (Device has not been configured)



have u read the half mini guide from toleda ?



maybe there u have any tip about ur problem



good hack

Link to comment
Share on other sites

You didn't get the original Apple card. The product ID of the Bluetooth chip is different. I have the same problem from the same seller.

Start reading here: http://www.insanelymac.com/forum/topic/302410-patch-enabling-handoff-for-non-apple-bt4-devices/?p=2111656

I posted in another thread about that too but I'm on mobile and can't quickly find that other post. Check my posts on my profile...

  • Like 1
Link to comment
Share on other sites

VirusX Thanks a ton for the info. I just got the bluetooth working using the kext mentioned on the thread you linked to!  No Handoff as of yet, but I haven't read through or tried everything since I got the bluetooth up and working.

Link to comment
Share on other sites

for handoff you probably have to add the handoff patch to clover (also mentioned in the linked thread)

Add this to KextsToPatch in clover:

           Filename: IOBluetoothFamily
           Find: 48 85 C0 74 5C 0F B7 48
           Replace: 41 BE 0F 00 00 00 EB 59

please report back if you got wifi and bluetooth up and running at the same time. This is where I have problems right now. As soon as I turn bluetooth on, my wifi connection rate drops to almost zero. Maybe this is a yosemite issue though. Bluetooth is using the same (2.4 GHz) frequency as my wifi - maybe they interfere :(

Link to comment
Share on other sites

  • 1 month later...

Sorry it took me so long to get back. Messed up my whole extensions file folder doing something stupid, so this issue got put on the burner.  Anyway, hope this helps.





From what I remember the only thing I did before I went MIA was install the bt firmware uploader kext from the thread you linked me to and everything bluetooth related, including airdrop, worked except for continuity/handoff.



I yesterday I got my whole system up and running and installed the continuity activation tool: https://github.com/dokterdok/Continuity-Activation-Tool/ followed its instructions and everything worked.

Link to comment
Share on other sites

  • 2 weeks later...

You didn't get the original Apple card. The product ID of the Bluetooth chip is different. I have the same problem from the same seller.

Start reading here: http://www.insanelymac.com/forum/topic/302410-patch-enabling-handoff-for-non-apple-bt4-devices/?p=2111656

I posted in another thread about that too but I'm on mobile and can't quickly find that other post. Check my posts on my profile...





Damn, sorry about that ; so where to find genuine Apple ones?

Link to comment
Share on other sites

I guess one way would be to contact the seller beforehand and ask if they have the card with the right product IDs. If they confirm and don't deliver, you will at least have a reason to return the card/ask for replacement...

Link to comment
Share on other sites

  • 2 months later...
Hi Guys,

I need some help.

I have a Broadcom BCM94360CD (AX) Apple with adapter PCI-EX

my device id is 43A0 and in the system appear 0x111, have a problem?

Bluetooth connects to the notebook Windows but does not send and receive files.

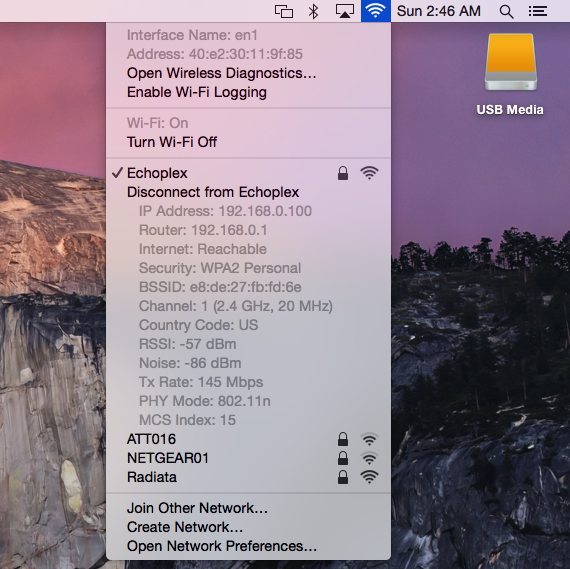

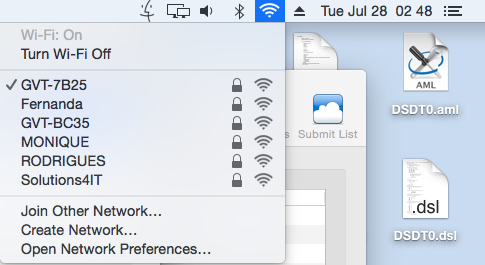

And do not appear information of router connection, below have two images, the my with no information and other with information. Why this?


need Built-in on DPCIManager? it's not!


i'm so sorry for my bad english.

:thanks_speechbubble:



Link to comment
Share on other sites

  • 4 months later...
  • 1 month later...

Hi, i have the same adapter:





Works on yosemite but on El capitan works wifi only.

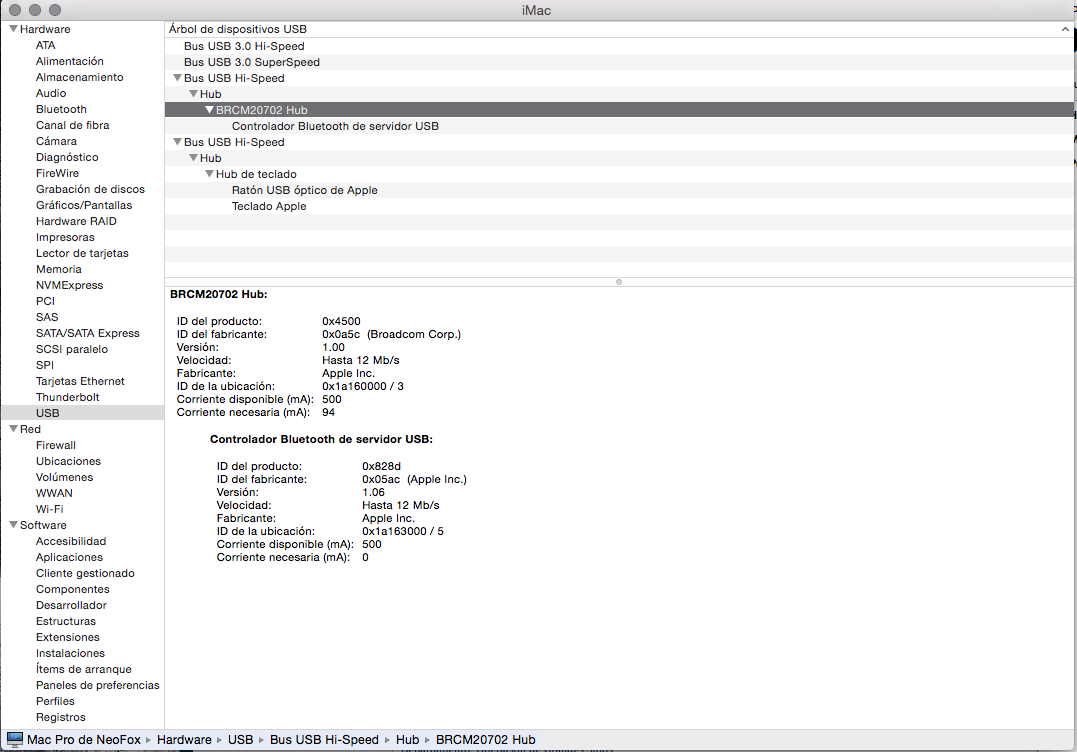

Image 1.



I probe many solutions and nothing happens, turn off my system and the turn it on again the next day, the firmware upgrade.



Image 2.



now works on both systems.



Sorry for my English



I hope it helpful.
