hitman478 Posted February 28, 2015 Share Posted February 28, 2015 Hi, I am trying the hole day to get my sound working. I know that is a ALC269 chip. My OS Version is 10.10.2 I have tried to edit the DSDT and the AppleHDA Kext but it dind't work I will upload my own modified DSDT and the original DSDT. When I run the Tool System Info it also didn't detect the ALC269 Sound card. When I try the Voodoo HDA then everything works but it always have a high input noise on boot. I hope someone can help me. Thanks. org_dsdt.zip mod_dsdt.zip Link to comment Share on other sites More sharing options...
Allan Posted February 28, 2015 Share Posted February 28, 2015 Do you use kext-dev-mode=1 boot argument ? And applied DTGP method in DSDT too? Link to comment Share on other sites More sharing options...
hitman478 Posted February 28, 2015 Author Share Posted February 28, 2015 Yes I use kext-dev-mode=1 and also applied DTGP in DSDT. You can also see it in the attachments. Link to comment Share on other sites More sharing options...
artur_pt Posted February 28, 2015 Share Posted February 28, 2015 hello will be nice u post ur hardware specs good hack Link to comment Share on other sites More sharing options...
hitman478 Posted February 28, 2015 Author Share Posted February 28, 2015 These are my specs. Motherboard: CPU Type Mobile QuadCore Intel Core i7-2720QM, 2733 MHz (30 x 91) Motherboard Name Clevo W150HNM/W170HN Motherboard Chipset Intel Cougar Point HM65, Intel Sandy Bridge System Memory 8106 MB (DDR3-1333 DDR3 SDRAM) DIMM1: Samsung M471B5273CH0-CH9 4 GB DDR3-1333 DDR3 SDRAM (9-9-9-24 @ 666 MHz) (8-8-8-22 @ 609 MHz) (7-7-7-20 @ 533 MHz) (6-6-6-17 @ 457 MHz) (5-5-5-14 @ 380 MHz) DIMM3: Samsung M471B5273CH0-CH9 4 GB DDR3-1333 DDR3 SDRAM (9-9-9-24 @ 666 MHz) (8-8-8-22 @ 609 MHz) (7-7-7-20 @ 533 MHz) (6-6-6-17 @ 457 MHz) (5-5-5-14 @ 380 MHz) BIOS Type Phoenix (10/07/11) Video Adapter Intel(R) HD Graphics 3000 (2108 MB) Video Adapter NVIDIA GeForce GT 540M (1 GB) Audio Adapter Intel Cougar Point HDMI @ Intel Cougar Point PCH - High Definition Audio Controller [B-3] Audio Adapter Realtek ALC269 @ Intel Cougar Point PCH - High Definition Audio Controller [B-3] IDE Controller JMicron PCIe MS Host Controller IDE Controller JMicron PCIe SD Host Controller IDE Controller JMicron PCIe SD/MMC Host Controller IDE Controller Standardmäßiger SATA AHCI- Controller Network Adapter Intel(R) Centrino(R) Advanced-N 6230 Network Adapter JMicron PCI Express Gigabit Ethernet Adapter (172.16.1.177) Link to comment Share on other sites More sharing options...
artur_pt Posted February 28, 2015 Share Posted February 28, 2015 hello this ur dsdt full patched i apply hdef layout 3 for applehda and the patch for graphics bigger then 1366x768 i think u have high resolution graphics DSDT.aml.zip http://www.insanelymac.com/forum/topic/298663-applehda-for-yosemite/ good hack Link to comment Share on other sites More sharing options...
hitman478 Posted February 28, 2015 Author Share Posted February 28, 2015 Thanks for the DSDT do I need a modified AppleHDA Kext? I got the HD 3000 working with MacBookPro 8.1 Profile but when I plug off and plug in the HDMI cable then I get no picture on the second monitor. Link to comment Share on other sites More sharing options...
artur_pt Posted February 28, 2015 Share Posted February 28, 2015 hello sure u need a patched applehda kext .. nome mac use alc.. so applehda don't work native good hack Link to comment Share on other sites More sharing options...
hitman478 Posted February 28, 2015 Author Share Posted February 28, 2015 I will test it out. Can you tell me how I can see if I have ALC269 VB or VC? Link to comment Share on other sites More sharing options...
artur_pt Posted February 28, 2015 Share Posted February 28, 2015 hello if u read the post in link .. maybe u have the worst alc codec ... so many variants must test it .. the several kext available .. if none works upload the files mirone ask .. and he will see .. good hack 1 Link to comment Share on other sites More sharing options...

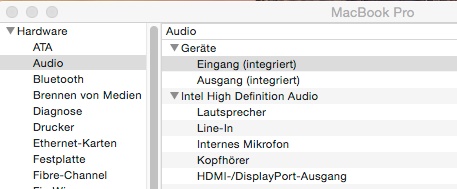

hitman478 Posted March 1, 2015 Author Share Posted March 1, 2015 I tested now the kext from your link and the ALC269VB worked for me one time and then the system crashed and then sound didn't work anymore and then I did another reboot and then I got sound again. I attach a screen how it looks in the Device Manager. I also attached the codec dump that I made. codec_dump.txt Link to comment Share on other sites More sharing options...
artur_pt Posted March 1, 2015 Share Posted March 1, 2015 hello must use kext-dev-mode=1 install the kext proper way in s/l/e and rebuild caches and the dump is not for me .. send it for mirone good hack Link to comment Share on other sites More sharing options...
hitman478 Posted March 1, 2015 Author Share Posted March 1, 2015 Now the sound is working without problems and microphone also I think the problem is solved. Thanks for the help. Link to comment Share on other sites More sharing options...
artur_pt Posted March 1, 2015 Share Posted March 1, 2015 hello nice to know .. like mirone say enjoy good sound ahahaha enjoy the system good hack Link to comment Share on other sites More sharing options...
hitman478 Posted March 1, 2015 Author Share Posted March 1, 2015 Now I have another problem but I don't know if it is related to the sound card. When I use the program teamviewer ad when I start a meeting then I have very quiet sound. When I close teamviewer then sound is back to normal. Link to comment Share on other sites More sharing options...
