30" Apple Cinema Display Low Resolution.

dvi hdmi adaptor cinema display resolution

  • Please log in to reply
9 replies to this topic

#1
thePHPdev

thePHPdev

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Hi,

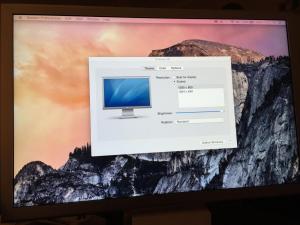

I have a 30" Apple Cinema Display, a DL-DVI to HDMI adaptor and a 2013 MacBook Pro. That's all well and good, but the resolution of the Cinema Display is topping out at 1280x800.



If anybody could give me some ideas - as I'm stumped - that would be great, and your help would be most appreciated.



Thanks in advance.

Attached Files



#2
kvonlinee

kvonlinee

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 504 posts
Is your mac is a real mac, not hackintosh?
Have you try the thunderbold cable to connect them together?

#3
thePHPdev

thePHPdev

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

Erm... "2013 MacBook Pro" - OP.



'30" Cinema Display'. So, no - since the 30" model only came with Dual-Link DVI.



#4
Nemorosus

Nemorosus

    InsanelyMac Protégé

  • Members
  • PipPip
  • 54 posts
  • Gender:Male

When you connect an Apple Cinema Display (30-inch DVI) to your computer, you may find that the highest available resolution is 1280 x 800 even though the optimum resolution for the display is 2560 x 1600. This can happen if the display has a single-link DVI connection instead of a dual-link DVI connection.

Straight from Apple.

http://support.apple.../en-za/HT201927



#5
kvonlinee

kvonlinee

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 504 posts
It migth be the dvi connector you have is single link, you need dual link.
http://support.apple.../en-us/HT201927

#6
thePHPdev

thePHPdev

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

The power block, DVI cable and everything else associated with the 30" Cinema display is original Apple that came with the display. I saw it working just recently with the prev owner's PC.



The DVI to HDMI adaptor is Dual-Link, as already stated in the OP...



#7
kvonlinee

kvonlinee

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 504 posts

you may look for mini thunderbolt to dual link DVI to try it.



#8
thePHPdev

thePHPdev

    InsanelyMac Protégé

  • Members
  • Pip
  • 24 posts

you may look for mini thunderbolt to dual link DVI to try it.



OK, but I honestly can't see why that would do anything, since HDMI can support 4K, surely 2560x1600 should be a breeze! :P



I have ordered one, nonetheless...



#9
kvonlinee

kvonlinee

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 504 posts
Yes with the high speed HDMI cable, no problem for over 1080p. Do you have it?

#10
Long Cat

Long Cat

    InsanelyMac Geek

  • Members
  • PipPipPip
  • 103 posts

What type of DL-DVI to HDMI adapter do you have? Active or passive - has a power cable/ USB power or not?



These guys say that not all adapters will work with high resolutions, and that you need an active adapter:



http://superuser.com...about-the-price
