Help with BCM94360CD adapter please


luki1979
 Share

3 posts in this topic

Recommended Posts

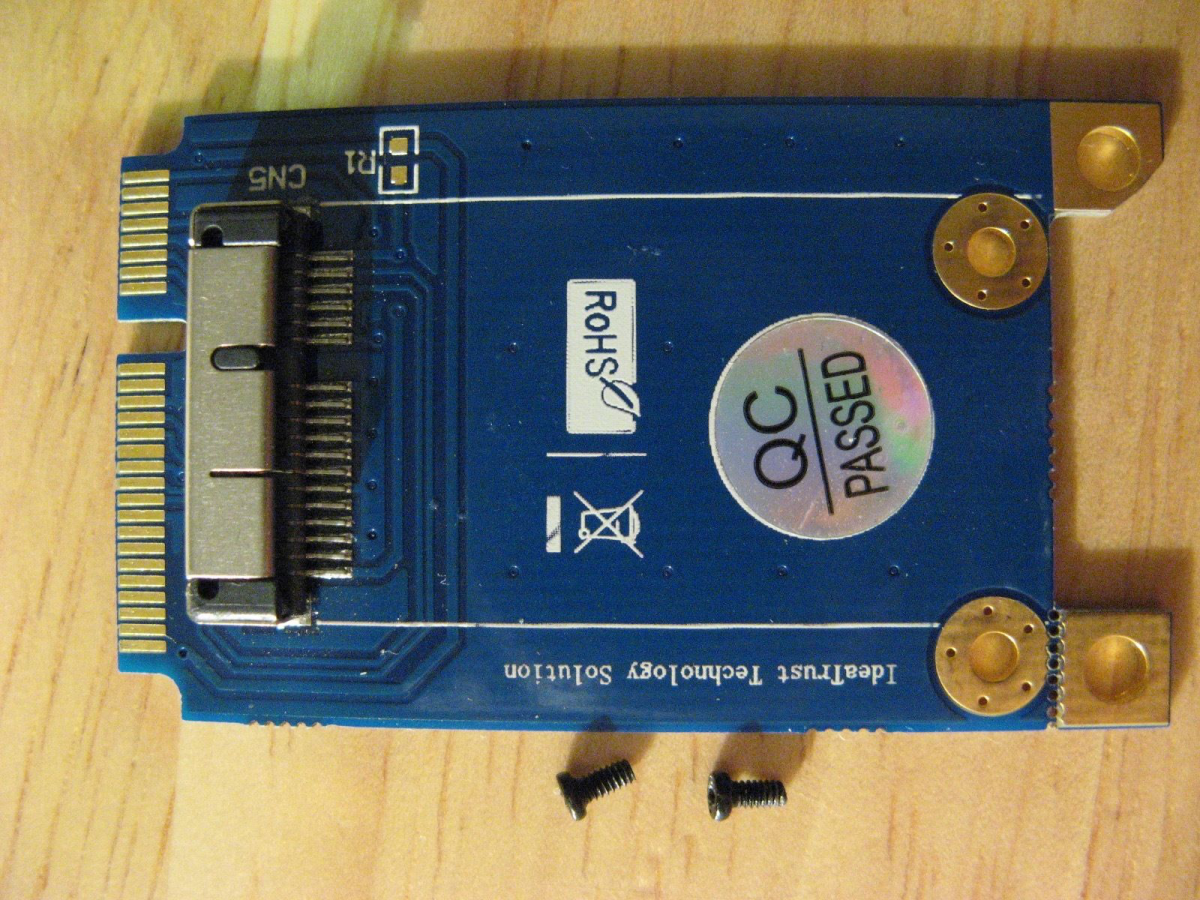

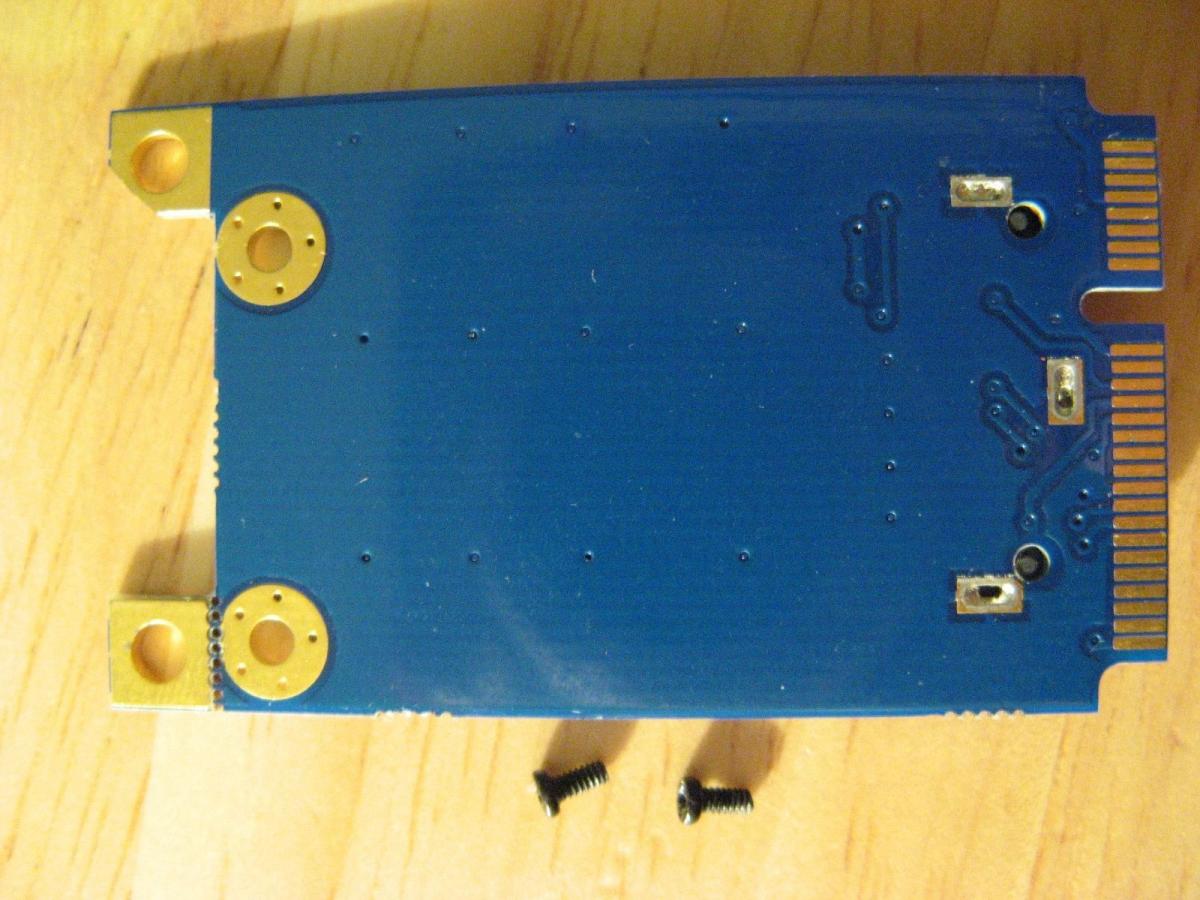

I got this adapter but bluetooth part doesn't work. As far as I understand USB connection is missing on my PCI-E line. I'm handy with soldering but not sure where to solder what.

Can anybody help please.









Thank you


EDIT:



Nevermind I googled again and found it on MacRumors forum

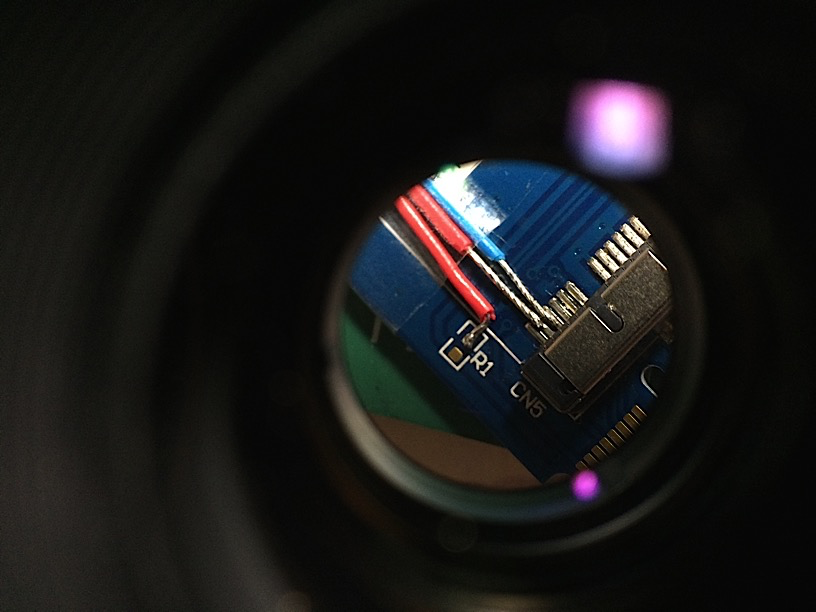

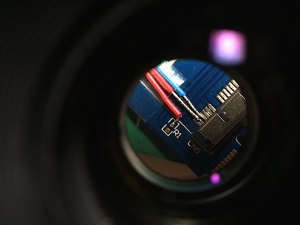

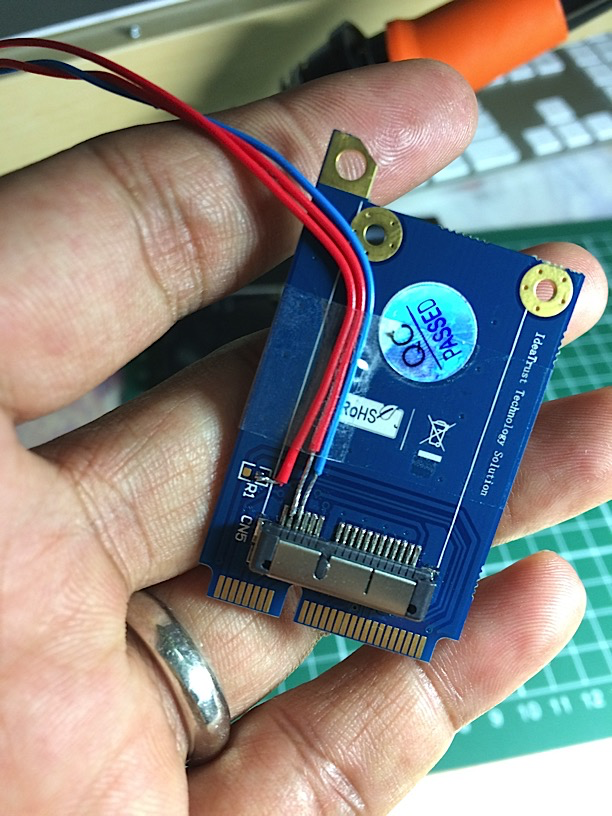

From the left;

the 1st pin is the 3.3v (bluetooth) power
the 2nd pin is the USB D+
the 3rd pin is the USB D-



credit to mhafeez

  • Like 1
Link to comment
Share on other sites

I have same problem with main board Biostar Hifi B85N 3D, it have m-pci-e, when i install BCM943225HMB or AR5B195 wifi+bt combo only wifi detected doesn't detect BT in windows7, in mackintosh i was installed wifi injector and atheros btuploader kext. How to mod this case!

Link to comment
