ergot Posted October 22, 2014 Share Posted October 22, 2014 I am installing a new machine with the following HW: MB - Asus P6T WS PRO CPU - i7-920 RAM - 8GB DDR3 GPU - GT840 installation went OK, I have network, sound, GPU, sleep, restart,shutdown etc. however i can see that my CPU is not using all threads when running bench mark and the results are accordantly. the socket is LGA 1366, do i need to install VoodooTSCSync kext? If yes where I can find this kext for LGA1366 and Core i7? or it needed only for LGA2011...? Thanks Link to comment Share on other sites More sharing options...
ergot Posted October 23, 2014 Author Share Posted October 23, 2014 OK I have removed cpus=1 from boot plist and now the multi thread is OK however Geekbench results for multi are the same as single cpu....anyone can explain what i am missing here?\Thanks Link to comment Share on other sites More sharing options...
jl4c Posted October 23, 2014 Share Posted October 23, 2014 Attach IOReg. Link to comment Share on other sites More sharing options...
ergot Posted October 23, 2014 Author Share Posted October 23, 2014 Hi thanks for your help! I changed the file to txt IOReg.txt Link to comment Share on other sites More sharing options...
jl4c Posted October 23, 2014 Share Posted October 23, 2014 OK. Attach your dsdt Link to comment Share on other sites More sharing options...
ergot Posted October 23, 2014 Author Share Posted October 23, 2014 thanks! DSDT.txt Link to comment Share on other sites More sharing options...

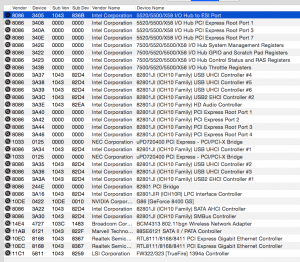

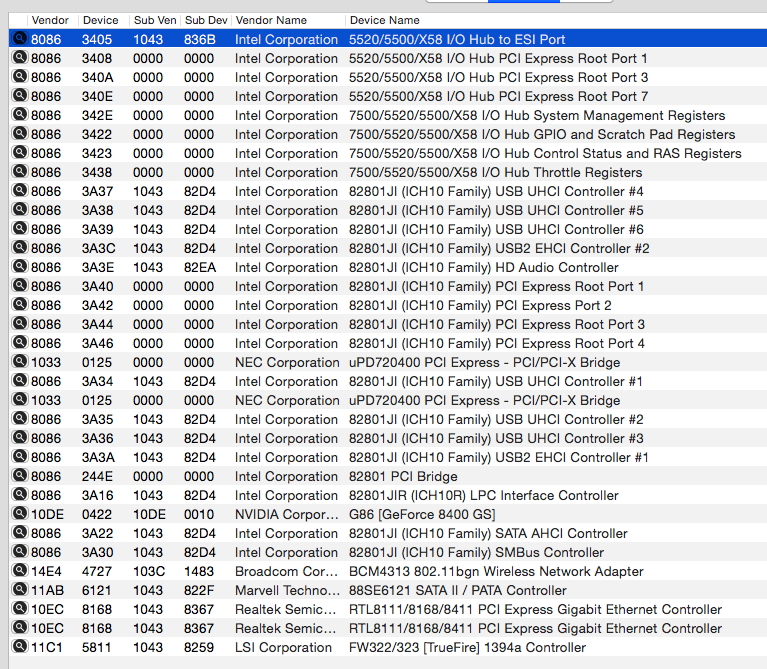

jl4c Posted October 23, 2014 Share Posted October 23, 2014 Reply with "PCI List" screenshot from DPCIManager. Edit: anyway try with this dsdt, reply with IOReg copy. dsdt.ergot.zip Link to comment Share on other sites More sharing options...
ergot Posted October 23, 2014 Author Share Posted October 23, 2014 thanks Link to comment Share on other sites More sharing options...
ergot Posted October 24, 2014 Author Share Posted October 24, 2014 jl4c, the dsdt causing kernel panic. I have found some dsdt for my mobo and its look like it is working however the multi results are seems to be very low...around 8000 while single is 1600...can you please check the dsdt and let me know if it is OK? Thanks a lot for your help!!! DSDT.txt Link to comment Share on other sites More sharing options...
jl4c Posted October 24, 2014 Share Posted October 24, 2014 Sure. First, your system is not loading AppleLPC, then you don't have PM. What boot loader? What settings? Are you using SSDT? Link to comment Share on other sites More sharing options...
ergot Posted October 24, 2014 Author Share Posted October 24, 2014 chimera boot loader, no SSDT...which settings you mean? boot settings? Link to comment Share on other sites More sharing options...
jl4c Posted October 24, 2014 Share Posted October 24, 2014 OK. you have first generation CPU. Boot options: Generate P/C States. And make sure the AppleLPC is loaded. BTW i recommend to work with your own dsdt. Extract from linux and attach it here. Link to comment Share on other sites More sharing options...
ergot Posted October 24, 2014 Author Share Posted October 24, 2014 thanks! i will perform it now...how to verify AppleLPC is loaded? I have attached the DSDT above extracted clean. Thanks! Link to comment Share on other sites More sharing options...
jl4c Posted October 24, 2014 Share Posted October 24, 2014 Run: kextstat | grep LPC Link to comment Share on other sites More sharing options...
jl4c Posted October 24, 2014 Share Posted October 24, 2014 I have attached the DSDT above extracted clean. Where? Link to comment Share on other sites More sharing options...
