ESXi vm booting stop at "vmware" screen, if passthrough GPU

[fisherwei]

Hello,



I unlocked my esxi by unlocker 1.3, and created a os x VM, and also installed 10.9.4 successfully.

I can boot in OS X with passthrough other PCI-e devices(PCI-E x1 USB 3.0 extend), excluding GPU.



My GPU is Asus HD6850, I tried to passthrough it into a Windows VM, it is OK for booting, I can look a device in WIndows Device manager(but I didn't try to install driver).

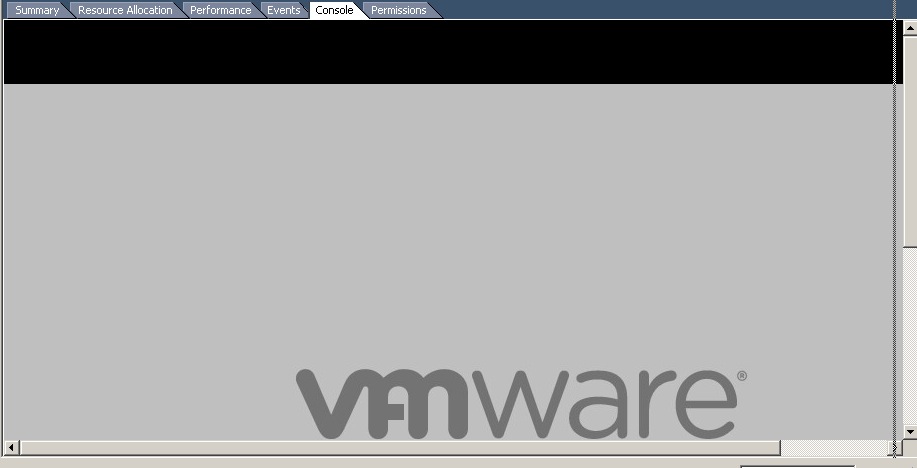

It seems my GPU can be passthrough OK, but after adding GPU into OS X VM, then VM cannot be booted, it will stop at the first screen(refer to attachment).



en.......



How to resolve this issue?



ESXi 5.5 update 1

VM hardware version is 8 (I also try to use vmware workstation upgrading to 10, but no effect)



Sorry,



I resolved it.



I forgot add



pciHole.start = "1200"

pciHole.end = "2200"



into vmx.
