Yosemite, full hd resolution on clover, hdmi audio help


  • Please log in to reply
13 replies to this topic

#1
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

Hi guys. My Hackintosh:



--> iMac 13,2 / OS X 10.10 DP5 / Clover 2818 UEFI / RTL 8168/8111 / ALC887.
--> Asus Z77-A / Intel Core i5-3470 / Asus GTX 660Ti 2GB / Kingston HyperX 4GBx2 / Plextor PX-128M5S / Western Digital WD20ERFX.

I need help with two questions:

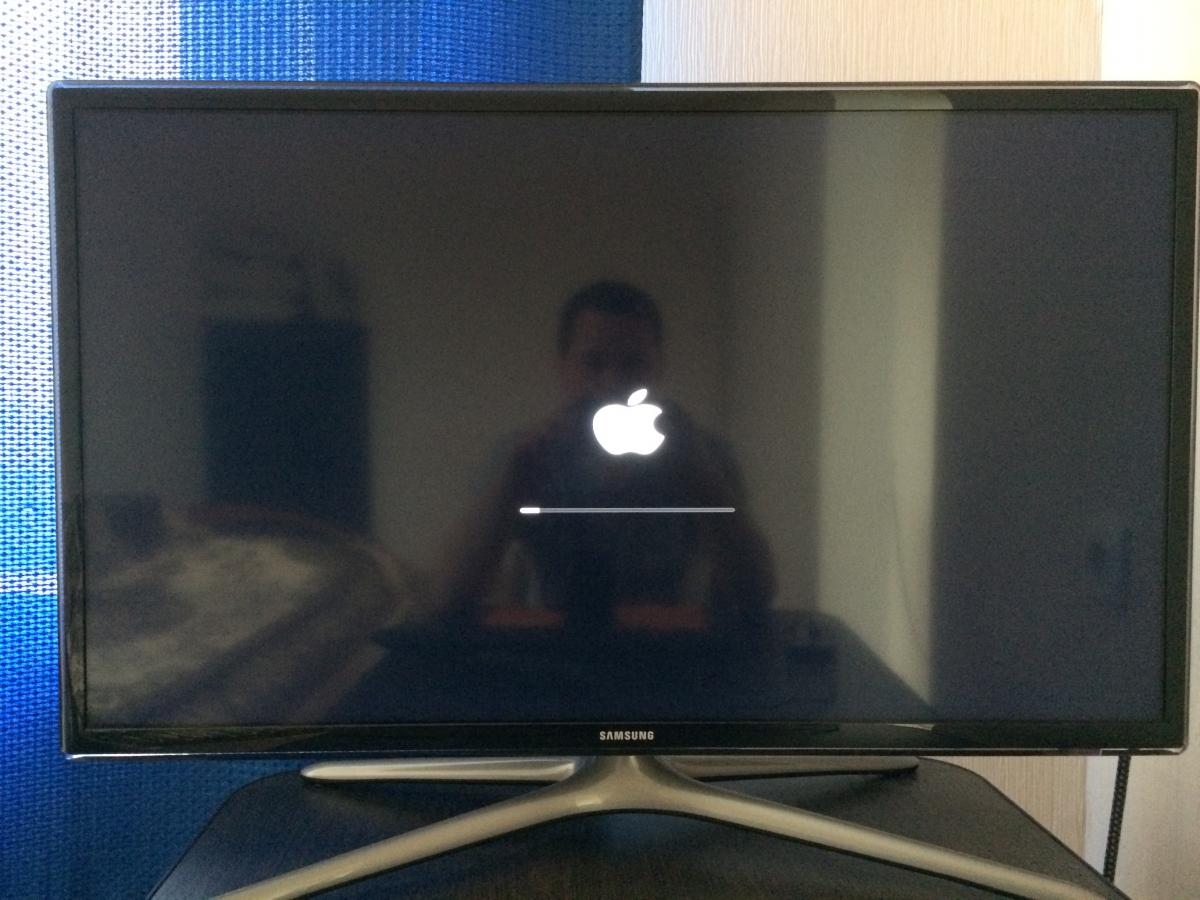

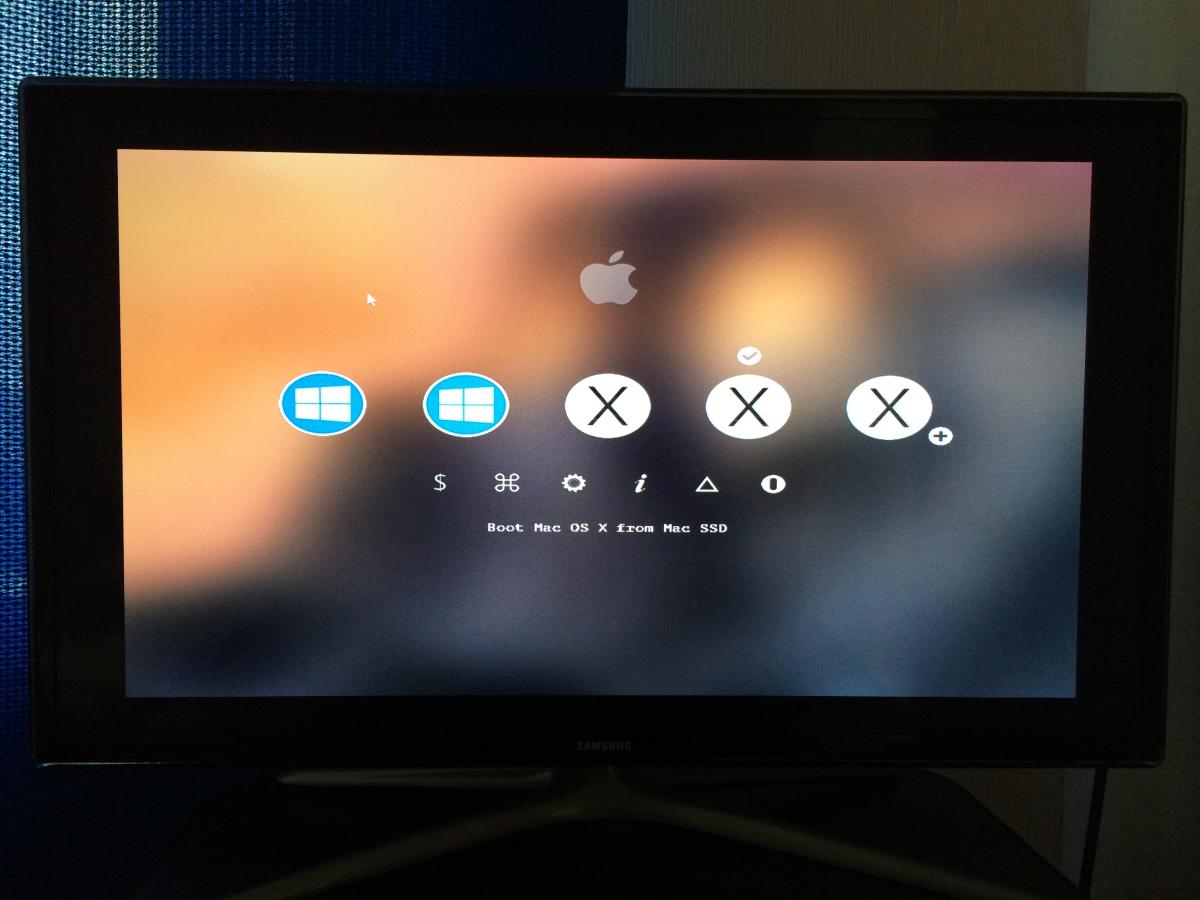

1) How to get screen resolution 1920x1080 on Clover & boot logo. By boot logo: black screen + apple (flattened) + progress bar. I use LCD TV as a monitor.

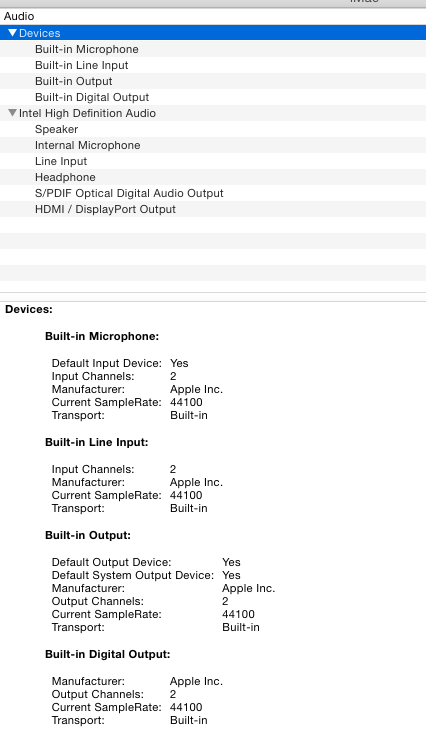

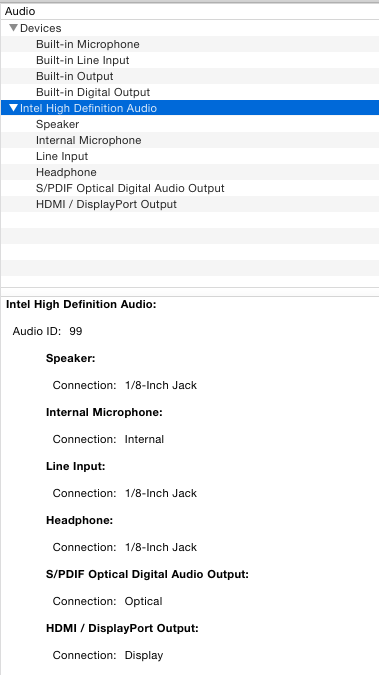

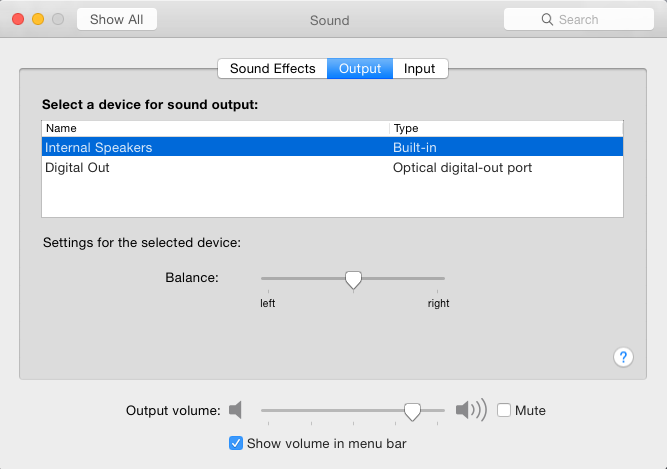

2) I use AppleHDA, need help to make the sound hdmi.



P.S. Sorry for my bad English. :)

Attached Files



#2
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,550 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hello



are u using



CsmVideoDxe.efi ?



What-is-what



about the hdmi audio u need dsdt edition



and a proper applehda for ur alc



good hack



#3
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

hello



are u using



CsmVideoDxe.efi ?



What-is-what



about the hdmi audio u need dsdt edition



and a proper applehda for ur alc



good hack

Yes, CsmVideoDxe.efi installed on clover. I don't use DSDT (while newcomer and for me it is difficult), just Clover fixes and config. How do I get the DSDT on the Mac?



#4
mendietinha

mendietinha

    mendi

  • Members
  • PipPipPipPipPipPipPip
  • 720 posts
  • Gender:Male
  • Interests:full hackintosh.

http://sourceforge.n...ojects/maciasl/



one of the many ways.





btw, you should not install beta versions as a beginner.



#5
artur-pt

artur-pt

    InsanelyMacaholic

  • Local Moderators
  • 4,550 posts
  • Gender:Male
  • Location:Portugal
  • Interests:TechManiaco

hello



u can try also this



GUI



ScreenResolution



good hack



#6
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

hello



u can try also this



GUI



ScreenResolution



Thanks, it's written in config, but does'n work.



http://sourceforge.n...ojects/maciasl/



one of the many ways.





btw, you should not install beta versions as a beginner.

Thanks, try this.



Yes, i know.



#7
Maniac10

Maniac10

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,078 posts
  • Gender:Not Telling

Upload a boot.log and config.plist (zip them please, not code block), and add your hardware to the signature.



Clover can take care of the HDMI audio with its built-in DSDT patches (AddDTGP_0001, FixHDA_8000, NewWay_80000000, AddHDMI_8000000). Which audio output do you want to enable, Intel or GeForce?



#8
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

Upload a boot.log and config.plist (zip them please, not code block), and add your hardware to the signature.



Clover can take care of the HDMI audio with its built-in DSDT patches (AddDTGP_0001, FixHDA_8000, NewWay_80000000, AddHDMI_8000000). Which audio output do you want to enable, Intel or GeForce?

Do you mean system.log OS or preboot.log Clover ? I downloaded both just in case.



I want enable hdmi audio on GeForce.

Attached Files



#9
Maniac10

Maniac10

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,078 posts
  • Gender:Not Telling

Clover apparently finds the resolution on the video card but can't use it because it can't identity the monitor. Try to get the monitor's EDID from windows and inject it with Clover.



1:000  0:000  VideoBiosPatchNativeFromEdid:

1:000  0:000   Edid: not found

1:023  0:023  CsmVideoDriverBindingStart

1:023  0:000  mixed support=40010

1:023  0:000  Controller is [030000]

1:023  0:000  Check for VBE

1:295  0:271    0 640x480 attr=3BF - ok, 640x480, working, highest, pref=0

1:298  0:003    1 800x600 attr=3BF - ok, 800x600, working, highest, pref=1

1:302  0:003    2 1024x768 attr=3BF - ok, 1024x768, working, highest, pref=2

1:305  0:003    3 1280x1024 attr=3BF - ok

1:326  0:020    4 1920x1080 attr=3BF - ok

1:329  0:003    5 1280x800 attr=3BF - ok

1:329  0:000  CsmVideo: New mode: 2 1024x768 - set

1:516  0:186   - SetMode pref 2 (2) = Success

1:516  0:000  CsmVideoCheckForVbe - Success

1:516  0:000  CsmVideoDriverBindingStart end Success

1:517  0:000  CsmVideo: New mode: 1 800x600 - blocking that switch



1:620  0:102  LoadDrivers() end


About the audio, it looks fine on Clover's side, you're injecting the layout and appropriate DSDT fixes. Perhaps the problem is on the driver's end. Can you upload an ioreg and DSDT dump? Have you tried with Toleda's patches? They're easier than ever since version 2.


And this is a strange error because I don't see you injecting the MLB in the config. Why does it say it's wrong?





1:817  0:000  Warning! Your MLB is not suitable for iMessage (must be 17 chars long) !



#10
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

Clover apparently finds the resolution on the video card but can't use it because it can't identity the monitor. Try to get the monitor's EDID from windows and inject it with Clover.

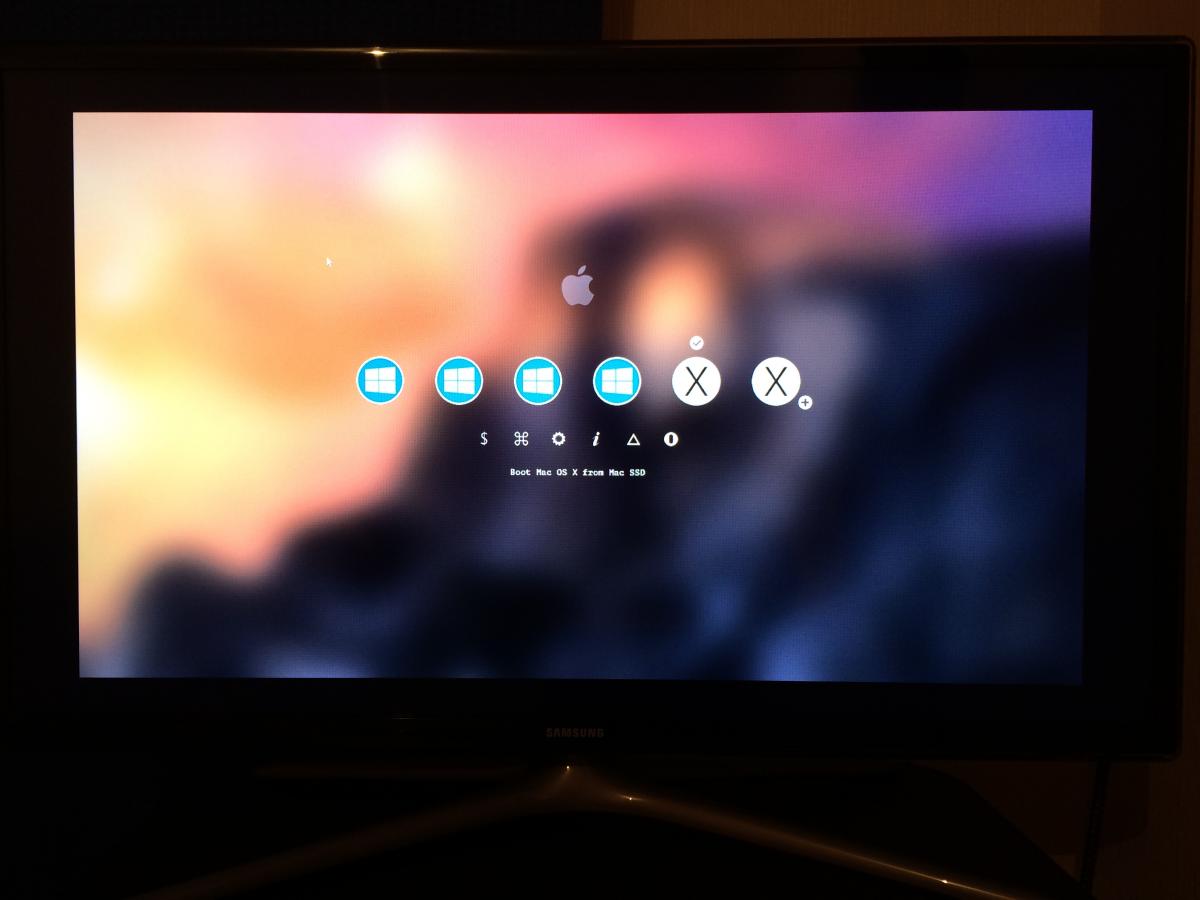

Thanks, i get EDID in Windows and inject it with Clover. Resolution screensavers Yosemite remained the same, icons and boot logo changed (they now seem to look right). The result on the photo. I tried to enter the PatchVBios (http://www.projectos...683), the result remains the same.



By the way when loading Clover, information about Clover 1920x1080 resolution.

About the audio, it looks fine on Clover's side, you're injecting the layout and appropriate DSDT fixes. Perhaps the problem is on the driver's end. Can you upload an ioreg and DSDT dump? Have you tried with Toleda's patches? They're easier than ever since version 2.

I just now got a clean DSDT and began to study the work with him. No, I have not yet tried to put patches Toleda.



And this is a strange error because I don't see you injecting the MLB in the config. Why does it say it's wrong?





1:817  0:000  Warning! Your MLB is not suitable for iMessage (must be 17 chars long) !

When I first installed Yosemite, I used a standard config that is created when you record the installation of the stick in BDU. There was InjectSystemID and clover automatically picked up all, everything worked well (iMessage, FaceTime). But I found a valid serial number and decided to enter the smbios manually. With iMessage and FaceTime have problems with the input and activation, do not know why I'm not so written. All services use under the same ID, the current, the same as on the iPhone.



All updated files attached. I would be grateful for your help!.

Attached Files



#11
Maniac10

Maniac10

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,078 posts
  • Gender:Not Telling

Try dumping a patched DSDT with Clover, just press F5 in Clover's GUI and you'll get the patched DSDT in /EFI/CLOVER/ACPI/patched. Upload that one please. Also your ioreg dump doesn't work, try with an older version like 2.1, iojones or DarwinDumper's app.



And seeing the picture your resolution problem seems to be solved now, is there some other problem with it or am I misunderstanding something?



#12
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

Try dumping a patched DSDT with Clover, just press F5 in Clover's GUI and you'll get the patched DSDT in /EFI/CLOVER/ACPI/patched. Upload that one please.

I try, but don't save in patched folder. F4 works for me and the original is saved in the folder list ACPI tables.



Also your ioreg dump doesn't work, try with an older version like 2.1, iojones or DarwinDumper's app.

Strange. I saved report of IORegistryexplorer 2.0, iojones and DarvinDumper.



And seeing the picture your resolution problem seems to be solved now, is there some other problem with it or am I misunderstanding something?

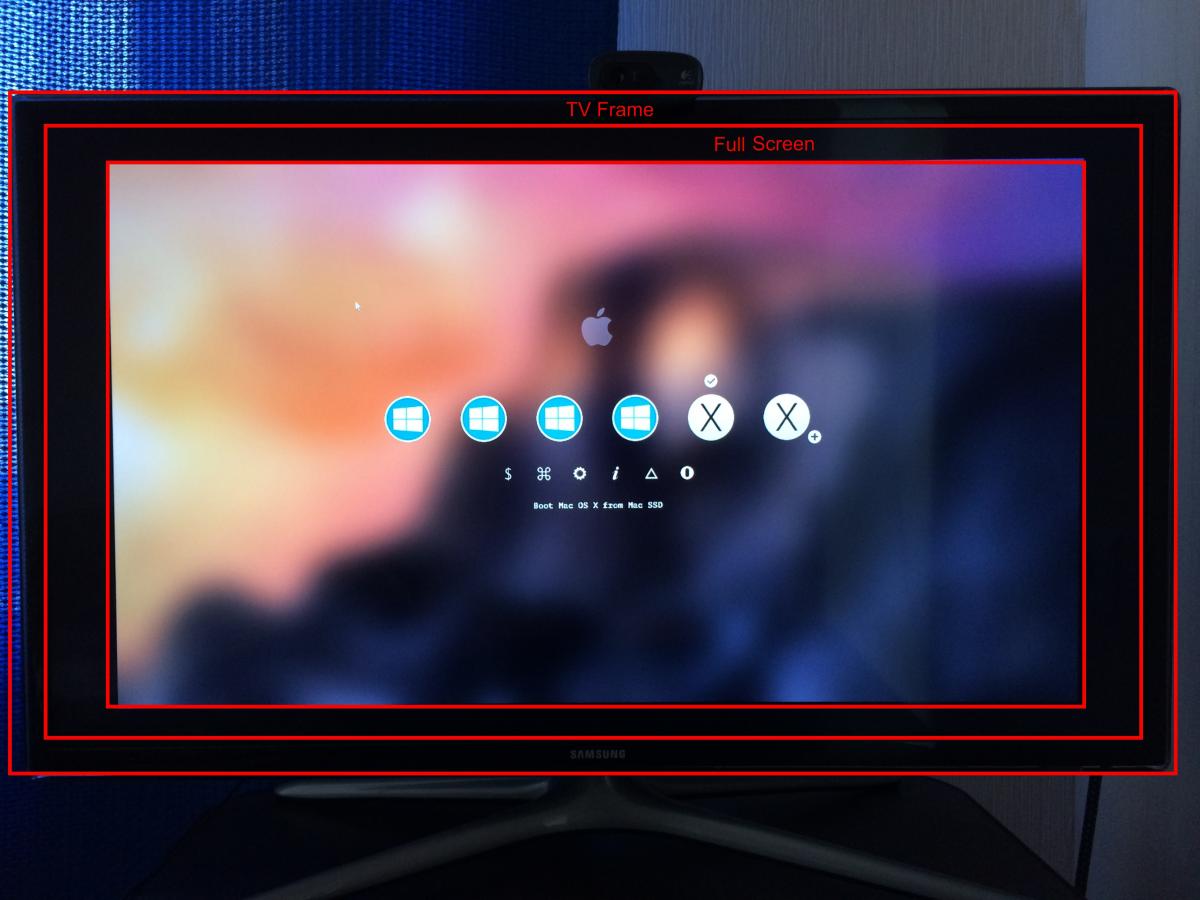

Resolution is still not the entire screen, not a full hd. I made ​​a new picture and designated frame.



Update: DSDT-9FEEE955.aml. It patched DSDT (called fix mask) ?

Attached Files



#13
Maniac10

Maniac10

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPipPip
  • 1,078 posts
  • Gender:Not Telling

That issue is on your TV's side, I get the same on mine. You just need to set the proper scaling for it to be fullscreen but it will later brake the desktop's own scaling (does in mine) forcing you to use the underscan function making it look like {censored} so I just prefer to leave it like that. It works fine after all.

EDIT: I still can't understand what's wrong with the HDMI audio, the necessary patches are in place so it only leaves me to question the audio kext functionality. Can you try to restore the original AppleHDA and run Toleda's patcher? It's really easy since version 2.0, you just need to run it, answer a couple of questions and it does it all for you. Get it here (the part titled cloverALC/Clover patched).


Edited by Maniac10, 18 August 2014 - 05:01 PM.


#14
Hyper2014

Hyper2014

    InsanelyMac Protégé

  • Members
  • Pip
  • 16 posts

so I just prefer to leave it like that. It works fine after all.

I agree and leave. Especially since it's not so important. Now I use a timeout = 0.



Book from Slice - Clover 2703. About ScreenResolution Clover: "Can be in one BIOS to make a few patches 0,1,2 ... For example success with Nvidia come with four patches." © :D



EDIT: I still can't understand what's wrong with the HDMI audio, the necessary patches are in place so it only leaves me to question the audio kext functionality. Can you try to restore the original AppleHDA and run Toleda's patcher? It's really easy since version 2.0, you just need to run it, answer a couple of questions and it does it all for you. Get it here (the part titled cloverALC/Clover patched).

I use this http://www.hackintos...osemite-alc887/ for DP4.



Thanks, i have original AppleHDA, try this patcher or maybe try this http://www.hackintos...88898928981150/ ?.
