VMware Fusion fails to boot Windows 8.1 Bootcamp


Best Answer Derek12, 24 July 2014 - 01:43 PM

Finally fixed. Done a repair from Windows 8.1 inside the virtual machine. Now it boots straight up without Plop Go to the full post


  • Please log in to reply
13 replies to this topic

#1
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Previously with Mavericks, VMware Fusion could boot my Windows 8.1 which is installed on another partition as of Bootcamp (NOT a regular VM) but since I upgraded to Yosemite now VMware Fusion fails, this appears:



Boot0af: error_



Windows 8.1 boots fine natively via Clover.



What can I do? Thanks.







#2
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

I kinda fixed it via mounting Plop Boot Manager on VMware and selecting the Windows partition then it boots but I am still looking for a more "elegant" solution lol



#3
fallen101

fallen101

    InsanelyMac Geek

  • News Team
  • 110 posts
  • Gender:Male
  • Location:Florida
Boot Camp? Boot Camp is what Apple calls dual booting on a Mac traditionally windows I'm going to assuming you're on Non-apple hardware in this case.

Check VMware Fusion's settings and make sure windows is boot with EFI and not legacy.

#4
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Boot Camp? Boot Camp is what Apple calls dual booting on a Mac traditionally windows I'm going to assuming you're on Non-apple hardware in this case.

Check VMware Fusion's settings and make sure windows is boot with EFI and not legacy.



Thanks for the clarification, I got confused because VMware recognizes the separate partition as Boot Camp.

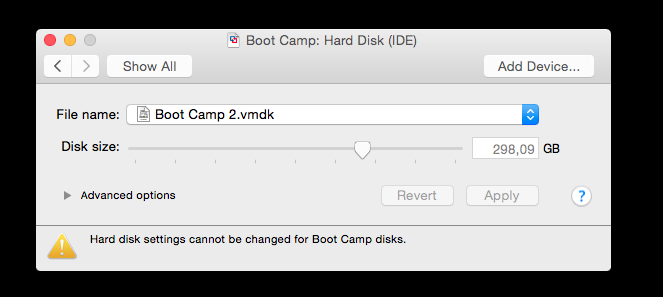

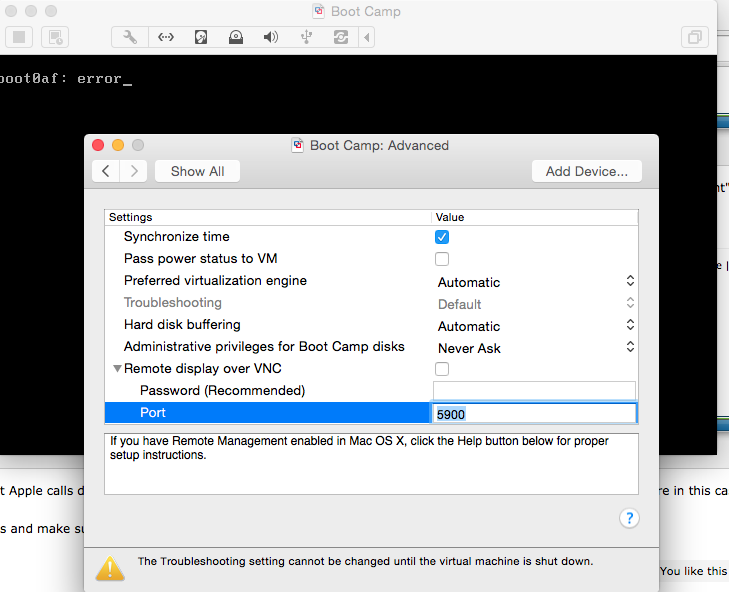

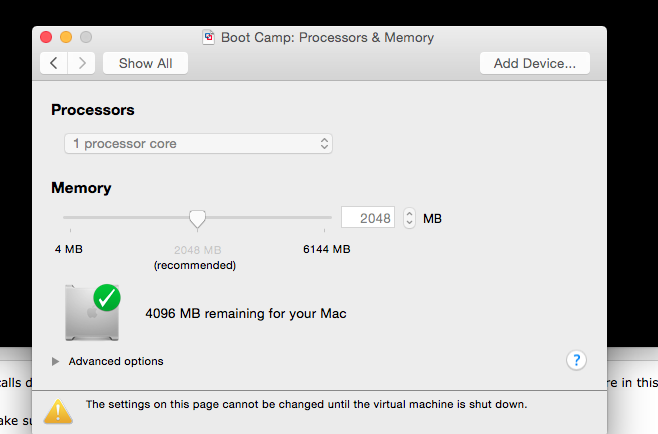

Where to check if Windows is booting in EFI or legacy as I am more used to Parallels than VMware, I can't find it but I will attach my settings



Attached File  Screen Shot 2014-07-15 at 05.23.38.png   79.38KB   1 downloadsAttached File  Screen Shot 2014-07-15 at 05.24.04.png   48.32KB   1 downloadsAttached File  Screen Shot 2014-07-15 at 05.24.36.png   32.38KB   1 downloads

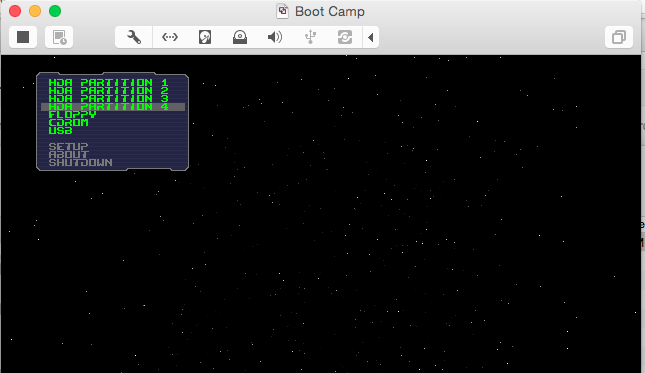

Here the Plop screen. I have to select the highlighted Partition 4 to Boot Windows. Selecting Part 1, Part 2 and Part 3 Plop says "No Valid Bootsector signature Continue boot (Y/N)", pressing Y in Part 1 VMware says "A fault has occurred causing a virtual CPU to enter the shutdown state" and pressing Y in the rest just returns to Plop main screen.



Cool, right? I can live with that but it's so annoying, I have to use the VM a lot and I have to keep the Plop ISO mounted always.



Attached File  Screen Shot 2014-07-15 at 05.31.06.png   21.32KB   1 downloads



#5
fallen101

fallen101

    InsanelyMac Geek

  • News Team
  • 110 posts
  • Gender:Male
  • Location:Florida
Wait I just noticed you're getting a boot0 error... If it's a physical disk I don't want to mess up your bootloader for your hackontosh. BUT you can fix windows 8 by using the Plop manger, and from their repair the windows bootloader.



Here the Plop screen. I have to select the highlighted Partition 4 to Boot Windows. Selecting Part 1, Part 2 and Part 3 Plop says "No Valid Bootsector signature (Y/N)", pressing Y in Part 1 VMware says "A fault has occurred causing a virtual CPU to enter the shutdown state"
Cool, right?

[

that is interesting what's on partitions 1-3?

#6
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Wait I just noticed you're getting a boot0 error... If it's a physical disk I don't want to mess up your bootloader for your hackontosh. BUT you can fix windows 8 by using the Plop manger, and from their repair the windows bootloader.


that is interesting what's on partitions 1-3?





Thank you again, I will boot Windows 8 and check with disk manager maybe some partition other than 4 has become active :)



Partition 1 I think it's the EFI (?) partition (created by OSX install),

Partition 2 is OSX

Partition 3 I don't know, maybe that weird "recovery" thingy that Clover sees.

Partition 4 is Windows 8.1



#7
fallen101

fallen101

    InsanelyMac Geek

  • News Team
  • 110 posts
  • Gender:Male
  • Location:Florida


Thank you again, I will boot Windows 8 and check with disk manager maybe some partition other than 4 has become active :)


Partition 1 I think it's the EFI (?) partition (created by OSX install),

Partition 2 is OSX

Partition 3 I don't know, maybe that weird "recovery" thingy that Clover sees.

Partition 4 is Windows 8.1

Alrighty just in case back up clover or chameleon on a flash drive just in case anything happens to the boot loader. Better safe then sorry.

#8
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Alrighty just in case back up clover or chameleon on a flash drive just in case anything happens to the boot loader. Better safe then sorry.

Many thanks, I will make a new USB installer with Clover just in case (I had to wipe the current one) :)



#9
fallen101

fallen101

    InsanelyMac Geek

  • News Team
  • 110 posts
  • Gender:Male
  • Location:Florida

Many thanks, I will make a new USB installer with Clover just in case (I had to wipe the current one) :)

Good luck let me know if it works!

#10
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Unfortunately everything was in vain, when I set partitions as active I got the "loading operating system" fortunately the USB installer I made again made my computer boot and rever the partition settings.



Seem I will have to live with this :(



#11
fallen101

fallen101

    InsanelyMac Geek

  • News Team
  • 110 posts
  • Gender:Male
  • Location:Florida
Yeah that seems to be it, I believe it's because you have it all on one disk. The virtual machine is trying to boot off of that partition but its missing the bootloader

#12
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Yeah that seems to be it, I believe it's because you have it all on one disk. The virtual machine is trying to boot off of that partition but its missing the bootloader



Yreah probably though Mavericks had no problem, maybe Yosemite did change something and Fusion now fails, I will wait for a new Fusion version :)



#13
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

/facepalm

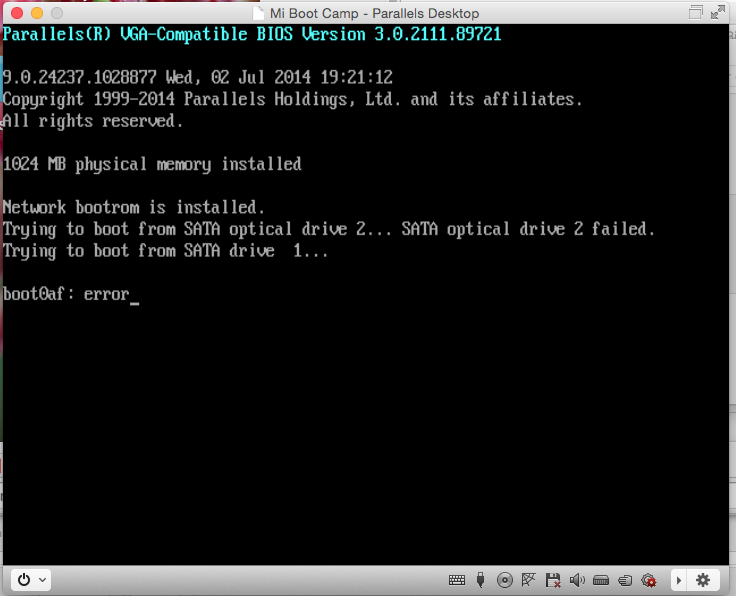

The same thing also happens under Parallels (I am trying it due to bad 3D performance in VMware here and inability to suspend a Boot camp-like VM) and I have to do the same thing!

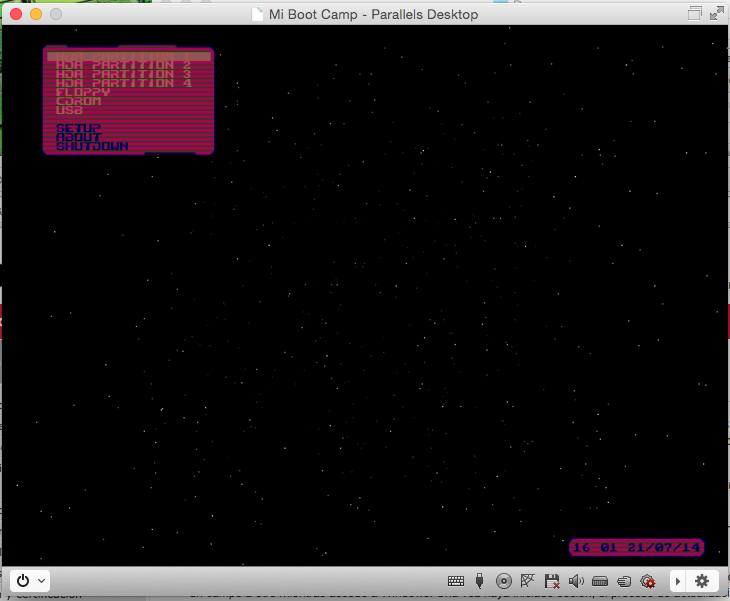

The only difference is in Parallels the Plop screen is garbled but I can still select the Partition 4 and boot Win8.1.



Attached File  Captura de pantalla 2014-07-21 a las 16.58.46.png   77.01KB   0 downloads

Attached File  Captura de pantalla 2014-07-21 a las 17.01.33.png   64.11KB   0 downloads



#14
Derek12

Derek12

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 287 posts
  • Gender:Male

Best Answer

Finally fixed. Done a repair from Windows 8.1 inside the virtual machine. Now it boots straight up without Plop
