Big problem with X3100 & Mac OS

x3100

  • Please log in to reply
9 replies to this topic

#1
makondo

makondo

    InsanelyMac Protégé

  • Members
  • Pip
  • 1 posts

Hi guys.

I need to install Mac OS (10.6 or later) on my laptop (Dell Inspiron 1525; Intel X3100; Core 2 Duo; 2GB RAM).

Well, i tried to install Kalaway,iDened,iAtkos or whatever.

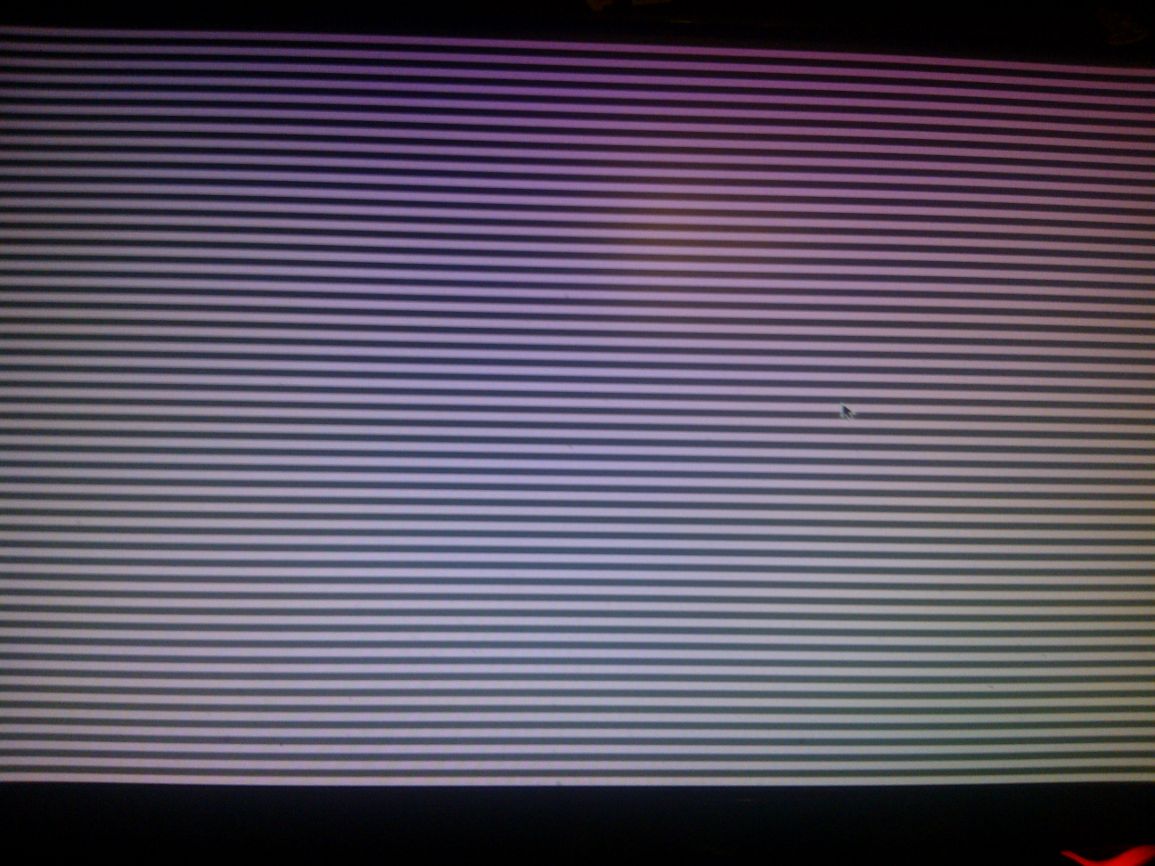

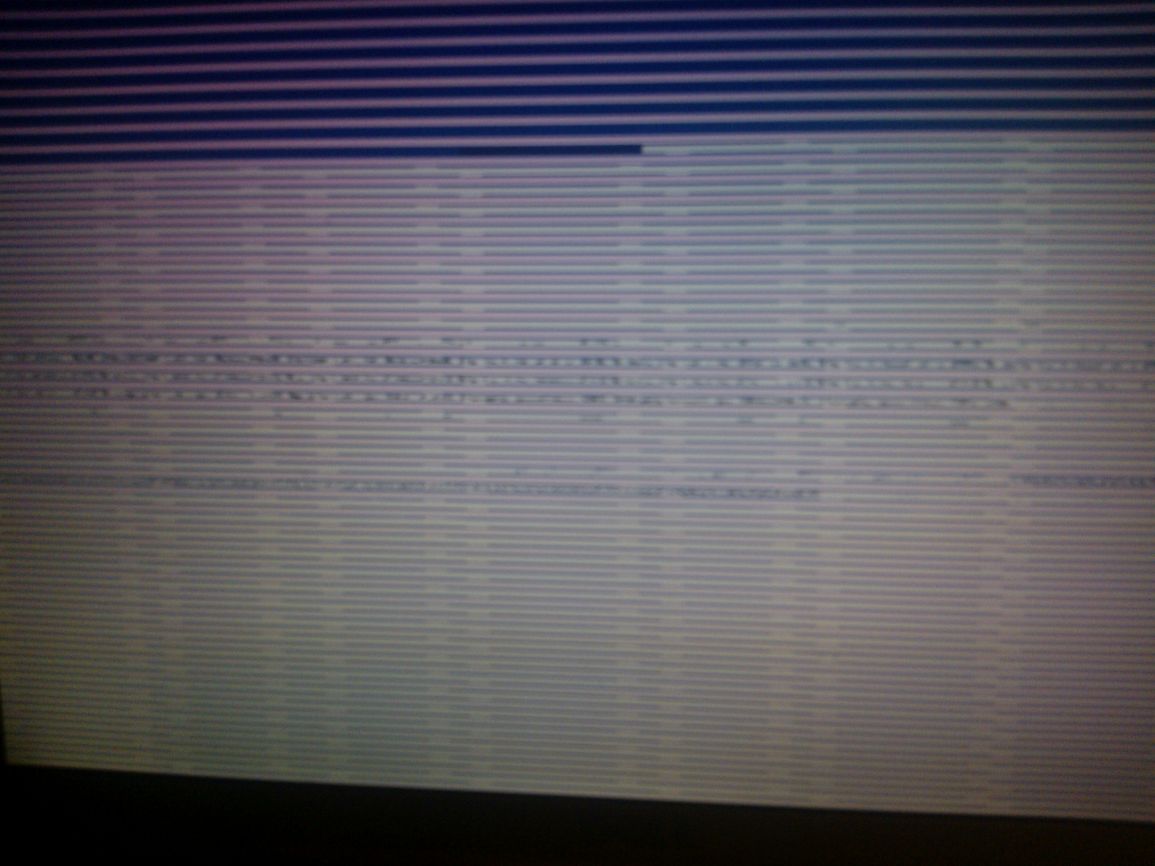

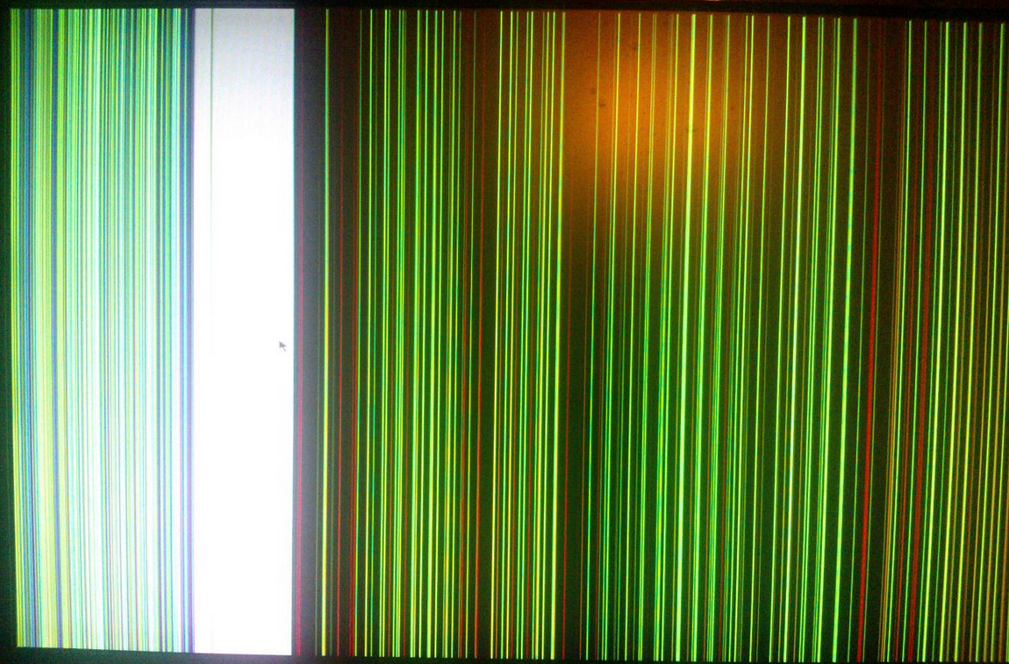

I managed to install them but everywhere the same result. I mean that when my laptop is loading you can seen this {censored} (see attached photos).

I have installed only those versions, where there were the drivers for Intel X3100.
Any ideas?
P.S. Options like "-x -v" don't help.
P.S.S. I'm able to install Mac OS only from USB because DVD Rom is broken,unfortunately.


Attached Files

  • Attached File  1.jpg   136.05KB   1 downloads
  • Attached File  2.jpg   97.23KB   1 downloads
  • Attached File  3.PNG   1.9MB   1 downloads


#2
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,148 posts
  • Gender:Male
  • Location:Brazil

Make sure you're booting with GraphicsEnabler=No and kernel flag arch=i386.



EDIT

Preliminary findings indicate that what you're seeing is the X3100 being in "broken mirror" mode

Try connecting an external display + USB mouse and keyboard and close the lid. With a little luck this should make the external display primary, allowing you to work from there.

/EDIT



I get similar behavior when hotplugging an external display on the VGA port and clicking 'detect displays'. On both displays (stuck in mirrored mode). If I boot with the external display already connected it works, but I have no rotation support on the external display which is a bummer since it's rotated.



I'm currently working on fixing those issues (display corruption and rotation) and get brightness control working as well.



*Brain dump* current status/issues



dmesg says "IG: Invalid firmware max backlight setting"



I compiled a 32-bit version of Rehabman's ACPIBacklight driver and got brightness slider + hotkeys (still need remapping) responding, the sun decal appears but brightness doesn't change. I found the backlight code in the first SSDT table but I guess it needs something done to it for ACPIBacklight.kext to work with it. If I don't load the backlight SSDT table the brightness level changes but it's busted (full brightness -> wobbly-dark -> pitch black).



I saw a DSDT patch for an HP laptop that had the Backlight methods moved into the PNLF device but I can't figure out how to do that with the code I have. But I don't think that's relevant...? The SSDT table with backlight code seems to be picked up just fine, it's just that the values are wrong, or interpreted wrong.. I think.



Oh yeah this is a Thinkpad T61 7658 CTO.



X3100 kexts etc are unmodified and there's no X3100/display related injection anywhere besides PNLF device + renaming VID to GFX0. It's running 10.7.5



Every time i try to tamper with GFX0 and reboot I just get a black screen! At least it doesn't freeze, I can use the power button to reboot blind.



I see a permanent, rogue "display@2,1" outside of the GFX0 device in IOREG that I don't know how to get rid of. The internal LCD and external display, when connected, show up inside GFX0 device as you'd expect. dmesg has a line that says "Display not usable".



The T61 DSDT has duplicated code for the main 0x00020000 VID device (which is now GFX0 - I left the duplicate named VID) as well as LCD, CRT and DVI inside another device called AGP. It looks like this code is supposed to "take over" when the T61 is docked...?

The backlight SSDT table also refers to the duplicate devices inside "AGP". Next trial will be stripping or commenting out all of that and see what happens because I suspect that these duplicate displays are causing at least some of the issues I'm seeing.



I'd like to get it to work with the "duplicates" intact though because the T61 mini dock currently goes for a whopping 20 dollars on Amazon and I'd like to get one just to play around with it



The FakeSMC GPU sensors plugin does not attach to the X3100.

HWMonitor.app window graphics are corrupted, but only the blue part!

HWMonitor.app shows CPU to be running at 796MHz + multiplier x4.0 but that can't be true.



Another strange issue is that FileNVRAM.dylib (tried current 1.14 and 1.13) will sometimes generate a new nvram.plist after reboot - but with a different name - but it's not because the T61's UUID is changing, the UUID stays the same! I don't know what's wrong, but the nvram.plist does not have a .plist file extension..it has no extension...it's like the filename is too long or something, current one is named nvram.f0c3e200-f053-ff00-f053DriversPackage-1fe40 with no extension - yes it has "DriversPackage" in the name. Weird right, I've never seen that before.



... whatever... more to come.. including files, how I got Rehabman's latest ACPIBattery driver working, Chameleon cpu.c patch to correct FSB calculation, additional keys addded to FakeSMC and so on etc etc. If anyone else is interested in this old piece of sh** lol



/end brain dump



#3
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,148 posts
  • Gender:Male
  • Location:Brazil

Fixed display corruption by creating display profiles for both displays using EDID extracted from IOREG in safe mode.



Rotation on external display also works now.



The T61 normally goes to sleep when I close the lid. With the external display connected it stays awake when I close the lid and the external display automatically becomes the main display! Very cool, but of course useless without external keyboard + mouse.



CPU state switching works pretty well with MacBook5,1 model identifier and DropSSDT=y + Chameleon generated states.

I can't get any state switching to happen when I use a MacBook model identifier for a MacBook that actually has a X3100!



The downside to using MB5,1 is that AGPM now loads and complains about the GPU (the MB5,1 has Nvidia graphics, not X3100). I get some freezes on animations in the Finder and the flurry screensaver stops animating after a while. These are different glitches than before, pretty sure this is AGPM. Need to decide whether to edit or delete.



HWMonitor CPU readout is strange, it shows 6x multiplier for 546Mhz. Either the multiplier should be 3 or the CPU freq should be 1092. Some mult/freq combos are correct, others are not.



Undid Chameleon cpu.c patch, it caused sound issues. I can live with the bus freq. being 182Mhz (supposedly due to IDA) this makes max CPU speed 2093Mhz.



USB is completely dead after waking from sleep. Probably easy to fix in DSDT.



To Do:



Get fakesmc gpusensors to attach

Figure out what's wrong with FileNVRAM.dylib (it saves several plists a day with no extension and "DriversPackage" in the name and I lose settings across reboots...no 32-bit support?)

I still see a phantom "display" device outside of the X3100 in ioreg. After I switching to MB5,1 it even has AGPM attached to it, while the entry for my external display does not!

Figure out how to get ACPIBacklight.kext to work with the backlight code in the first SSDT table.



#4
bronxteck

bronxteck

    InsanelyMac Protégé

  • Members
  • PipPip
  • 75 posts

tune fakesmc plist to use the MacBook5,1 model smbios identifiers. use smc rev numbers from here http://support.apple.../en-us/HT201518 replacing the fake smc default one's should be in 3 places and see if that helps with your glitches.



#5
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,148 posts
  • Gender:Male
  • Location:Brazil

I always change the smc rev keys accordingly when changing model identifiers. Now that you mention it I forgot to change smc-santarosa to smc-mcp. So I did, but it made no difference.



Glitches/freezes are gone after removing AppleGraphicsPowerManagement.kext but I'd rather use MacBook4,1 (exact same Santa Rosa platform, T8100 CPU, X3100 GPU) ..there must be a way.. :wallbash:



I discovered today that good old natit.kext works for property injection. :D everything I inject goes into main VID@2 device, but also into the phantom display@2,1 device lol



I'm starting to think that this phantom display is the main issue here, no idea how to eliminate it. It's weird how the X3100 shows as two separate devices in LSPCI. Both on the T61 and LSPCI from other machines, including the MacBooks that use it. Except in the MacBook IOREG there is no display@2,1 outside the GFX0 device of course.. meh



While I could inject everything from the MacBook3,1 DSDT when using the MacBook5,1 identifier, display corruption (identical to photos in 1st post) returned after switching model identifier back to MacBook3,1 or 4,1. I'm currently trying to figure out exactly what injected data causes the display corruption to happen.



Back to MB4,1 and removed the display overrides. Display corruption gone, re-adding data to Natit.kext plist line by line, rebooting each time. boooooooooring



#6
Slice

Slice

    InsanelyMacaholic

  • Local Moderators
  • 3,285 posts
  • Gender:Male
  • Location:Moscow

I have Dell Inspiron 1525 with Intel X3100 graphics. Screen is 1440x900. It works perfect!

I adopted Clover to inject all needed values for this graphics.

Also, I found that the graphics depends on SMC keys.

The driver AppleIntelGMAX3100FB asks for keys RPlt and EPCI.

My HWSensors adopted for this card to generate appropriate keys.

All in one. Clover+FakeSMC_3.4+HWInfo+X3100 = works!



#7
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,148 posts
  • Gender:Male
  • Location:Brazil

I have Clover on a flash drive, still trying to learn how to use it. Right now I'm using it for emergencies only (read: when I f**k up). I have some doubts and ran into some issues that I can't find an answer to in the FAQ. The whole auto-configuring thing is of course convenient but I'm not happy that I have close to no idea what is actually being auto-configured.

I had Clover installed to the hard drive (root of the OS partition, not EFI) but it seemed like Clover was unable to write to its own folder, no changes that I made in the boot GUI would stick. Maybe because I was missing the HFS+ driver? Also Clover Configurator, which is very helpful when you're a Clover noob, does not run on 10.7.5.



What model identifier are you using on the 1525?



The MacBook4,1 is literally identical to my T61, same CPU, chipset and the X3100 but ACPI_SMC_PlatformPlugin blocks speedstepping. I don't like to do it this way but it seems to work once I delete MacBook4_1.plist from inside. Using Chameleon generated SSDTs, dropping original T61 CPU power management SSDTs.

Trouble is it looks like this leaves the X3100 in a lower power state because some animations are still choppy, for example the desktop as it zooms in after startup.



Latest Chameleon 2.3 svn + FileNVRAM module fixes my nvram.plist issue. Also I suspect copying it to /Extra/Modules using cp -R may have something to do with it :D



I found a MacBook4,1 IOREG dump - as it turns out, the MacBook4,1 also has a "phantom display" outside of the GX0 device..! One step forward, two steps back..



To Do:

Fine tune CPU/GPU power management

Fix USB completely dying after sleep (probably by injecting the usual AAPL stuff through DSDT)

Fix the erratic LCD brightness levels using the backlight code from the first SSDT table and ACPIBacklight.kext

Replace the 7 years old battery lol



#8
Slice

Slice

    InsanelyMacaholic

  • Local Moderators
  • 3,285 posts
  • Gender:Male
  • Location:Moscow

I am not using this computer a year and not updating version.

I replaced/installed many kexts. Clover is old revision. But Clover worked here since rev206. Because Clover is developed for this computer firstly.

ACPI_SMC_PlatformPlugin.MacBook4_1.plist edited.

SSDT for speedstep generated by Clover.

All default values are adopted for this computer.

I am still using 10.6.8 but I think 10.7.5 is also possible, just in 32 bit mode.

Details in my report

Attached File  DarwinDumper_2.7.0_Clover_X64_1539_SL_slice.zip   1.59MB   1 downloads



#9
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,148 posts
  • Gender:Male
  • Location:Brazil

Thank you, I'll dive into that as soon as I am done celebrating here :D



Lion only talks to 8-bit (and lower) EC registers. This is why a ton of DSDT patching has to be done in order to use Rehabman's ACPIbattery.kext. Luckily his repository has a patch for the Thinkpad X220 that only needs a tiny change (see my next post) to work on the T61 as well.



I found out how to use one of the calculation methods used by the X220 battery patch to fix ACPIMonitor.kext fan RPM reading on the T61. The HFN1 (fan RPM) EC register must be split into two separate 8-bit registers.



Based on code from here: http://forum.thinkpa...ic.php?p=607990



Old:

Field (ECOR, ByteAcc, NoLock, Preserve)
{
    Offset (0x84),
    HFN1,   16
}

New:

                    Field (ECOR, ByteAcc, NoLock, Preserve)
                    {
                                Offset (0x84),
                        HFNL,   8,
                        HFNH,   8
                    }

Old:

                  Method (FAN0, 0, NotSerialized) // ACPIMonitor FAN 0 Speed
                  {
                      Store (\_SB.PCI0.LPC.EC.HFN1, Local0) // Store FAN 0 Control to Local0
                      Return (Local0)
                  }

New:

                    Method (FAN0, 0, NotSerialized)
                    {
                        Store (B1B2 (^^EC.HFNL, ^^EC.HFNH), Local0)
                    }

B1B2 calculation method from Rehabman's battery patches that adds up the two 8-bit values (added by the battery patch at DSDT root level)

    Method (B1B2, 2, NotSerialized)
    {
        Return (Or (Arg0, ShiftLeft (Arg1, 0x08)))
    }

This is my favorite T61 discovery so far. :D Thanks to bcc9, Rehabman, THe KiNG, Sebinouse and Silencer for lighting the way.



/EDIT



Rehabman's X220 Battery patch will actually fix this too if you already have the fan control patch in your DSDT before applying the battery patch. lol I can see what this looks like, I'm not trying to take credit for this at all, I had applied the battery patch before discovering the fan control patch. Turns out I'm inventing things that were already discovered and documented by others long ago.



#10
Gringo Vermelho

Gringo Vermelho

    The Jan Bird fix

  • Supervisors
  • 6,148 posts
  • Gender:Male
  • Location:Brazil

While I'm at it..here's a real contribution lol. A very small one.



The X220 ACPIBattery patch splits the 16-bit HWAK into WAK0 and WAK1 but the patch is not fully applied due to HWAK being in _L18 instead of _L1D on the T61.



I verified everything else the best I could. The offset on the two 128-bit registers match, there are no _IRC or _PLD to replace and all the EC registers that get split by the patch are present in the T61 DSDT, except for SBBM.



The T61 fan speed register (HFSP) is already 8-bits.



16-bit registers that aren't patched: SBAE, SBRS, SBBS - SBMD, SBCC - SBOM, SBSI, SBDT.



I went through a T60 DSDT (one of the laptops listed as compatible with the x220 battery patch) and it has the same registers + no SBBM as the T61.



So I guess this means the below is all that's needed for the T61 to be added to the list.



From unmodified T61 DSDT:

    Scope (\_GPE)
    {
        Method (_L18, 0, NotSerialized)
        {
            Store (\_SB.PCI0.LPC.EC.HWAK, Local0)
(...)

After applying the X220 battery patch this section needs to be:

    Scope (_GPE)
    {
        Method (_L18, 0, NotSerialized)
        {
            Store (B1B2 (\_SB.PCI0.LPC.EC.WAK0, \_SB.PCI0.LPC.EC.WAK1), Local0)
