LeoYunta Build Custom Watercooling Ultimate Hack

- - - - -

  • Please log in to reply
14 replies to this topic

#1
LeoYunta

LeoYunta

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts

Hi guys !

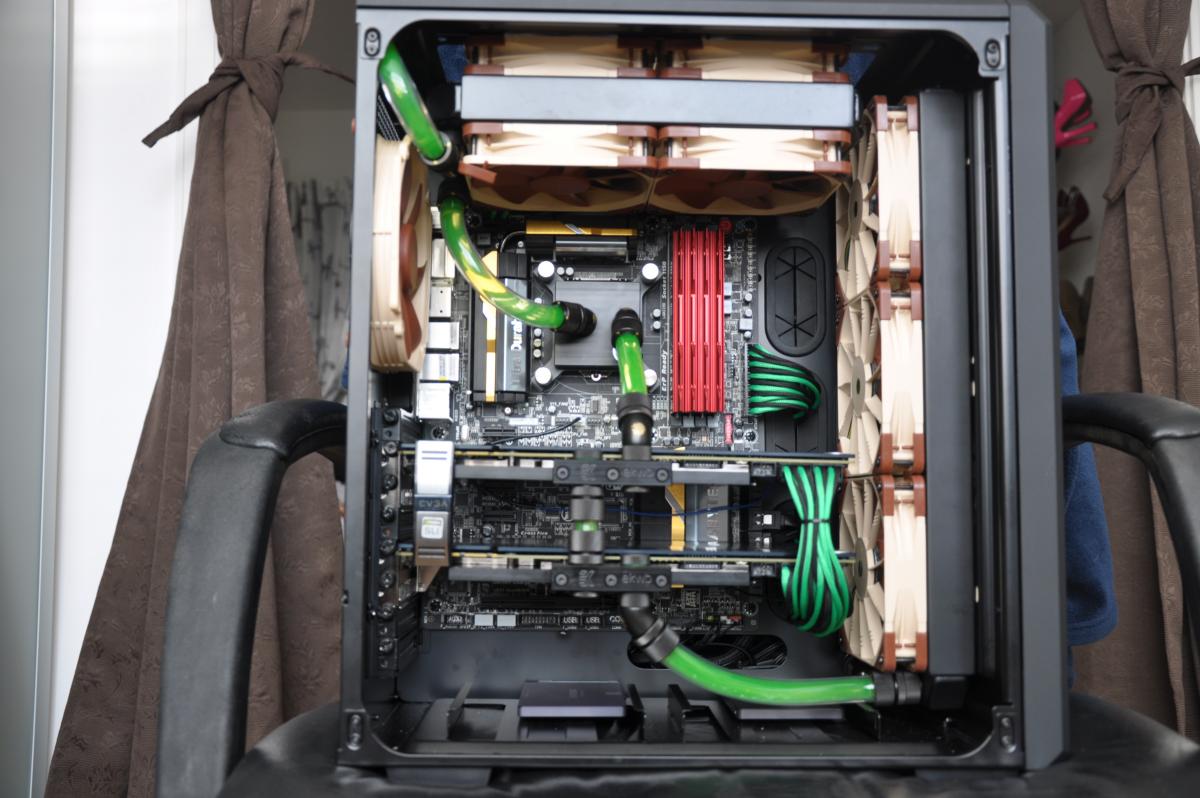

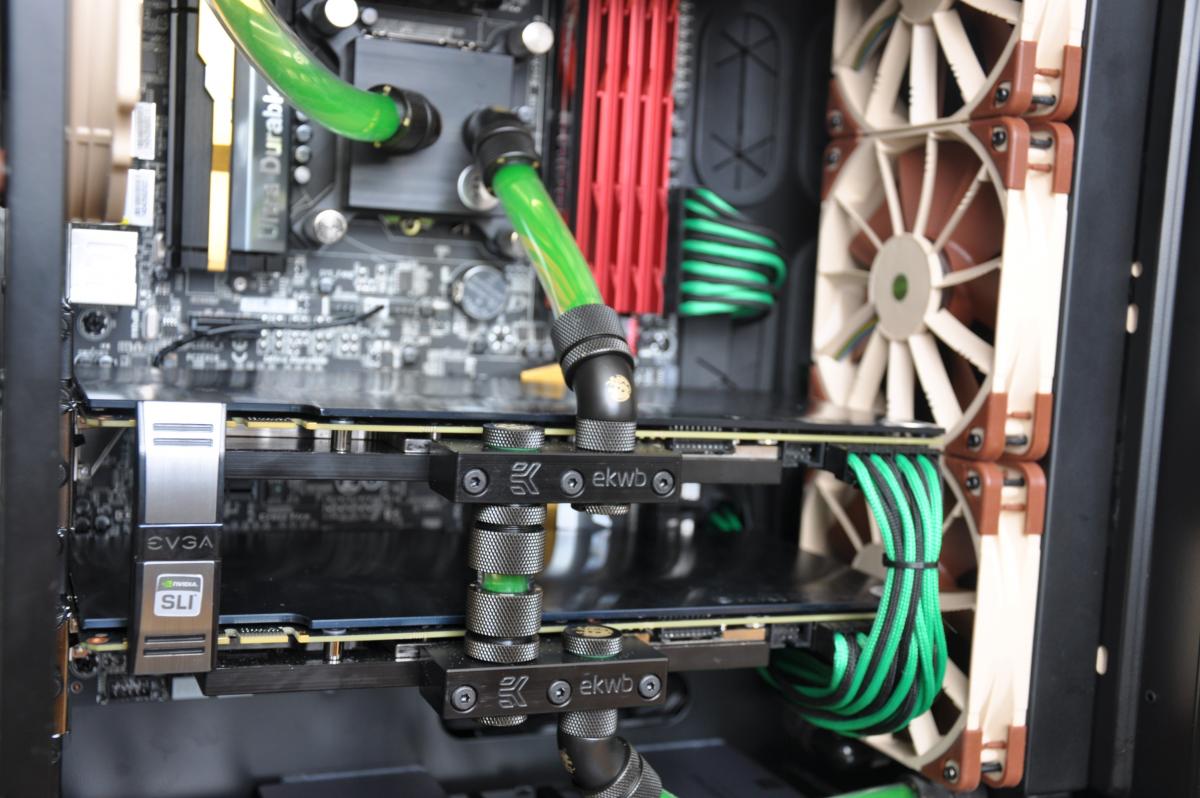

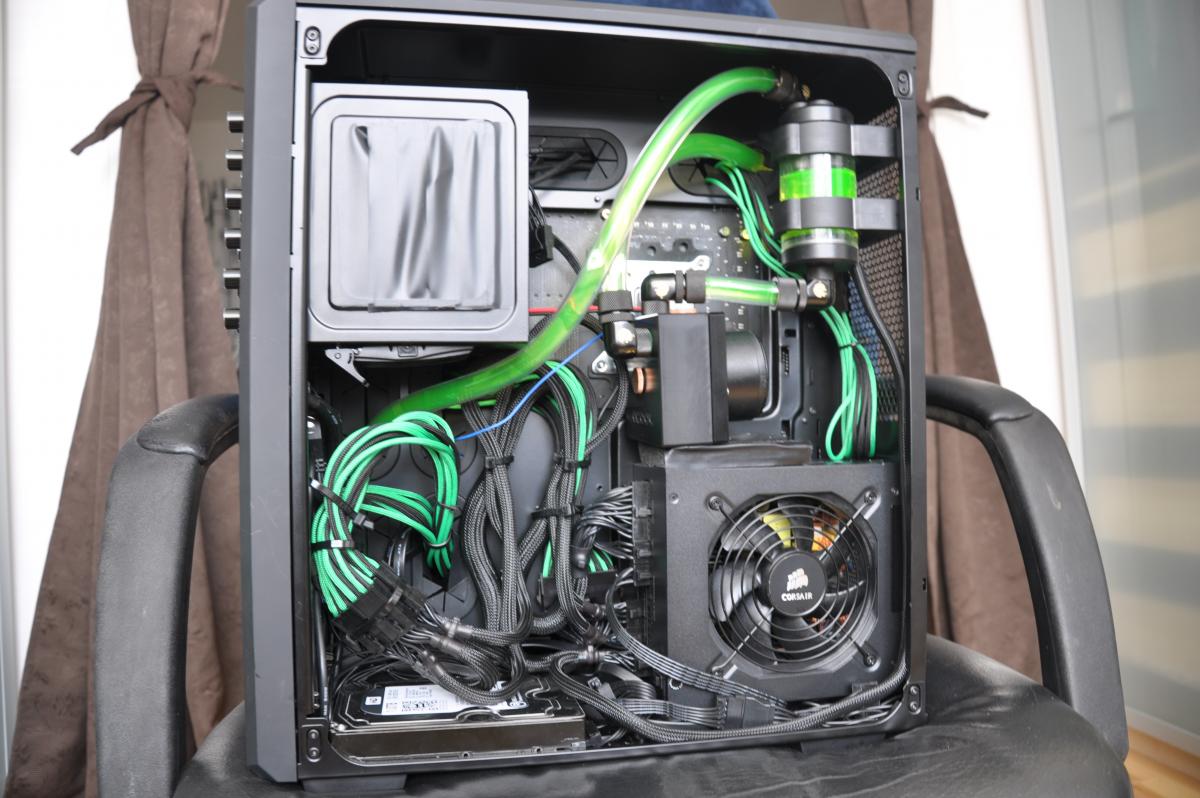

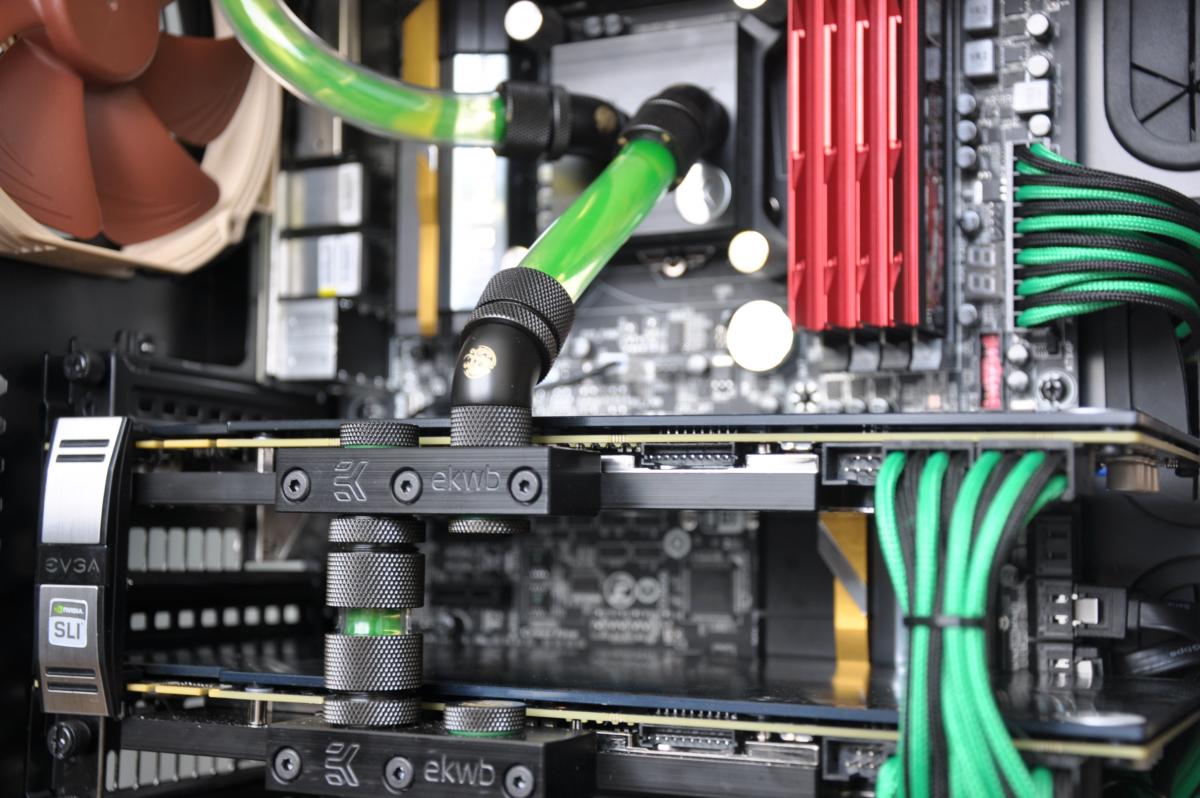

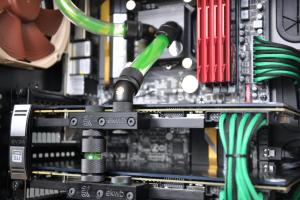

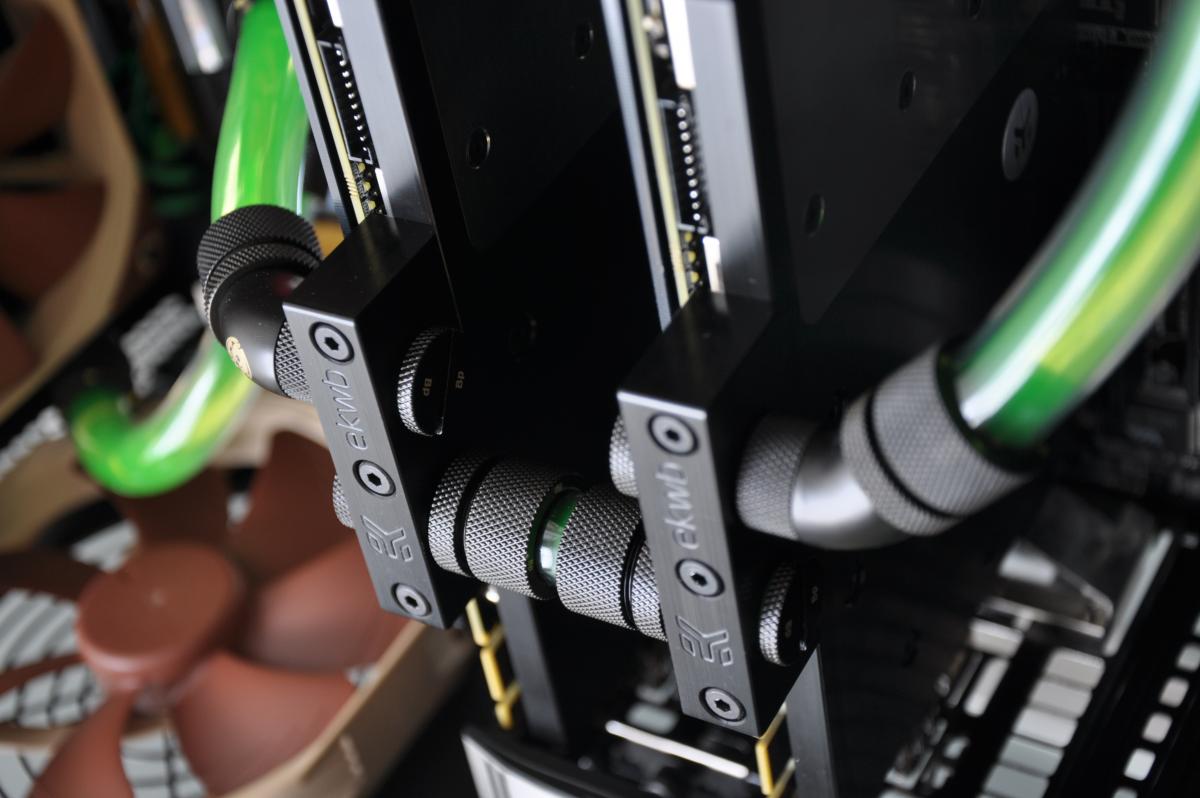

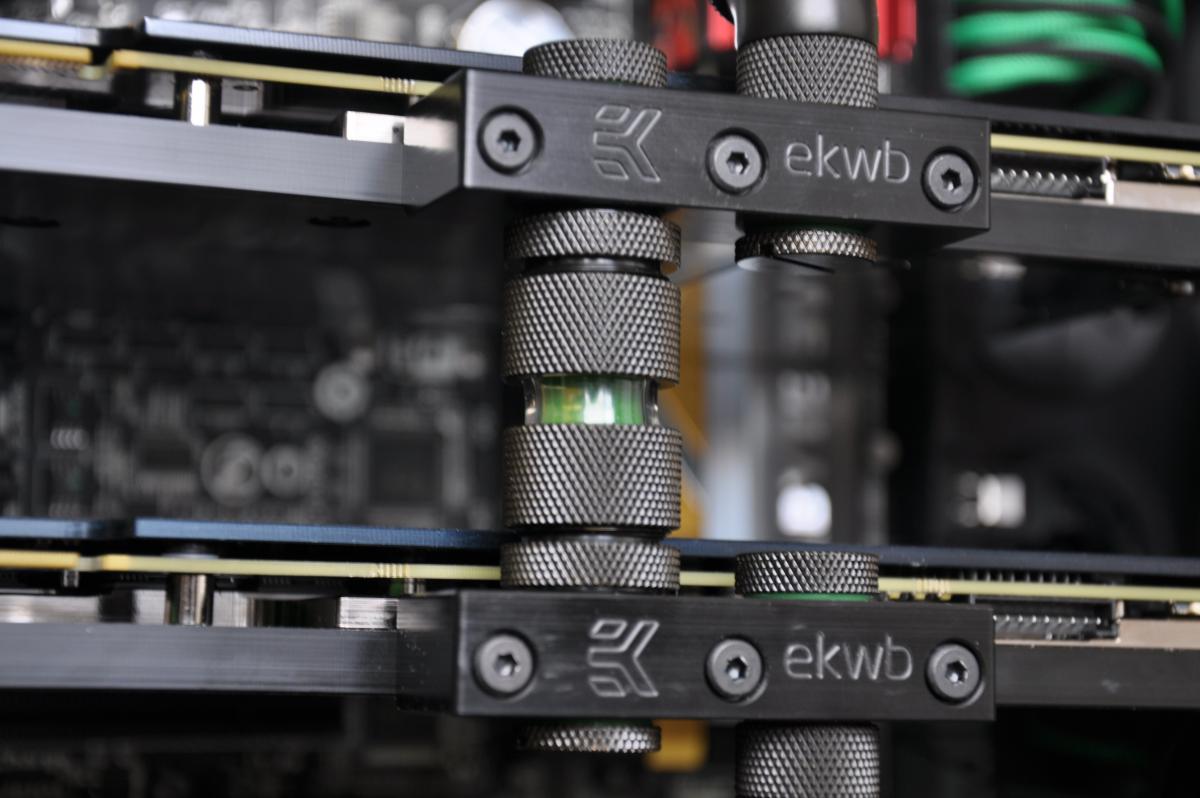

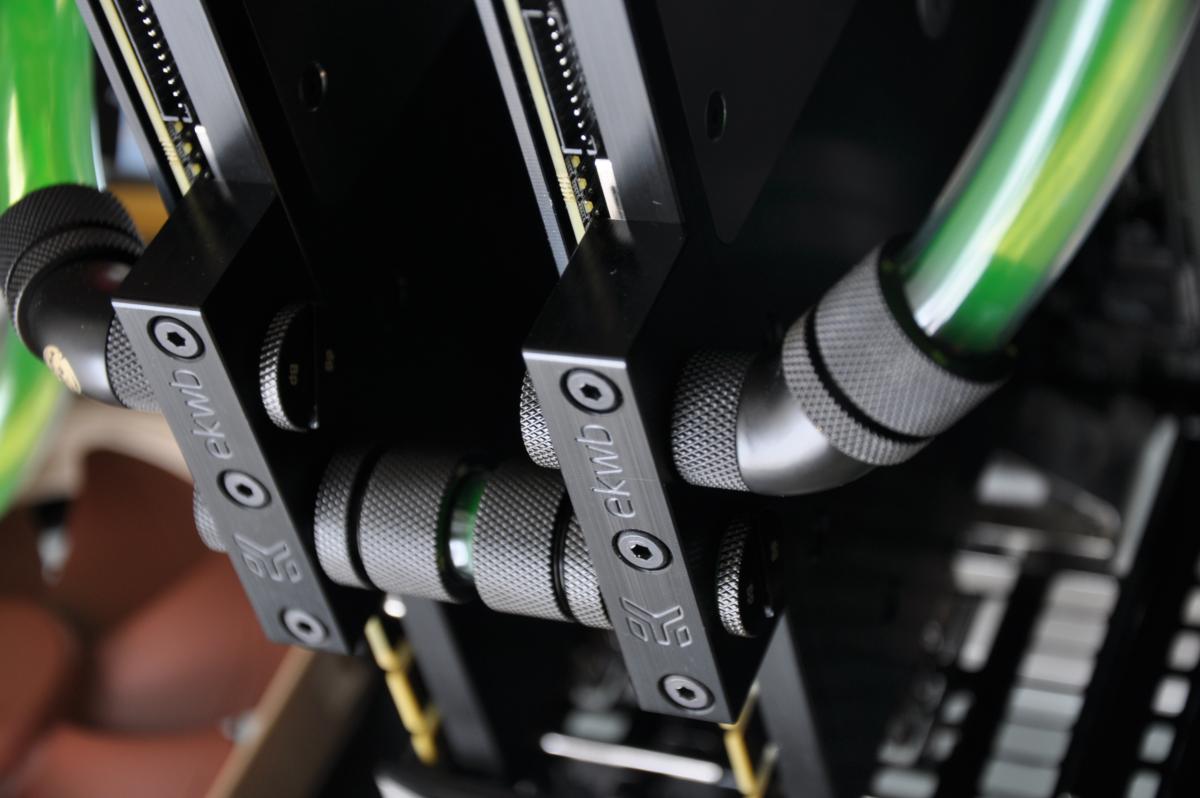

I want to show you my first water-cooled rig.



I actually use Clover with 10.9.2 and Windows 8.1 on my other SSD, 1 SSD per OS.




I use this rig for work (Adobe // Ableton // Movies)

And of course playing.

Triple monitors configuration 7680x1440 in game.





What's inside ?




Component TypeBrandProduct
MotherboardGigabyteZ87X-UD5H
CPUInteli7 4770 @4,5 // 1,34v
Frequency: 45 GHzFSB / QPI: DefaultMultiplier: 45 x
VCore: 1,34 v

RAMG.SKillTrident X @2400mhz // 1,65v
Frequency: 2400 MHzTiming: 10Voltage: 1,65 v
Graphics CardNvidia EvgaGTX 780 CLassified 1215 // 1552 / @1,13v X2
GPU Frequency: 1215 MHzShader Frequency: DefaultMemory Frequency: 1552 MHzSLI: Yes
Case
Corsair
Air 540
Power Supply
Corsair
AX860
Solid State Drive
Samsung
840 Evo 250G
Solid State Drive
Samsung
840 Evo 250G
Monitor
Crossover
27" 1440p
Monitor
Crossover
27" 1440p
Monitor
Crossover
27" 1440p
Accessory
EKWB
EK-Supremacy Clean CSQ - Nickel + Acetal
Accessory
EKWB
EK-FC780 GTX Classy - Acetal + Nickel
Accessory
EKWB
EK-FC780 GTX Classy Backplate
Accessory
EKWB
EK-FC780 GTX Classy - Acetal + Nickel
Accessory
EKWB
EK-FC780 GTX Classy Backplate
Accessory
Alphacool
Alphacool NexXxoS ST30 Full Copper 360mm
Accessory
Alphacool
Alphacool NexXxoS ST30 Full Copper 240mm
Accessory
Alphacool
Alphacool VPP655 Single Edition D5 Pump
Accessory
Alphacool
HF D5 TOP
Accessory
Noctuas
12x Noctua NF-S12B FLX 120mm Premium Fan
Accessory
Alphacool
Cape Corp Coolplex Pro 10 LT
Accessory
Bitspower

All powered by Bitspower fittings



1 To internal WD Black

8 To External stockage





I hope you enjoyed it !



See ya.





Attached Files



#2
PunkNugget

PunkNugget

    InsanelyMac Geek

  • Local Moderators
  • 199 posts
  • Gender:Male

Simply beautiful !!! Now THAT'S a CLEAN, PROFESSIONAL, TIGHT BUILD !!!  :hyper: Well thought out and you didn't spare any expense on the parts. Nice photos too.



Now all we need to see is your current GeekBench score to see how this unit cranks. What temps are you getting since you're using a Push/Pull config? Also, those Noctuas must make things REEEEAL quiet…



By the way… YOU GOT MY VOTE !!!



#3
Allaп

Allaп

    InsanelyMacaholic

  • Local Moderators
  • 2,809 posts
  • Gender:Male
  • Location:Brazil
would be nice if you showed video of boot time, Geekbench, Cinebench...

 YOU GOT MY VOTE!! :thumbsup_anim:


#4
LeoYunta

LeoYunta

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts

Thank you sir.



About the temperature (OC'ed 4,6ghz // 1,34v) :



Idle : 28

Loaded : 60 (up to 70 with torture test prime95 but this is an exception)



GFX (1215//1552 // 1,21v) :

Idle : 25

Loaded : 55



About GeekBench, I don't have a screenshot but I think I was around ~19K OC'ed of course.

I can provide one when I get home.



Absolutely 0 noise, I mean 0, I can't heard the computer running.

If I push the fans at maximum speed, I drop 15° on every components but I can't hear a thing :D


Simply beautiful !!! Now THAT'S a CLEAN, PROFESSIONAL, TIGHT BUILD !!!  :hyper: Well thought out and you didn't spare any expense on the parts. Nice photos too.



Now all we need to see is your current GeekBench score to see how this unit cranks. What temps are you getting since you're using a Push/Pull config? Also, those Noctuas must make things REEEEAL quiet…



By the way… YOU GOT MY VOTE !!!





Oh and by the way... Nice config... Do you have pictures ?



#5
LeoYunta

LeoYunta

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts

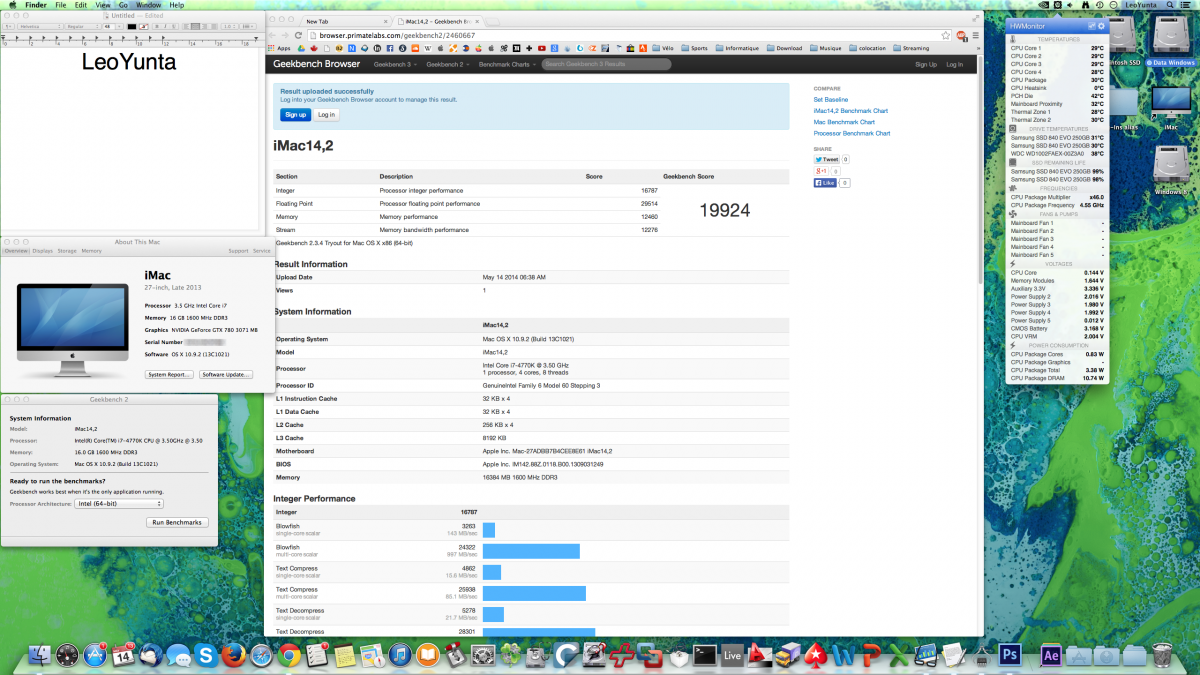

Almost 20K at genkbench



This is funny, my Hackintosh doesn't recognize my overclock in the "about this mac", on my last build, I'm pretty sure it was, at least the memory, but not sure, in the BIOS I'm at 2400Mhz on windows too, strange...But performances are here, and HW detect the good frequency.



Attached File  leo.png   698.3KB   9 downloads



#6
BALDY_MAN

BALDY_MAN

    InsanelyMac Sage

  • Members
  • PipPipPipPipPip
  • 269 posts
  • Gender:Male
  • Location:uk

A STUNNING BUILD WELL DONE



#7
Allaп

Allaп

    InsanelyMacaholic

  • Local Moderators
  • 2,809 posts
  • Gender:Male
  • Location:Brazil



Almost 20K at genkbench



This is funny, my Hackintosh doesn't recognize my overclock in the "about this mac", on my last build, I'm pretty sure it was, at least the memory, but not sure, in the BIOS I'm at 2400Mhz on windows too, strange...But performances are here, and HW detect the good frequency.



Nice.  B)



#8
LeoYunta

LeoYunta

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts

Thank you guys, any idea for my little bug with the frequency ? Not a big deal tho...Maybe because I use the SMBIOS of the iMac 2013, I found this SMBIOS really,really, REALLY, stable for this config.



#9
Allaп

Allaп

    InsanelyMacaholic

  • Local Moderators
  • 2,809 posts
  • Gender:Male
  • Location:Brazil

For edit your About This Mac, read here: Editing ‘About This Mac’



And about frequency, read here: How to know if OC is working on Hackintosh?



#10
greasefork

greasefork

    InsanelyMac Protégé

  • Members
  • Pip
  • 4 posts
nice build mate ^^ ive got a waterloop on my cpu, but would love to get another gtx 590 and add both of them to the loop!

#11
LeoYunta

LeoYunta

    InsanelyMac Protégé

  • Members
  • Pip
  • 12 posts

Thank you guys !

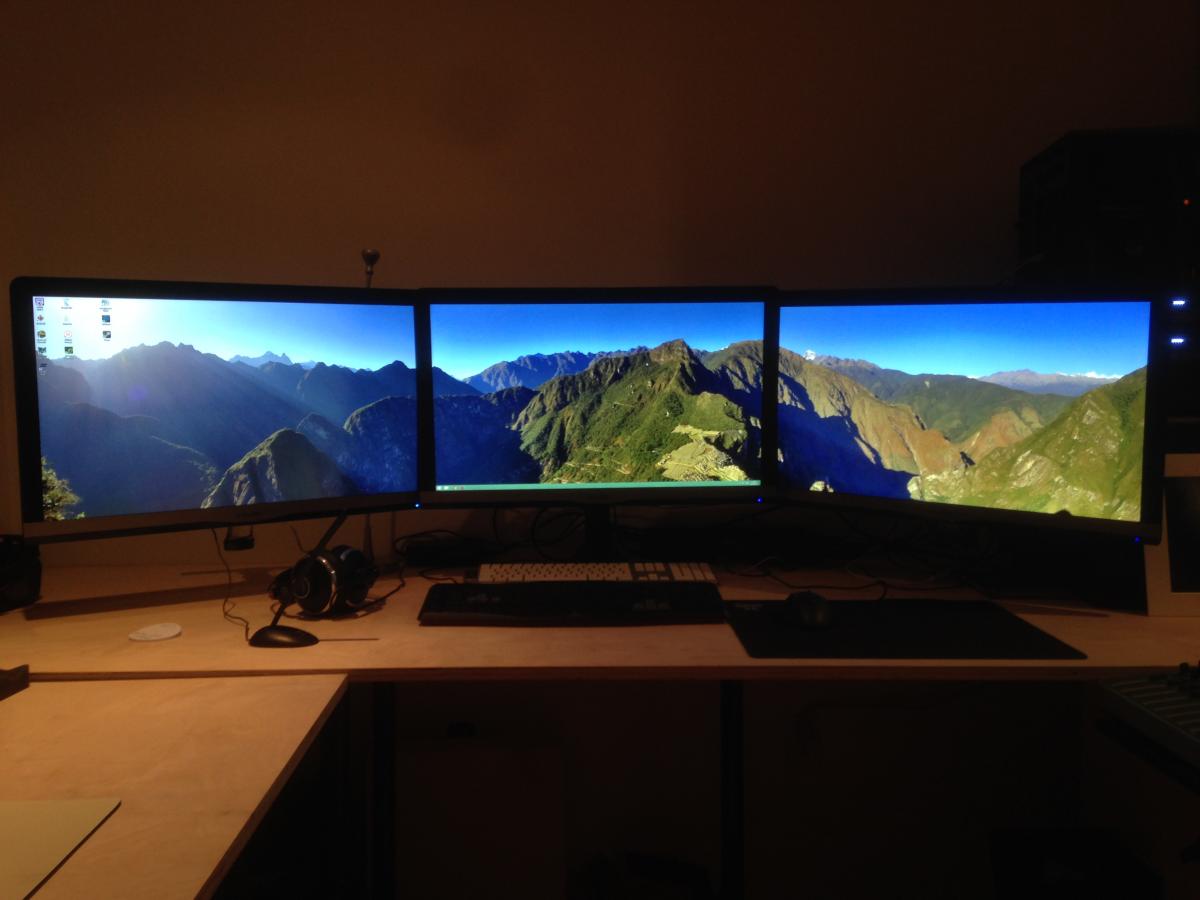

Here is my room !






#12
Allaп

Allaп

    InsanelyMacaholic

  • Local Moderators
  • 2,809 posts
  • Gender:Male
  • Location:Brazil

Nice room.  :star_smile:



#13
theconnactic

theconnactic

    Stubborn AMD user

  • Local Moderators
  • 2,894 posts
  • Gender:Male
You got my vote!

#14
JahStories

JahStories

    InsanelyMac Legend

  • Local Moderators
  • 1,142 posts
  • Gender:Male
  • Location:Sicily, Italy.
  • Interests:Everything that got a screen on it, skateboarding, reggae music, PowerPcs, Amigas and retrogamin...

You got my vote!



#15
MiniHack

MiniHack

    InsanelyMac Legend

  • Donators
  • 629 posts
  • Gender:Male

Lovely - you got my vote!
