SSD with GPT doesn't boot


  • Please log in to reply
14 replies to this topic

#1
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

Hi there!



I have another problem. I've changed my HDD to SSD with GUID schema, and my system doesn't boot up. But if I use a HDD with GUID partition, everything is ok. System is booting up normally.



What is wrong? I have HP Probook 4530s with UEFI support. Maybe change a bootloader to Clover will resolve my problem? I don't know…



#2
westwaerts

westwaerts

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 879 posts
  • Gender:Male

where does it stuck ?

( screenshot, etc.)

did you install chameleon or clover on the new ssd ( stupid question)



#3
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,775 posts
  • Gender:Male
  • Location:Bcn-Spain

ofc, to boot in mode UEFI you need Clover, chameleon not boot in UEFI mode



#4
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts


where does it stuck ?

( screenshot, etc.)

did you install chameleon or clover on the new ssd ( stupid question)



Yes, you have right. Below you can find the screenshoots. I didn't install any bootloader on the new SSD drive. I've made a backup from whole HDD by paragon backup & recovery 2014 free, and then I've restored an image to SSD

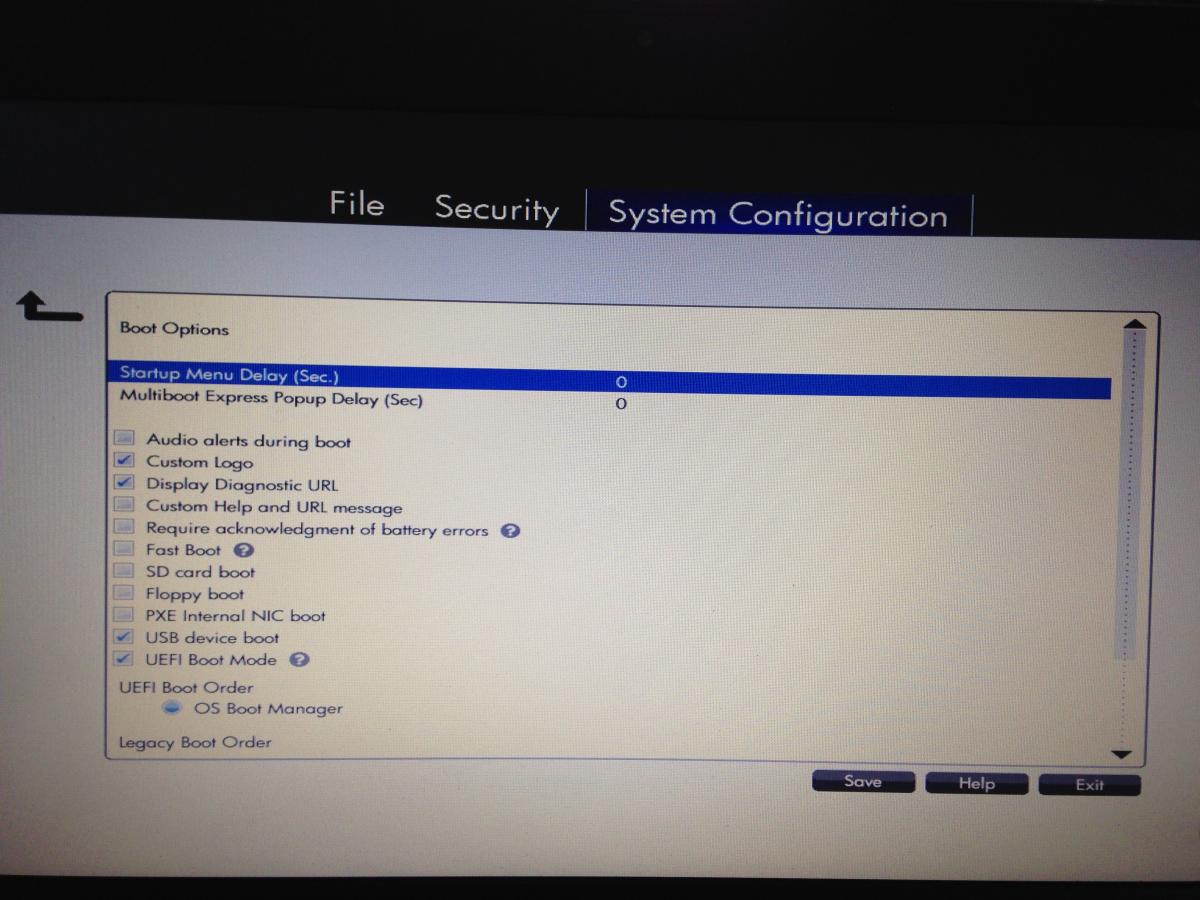

1. Boot options in BIOS

Attached File  IMG_0776.JPG   103.65KB   3 downloads

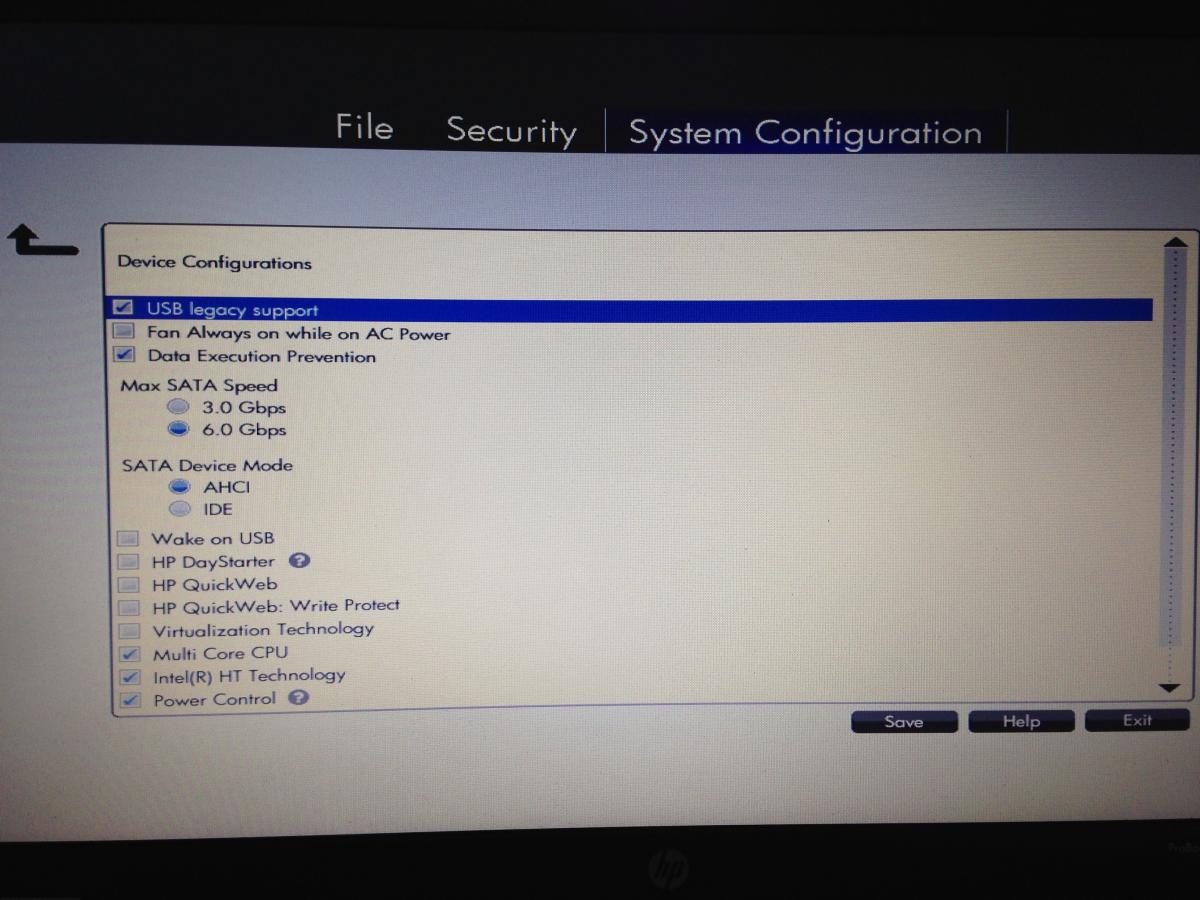

2. Device configurations in BIOS

Attached File  IMG_0777.JPG   105.63KB   3 downloads

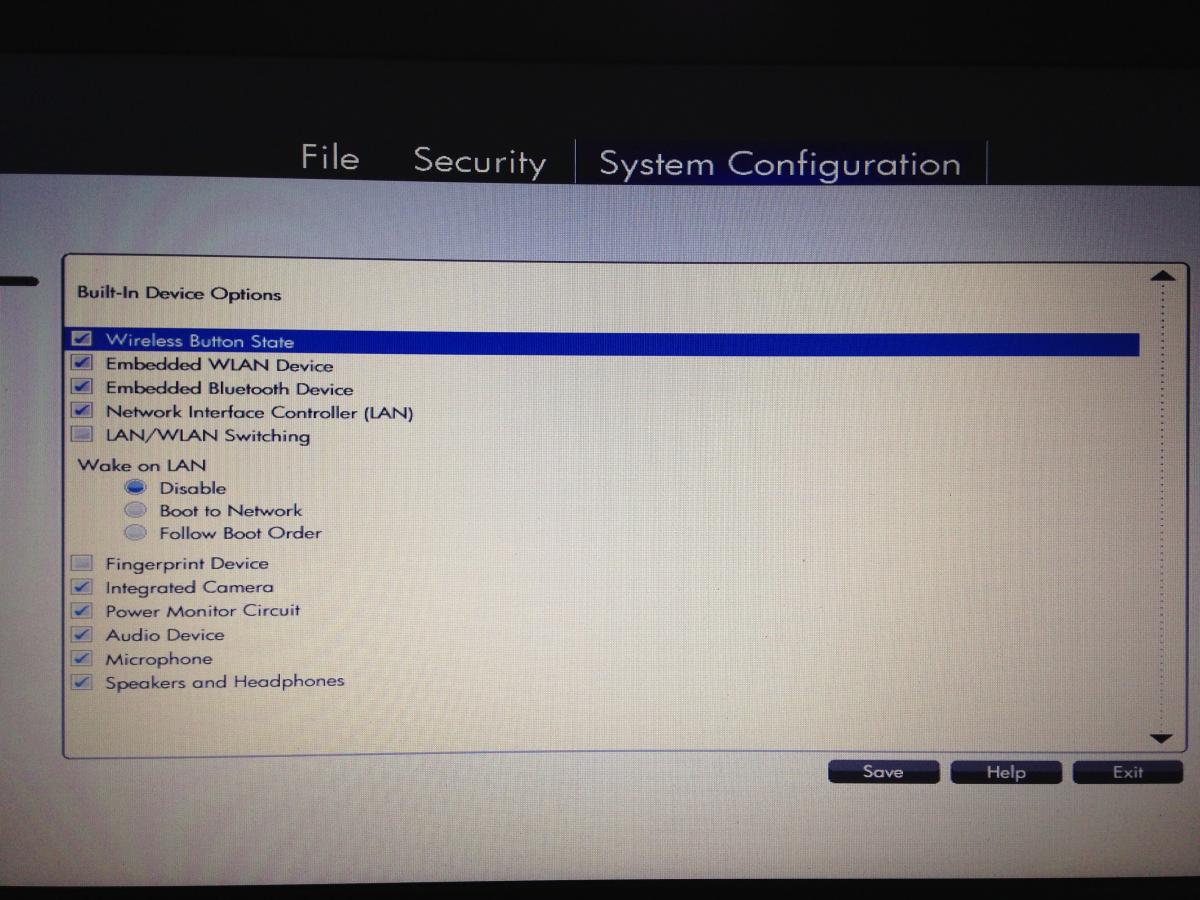

3. Biuld-in Device Options i BIOS

Attached File  IMG_0778.JPG   126.38KB   3 downloads

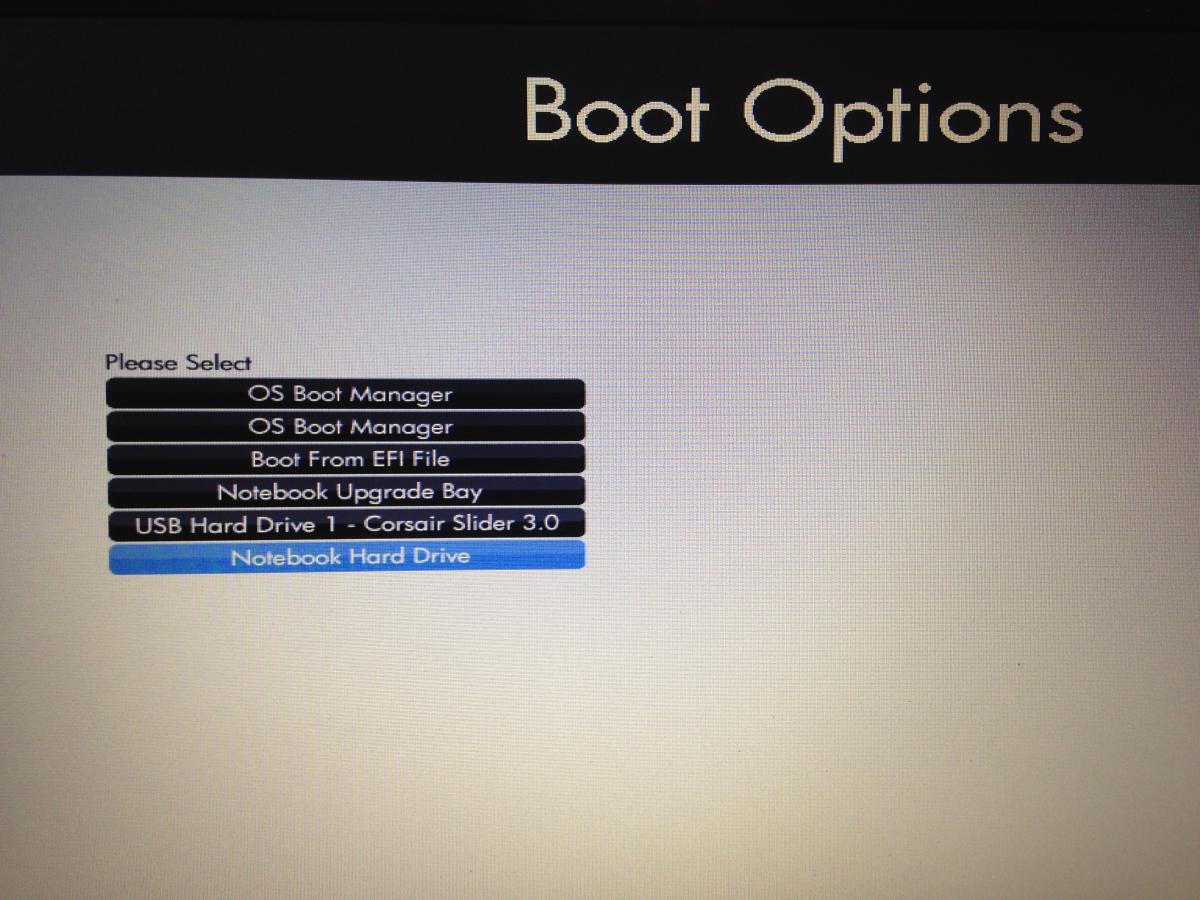

4. Boot options that I can choose during booting

Attached File  IMG_0781.JPG   126.67KB   3 downloads

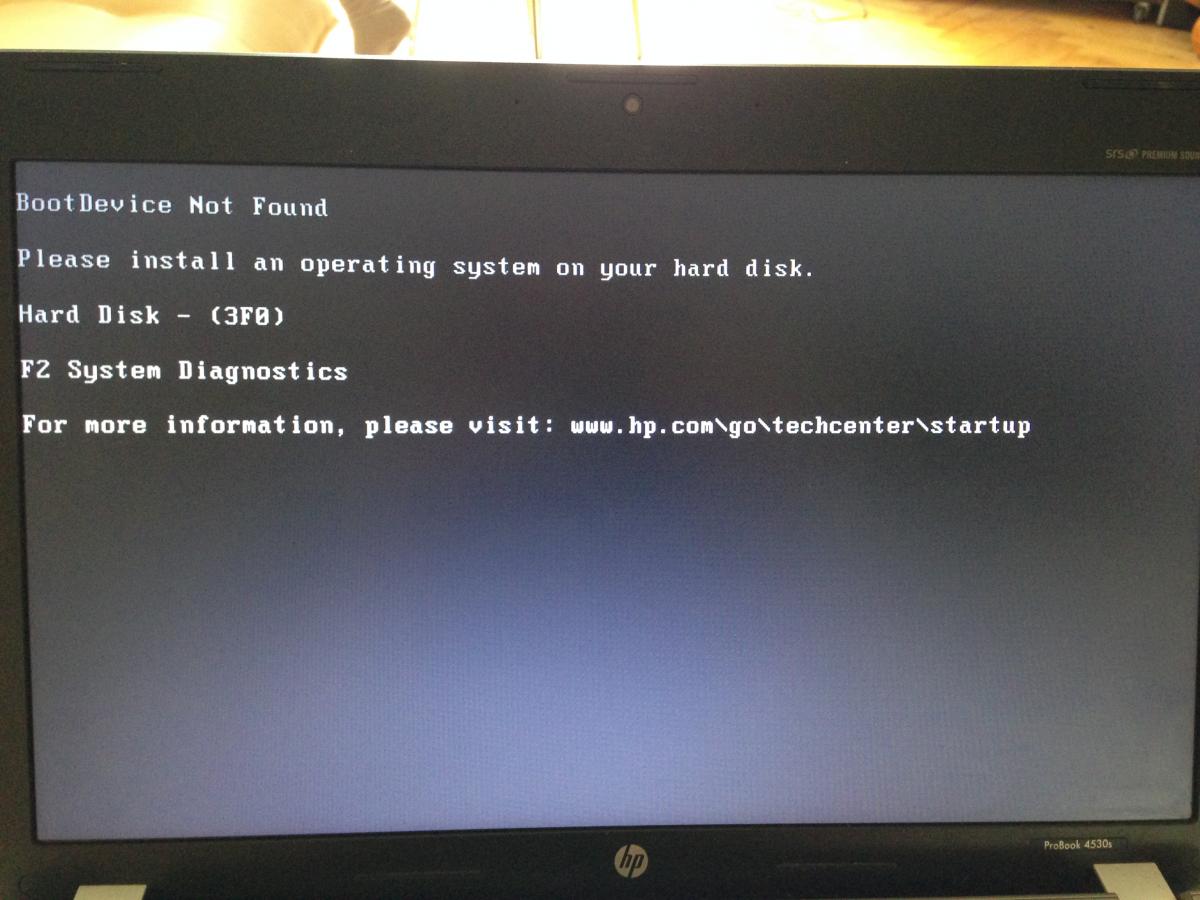

5. Boot error - BIOS or whatever can't see any boot device

Attached File  IMG_0779.JPG   101.85KB   2 downloads

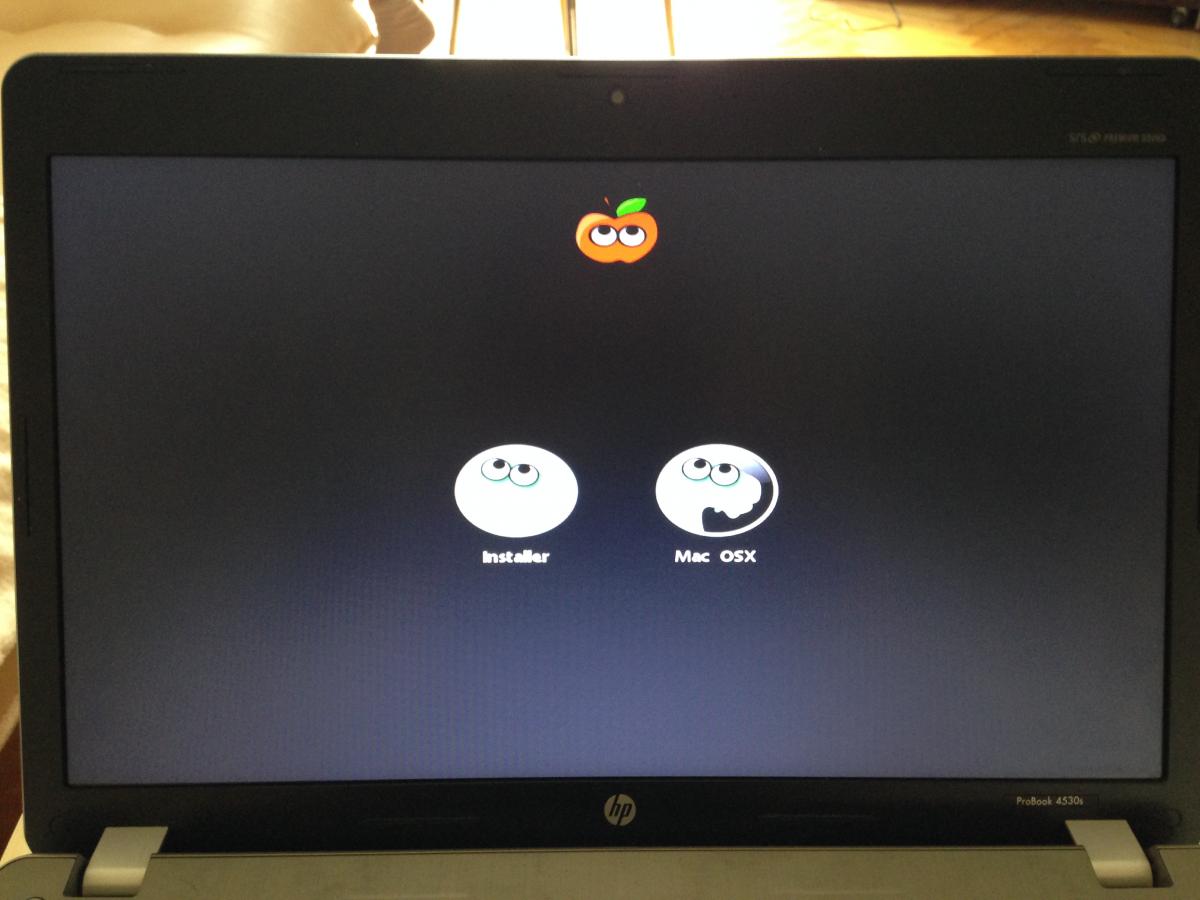

6. But when I choose a USB device with ##### installed in, I can choose boot my SSD and system is booting up.

Attached File  IMG_0780.JPG   74.15KB   3 downloads



#5
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,775 posts
  • Gender:Male
  • Location:Bcn-Spain

in boot options try boot from EFI file , or first to test it, try install first to  a USB FAT32 Formated, in the installer clover try mode UEFI and install all drivers to uefi



#6
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

in boot options try boot from EFI file , or first to test it, try install first to  a USB FAT32 Formated, in the installer clover try mode UEFI and install all drivers to uefi



Wow, sorry but I didn't understand you. Can you explain again, what should I do ? :P



#7
iFIRE

iFIRE

    InsanelyMacaholic

  • Moderators
  • 3,775 posts
  • Gender:Male
  • Location:Bcn-Spain

:)  I didn't install any bootloader on the new SSD drive.=



if you not have installed the boot loader to your new SSD how you want that the HD boot ? :P



try install Clover boot loader  to  a USB  Formated in FAT32, in the installer Clover Choooooose mode UEFI and install all drivers to UEFI Mode



then if you can boot with the USB, go to desktop and make the same, Install Clover , but now to your HD



#8
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

:)  I didn't install any bootloader on the new SSD drive.=



if you not have installed the boot loader to your new SSD how you want that the HD boot ? :P



try install Clover boot loader  to  a USB  Formated in FAT32, in the installer Clover Choooooose mode UEFI and install all drivers to UEFI Mode



then if you can boot with the USB, go to desktop and make the same, Install Clover , but now to your HD



Oh! Now I get it! I didn't install any bootloader, because I've recovered an image of all disk with bootloader… Ok, so now I know, what sholud I do :)



I will write later with the effects :)



#9
westwaerts

westwaerts

    InsanelyMac Legend

  • Members
  • PipPipPipPipPipPipPip
  • 879 posts
  • Gender:Male

quick way:

copy your hd with ccc ( carboncopycloner) in osx to your ssd.

( there are invisible files, that are not copied, if you dont use the right stuff)



then install a bootloader like chameleon or clover

( i would not prefer tony beasts, cause that stuff is a little intransparent)



if your hd booted well, your ssd, after that procedure, should do either.



better way: install clover first on an usb ( to see if everything runs smooth)

then install it to your ssd, then you have a nice and crispy efi-boot.



#10
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

I don't know, which flags should I use to resolve the resolution problem ;( As I said, I have HP Probook 4530s with Intel HD Graphic 3000 build in. After the Mavericks installation, I've used the HP Probook Installer to install all kexts and stuff. Chameleon was installed too by this installer. In the options, I've choose in display mode low resolutions and everything is ok.



Someone can help me fix my resolution problem?

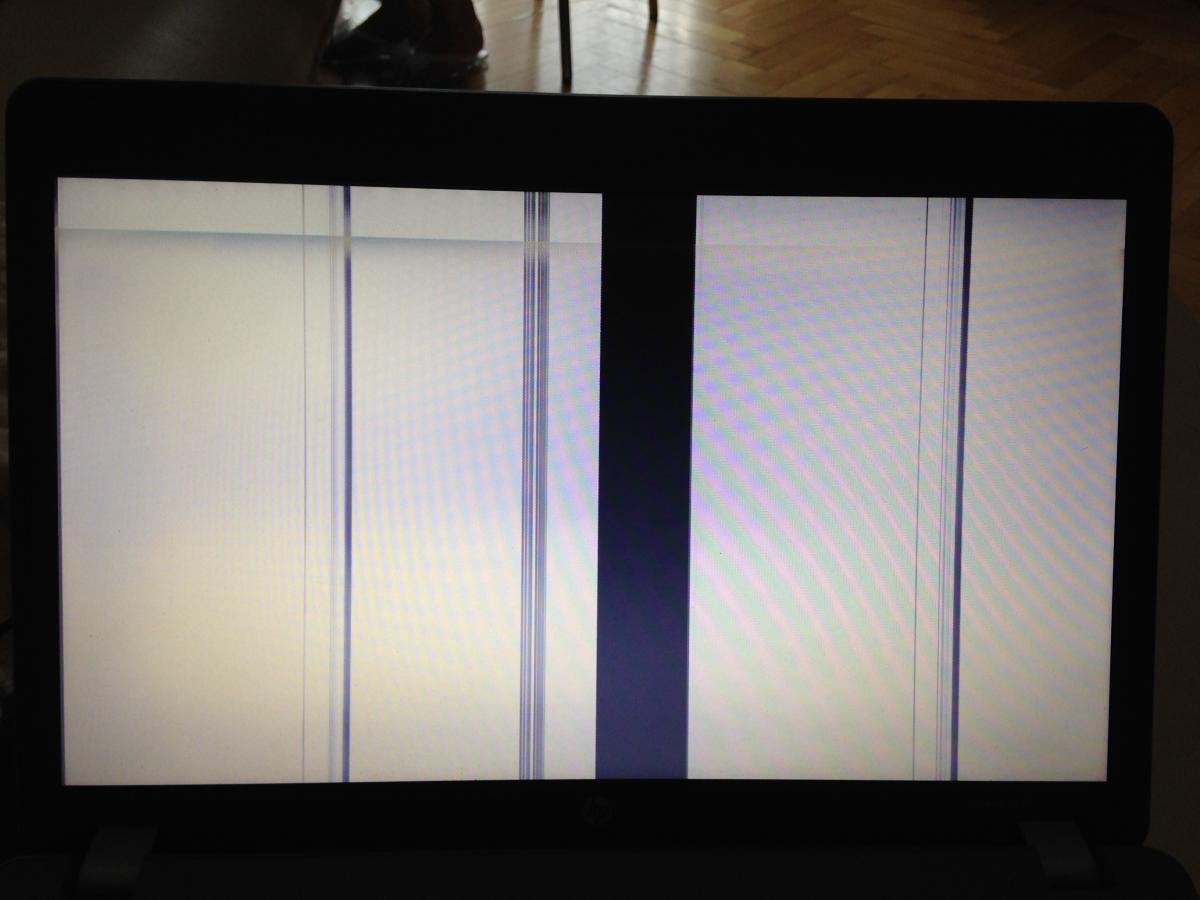

1. Resolution problem

Attached File  IMG_0782.JPG   66.44KB   3 downloads

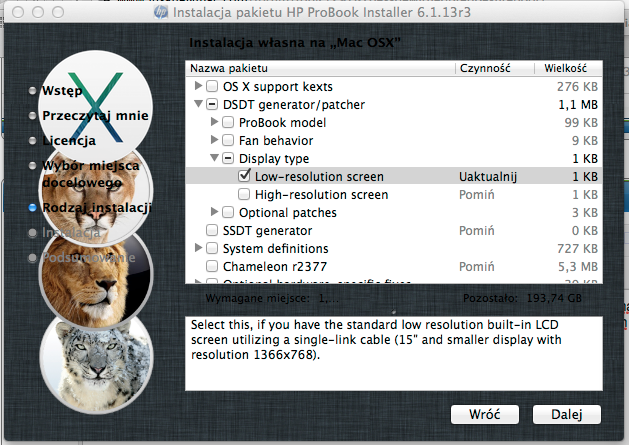

2. HP Probook installer Display Mode

Attached File  Obrazek Wiadomości(1842577744).png   326.11KB   2 downloads





#11
RehabMan

RehabMan

    InsanelyMac Legend

  • Coders
  • 1,298 posts
  • Gender:Male
  • Location:Bellingham, WA
  • Interests:skiing, software, classic cars

I don't know, which flags should I use to resolve the resolution problem ;( As I said, I have HP Probook 4530s with Intel HD Graphic 3000 build in. After the Mavericks installation, I've used the HP Probook Installer to install all kexts and stuff. Chameleon was installed too by this installer. In the options, I've choose in display mode low resolutions and everything is ok.

Someone can help me fix my resolution problem?

1. Resolution problem

2. HP Probook installer Display Mode
attachicon.gifObrazek Wiadomości(1842577744).png


For the ProBook 4530s there is a guide (actually, two of them) on another site.

If you don't know what you're doing, I'd suggest you follow the guide.

#12
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

For the ProBook 4530s there is a guide (actually, two of them) on another site.

If you don't know what you're doing, I'd suggest you follow the guide.



Yeah, I've found it. I've downloaded HP Probook Installer with Clover support, then have installed Clover bootloader and nothing has changed :( the same problem :(



#13
RehabMan

RehabMan

    InsanelyMac Legend

  • Coders
  • 1,298 posts
  • Gender:Male
  • Location:Bellingham, WA
  • Interests:skiing, software, classic cars

Yeah, I've found it. I've downloaded HP Probook Installer with Clover support, then have installed Clover bootloader and nothing has changed :( the same problem :(


Make sure you read the guide carefully. Clue for the day: The options you've used for DSDT patching in your photo will not work and demonstrates clearly you didn't read very carefully.

#14
mati_moto

mati_moto

    InsanelyMac Protégé

  • Members
  • Pip
  • 13 posts

Make sure you read the guide carefully. Clue for the day: The options you've used for DSDT patching in your photo will not work and demonstrates clearly you didn't read very carefully.



Yes, point for you, because I don't understand the guide :/ I need more time for that, I guess, but I am so impatient for that! :P



#15
RehabMan

RehabMan

    InsanelyMac Legend

  • Coders
  • 1,298 posts
  • Gender:Male
  • Location:Bellingham, WA
  • Interests:skiing, software, classic cars

Yes, point for you, because I don't understand the guide :/ I need more time for that, I guess, but I am so impatient for that! :P


The guide details which DSDT options are compulsory.
